3M Products & Supplies

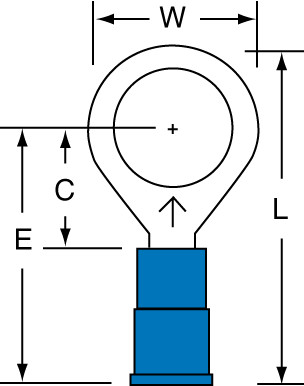

3M™ Vinyl Insulated Butted Seam Multi-Stud Ring Tongue Terminal, 12-26-P - 7100163840

Sold As: 1000-Pack
SKU: 7100163840
MPN: 7100163840
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007298984
3M ID: 80601396981
MPN: 12-26-P
$139.42 ($0.14 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Barrel StyleBrazed
Minimum Stud Diameter (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Ring TypeStandard
UL File NumberE23438
Connection TypeCrimp
Terminal TypeRing
Maximum Conductor Size (Imperial)14 AWG
Insulation MaterialVinyl
Minimum Conductor Size (Metric)1.31 mm²
Country of OriginUnited States
Maximum Operating Temperature (Celsius)175.0
Minimum Stud Diameter (Metric)2.0
Terminal StyleStandard
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)2.08
Minimum Stud Diameter (Imperial) UOMin
