3M Products & Supplies

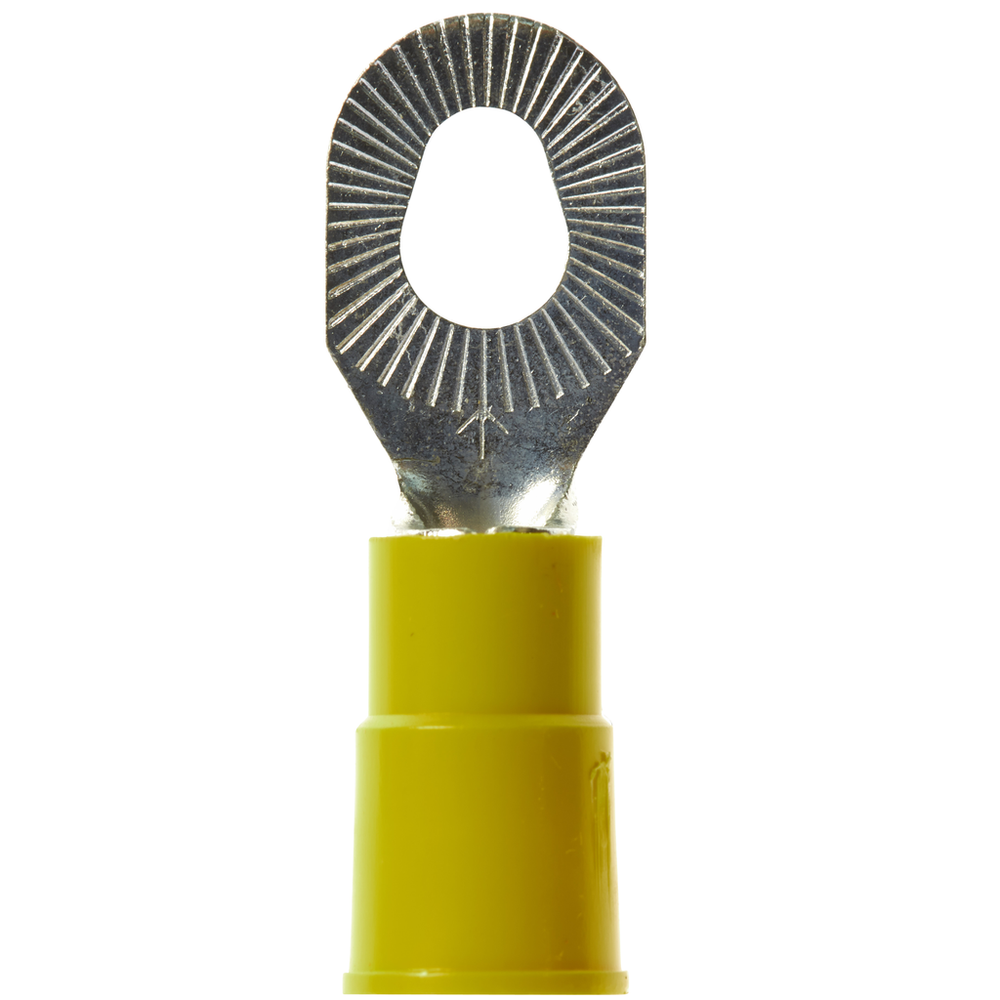

3M™ Vinyl Insulated Butted Seam Multi-Stud Ring Tongue Terminal, 13-610-P - 7100163831

Sold As: 1000-Pack
SKU: 7100163831
MPN: 7100163831
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007296485
3M ID: 80601394291
MPN: 13-610-P
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Maximum Operating Temperature (Celsius)175.0
Minimum Stud Diameter (Metric)3.5
Maximum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection TypeCrimp
UL File NumberE23438
Country of OriginUnited States
Maximum Conductor Size (Imperial)10 AWG
Barrel StyleBrazed
Minimum Stud Diameter (Imperial) UOMin
Terminal StyleStandard
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)5.26
Minimum Conductor Size (Metric)3.31 mm²
Minimum Stud Diameter (Metric) UOMmm
Terminal TypeRing
Insulation MaterialVinyl
Minimum Conductor Size (Imperial)12 AWG
Ring TypeStandard
