3M Products & Supplies

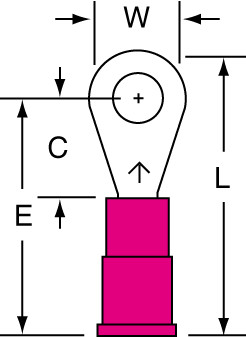

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal, 11-8-P, standard-style ring tongue fits around the stud - 7100163472

Sold As: 1000-Pack
SKU: 7100163472
MPN: 7100163472
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007279013
3M ID: 80601375720
MPN: 11-8-P
$149.83 ($0.15 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Minimum Stud Diameter (Imperial) UOMin
Terminal StyleStandard
Insulation MaterialVinyl
Maximum Conductor Size (Imperial)18 AWG
Minimum Stud Diameter (Metric)4.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Metric)0.326 mm²
Minimum Conductor Size (Imperial)22 AWG
Minimum Stud Diameter (Metric) UOMmm
UL File NumberE23438
Terminal TypeRing
Connection TypeCrimp
Maximum Operating Temperature (Celsius)175.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)0.823
Barrel StyleBrazed
Country of OriginUnited States
Ring TypeStandard
Barrel Length (Imperial)0.25 Inch
