3M Products & Supplies

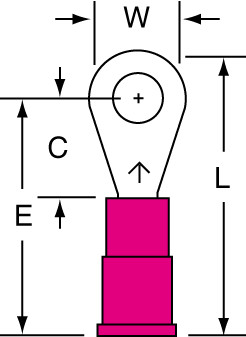

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal, 11-8S-P, standard-style ring tongue fits around the stud - 7100163471

Sold As: 1000-Pack
SKU: 7100163471
MPN: 7100163471
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007279006
3M ID: 80601375712
MPN: 11-8S-P
$167.05 ($0.17 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeRing
Minimum Stud Diameter (Metric)4.0
Barrel Length (Imperial)0.25 Inch
Country of OriginUnited States
UL File NumberE23438
Insulation MaterialVinyl
Connection TypeCrimp
Ring TypeStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)0.823
Maximum Conductor Size (Imperial)18 AWG
Minimum Conductor Size (Metric)0.326 mm²
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius)175.0
Terminal StyleStandard
Minimum Stud Diameter (Imperial) UOMin
Barrel StyleBrazed
