3M Products & Supplies

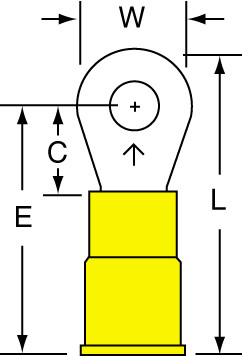

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal 13-8S-P, standard-style ring tongue fits around the stud - 7100163663

Sold As: 1000-Pack
SKU: 7100163663
MPN: 7100163663
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007287087
3M ID: 80601384235
MPN: 13-8S-P
$159.60 ($0.16 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Ring TypeStandard
Minimum Conductor Size (Imperial)12 AWG
Terminal StyleStandard
Minimum Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Terminal TypeRing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Metric) UOMmm
Country of OriginUnited States
Maximum Conductor Size (Metric)5.26
Minimum Stud Diameter (Metric)4.0
Insulation MaterialVinyl
Barrel Length (Imperial)0.25 Inch
Connection TypeCrimp
UL File NumberE23438
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius)175.0
Maximum Operating Temperature (Celsius) UOMDegree
Barrel StyleBrazed
