3M Products & Supplies

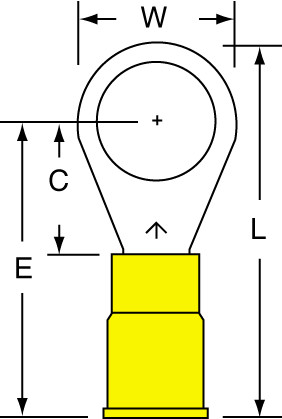

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal 13-38S-P, standard-style ring tongue fits around the stud - 7100163668

Sold As: 1000-Pack
SKU: 7100163668
MPN: 7100163668
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007287155
3M ID: 80601384300
MPN: 13-38S-P
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Minimum Conductor Size (Metric)3.31 mm²
Minimum Stud Diameter (Imperial) UOMin
Insulation MaterialVinyl
Maximum Conductor Size (Metric)5.26
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric) UOMmm
Connection TypeCrimp
Terminal TypeRing
Minimum Conductor Size (Imperial)12 AWG
Minimum Stud Diameter (Metric)9.525
Country of OriginUnited States
Maximum Operating Temperature (Celsius)105.0
