3M Products & Supplies

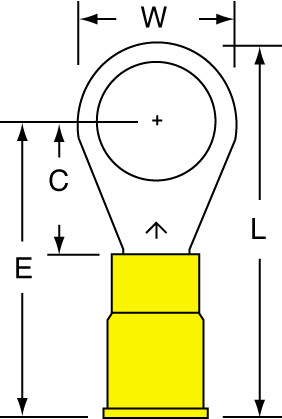

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal 13-38-P, standard-style ring tongue fits around the stud - 7100163669

Sold As: 1000-Pack
SKU: 7100163669
MPN: 7100163669
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007287162
3M ID: 80601384318
MPN: 13-38-P
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Connection TypeCrimp
Country of OriginUnited States
Insulation MaterialVinyl
Ring TypeStandard
Minimum Stud Diameter (Metric)9.525
Terminal StyleStandard
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Metric)5.26
Maximum Conductor Size (Imperial)10 AWG
Minimum Stud Diameter (Imperial) UOMin
Barrel StyleBrazed
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeRing
Maximum Operating Temperature (Celsius)175.0
Minimum Conductor Size (Imperial)12 AWG
UL File NumberE23438
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric) UOMmm
