3M Products & Supplies

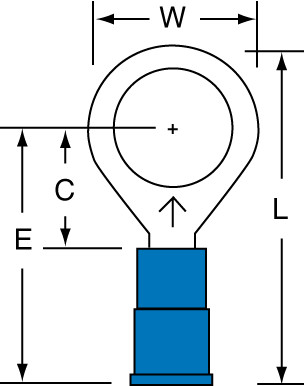

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal 12-38-P, standard-style ring tongue fits around the stud - 7100163572

Sold As: 1000-Pack
SKU: 7100163572
MPN: 7100163572
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007283126
3M ID: 80601380043
MPN: 12-38-P
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
UL File NumberE23438
Minimum Stud Diameter (Imperial) UOMin
Terminal TypeRing
Insulation MaterialVinyl
Terminal StyleStandard
Maximum Conductor Size (Metric)2.08
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Ring TypeStandard
Maximum Conductor Size (Imperial)14 AWG
Minimum Stud Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius)175.0
Minimum Stud Diameter (Metric)9.525
Connection TypeCrimp
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Imperial)16 AWG
Barrel StyleBrazed
