3M Products & Supplies

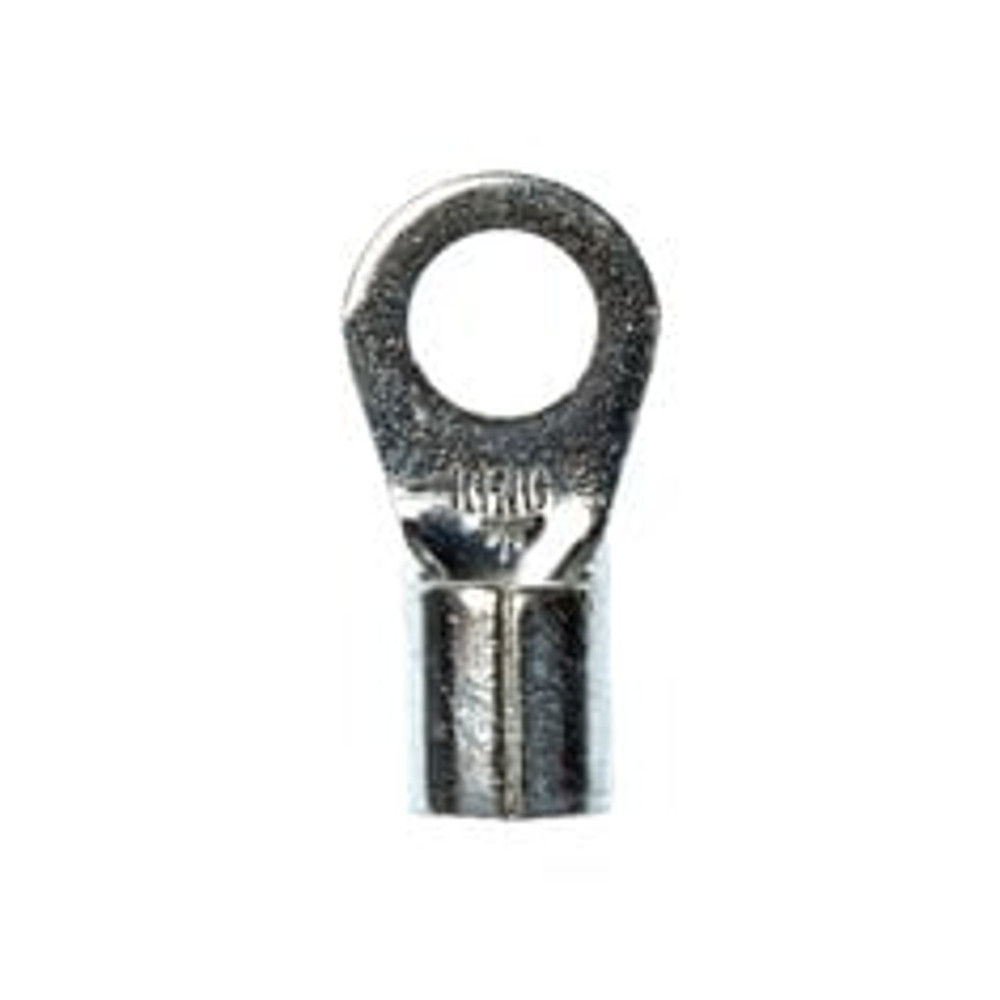

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal, 11-38-P, standard-style ring tongue fits around the stud - 7100163478

Sold As: 1000-Pack
SKU: 7100163478
MPN: 7100163478
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007279099
3M ID: 80601375803
MPN: 11-38-P
$232.97 ($0.23 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Minimum Stud Diameter (Metric)9.525
Terminal TypeRing
Connection TypeCrimp
Minimum Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Ring TypeStandard
Maximum Conductor Size (Imperial)18 AWG
Insulation MaterialVinyl
Minimum Stud Diameter (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Metric)0.326 mm²
Minimum Conductor Size (Imperial)22 AWG
Maximum Conductor Size (Metric)0.823
Country of OriginUnited States
Terminal StyleStandard
Barrel StyleBrazed
Maximum Operating Temperature (Celsius)175.0
