3M Products & Supplies

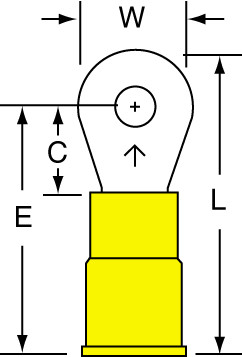

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal 13-6-P, standard-style ring tongue fits around the stud - 7100163662

Sold As: 1000-Pack
SKU: 7100163662
MPN: 7100163662
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007287070
3M ID: 80601384227
MPN: 13-6-P
$159.60 ($0.16 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric) UOMmm
Insulation MaterialVinyl
Minimum Conductor Size (Metric)3.31 mm²
Terminal StyleStandard
Country of OriginUnited States
Ring TypeStandard
Maximum Conductor Size (Imperial)10 AWG
Terminal TypeRing
Maximum Operating Temperature (Celsius)175.0
Maximum Conductor Size (Metric)5.26
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel StyleBrazed
Minimum Conductor Size (Imperial)12 AWG
Minimum Stud Diameter (Metric)3.5
Barrel Length (Imperial)0.25 Inch
UL File NumberE23438
Connection TypeCrimp
Minimum Stud Diameter (Imperial) UOMin
