3M Products & Supplies

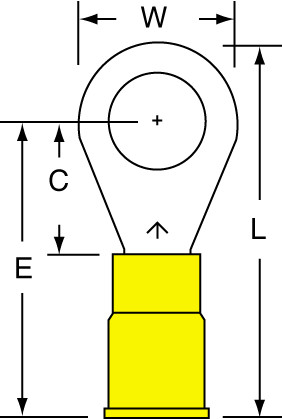

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal 13-14-P, standard-style ring tongue fits around the stud - 7100163666

Sold As: 1000-Pack
SKU: 7100163666
MPN: 7100163666
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007287124
3M ID: 80601384276
MPN: 13-14-P
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Ring TypeStandard
UL File NumberE23438
Insulation MaterialVinyl
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Barrel StyleBrazed
Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric)6.35
Minimum Conductor Size (Metric)3.31 mm²
Country of OriginUnited States
Connection TypeCrimp
Maximum Operating Temperature (Celsius)175.0
Minimum Stud Diameter (Metric) UOMmm
Terminal TypeRing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)5.26
Terminal StyleStandard
Maximum Conductor Size (Imperial)10 AWG
