3M Products & Supplies

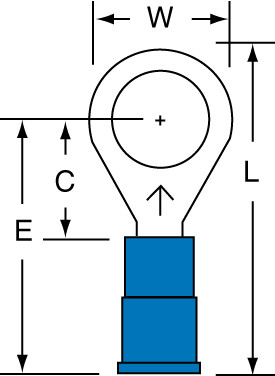

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal 12-56S-P, standard-style ring tongue fits around the stud - 7100163570

Sold As: 1000-Pack
SKU: 7100163570
MPN: 7100163570
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007283102
3M ID: 80601380027
MPN: 12-56S-P
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Terminal TypeRing
Terminal StyleStandard
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)2.08
Maximum Operating Temperature (Celsius)175.0
Ring TypeStandard
Connection TypeCrimp
Minimum Stud Diameter (Metric)7.95
Minimum Stud Diameter (Metric) UOMmm
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialVinyl
UL File NumberE23438
Minimum Conductor Size (Imperial)16 AWG
Minimum Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Barrel StyleBrazed
Minimum Conductor Size (Metric)1.31 mm²
Barrel Length (Imperial)0.25 Inch
