3M Products & Supplies

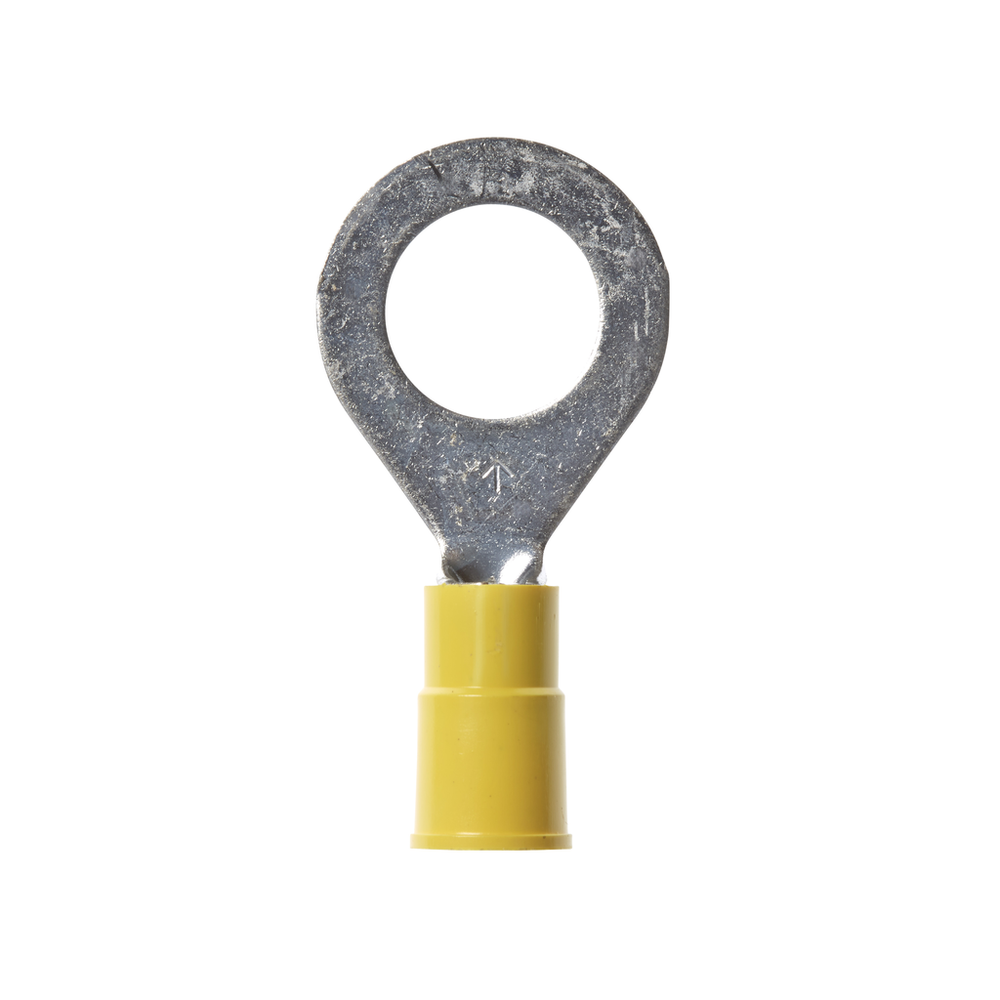

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal 13-716-P, standard-style ring tongue fits around the stud - 7100163670

Sold As: 1000-Pack
SKU: 7100163670
MPN: 7100163670
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007287179
3M ID: 80601384326
MPN: 13-716-P
$298.25 ($0.30 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Maximum Operating Temperature (Celsius)175.0
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Metric)3.31 mm²
Terminal TypeRing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection TypeCrimp
Barrel StyleBrazed
Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric)10.0
UL File NumberE23438
Minimum Stud Diameter (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialVinyl
Country of OriginUnited States
Ring TypeStandard
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Metric)5.26
Terminal StyleStandard
