3M Products & Supplies

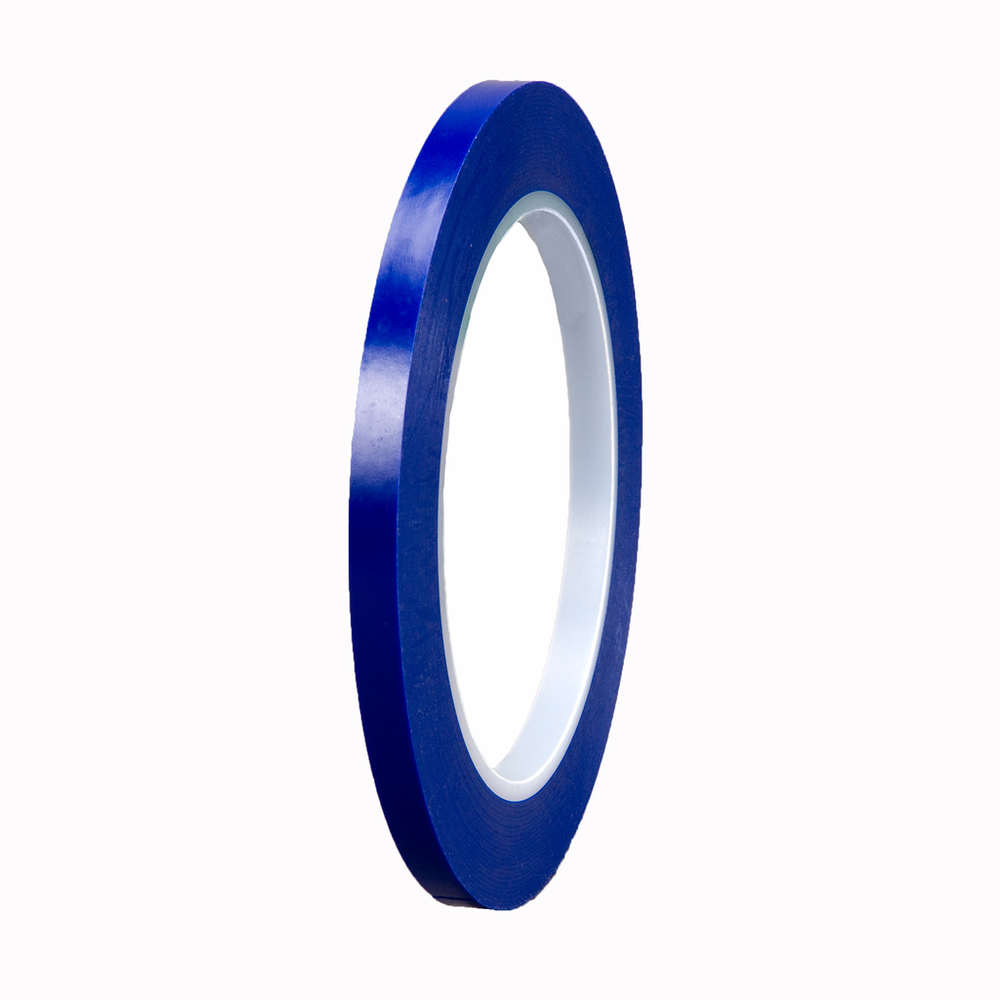

3M™ Vinyl Tape 471+, Indigo, 1/8 in x 36 yd, 5.3 mil, 144 Roll/Case, Individually Wrapped Conveniently Packaged - 7100055258

Sold As: 12-Pack
SKU: 7100055258
MPN: 7100055258
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051131064041
3M ID: 70006767894
5 Digit UPC: 6404
$117.00 ($9.75 / Count)
Hurry up! Current stock:

Product Description

3M™ Vinyl Tape 471+ is a conformable vinyl tape with a versatile rubber adhesive and a moderately translucent backing that allows for accurate masking alignment with simple or complex patterns. This vinyl tape provides clean removal without adhesive residue, even after a 30-minute bake cycle at 250°F (121°C). 3M™ Vinyl Tape 471+ brings performance and productivity for fine line masking in many critical painting applications. Sharp, clean paint lines for color separation are possible because it resists lifting and its versatile rubber adhesive bonds to a wide variety of surfaces, including resins, then lifts off cleanly from flat or compound surfaces. The tape conforms well to curves and is designed to stretch and hold, even with a radius as tight as 1.5-inches. It follows irregular designs to deliver sharp lines. Its moderate translucence allows for alignment where complex patterns are outlined. Flexible vinyl backing is also abrasion-resistant and will protect adjacent surfaces in most sanding operations. When finished, its one-piece removal preserves the sharp paint lines it helped create.

Features

  • Clean removal without ghosting, even after 30 minute bake cycle at temperatures up to 250°F/121°C
  • Excels in masking applications to create sharp, fine paint lines for striping, color separation and complex designs
  • Semi-translucent indigo backing provides some visual see-through for accurate alignment of tape
  • Rubber adhesive provides quick stick with excellent holding strength on most surfaces
  • Unique stretch properties enable tape to remain stretched to conform to uneven surfaces without lifting, thus avoiding paint bleed
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Overall Thickness (Imperial)5.3
Adhesive TypeRubber
Overall Length (Imperial) UOMyd
Overall Thickness (Metric) UOMmm
Product FormRoll
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.135
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)5.3
Adhesion Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Fahrenheit)170.0
Backing Thickness (Metric) UOMmm
Overall Width (Metric)3.2
Maximum Operating Temperature (Celsius)77.0
Overall Height (Metric) UOMmm
Overall Length (Metric)32.9
Overall Width (Imperial) UOMin
Elongation at Break1.3%
Overall Height (Metric)0.1
Backing Thickness (Imperial) UOMmil
Tensile Strength (Imperial)14.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Height (Imperial)5.3
Adhesion Strength35.0
Minimum Operating Temperature (Celsius)4.0
Backing (Carrier) MaterialVinyl
Shelf Life in Months (From Date of Manufacture)18.0
Back Side Adhesive Thickness (Imperial)1.2
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life UOMMonth
Overall Thickness (Imperial) UOMmil
Overall Length (Imperial)36.0
Backing Thickness (Metric)0.1
Minimum Operating Temperature (Fahrenheit)40.0
Adhesion Strength (Metric)38.3
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric) UOMN/cm
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Length (Metric) UOMm
ApplicationAutomotive Masking; Masking for Painting; Medium Temperature Paint Bake; On-line Paint Repair Masking; Paint Application; Paint Baking; Paint Masking; Paint Preparation Masking
Tensile Strength (Imperial) UOMlb/in
Overall Height (Imperial) UOMmil
Back Side Adhesive Thickness (Metric)0.03
Overall Width (Imperial)0.1
Backing MaterialVinyl
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
IndustriesAerospace, Automotive, General Industrial, Specialty Vehicles, Transportation
Overall Thickness (Metric)0.13
Tensile Strength (Metric)24.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorIndigo
Back Side Adhesive Thickness (Metric) UOMmm
Backing Thickness (Imperial)4.1
