3M Products & Supplies

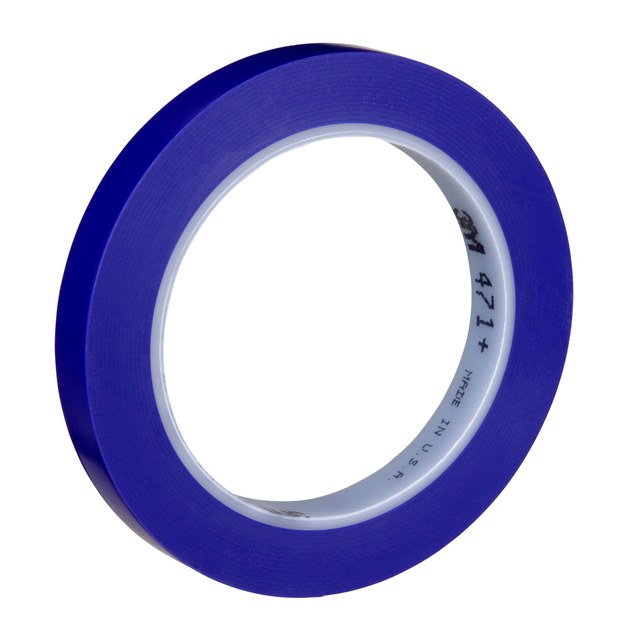

3M™ Vinyl Tape 471+, Indigo, 1 in x 36 yd, 5.3 mil, 36 Roll/Case, Individually Wrapped Conveniently Packaged - 7100057038

Sold As: 12-Pack
SKU: 7100057038
MPN: 7100057038
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051111925119
3M ID: 70006767944
5 Digit UPC: 92511
$233.90 ($19.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Vinyl Tape 471+ is a conformable vinyl tape with a versatile rubber adhesive and a moderately translucent backing that allows for accurate masking alignment with simple or complex patterns. This vinyl tape provides clean removal without adhesive residue, even after a 30-minute bake cycle at 250°F (121°C). 3M™ Vinyl Tape 471+ brings performance and productivity for fine line masking in many critical painting applications. Sharp, clean paint lines for color separation are possible because it resists lifting and its versatile rubber adhesive bonds to a wide variety of surfaces, including resins, then lifts off cleanly from flat or compound surfaces. The tape conforms well to curves and is designed to stretch and hold, even with a radius as tight as 1.5-inches. It follows irregular designs to deliver sharp lines. Its moderate translucence allows for alignment where complex patterns are outlined. Flexible vinyl backing is also abrasion-resistant and will protect adjacent surfaces in most sanding operations. When finished, its one-piece removal preserves the sharp paint lines it helped create.

Features

  • Semi-translucent indigo backing provides some visual see-through for accurate alignment of tape
  • Excels in masking applications to create sharp, fine paint lines for striping, color separation and complex designs
  • Clean removal without ghosting, even after 30 minute bake cycle at temperatures up to 250°F/121°C
  • Rubber adhesive provides quick stick with excellent holding strength on most surfaces
  • Unique stretch properties enable tape to remain stretched to conform to uneven surfaces without lifting, thus avoiding paint bleed
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Elongation at Break1.3%
Overall Width (Imperial) UOMin
Adhesion Strength35.0
Overall Height (Imperial)5.3
Shelf Life in Months (From Date of Manufacture) UOMMonths
ApplicationAutomotive Masking; Masking for Painting; Medium Temperature Paint Bake; On-line Paint Repair Masking; Paint Application; Paint Baking; Paint Masking; Paint Preparation Masking
Minimum Operating Temperature (Celsius) UOMDegree
Overall Thickness (Imperial)5.3
Overall Length (Imperial)36.0
Shelf Life UOMMonth
Adhesion Strength (Metric) UOMN/100mm
Shelf Life in Months (From Date of Manufacture)18.0
Overall Height (Metric)0.1
Tensile Strength (Metric)24.5
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Metric)2.5
Backing MaterialVinyl
Maximum Operating Temperature (Celsius) UOMDegree
IndustriesAerospace, Automotive, General Industrial, Specialty Vehicles, Transportation
Maximum Operating Temperature (Celsius)77.0
Backing Thickness (Imperial)4.1
Overall Height (Metric) UOMmm
Backing Thickness (Metric)0.1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Thickness (Metric)0.13
Product FormRoll
Backing Thickness (Metric) UOMmm
Overall Length (Metric)32.9
Overall Length (Metric) UOMm
Tensile Strength (Imperial)14.0
Maximum Operating Temperature (Fahrenheit)170.0
Product ColorIndigo
Minimum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) MaterialVinyl
Adhesion Strength (Metric)38.3
Back Side Adhesive Thickness (Metric)0.03
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Celsius)4.0
Overall Thickness (Metric) UOMmm
Adhesive TypeRubber
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.135
Overall Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)1.0
Backing Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)5.3
Overall Height (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Tensile Strength (Metric) UOMN/cm
Overall Width (Metric) UOMcm
Back Side Adhesive Thickness (Imperial)1.2
Minimum Operating Temperature (Fahrenheit)40.0
