3M Products & Supplies

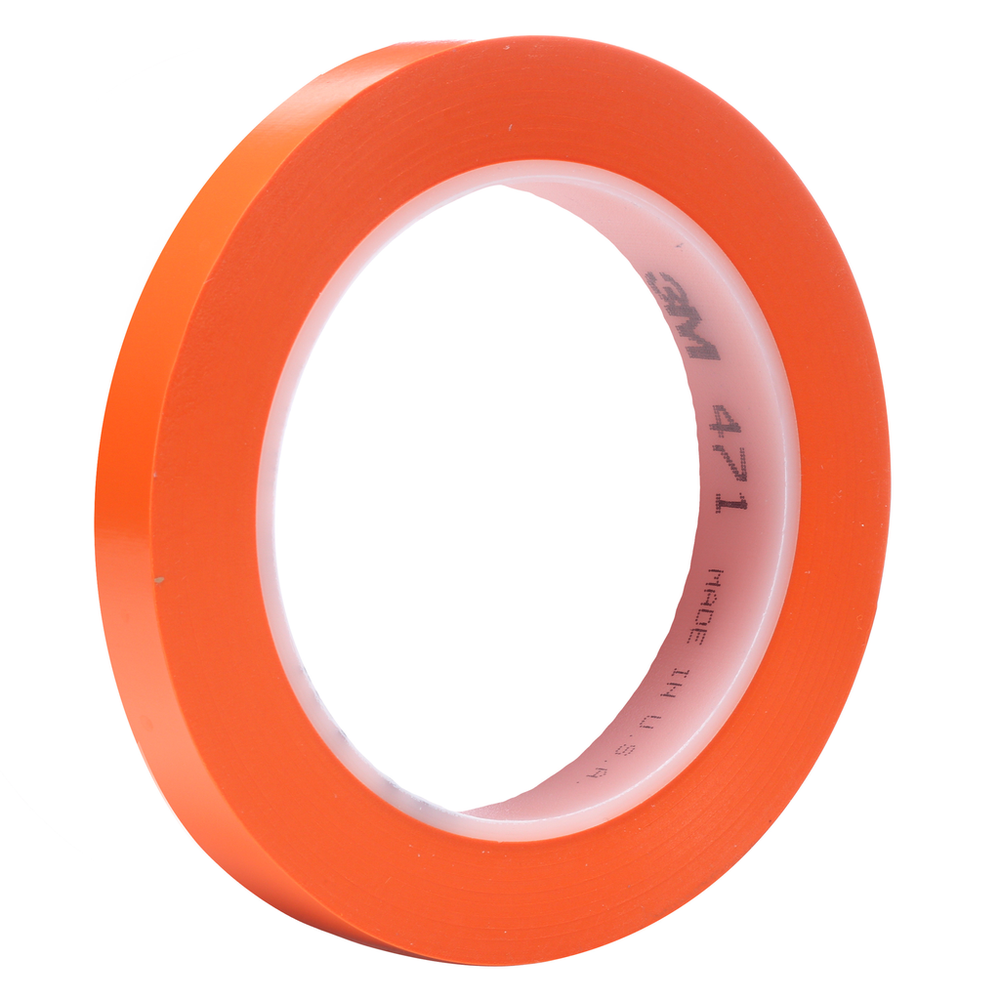

3M™ Vinyl Tape 471, Orange, 1/2 in x 36 yd, 5.2 mil, 72 Roll/Case - 7000123283

Sold As: 72-Pack
SKU: 7000123283
MPN: 7000123283
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200039966
3M ID: 70006010196
5 Digit UPC: 3996
$1,000.33 ($13.89 / Count)
Hurry up! Current stock:

Product Description

3M™ Vinyl Tape 471 is a versatile tape that provides long-lasting floor marking, sharp paint lines, surface protection, and reliable seals in complex situations across a variety of industries. Engineered with unique stretch properties, this tape conforms to rough, irregular, curved, and convex surfaces without lifting. It uses a rubber adhesive that bonds immediately and removes cleanly on a wide variety of substrates. Made for high performance, the vibrant backing resists abrasion, moisture, and solvents. Conformability, instant adhesion, and clean removal all make 3M™ Vinyl Tape 471 an exceptional choice for general-purpose surface protection, floor marking, hazard identification, paint masking, and decorating.

Features

  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • EXCELLENT SEALING: A combination of versatile adhesive and chemical resistant backing can create a robust long or short term seal
  • LONG SERVICE LIFE: Mark and protect surfaces longer thanks to construction that resists abrasion and solvents
  • POWERFUL ADHESIVE: Rubber adhesive provides excellent holding strength on most surfaces
  • COMES OFF CLEAN: Engineered for tidy, one-piece removal to minimize cleanup and labor
  • UNIQUE STRETCHABILITY: Slight elasticity helps this tape tightly conform to uneven surfaces without lifting and retracting
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Adhesive MaterialRubber
Backing Thickness (Metric)0.1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Thickness (Imperial) UOMmil
Overall Thickness (Imperial)5.3
Overall Width (Metric) UOMmm
Backing Thickness (Imperial) UOMmil
Tape Thickness (Imperial)5.2
Shelf Life UOMMonth
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)4.0
Overall Width (Metric)12.7
Maximum Operating Temperature (Celsius) UOMDegree
Units per Case UOMRoll
Backing (Carrier) Thickness (Imperial)4.1
Overall Length (Imperial)36.0
Shelf Life in Months (From Date of Manufacture)18.0
Overall Width (Imperial)0.5
Back Side Adhesive Thickness (Metric)0.1
Elongation at Break130%
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.14
Overall Width (Imperial) UOMin
Adhesive TypeRubber
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) MaterialVinyl
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesion Strength (Metric)28.0
Backing (Carrier) Thickness (Metric)0.1
Tensile Strength (Metric)24.5
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Accessory TypeTape
Minimum Operating Temperature (Fahrenheit)40.0
Self-extinguishingNo
Dielectric Strength0.0
Backing (Carrier) Thickness (Metric) UOMmm
Adhesion Strength26.0
Maximum Operating Temperature (Celsius)76.0
Product ColorOrange
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)32.91
ApplicationPaint Preparation Masking
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Imperial)14.0
Adhesion Strength (Metric) UOMN/100mm
Product FormRoll
Performance LevelHigh Performance
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit)170.0
Units per Case72.0
Back Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)5.2
Backing Thickness (Imperial)4.1
Backing MaterialVinyl
