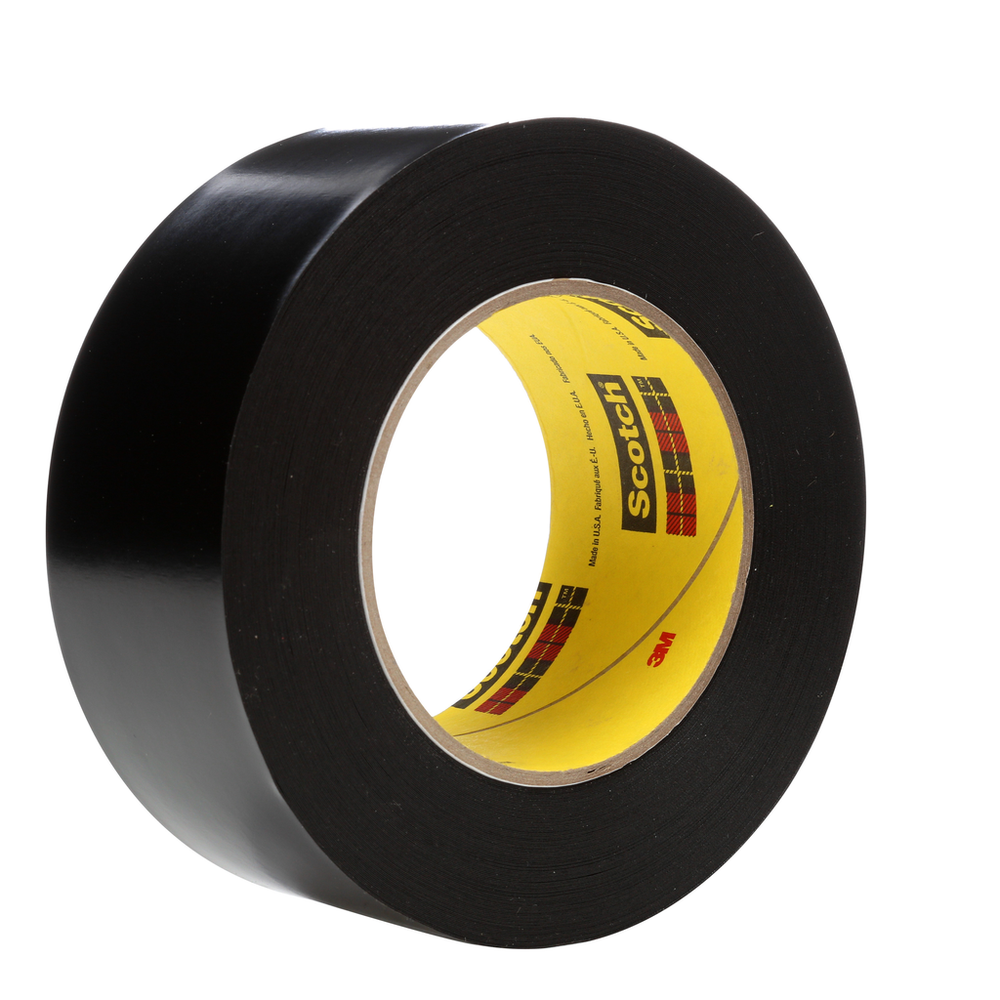

3M™ Vinyl Tape 472, Black, 2 in x 36 yd, 10.4 mil, 24 Roll/Case - 7000048404

Sold As: 24-Pack
SKU: 7000048404
MPN: 7000048404
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200043161
3M ID: 70006021029
5 Digit UPC: 4316
$1,472.07 ($61.34 / Count)
Hurry up! Current stock:

Product Description

Heavy Duty, Abrasion Resistant Protection - 3M™ Vinyl Tape 472 has a thick backing that combines high abrasion resistance with the inherent conformability of a vinyl. Designed with unique stretch properties, this tape conforms to irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive aggressively adheres to a variety of surfaces and maintains its bond for long periods of time, including up to one year in outdoor applications. This combination of the backing and adhesive properties help to keep the tape securely in place, even in rugged and outdoor conditions. Because of the thicker backing, this tape is ideal for protection in areas where heavy abrasion is anticipated, as well as sand blast and bead blast overspray protection. 3M™ Vinyl Tape 472 tape resists most common solvents, but care should be taken to avoid using on highly plasticized materials, as well as ketones, chlorinated hydrocarbons, and esters.

Features

  • Conformable backing makes vinyl tape ideal for use on curved and irregular surfaces
  • Unique stretch properties enable tape to remain stretched to conform to uneven surfaces without lifting and retracting
  • Good solvent resistance for application protection and longer product life
  • Thick backing provides heavy duty protection and increased abrasion resistance
  • Aggressive rubber adhesive bonds to a variety of surfaces for long-term use, even in outdoor applications
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Overall Thickness (Imperial)10.4
Back Side Adhesive Thickness (Metric)0.04
Overall Width (Imperial)2.0
Backing (Carrier) Thickness (Imperial) UOMmil
Adhesion Strength (Metric)25.0
Backing MaterialVinyl
Units per Case24.0
Product FormRoll
Maximum Operating Temperature (Celsius) UOMDegree
Product ColorBlack
Back Side Adhesive Thickness (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture) UOMMonths
Units per Case UOMRoll
Overall Length (Metric)32.9
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.23
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Metric) UOMN/100mm
Adhesion Strength (Metric) UOMN/100mm
Elongation at Break2.7%
Backing Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)225.0
Back Side Adhesive Thickness (Imperial)1.4
Maximum Operating Temperature (Celsius)107.0
Shelf Life in Months (From Date of Manufacture)18.0
Tensile Strength (Imperial)32.0
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesion Strength23.0
ApplicationGeneral Use Vinyl
Total Tape Thickness without Liner (Imperial)10.4
Overall Height (Imperial) UOMmil
Overall Thickness (Imperial) UOMmil
Backing (Carrier) MaterialVinyl
Overall Height (Metric) UOMmm
Backing Thickness (Imperial) UOMmil
Overall Height (Metric)0.3
Overall Width (Imperial) UOMin
Backing Thickness (Imperial)9.0
Overall Height (Imperial)10.4
Total Tape Thickness without Liner (Metric)0.264
Overall Length (Imperial) UOMyd
Adhesive TypeRubber
Overall Width (Metric) UOMcm
Overall Width (Metric)5.1
Backing (Carrier) Thickness (Imperial)9.0
Overall Length (Imperial)36.0
Backing Thickness (Metric)0.23
Overall Length (Metric) UOMm
Tensile Strength (Metric)560.0
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
