3M Products & Supplies

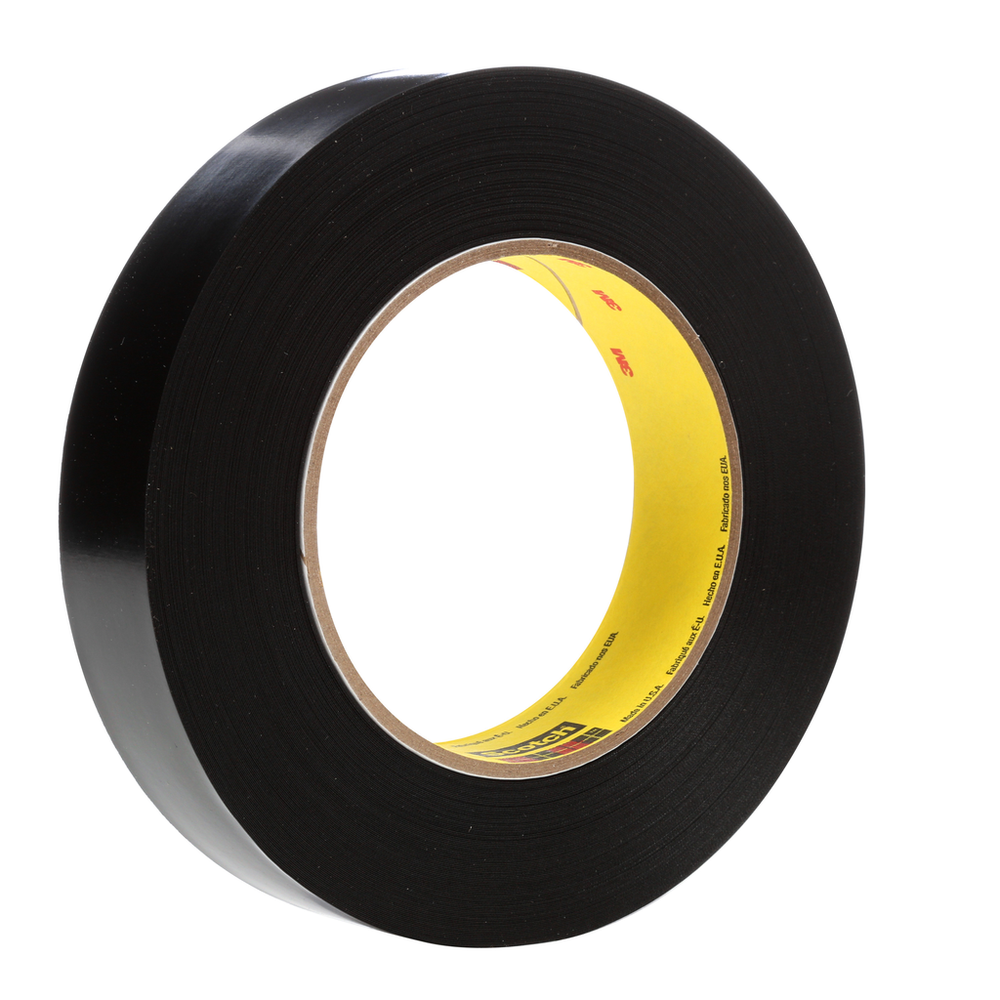

3M™ Vinyl Tape 472, Black, 3 in x 36 yd, 10.4 mil, 12 Roll/Case - 7000047483

Sold As: 12-Pack
SKU: 7000047483
MPN: 7000047483
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200031533
3M ID: 70002417254
5 Digit UPC: 3153
$1,104.05 ($92.00 / Count)
Hurry up! Current stock:

Product Description

Heavy Duty, Abrasion Resistant Protection - 3M™ Vinyl Tape 472 has a thick backing that combines high abrasion resistance with the inherent conformability of a vinyl. Designed with unique stretch properties, this tape conforms to irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive aggressively adheres to a variety of surfaces and maintains its bond for long periods of time, including up to one year in outdoor applications. This combination of the backing and adhesive properties help to keep the tape securely in place, even in rugged and outdoor conditions. Because of the thicker backing, this tape is ideal for protection in areas where heavy abrasion is anticipated, as well as sand blast and bead blast overspray protection. 3M™ Vinyl Tape 472 tape resists most common solvents, but care should be taken to avoid using on highly plasticized materials, as well as ketones, chlorinated hydrocarbons, and esters.

Features

  • Unique stretch properties enable tape to remain stretched to conform to uneven surfaces without lifting and retracting
  • Thick backing provides heavy duty protection and increased abrasion resistance
  • Aggressive rubber adhesive bonds to a variety of surfaces for long-term use, even in outdoor applications
  • Conformable backing makes vinyl tape ideal for use on curved and irregular surfaces
  • Good solvent resistance for application protection and longer product life
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Adhesion Strength (Metric)25.0
Tensile Strength (Imperial) UOMlb/in
Units per Case12.0
Back Side Adhesive Thickness (Metric) UOMmm
Adhesion Strength23.0
Elongation at Break2.7%
Backing (Carrier) Thickness (Imperial)9.0
Backing (Carrier) MaterialVinyl
Backing (Carrier) Thickness (Metric) UOMmm
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Overall Length (Imperial)36.0
Overall Length (Metric)32.9
Shelf Life in Months (From Date of Manufacture)18.0
Backing Thickness (Metric)0.23
Units per Case UOMRoll
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Imperial)32.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.264
Overall Width (Metric) UOMcm
Backing Thickness (Imperial) UOMmil
Product FormRoll
Backing MaterialVinyl
Maximum Operating Temperature (Celsius)107.0
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.23
ApplicationGeneral Use Vinyl
Backing Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial)1.4
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Adhesion Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Height (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)10.4
Overall Width (Metric)7.6
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Length (Metric) UOMm
Overall Thickness (Imperial)10.4
Adhesive TypeRubber
Maximum Operating Temperature (Fahrenheit)225.0
Overall Height (Metric)0.3
Overall Width (Imperial) UOMin
Overall Height (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.04
Overall Thickness (Imperial) UOMmil
Overall Width (Imperial)3.0
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)560.0
Product ColorBlack
Overall Height (Imperial)10.4
Backing Thickness (Imperial)9.0
