3M Products & Supplies

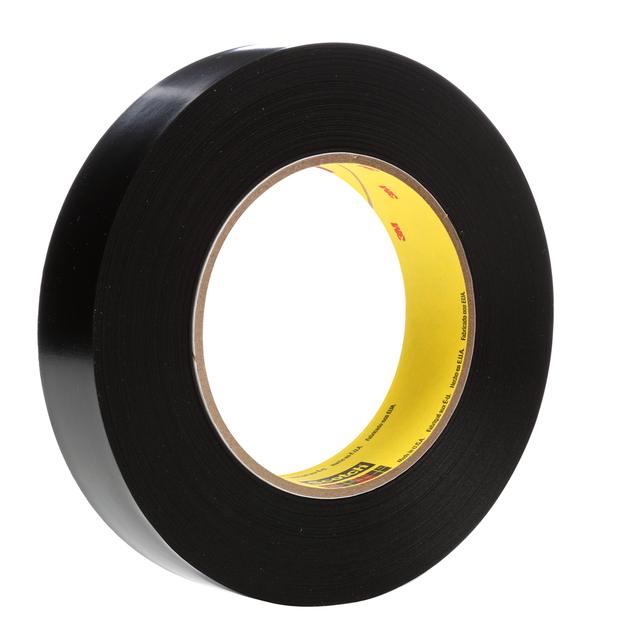

3M™ Vinyl Tape 472, Black, 20 3/4 in x 36 yd, 10.4 mil, 1 Roll/Case, Liner, Untrimmed Edge - 7010313024

Sold As: 10-Pack
SKU: 7010313024
MPN: 7010313024
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111929643
3M ID: 70006715406
5 Digit UPC: 92964
$6,361.80 ($636.18 / Count)
Hurry up! Current stock:

Product Description

Heavy Duty, Abrasion Resistant Protection - 3M™ Vinyl Tape 472 has a thick backing that combines high abrasion resistance with the inherent conformability of a vinyl. Designed with unique stretch properties, this tape conforms to irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive aggressively adheres to a variety of surfaces and maintains its bond for long periods of time, including up to one year in outdoor applications. This combination of the backing and adhesive properties help to keep the tape securely in place, even in rugged and outdoor conditions. Because of the thicker backing, this tape is ideal for protection in areas where heavy abrasion is anticipated, as well as sand blast and bead blast overspray protection. 3M™ Vinyl Tape 472 tape resists most common solvents, but care should be taken to avoid using on highly plasticized materials, as well as ketones, chlorinated hydrocarbons, and esters.

Features

  • Aggressive rubber adhesive bonds to a variety of surfaces for long-term use, even in outdoor applications
  • Unique stretch properties enable tape to remain stretched to conform to uneven surfaces without lifting and retracting
  • Conformable backing makes vinyl tape ideal for use on curved and irregular surfaces
  • Thick backing provides heavy duty protection and increased abrasion resistance
  • Good solvent resistance for application protection and longer product life
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Backing MaterialVinyl
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture)18.0
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)107.0
Overall Length (Metric) UOMm
Overall Width (Metric)527.05
Adhesive TypeRubber
Backing (Carrier) MaterialVinyl
ApplicationGeneral Use Vinyl
Back Side Adhesive Thickness (Metric)0.23
Overall Length (Imperial)36.0
Overall Width (Metric) UOMmm
Adhesion Strength (Metric) UOMN/100mm
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Imperial)32.0
Backing (Carrier) Thickness (Imperial) UOMmil
Backing Thickness (Metric)0.23
Back Side Adhesive Thickness (Metric) UOMmm
Units per Case UOMRoll
Overall Length (Metric)32.91
Adhesion Strength (Metric)25.0
Backing (Carrier) Thickness (Metric)0.23
Total Tape Thickness without Liner (Imperial)10.4
Total Tape Thickness without Liner (Metric) UOMmm
Backing Thickness (Imperial)9.0
Overall Thickness (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture) UOMMonths
Units per Case1.0
Backing Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Adhesion Strength23.0
Maximum Operating Temperature (Fahrenheit)225.0
Backing Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)9.0
Tensile Strength (Metric) UOMN/100mm
Elongation at Break270%
Overall Width (Imperial)20.75
Total Tape Thickness without Liner (Metric)0.264
Product FormRoll
Tensile Strength (Metric)560.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorBlack
Maximum Operating Temperature (Celsius) UOMDegree
Overall Thickness (Imperial)10.4
