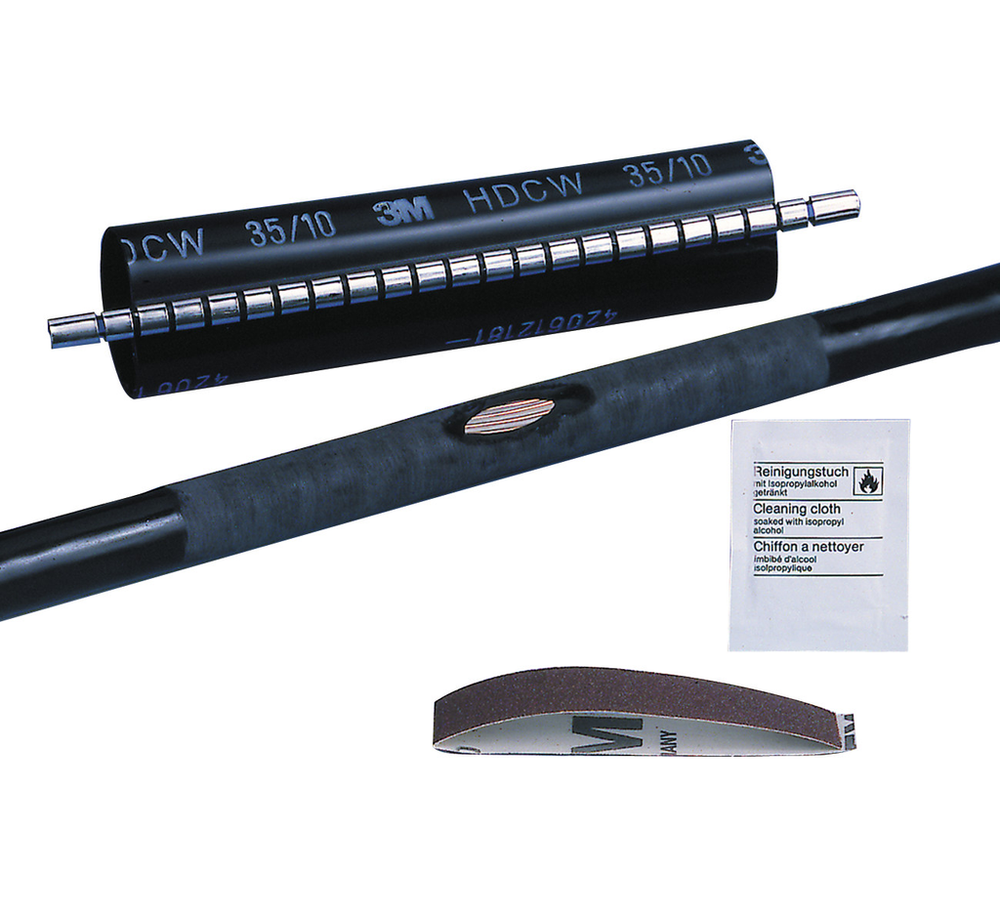

3M™ Wraparound Heat Shrink Cable Repair Sleeve HDCW-140/40-1000, Length 39.4 in (1000 mm), 5/case - 7000138435

Sold As: 5-Pack
SKU: 7000138435
MPN: 7000138435
Stock Item: Stock items typically ship within 2-3 business days
UPC: 04001895590948
3M ID: DE999965747
5 Digit UPC: 59094
$1,414.23 ($282.85 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Repair Sleeve HDCW is designed to repair quickly damaged cable jacketing. This wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.

Features

  • Excellent protection against mechanical stress
  • Made of adhesive-lined, cross-linked polyolefin
  • Offers excellent corrosion protection on undamaged cables
  • Rated for 35 kV applications
  • Thick-walled sheet is tough and reliable
  • ANSI Certified and RoHS 2011/65/EU Compliant

Downloads

Specifications

Shelf Life3600
Country of OriginGermany
Product FormSleeve-roll
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Splice ConfigurationHeat Shrink Cable Repair Wrap Sleeve (HDCW)
Halogen FreeYes
Product TechnologyHeat Shrink
UV ResistantYes
Inner Diameter Before Shrink (Imperial) UOMin
Flame RetardantNo
Maximum Voltage Rating1 kV to 35 kV
Cable TypeAny type of cable
Overall Length (Metric)1000.0
Minimum Expanded Tubing I. D.5.75
Minimum Expanded Tubing I. D. UOMin
Units per Case5.0
Overall Length (Imperial) UOMin
Overall Length (Imperial)39.4
Dielectric Strength (V/mil)26 kV/mm
Splice TypeHeat Shrink
Jacket Repair Range1.57 to 5.51 Inch
MaterialAdhesive-lined, Cross-Linked Polyolefin
Heat Shrink TypeHeat Shrink Molded Shapes
Inner Diameter After Shrink (Imperial)1.3
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)32.0
Inner Diameter After Shrink (Metric) UOMmm
Product TypeSplice
Inner Diameter Before Shrink (Imperial)5.71
Product ColorBlack
Minimum Shrink Temperature (Celsius)125.0
Sleeve Length UOMin
Sleeve Length39.4
Chemical ResistantYes
Inner Diameter Before Shrink (Metric)145.0
Elongation UOM%
Voltage1 kV
Overall Length (Metric) UOMmm
Adhesive LinedYes
Inner Diameter After Shrink (Imperial) UOMin
