3M Products & Supplies

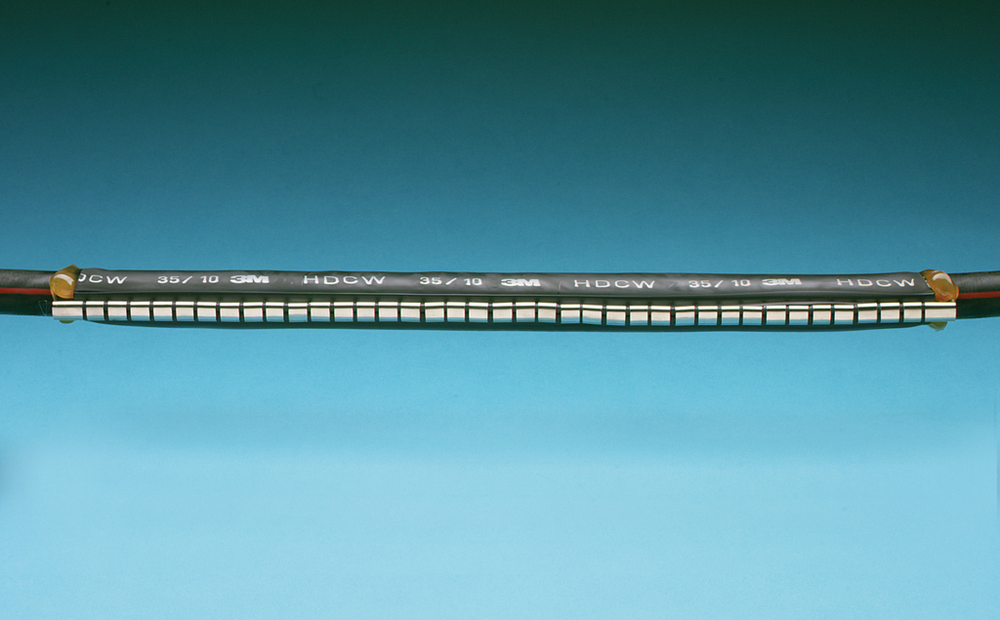

3M™ Wraparound Heat Shrink Cable Repair Sleeve HDCW-35/10-1000, Length 39.4 in (1000 mm), 5/case - 7000138422

Sold As: 5-Pack
SKU: 7000138422
MPN: 7000138422
Stock Item: Stock items typically ship within 2-3 business days
UPC: 04001895590863
3M ID: DE999965341
5 Digit UPC: 59086
$664.68 ($132.94 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Repair Sleeve HDCW is designed to repair quickly damaged cable jacketing. This wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.

Features

  • Offers excellent corrosion protection on undamaged cables
  • Excellent protection against mechanical stress
  • ANSI Certified and RoHS 2011/65/EU Compliant
  • Rated for 35 kV applications
  • Made of adhesive-lined, cross-linked polyolefin
  • Thick-walled sheet is tough and reliable

Downloads

Specifications

Shelf Life3600
Country of OriginGermany
Overall Length (Imperial) UOMin
Product TypeSplice
Splice ConfigurationHeat Shrink Cable Repair Wrap Sleeve (HDCW)
Cable TypeAny type of cable
Units per Case5.0
Minimum Expanded Tubing I. D.1.69
Sleeve Length39.4
Heat Shrink TypeHeat Shrink Molded Shapes
Inner Diameter Before Shrink (Metric) UOMmm
Dielectric Strength (V/mil)15 kV/mm
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Product FormSleeve-roll
Minimum Expanded Tubing I. D. UOMin
Product ColorBlack
Chemical ResistantYes
Halogen FreeYes
Inner Diameter After Shrink (Imperial)0.3
Overall Length (Metric)1000.0
Jacket Repair Range0.39 to 1.38 Inch
Voltage1 kV
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UV ResistantYes
Sleeve Length UOMin
Adhesive LinedYes
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Voltage Rating1 kV to 35 kV
Inner Diameter After Shrink (Metric)8.0
Elongation UOM%
Inner Diameter Before Shrink (Imperial)1.97
MaterialAdhesive-lined, Cross-Linked Polyolefin
Inner Diameter After Shrink (Imperial) UOMin
Splice TypeHeat Shrink
Product TechnologyHeat Shrink
Flame RetardantNo
Minimum Shrink Temperature (Celsius)125.0
Inner Diameter Before Shrink (Metric)50.0
Overall Length (Imperial)39.4
