3M Products & Supplies

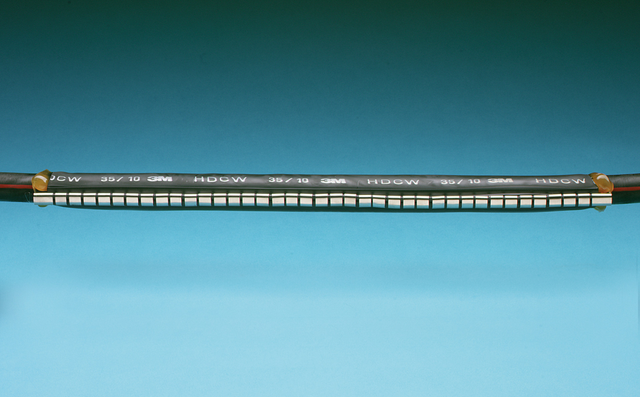

3M™ Wraparound Heat Shrink Cable Repair Sleeve HDCW-80/25-750, 1- 35 kV, 5/case - 7000138429

Sold As: 5-Pack
SKU: 7000138429
MPN: 7000138429
Stock Item: Stock items typically ship within 2-3 business days
UPC: 04001895590672
3M ID: DE999965432
5 Digit UPC: 59067
$632.15 ($126.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Repair Sleeve HDCW is designed to repair quickly damaged cable jacketing. This wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.

Features

  • Rated for 35 kV applications
  • Offers excellent corrosion protection on undamaged cables
  • Made of adhesive-lined, cross-linked polyolefin
  • Thick-walled sheet is tough and reliable
  • Excellent protection against mechanical stress
  • ANSI Certified and RoHS 2011/65/EU Compliant

Downloads

Specifications

Country of OriginGermany
Inner Diameter Before Shrink (Imperial)3.94
Splice TypeHeat Shrink
Overall Length (Metric) UOMmm
Elongation UOM%
Minimum Expanded Tubing I. D.3.66
Minimum Shrink Temperature (Celsius)125.0
Overall Length (Imperial)29.5
Units per Case5.0
Inner Diameter After Shrink (Imperial) UOMin
Product TypeSplice
Inner Diameter After Shrink (Metric)23.0
Voltage1 kV
UV ResistantYes
Chemical ResistantYes
Jacket Repair Range0.98 to 3.15 Inch
MaterialAdhesive-lined, Cross-Linked Polyolefin
Splice ConfigurationHeat Shrink Cable Repair Wrap Sleeve (HDCW)
Inner Diameter After Shrink (Imperial)0.9
Inner Diameter Before Shrink (Metric) UOMmm
Dielectric Strength (V/mil)22 kV/mm
Maximum Voltage Rating1 kV to 35 kV
Overall Length (Metric)750.0
Sleeve Length UOMin
Product TechnologyHeat Shrink
Inner Diameter After Shrink (Metric) UOMmm
Heat Shrink TypeHeat Shrink Molded Shapes
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric)100.0
Cable TypeAny type of cable
Product FormSleeve-roll
Overall Length (Imperial) UOMin
Product ColorBlack
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Halogen FreeYes
Adhesive LinedYes
Flame RetardantNo
Sleeve Length29.5
Inner Diameter Before Shrink (Imperial) UOMin
