Fein Power Tools

4-speed cordless drill/driver|ASCM 12 QC - 71161061090

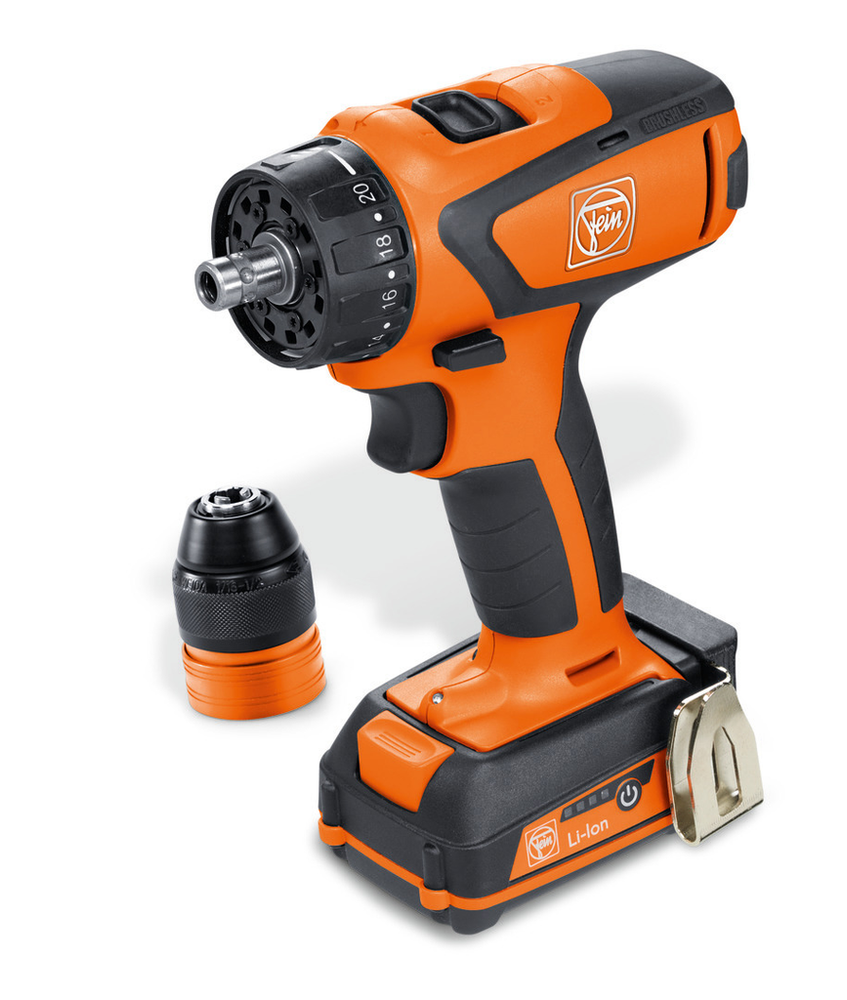

Name: 4-speed cordless drill/driver|ASCM 12 QC - 71161061090
Brand: Fein Power Tools
SKU: 71161061090
Price: 297.46 USD
Availability: InStock

SKU: 71161061090

MPN: 71161061090

Stock Item: Stock items typically ship within 2-3 business days

UPC: 4014586882383

$297.46

Hurry up! Current stock:

Quantity:

Product Description

4-speed cordless drill/driver|ASCM 12 QC|4-speed cordless drill/driver with brushless motor and QuickIN interface. Ideal for drilling and tapping up to 3/8 [8] in[mm].

Features

Brushless FEIN PowerDrive motor with 30% greater efficiency and longer service life.
High torques up to 354 [40] in/lbs[Nm].
4-speed solid metal gearbox. Optimum speeds for drilling in metal and driving self-drilling screws.
Mechanical torque setting.
Includes small QuickIN all-metal chuck (531 [60] in/lbs[Nm]) with high concentricity accuracy.
QuickIN accessory interface for all QuickIN accessories. Fast change between applications.
Optimal speed (2,500 rpm) in 4th gear for up to 1/4 [6] in[mm] dia.

Specifications

Gearbox	4-speed
Accessory interface	QuickIN
Max. torque (hard/soft)	354 [40] / 177 [20] in/lbs[Nm]
Capacity in wood Ø (mm)	40
Motor	brushless
Weight without battery (lbs)	2.43
Weight without battery (kg)	1.10
Tapping	5/16 in [M 8]
Capacity in steel Ø (mm)	13
Weight incl. battery (lbs)	3.09
Battery capacity	3 Ah
No load speed	400 / 700 / 1,400 / 2,500 rpm
Chuck capacity	1/16 [1.5] - 1/2 [13] in[mm]
Weight incl. battery (kg)	1.40
Battery compatibility	Li-ion
Torque steps	20 + 1
Fastening	3/8 [8] x 7-7/8 [200] in[mm]
Capacity in steel Ø (in)	1/2
Capacity in wood Ø (in)	1-9/16
Battery interface	12 V
Battery voltage	12 V
