Fein Power Tools

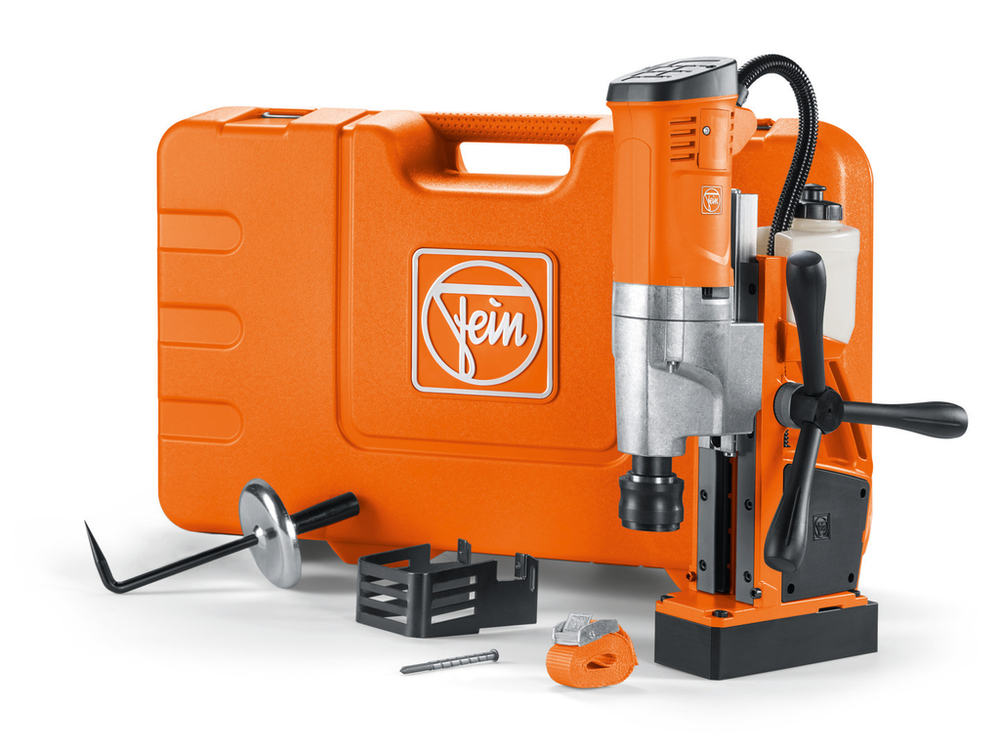

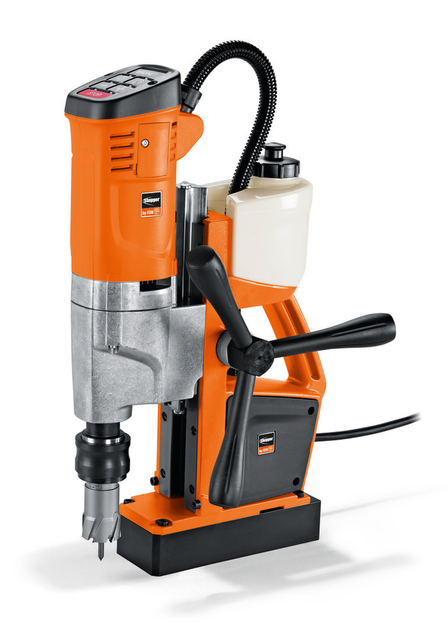

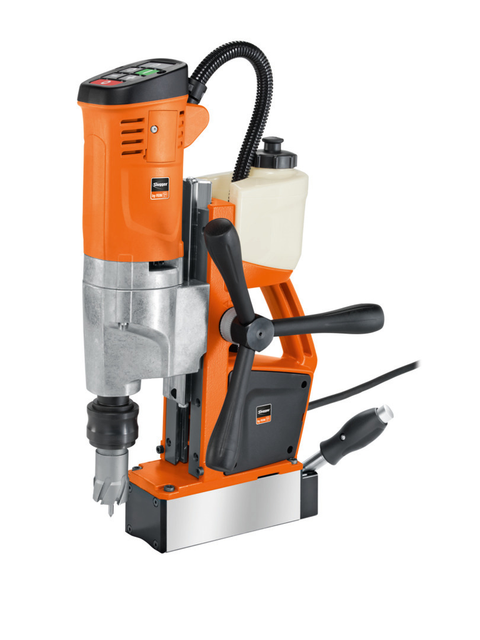

Universal magnetic core drill up to 1-3/8 in [35 mm]|KBU 35-2 QW - 72705861000

SKU: 72705861000
MPN: 72705861000
Stock Item: Stock items typically ship within 2-3 business days
UPC: 4014586886787
$2,368.70 each
Hurry up! Current stock:

Product Description

Universal magnetic core drill up to 1-3/8 in [35 mm]|KBU 35-2 QW|Small, long-stroke, 2-speed universal magnetic core drill with forward / reverse rotation and high-speed for efficient twist drilling on the construction site.

Features

  • Extremely resilient design due to solid machine construction with pivoting motor cable protection sleeve. Designed for heavy use in trade and industry.
  • Universal use, such as mag base drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 10-1/4 in [260 mm] stroke.
  • Simple and error-proof control concept in the operator's field of view.
  • High magnetic holding force, thanks to 3-coil magnet with a width of only 2-3/4 in [70 mm].
  • Convenient magnetic holding force display.
  • Small, with mechanic 2-gearbox for twist drilling.
  • Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.

Specifications

Cutter max. drilling depth (mm)50
Reaming max. dia. (mm)16
Stroke (in)5-5/16
Magnetic holding force (lbs)2136
Cable with plug (ft)13.1
HSS cutter max. dia. (mm)35
Cable with plug (m)4
Stroke (mm)135
Twist drill max. dia. (in)5/8
Carbide cutter max. dia. (mm)35
Magnetic holding force (N)9,500
Magnetic base dimensions7-5/16 [186] x 2-3/4 [70] in[mm]
Max. countersinking dia. (mm)31
Power consumption1,100 W
Total stroke range (in)10-1/4
Weight (lbs)24.25
HSS cutter max. dia. (in)1-3/8
Load speed400 - 1,600 rpm
Power output550 W
Weight (kg)11.00
Max. countersinking dia. (in)1-1/4
Carbide cutter max. dia. (in)1-3/8
Cutter max. drilling depth (in)2
Cutter changetool-free
Tapping9/16 in [M 14]
Cutter holder3/4 in straight shank
Total stroke range (mm)260
Reaming max. dia. (in)5/8
Twist drill max. dia. (mm)16
