Fein Power Tools

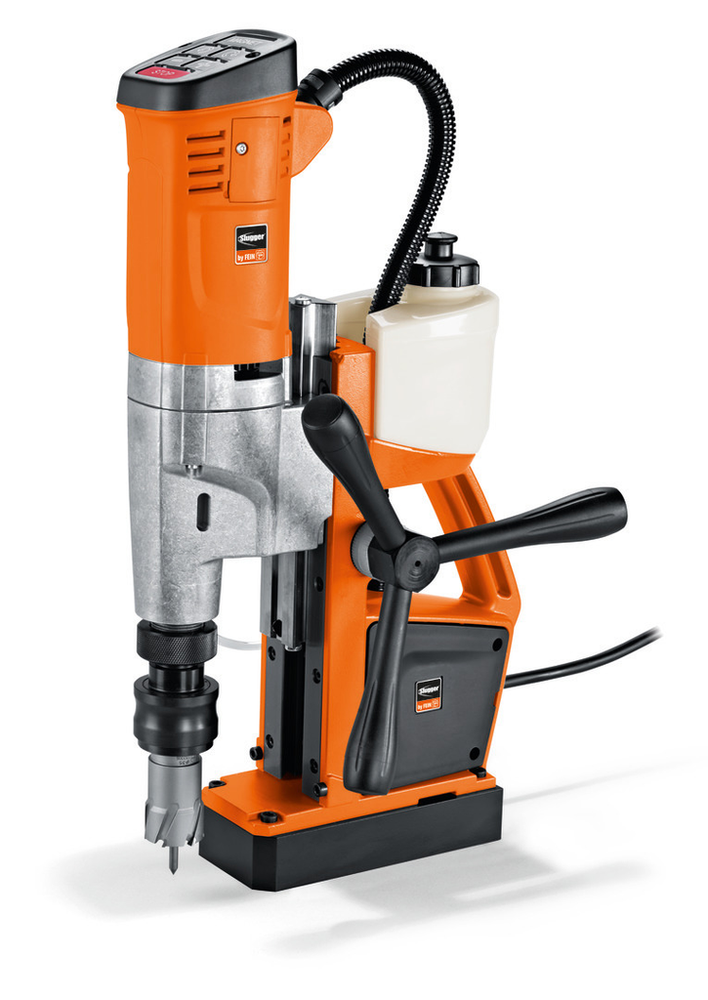

Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 MQW - 72705661120

SKU: 72705661120
MPN: 72705661120
Stock Item: Stock items typically ship within 2-3 business days
UPC: 4014586886060
$1,956.95
Hurry up! Current stock:

Product Description

Universal magnetic core drill up to 1-3/8 in [35 mm]|JMU 137 MQW|Small, long-stroke, single-speed universal magnetic core drill with forward / reverse rotation, MT2 tool mount and maximum functionality for flexible work on the construction site.

Features

  • Universal use, such as mag base drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 10-1/4 in [260 mm] stroke.
  • Simple and error-proof control concept in the operator's field of view.
  • Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades.
  • Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
  • Convenient magnetic holding force display.
  • High magnetic holding force.
  • Small, with MT2 tool mount.

Specifications

Cable with plug (m)4
Magnetic holding force (N)10,000
Reaming max. dia. (in)3/4
Max. countersinking dia. (in)1-1/4
Cutter holder3/4 in straight shank
Weight (lbs)24.25
Tapping9/16 in [M 14]
Magnetic base dimensions6-7/8 [175] x 3-1/8 [80] in[mm]
Carbide cutter max. dia. (mm)35
HSS cutter max. dia. (in)1-3/8
Reaming max. dia. (mm)18
Weight (kg)11.00
Cable with plug (ft)13.1
Power output550 W
Power consumption1,100 W
Twist drill max. dia. (in)3/4
Max. countersinking dia. (mm)31
Carbide cutter max. dia. (in)1-3/8
Full load speed130 - 520 rpm
HSS cutter max. dia. (mm)35
Stroke (in)5-5/16
Total stroke range (mm)260
Tool mountMT 2
Twist drill max. dia. (mm)18
Cutter changetool-free
Magnetic holding force (lbs)2248
Stroke (mm)135
Total stroke range (in)10-1/4
Cutter max. drilling depth2 [50] (3 [75] )* in[mm]
