Fein Power Tools

Universal magnetic core drill up to 4-5/16 [110] in[mm]|JMU 404 M - 72706061090

Name: Universal magnetic core drill up to 4-5/16 [110] in[mm]|JMU 404 M - 72706061090
Brand: Fein Power Tools
SKU: 72706061090
Price: 4016.95 USD
Availability: InStock

SKU: 72706061090

MPN: 72706061090

Stock Item: Stock items typically ship within 2-3 business days

UPC: 4014586889801

$4,016.95

Hurry up! Current stock:

Quantity:

Product Description

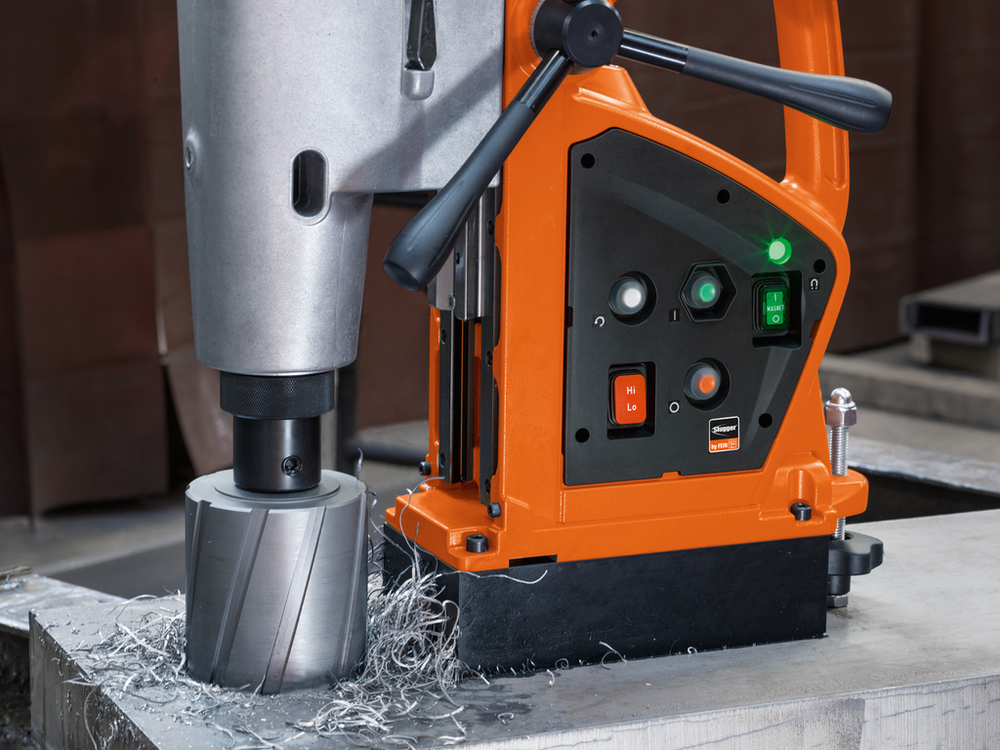

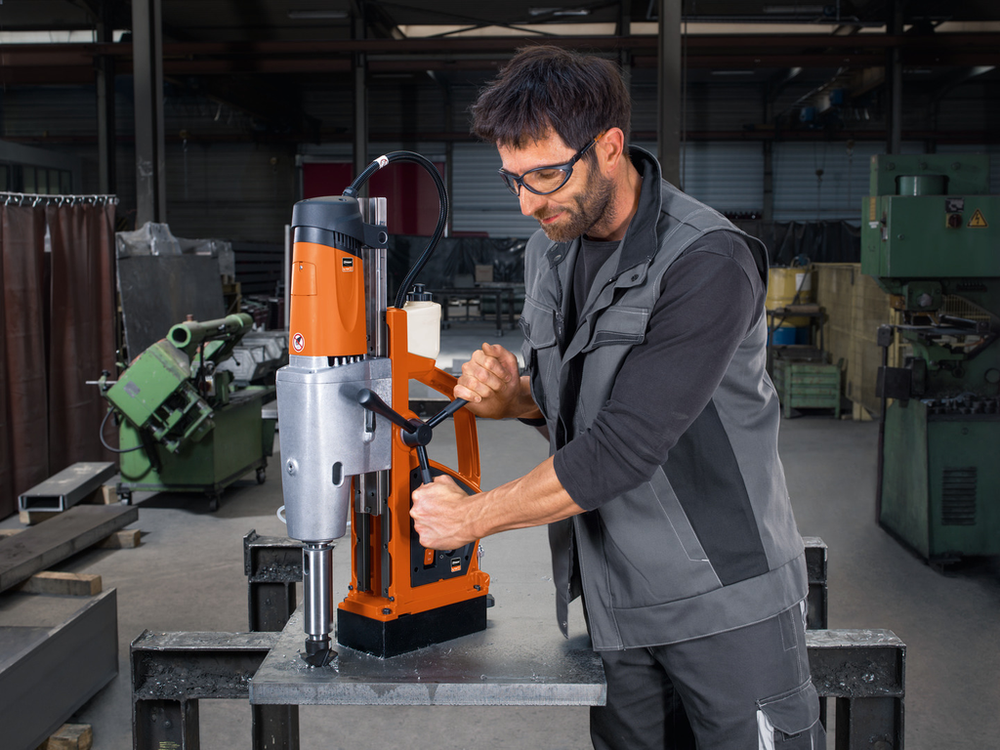

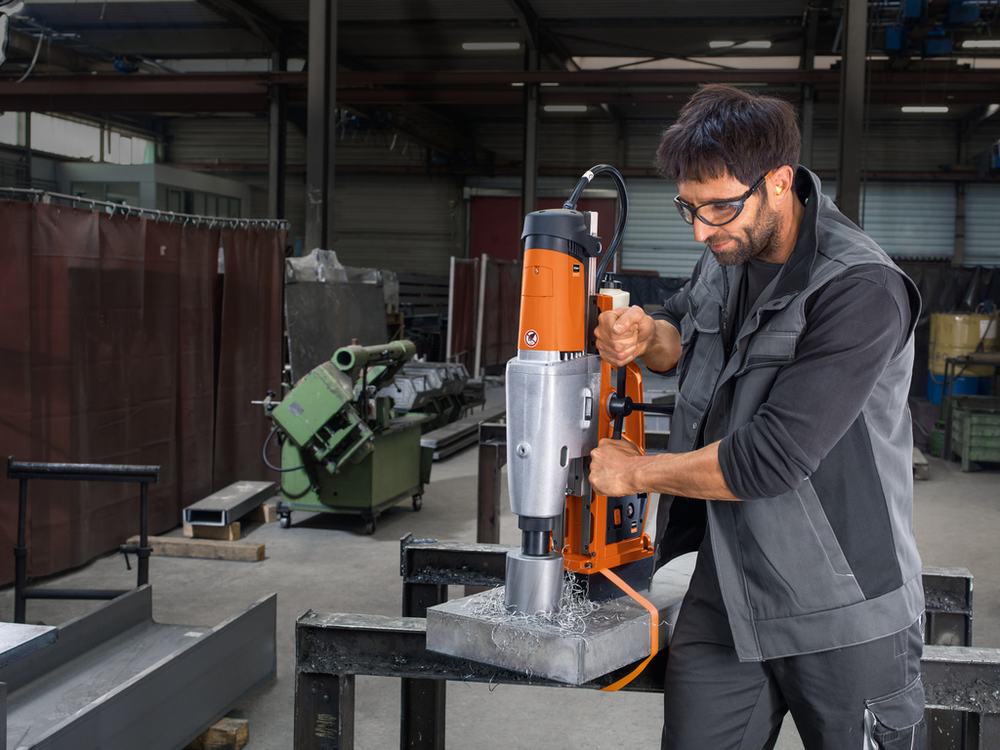

Universal magnetic core drill up to 4-5/16 [110] in[mm]|JMU 404 M|High-performance, long-stroke, 4-speed universal magnetic base drill with forward / reverse running, MT4 tool mounting and maximum functionality for heavy drilling work in the workshop.

Features

Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
Mechanical 4-speed gearbox.
Motion sensor.
Torque arm for increased magnetic holding power.
High magnetic holding force.
FEIN 1,700 W high-performance motor with high torque for heavy drilling work.
For tough use, thanks to top-quality workmanship and pivoting motor cable protection sleeve.

Specifications

Load speed	150 / 300 rpm
Cable with plug (m)	4
Weight (lbs)	85.98
Max. countersinking dia. (mm)	60
Stroke (mm)	280
Reaming max. dia. (in)	1-3/8
Total stroke range (mm)	400
Power output	850 W
No-load speed	160 / 290 rpm
Magnetic holding force (N)	23,000
Power consumption	1,700 W
HSS cutter max. dia. (mm)	75
Twist drill max. dia. (in)	1-3/8
Reaming max. dia. (mm)	35
Total stroke range (in)	15-3/4
Twist drill max. dia. (mm)	35
Weight (kg)	39.00
Cable with plug (ft)	13.1
Tool mount	MT 4
Tapping	1-7/16 in [M 36]
HSS cutter max. dia. (in)	3
Magnetic holding force (lbs)	5171
Cutter max. drilling depth (in)	4
Carbide cutter max. dia. (mm)	101
Cutter max. drilling depth (mm)	101
Max. countersinking dia. (in)	2-3/8
Magnetic base dimensions	9-7/16 [240] x 4-3/4 [120] in[mm]
Carbide cutter max. dia. (in)	4
Stroke (in)	11
Cutter holder	1-1/4 in Weldon
