The Makita 1-1/4 HP Compact Router (model RT0701C) delivers performance and precision in a compact design. With a full 1-1/4 maximum horsepower, the RT0701C is engineered for a range of precision routing applications. The RT0701C has a powerful 1-1/4 HP (maximum horsepower) motor with a variable speed control dial (10,000-30,000 RPM) that enables the user to match the speed to the application. Additional performance features include electronic speed control to maintain constant speed under load, and soft start feature for smooth start-ups. The RT0701C is double-insulated with a heavy-duty aluminum motor housing for increased durability. The RT0701C is engineered for precision and includes a smooth rack-and-pinion fine depth adjustment system and easy-to-read depth scales for more precise settings. The quick release cam lock system is designed for easy depth adjustments and base removal/installation, with a high-visibility base design for improved handling and performance. Additional features include a slim and ergonomic design that weighs only 3.9 lbs., with a durable flat top design for added convenience when changing bits. The base can be removed quickly to install other bases (sold separately), and the shaft lock is engineered for quick and easy bit changes. The RT0701C uses ¼” shank router bits.
Features
- Trimmer Base (196613-4)
- Variable speed control dial (10,000 - 30,000 RPM) to match the speed to the application
- COMFORT - Ergonomic design for operator comfort
- High visibility base design for improved handling and performance

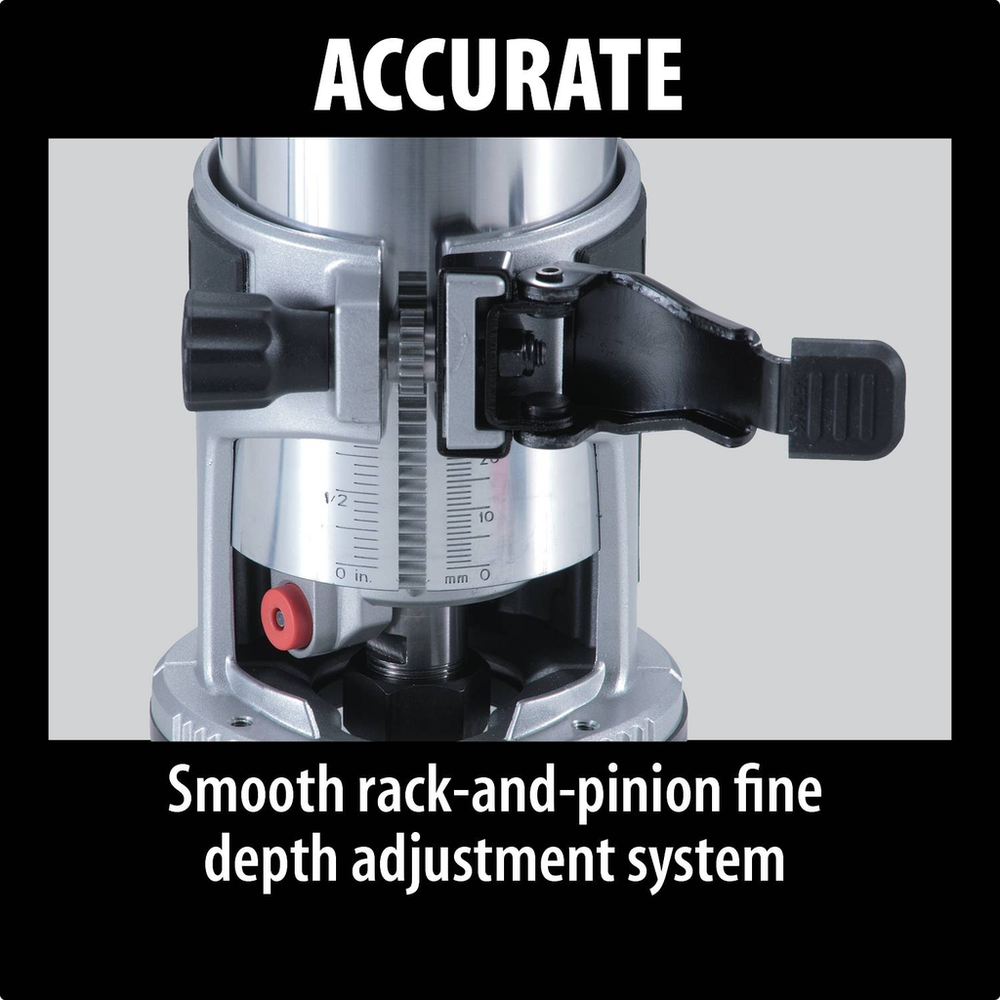

- ACCURACY - Smooth rack-and-pinion fine depth adjustment system
- Uses 1/4" shank routers bits
- Quick release cam lock system for convenient depth adjustments and base removal/installation
- Electronic speed control maintains constant speed under load
- Shaft lock for quick and easy bit changes
- INCLUDES - 1/4" collet, straight guide, wrenches
- 1/4" Collet (763637-1)
- Cam lock system for easy depth adjustments
- Heavy duty aluminum motor housing engineered for increased durability
- Double insulated
- Straight Guide (122965-7)
- Accepts industry standard template guides
- Soft start feature for smooth start ups
- *Maximum horsepower
- Non-marring high-durability base insert for increased work piece protection

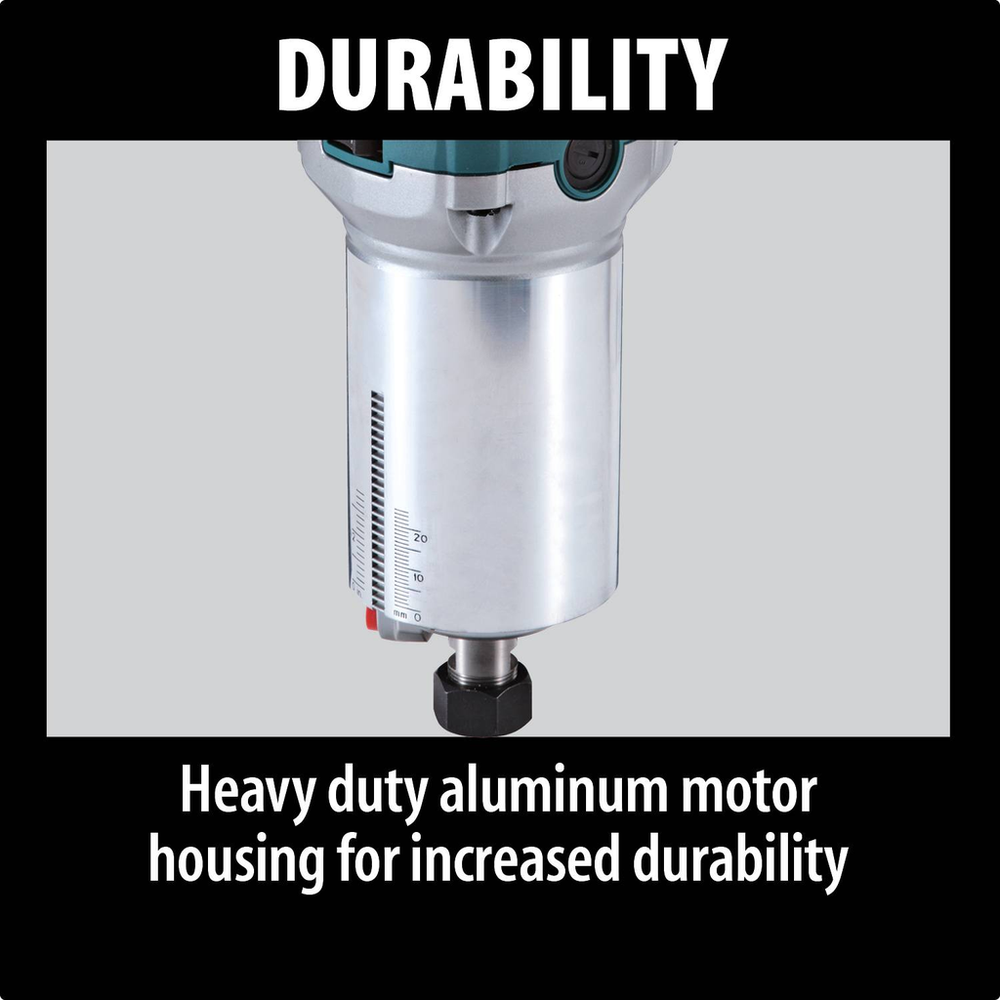

- DURABILITY - Heavy duty aluminum motor housing
- Spanner Wrench (781039-9)
- Spanner Wrench (781011-1)
- Smooth rack-and-pinion fine depth adjustment system for more precise settings
- Slim and ergonomically designed body for increased comfort and control
- Base can be removed quickly to install other bases
- Durable flat top design for added convenience when changing bits
- Easy-to-read depth scales

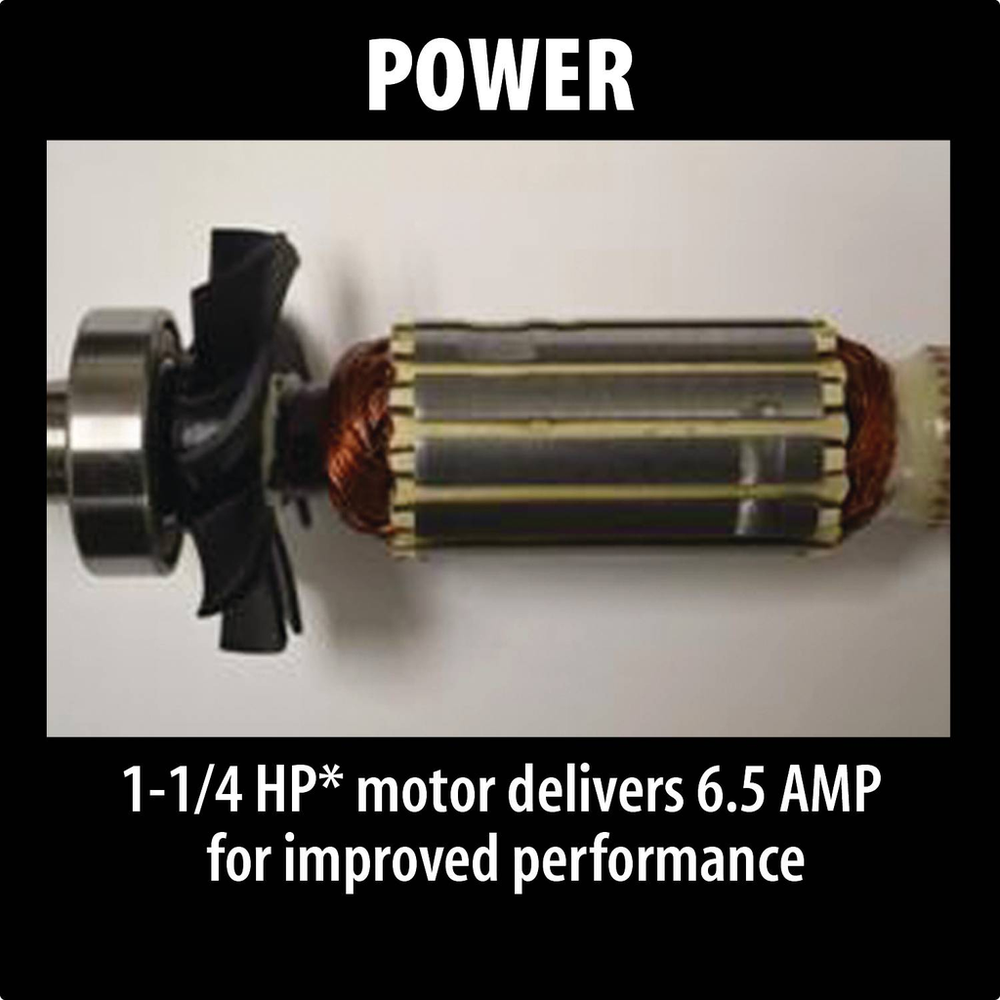

- POWER - 1-1/4 Maximum HP motor for improved performance
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
Instruction ManualFlyer EnglishParts Breakdown
