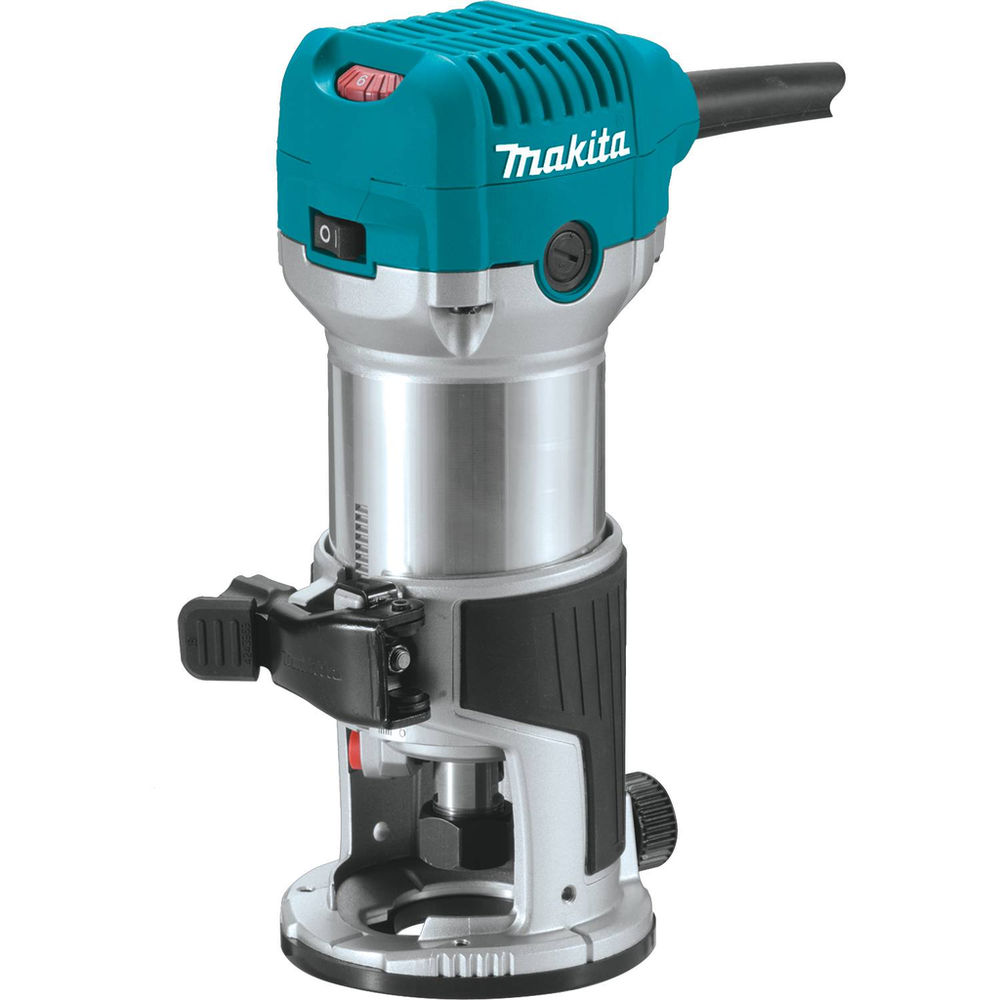

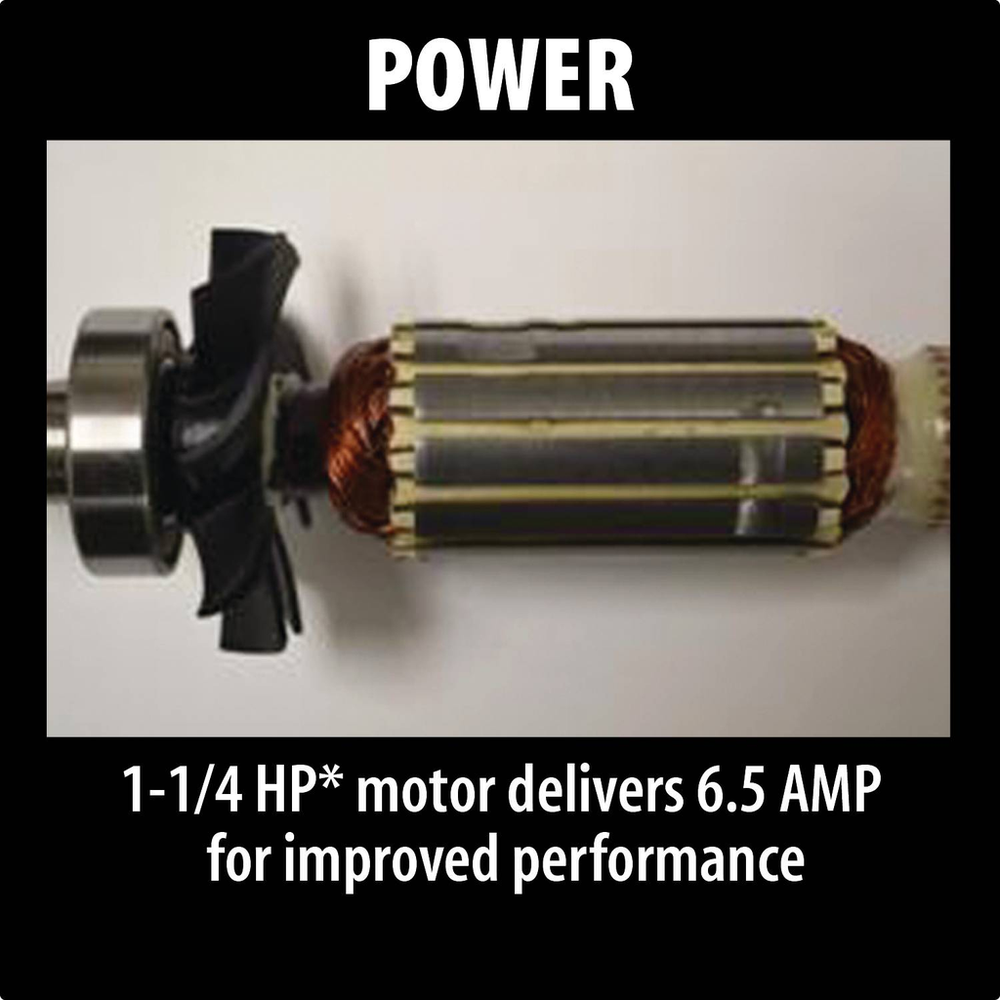

The 1-1/4 HP Compact Router Kit (model RT0701CX3) delivers performance, versatility and precision in a compact size. With a full 1-1/4 maximum horsepower and three bases included in the kit, the RT0701CX3 is engineered for a full range of precision routing applications. The RT0701CX3 has a powerful 1-1/4 HP (maximum horsepower) motor with a variable speed control dial (10,000-30,000 RPM) that enables the user to match the speed to the application. Additional performance features include electronic speed control to maintain constant speed under load, and soft start feature for smooth start-ups. The RT0701CX3 is double-insulated with a heavy-duty aluminum motor housing for increased durability. The RT0701CX3 is engineered for precision and includes a smooth rack-and-pinion fine depth adjustment system and easy-to-read depth scales for more precise settings. The quick release cam lock system is designed for easy depth adjustments and base removal/installation, with a high-visibility base design for improved handling and performance. Additional features include a slim and ergonomic design that weighs only 3.9 lbs., with a durable flat top design for added convenience when changing bits. The base can be removed quickly to install other bases, and the shaft lock is engineered for quick and easy bit changes (uses ¼” shank router bits). The kit includes three bases needed for a range of routing applications. The plunge base has a full 0” - 1-3/8” plunge capacity while the tilt base is for routing at different angles (-30° to 45°) and the offset base allows for routing in hard-to-reach areas and as close as ¾” to a wall. The router accepts industry standard template guides for added versatility.
Features
- Spanner Wrench (781039-9)
- Smooth rack-and-pinion fine depth adjustment system for more precise settings
- DESIGN - 0" - 1-3/8” plunge depth capacity for easy penetration into workpiece
- Trimmer Base (196613-4)
- Non-marring high-durability base insert for increased work piece protection
- Trimmer Guide (122703-7)
- DESIGN - Offset base allows routing in hard-to-reach areas and as close as ¾” to the wall
- Electronic speed control maintains constant speed under load
- Variable speed control dial (10,000 - 30,000 RPM) to match the speed to the application
- Removable clear plastic shield helps protect the operator from airborne debris
- *Maximum horserpower
- Dust Extracting Attachment, Plunge Base (194733-8)
- Easy-to-use fine depth adjustment with 3 preset depth stops for added precision
- Quick release cam lock system for convenient depth adjustments and base removal/installation

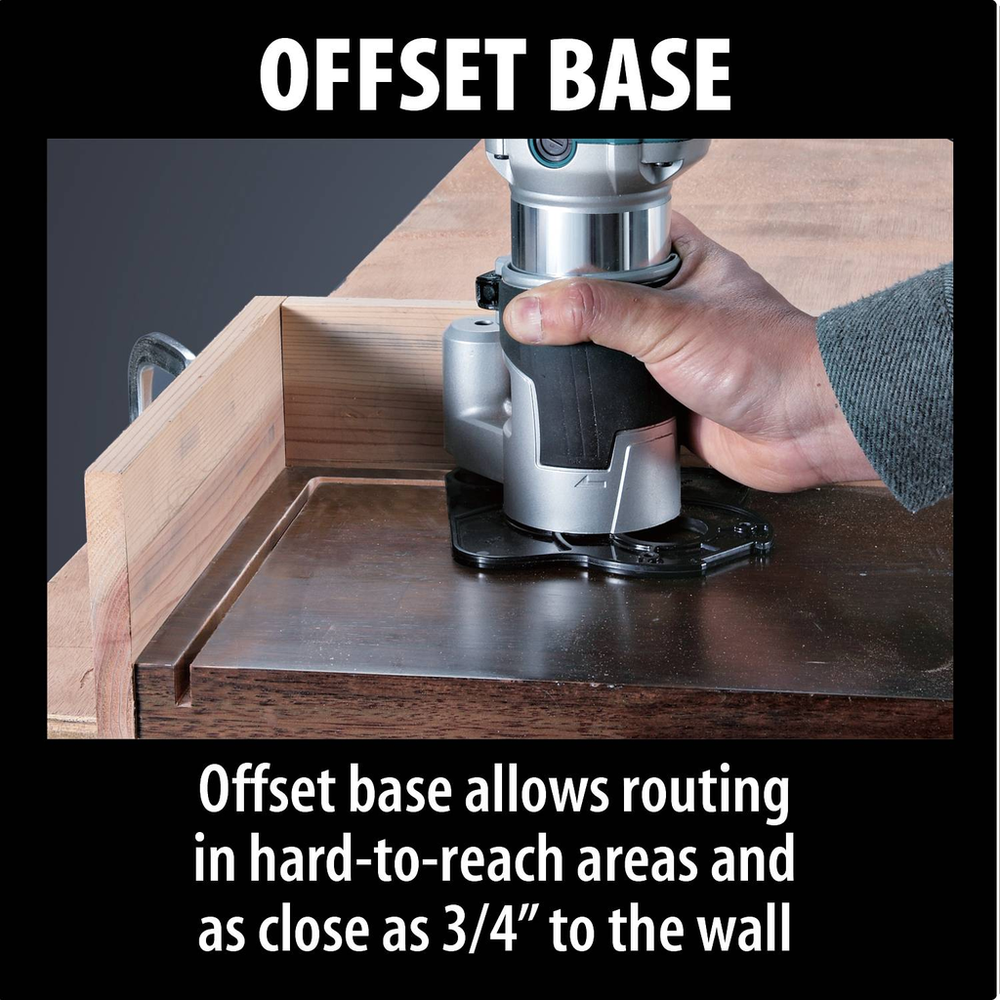

- Offset base allows routing in hard-to-reach areas and as close as ¾” to the wall
- DESIGN - Tilt base for routing at different angles (-30° to 45°)

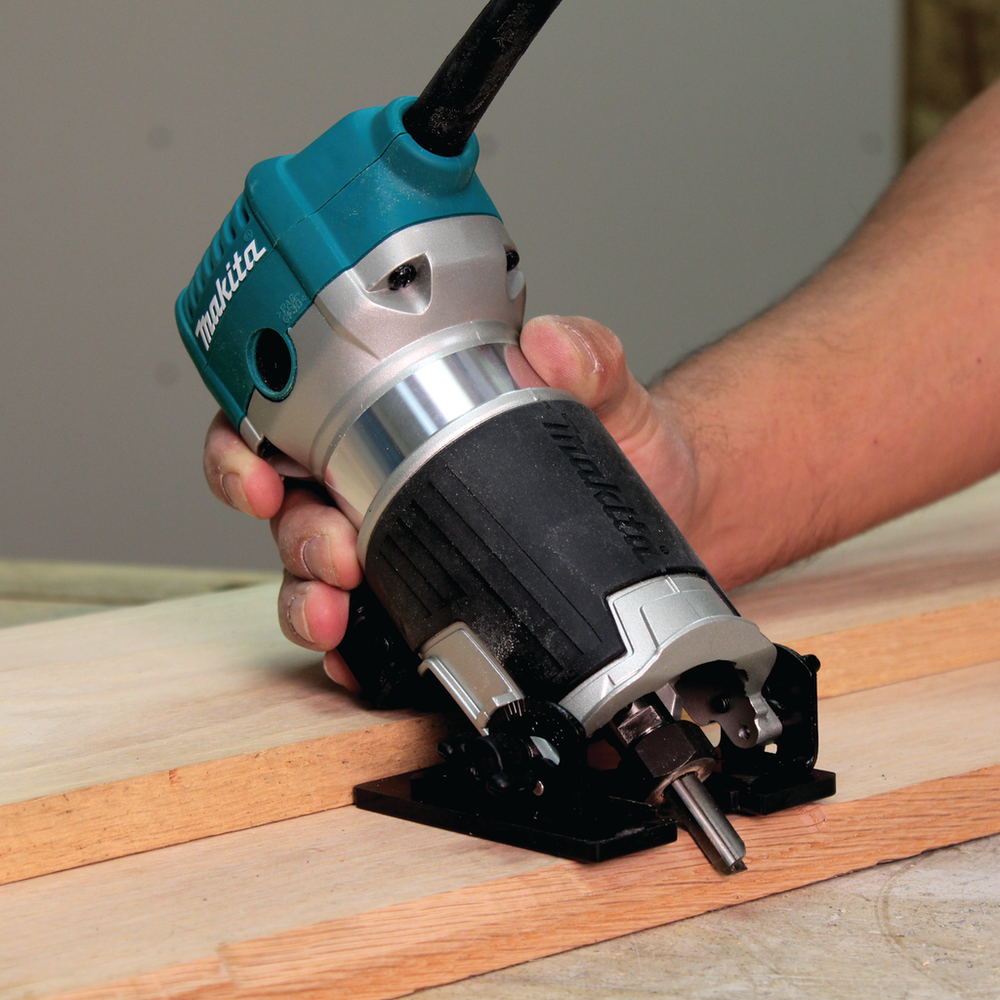

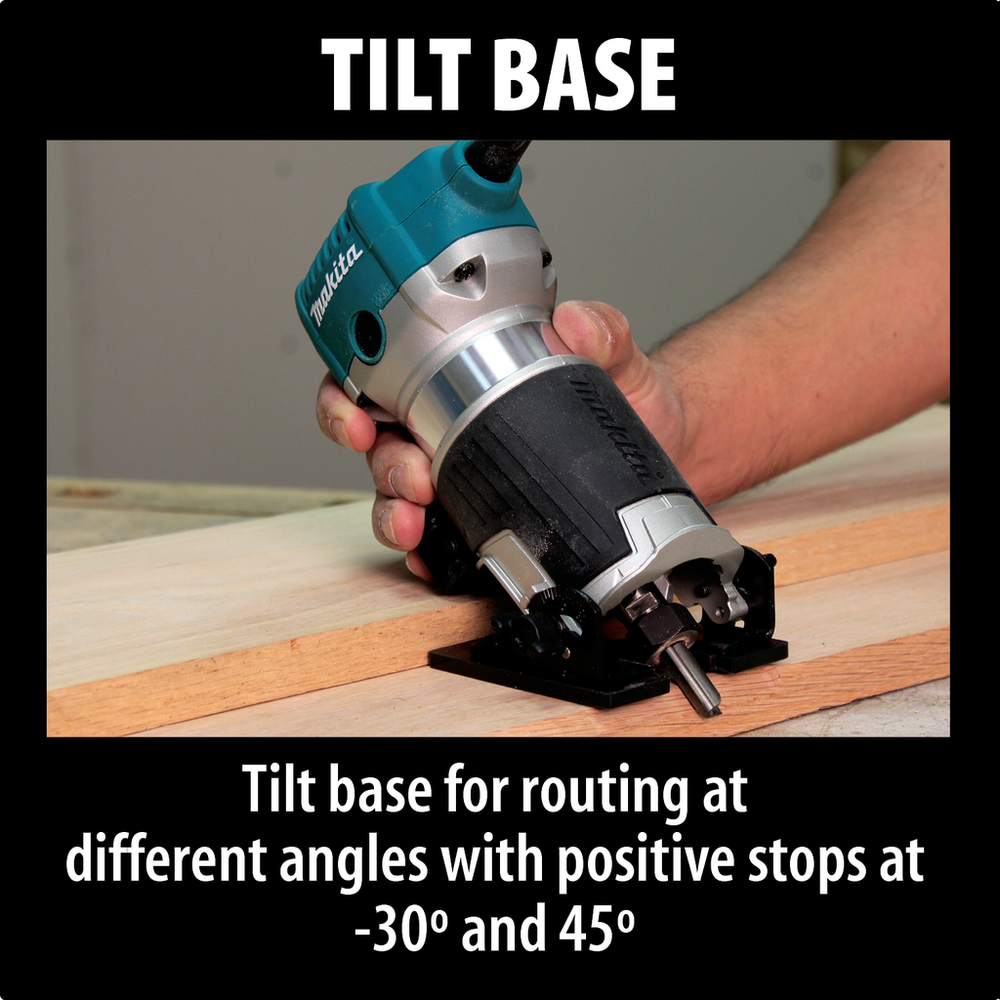

- Tilt base for routing at different angles (-30° to 45°)

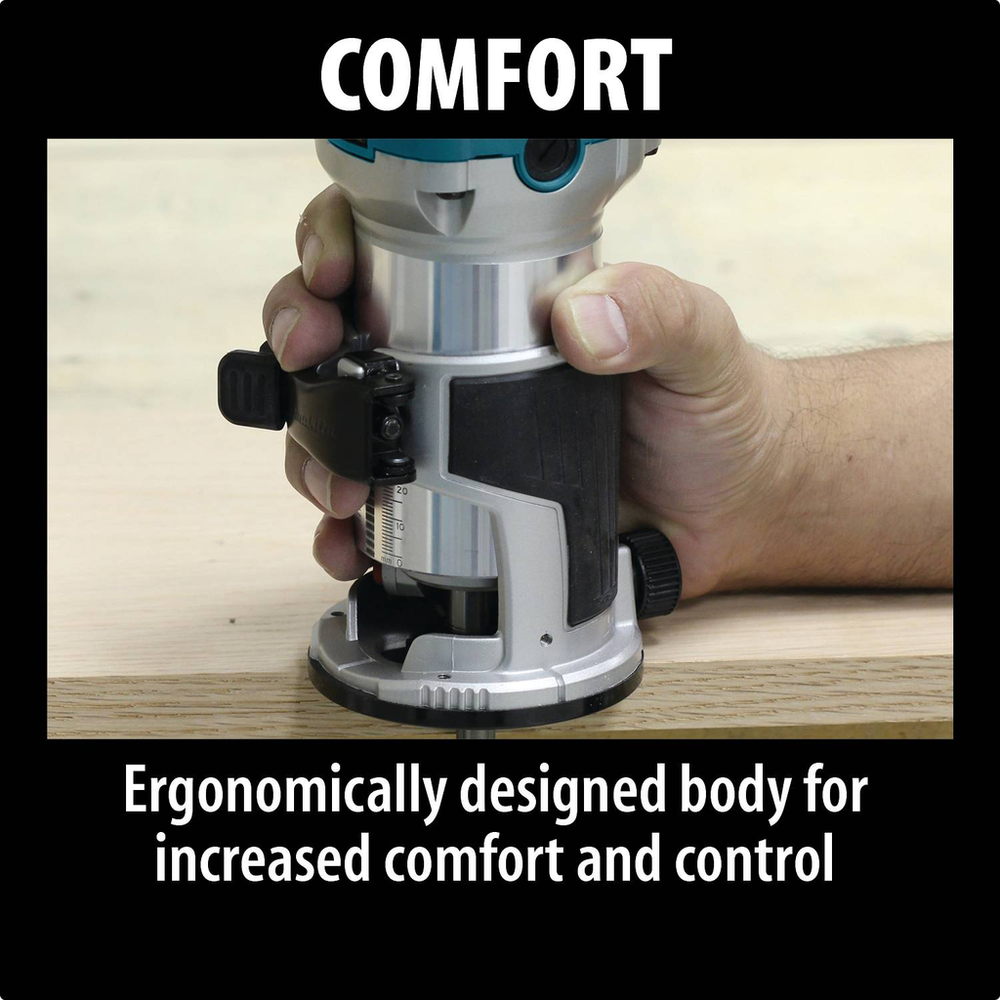

- Slim and ergonomically designed body for increased comfort and control
- Tool Bag
- Spanner Wrench (781011-1)
- Easy-to-read depth scales
- Offset Base (196093-4)
- Straight Guide (122965-7)
- Base can be removed quickly to install other bases (plunge, tilt and offset)
- High visibility base design for improved handling and performance
- Dust Extracting Attachment, Fixed Base (195559-1)
- Conveniently located plunge lock lever for operator convenience
- Shaft lock for quick and easy bit changes

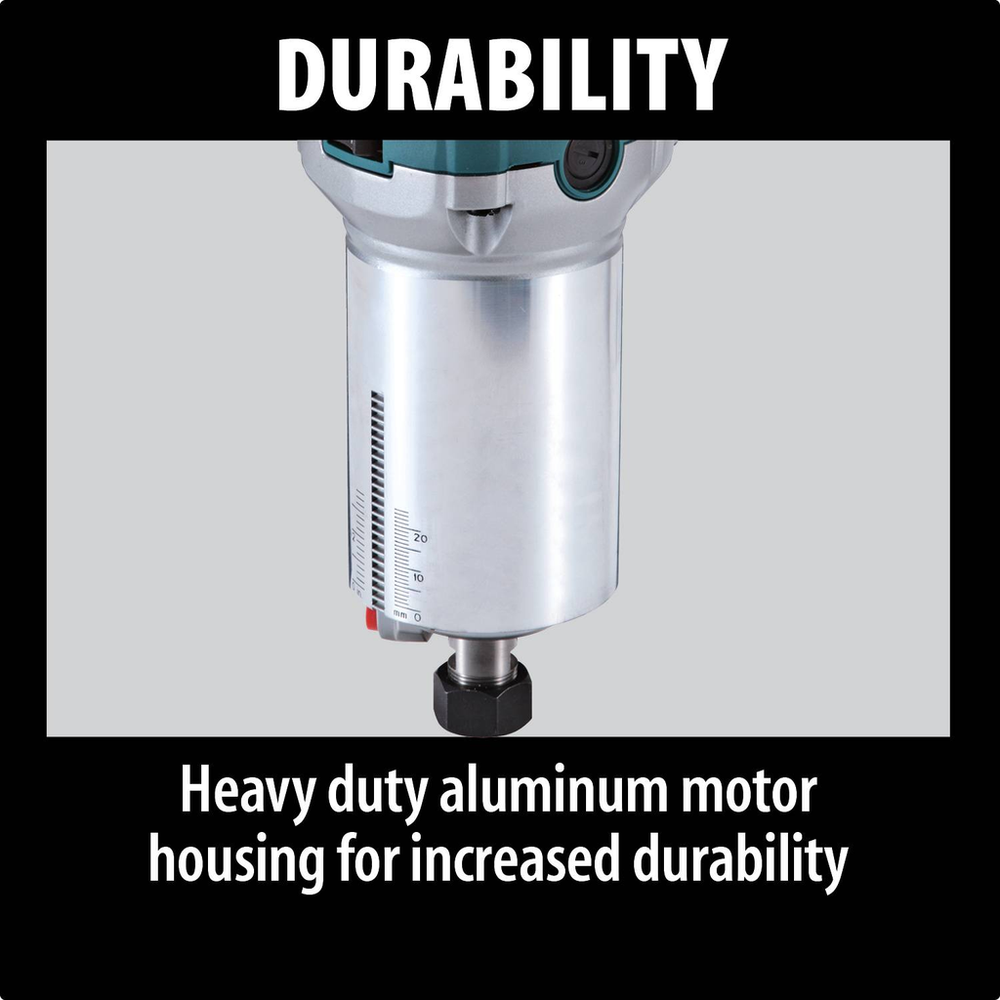

- Heavy duty aluminum motor housing engineered for increased durability
- Fits compact routers models RT0700C and RT0701C
- Ideal for routing small profiles, dovetailing, door hinges and more
- VERSATILITY - Accepts industry standard template guides
- 1-1/4 HP* Compact Router (RT0701C)
- Soft start feature for smooth start ups
- Double insulated

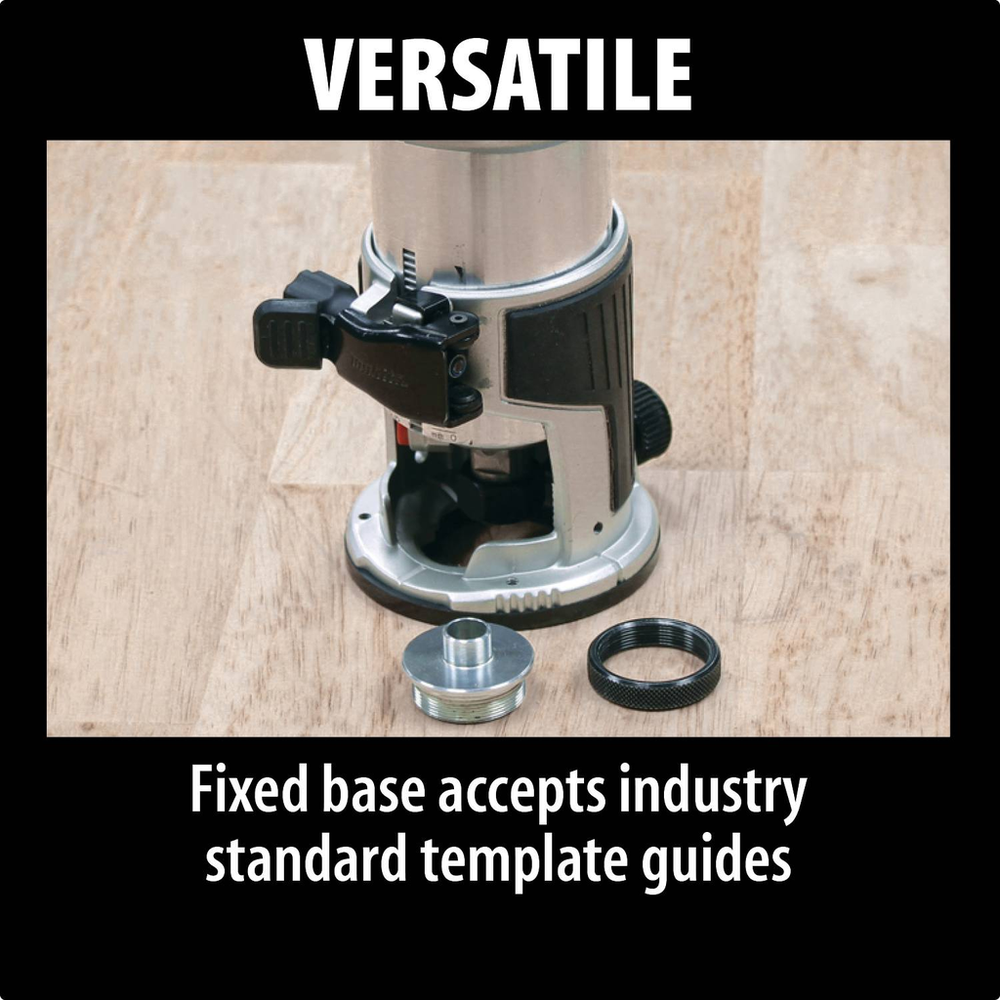

- Accepts industry standard template guides
- Durable flat top design for added convenience when changing bits
- Tilt Base (198987-9)
- 1/4" Collet (763637-1)
- Uses 1/4" shank routers bits

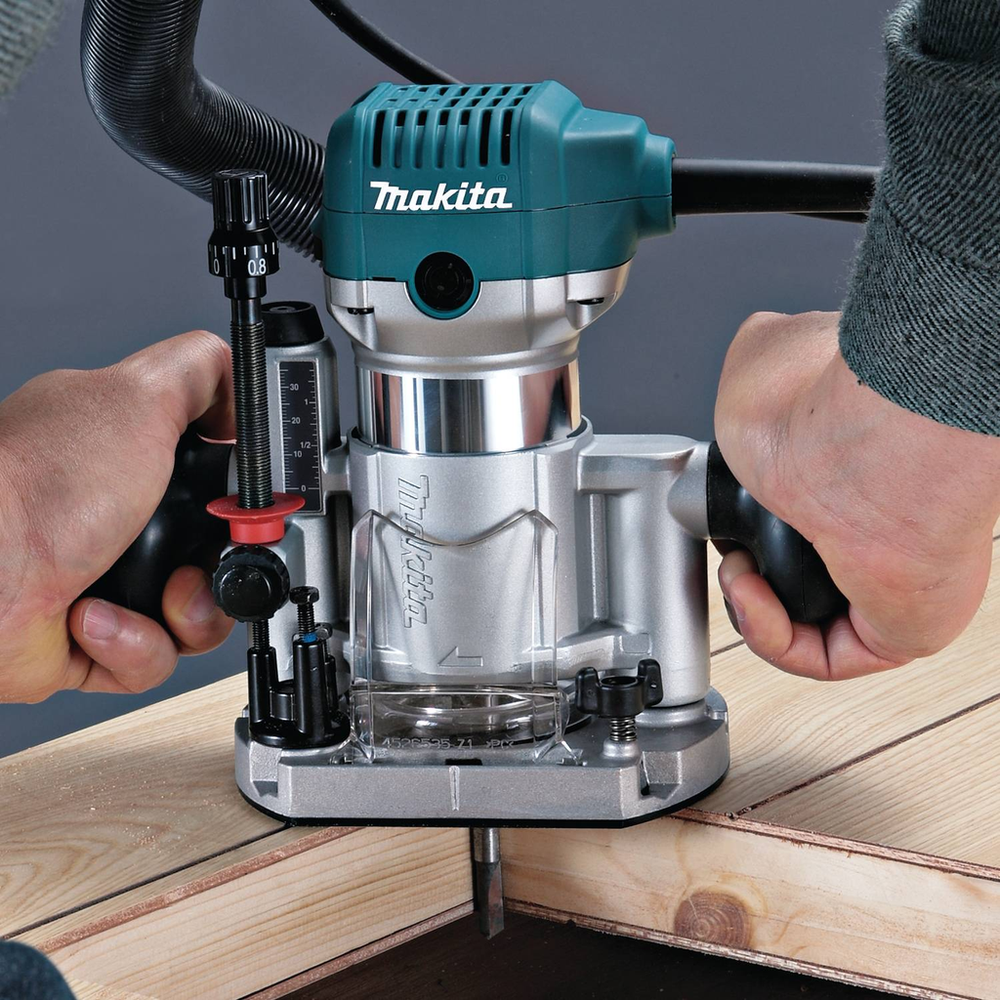

- PLUNGE BASE

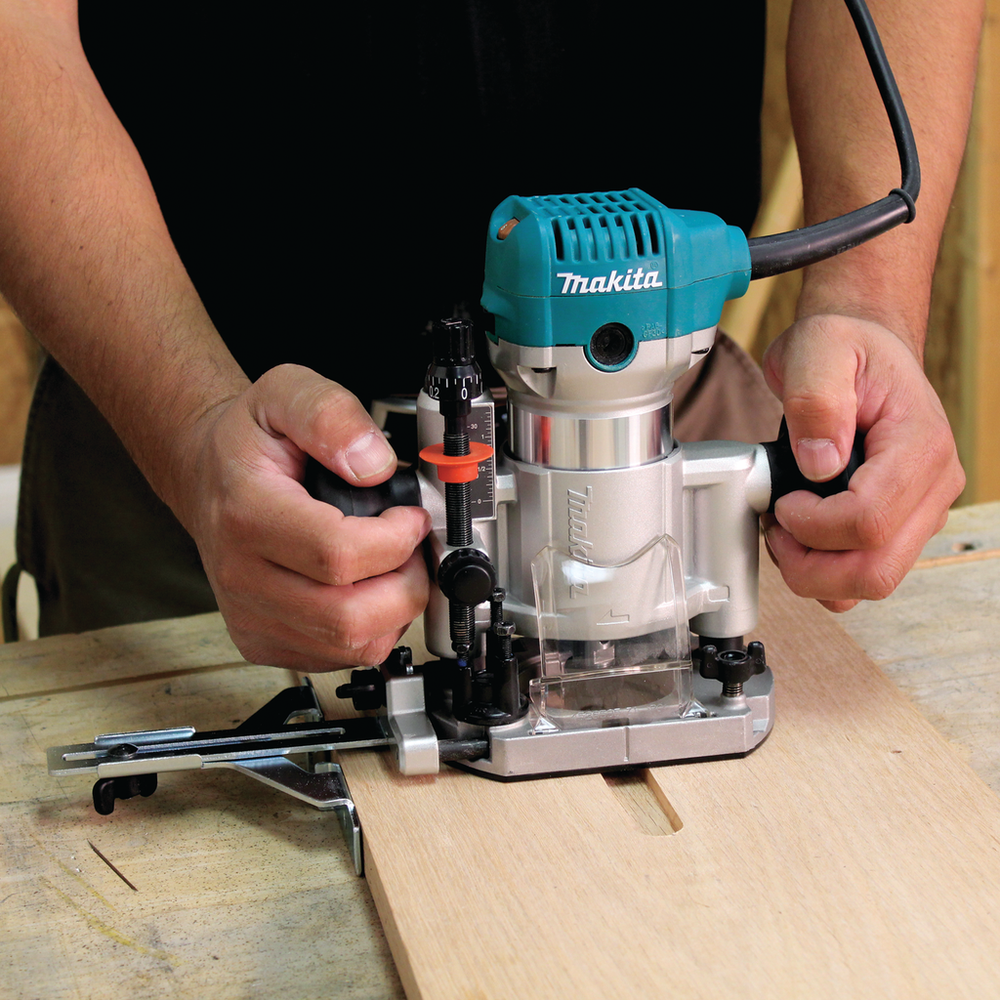

- Plunge Base (196094-2)

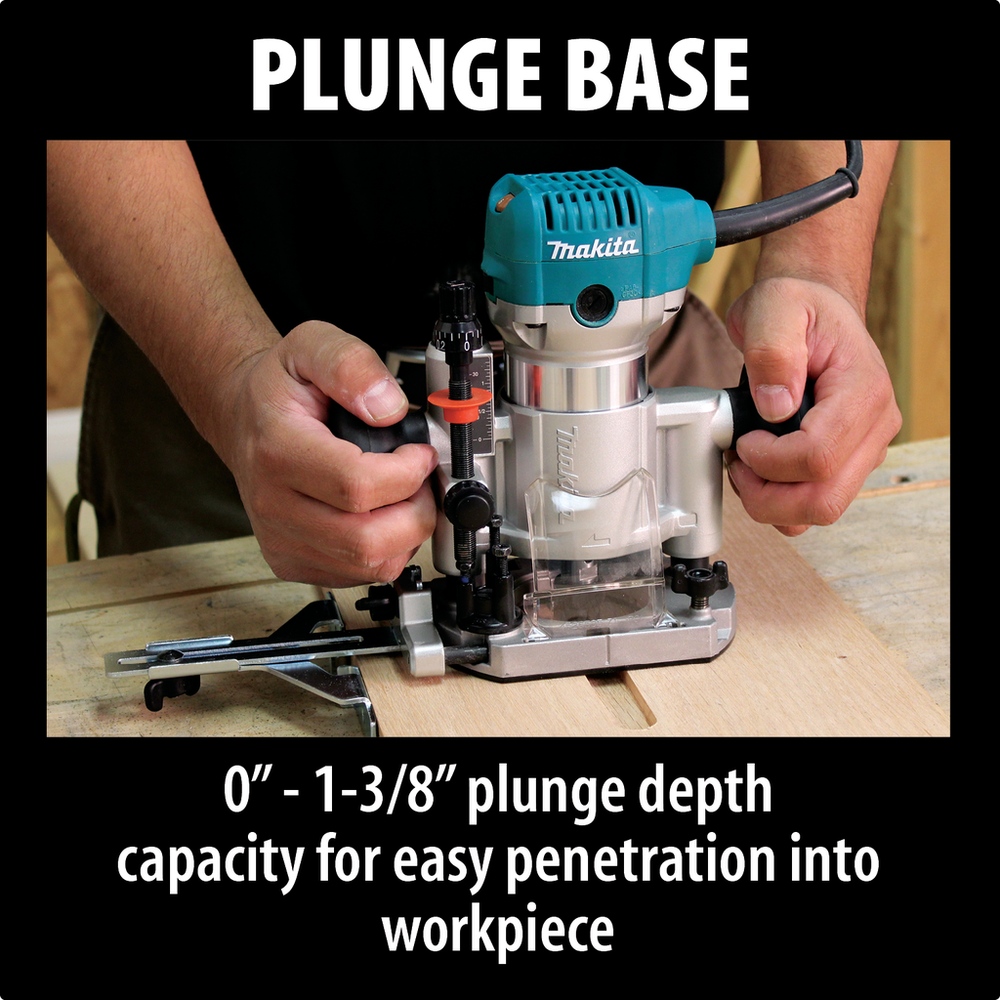

- 0" - 1-3/8” plunge depth capacity for easy penetration into workpiece
- TILT BASE

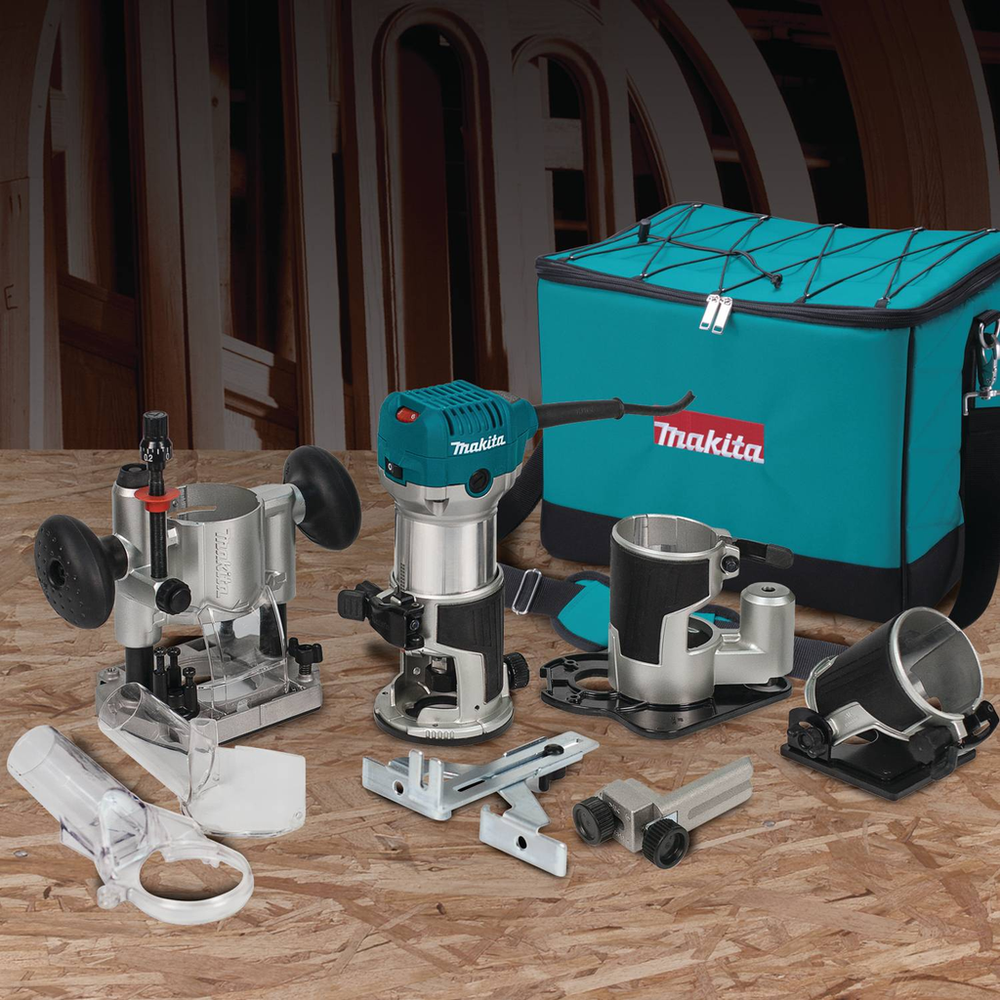

- INCLUDES - ¼” Collet, Plunge base, Tilt base, Offset base, Trimmer guide, Dust nozzle (fixed base), Dust nozzle (plunge base), Wrench 13, Wrench 22, Straight guide, Tool bag
- Sub-base accepts industry standard template guides for convenience
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
RT0701C Instruction ManualRT0701C Parts Breakdown
