Makita

1" SDS-PLUS AVT® Rotary Hammer, w/ HEPA Dust Extractor (D-handle) (HR2663)

Name: 1" SDS-PLUS AVT® Rotary Hammer, w/ HEPA Dust Extractor (D-handle) (HR2663)
Brand: Makita
SKU: HR2663
Price: 419 USD
Availability: InStock

SKU: HR2663

MPN: HR2663

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381873123

$419.00 each

Hurry up! Current stock:

Quantity:

Product Description

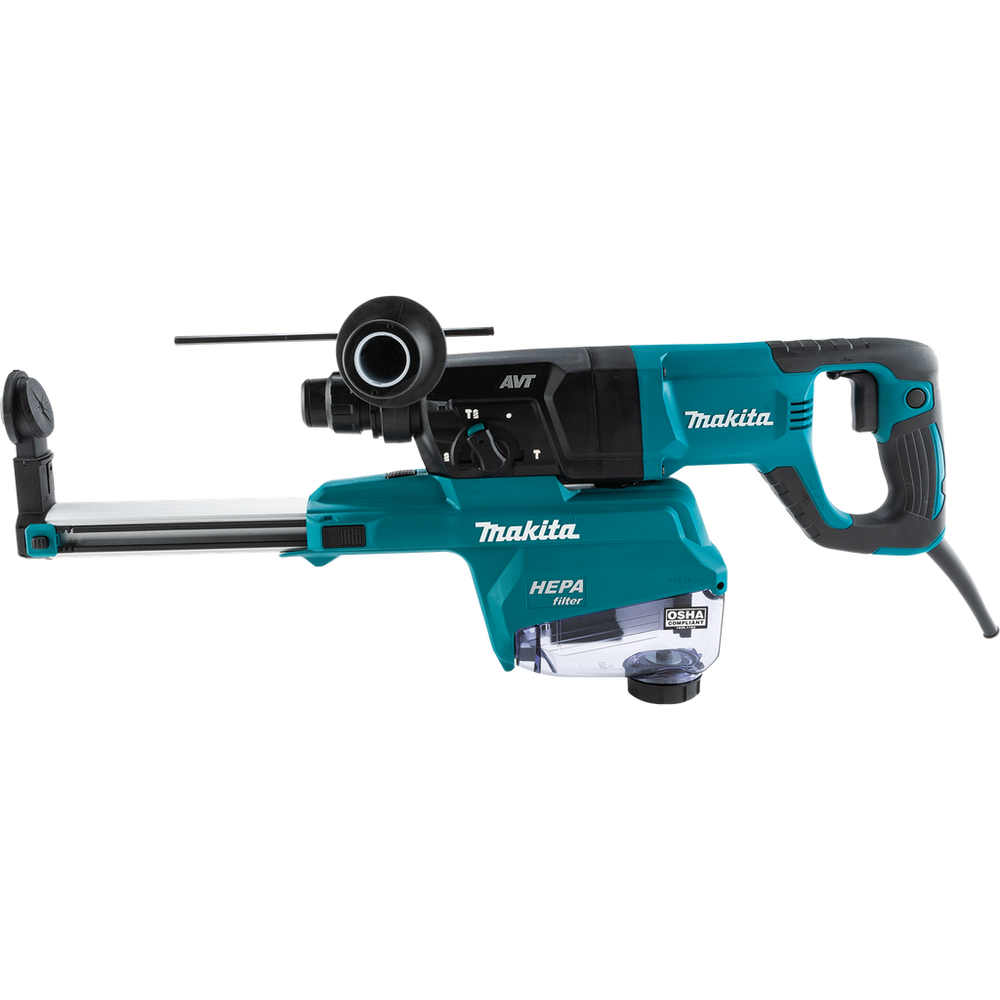

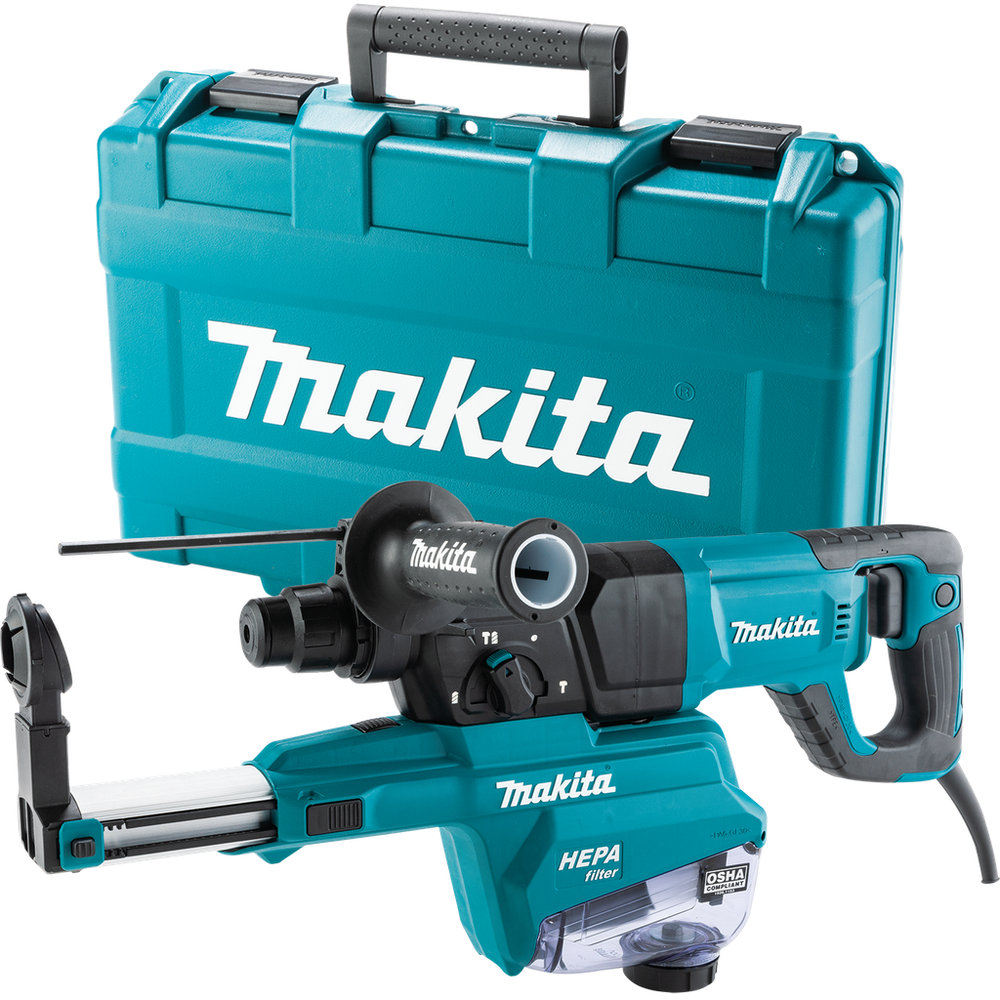

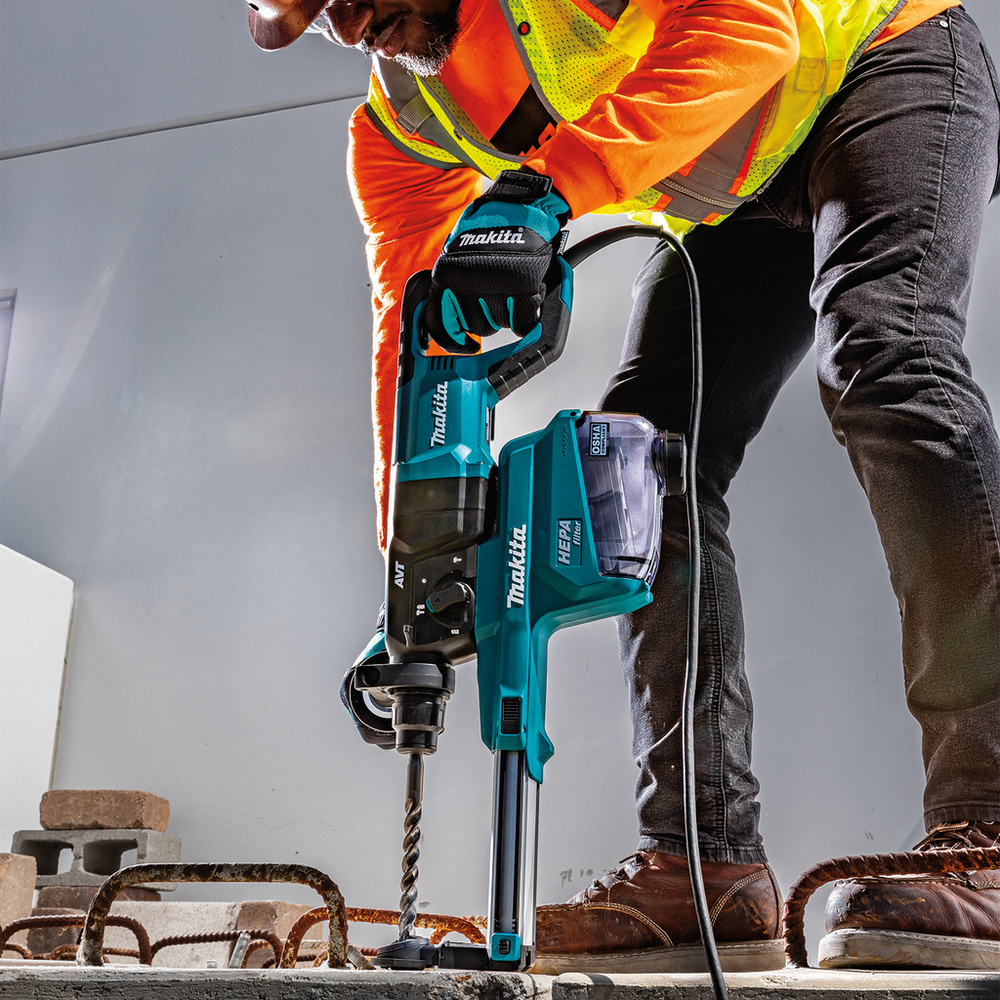

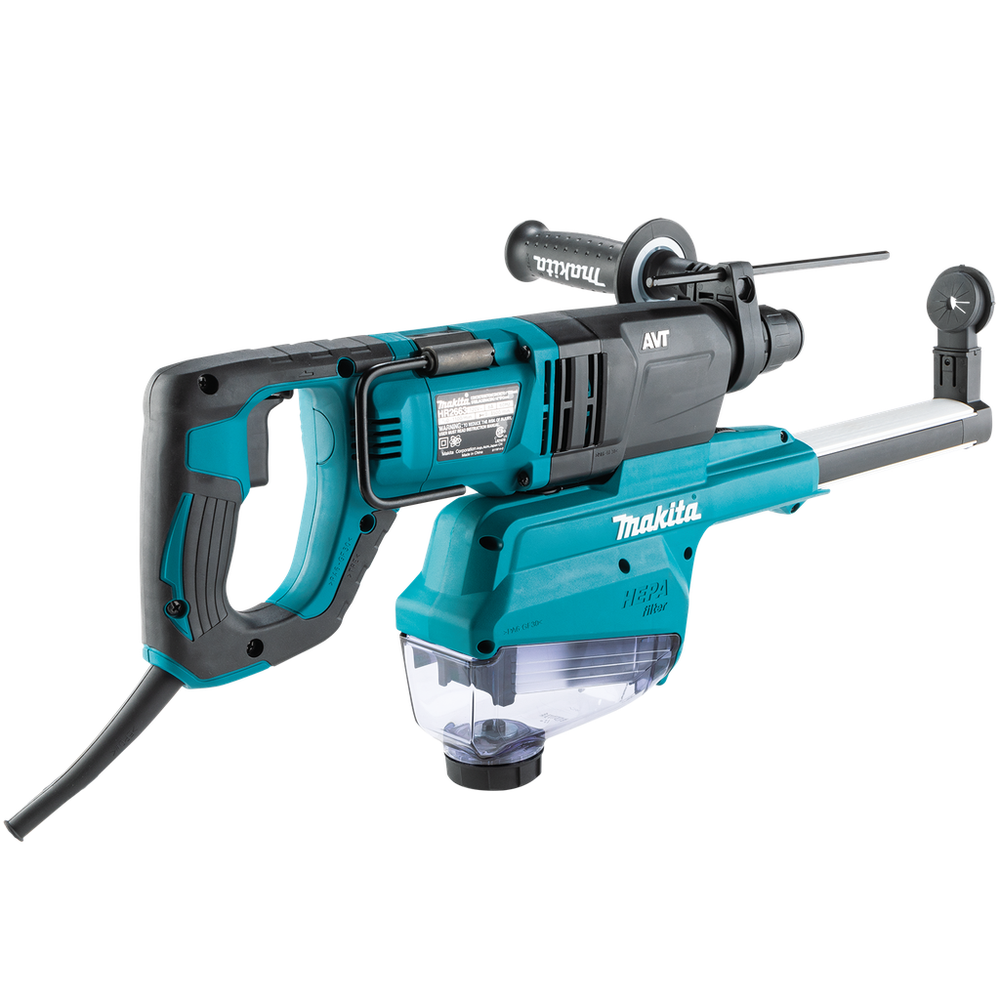

The Makita 1" SDS-PLUS AVT® Rotary Hammer, HEPA Dust Extractor with D-Handle (HR2663) is a total solution that combines efficient drilling and chipping with reduced vibration and improved dust extraction. The HR2663 is equipped with Anti-Vibration Technology (AVT®), an internal counterbalance system for significantly less vibration. It has a built-on dust extractor that captures concrete dust during drilling. HR2653 combines these performance features in a compact size. It is ideal for a range of applications including overhead drilling into concrete, wood, and metal, removing tile, and more. The HEPA Dust Extractor is OSHA Table 1 compliant for Exposure to Respirable Crystalline Silica (rule 1926.1153). The OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency. The dust extractor is activated by the tool for operator convenience and is equipped with an efficient HEPA filtration system that captures 99.97% of particulates .3 microns and larger. It has a transparent dust container with an accurate level indicator of collected material for added convenience. The HR2663 has an 8 AMP motor that delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications. The 3-mode operation offers "rotation only", "hammering with rotation" or "chipping only" for multiple applications. Modes can be easily changed with a recessed hammer-function selector, which is located below the gear housing for improved durability. Convenience features include an ergonomic pistol grip handle with a rubberized soft grip provides increased operator comfort. There is a retractable hook that allows the tool to remain close by but never in the way. It also features a depth stop adjustment that allows drilling up to 7-1/2" deep for increased capacity.

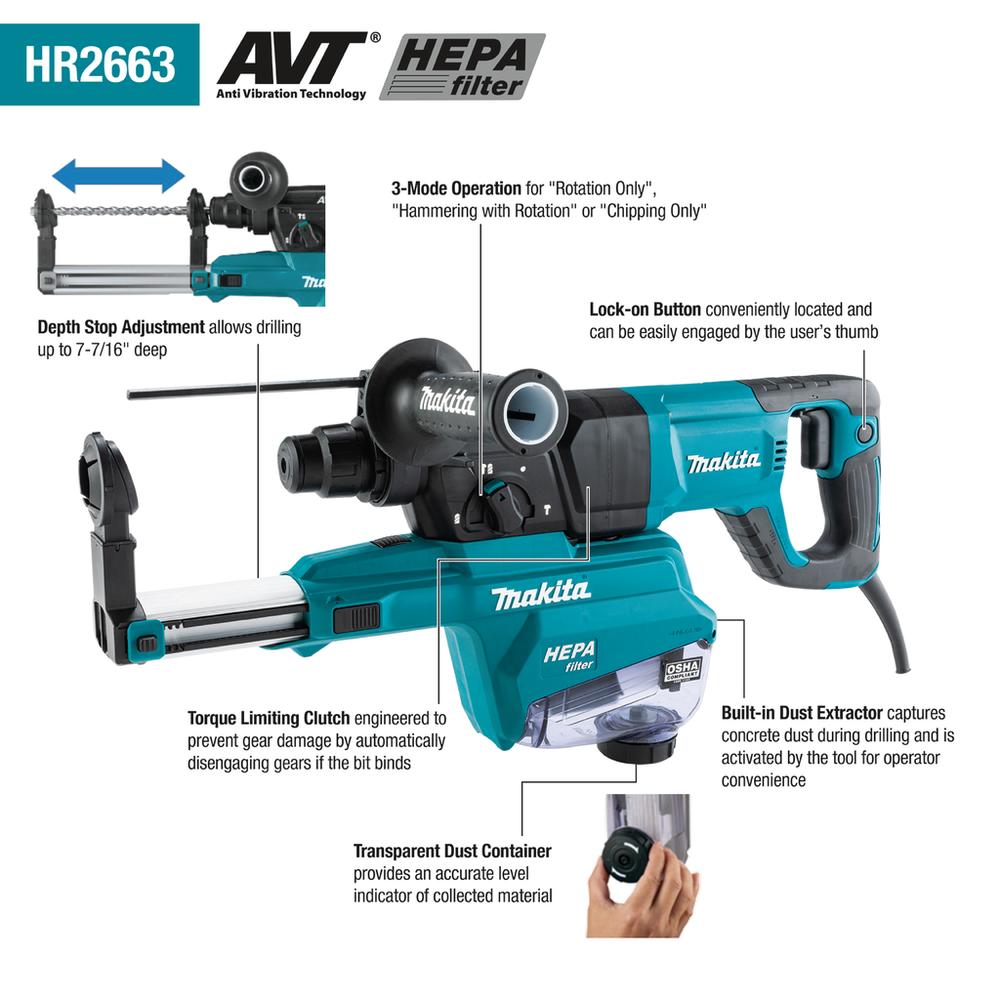

Features

Ergonomic "D-shaped" handle with rubberized soft grip for increased comfort

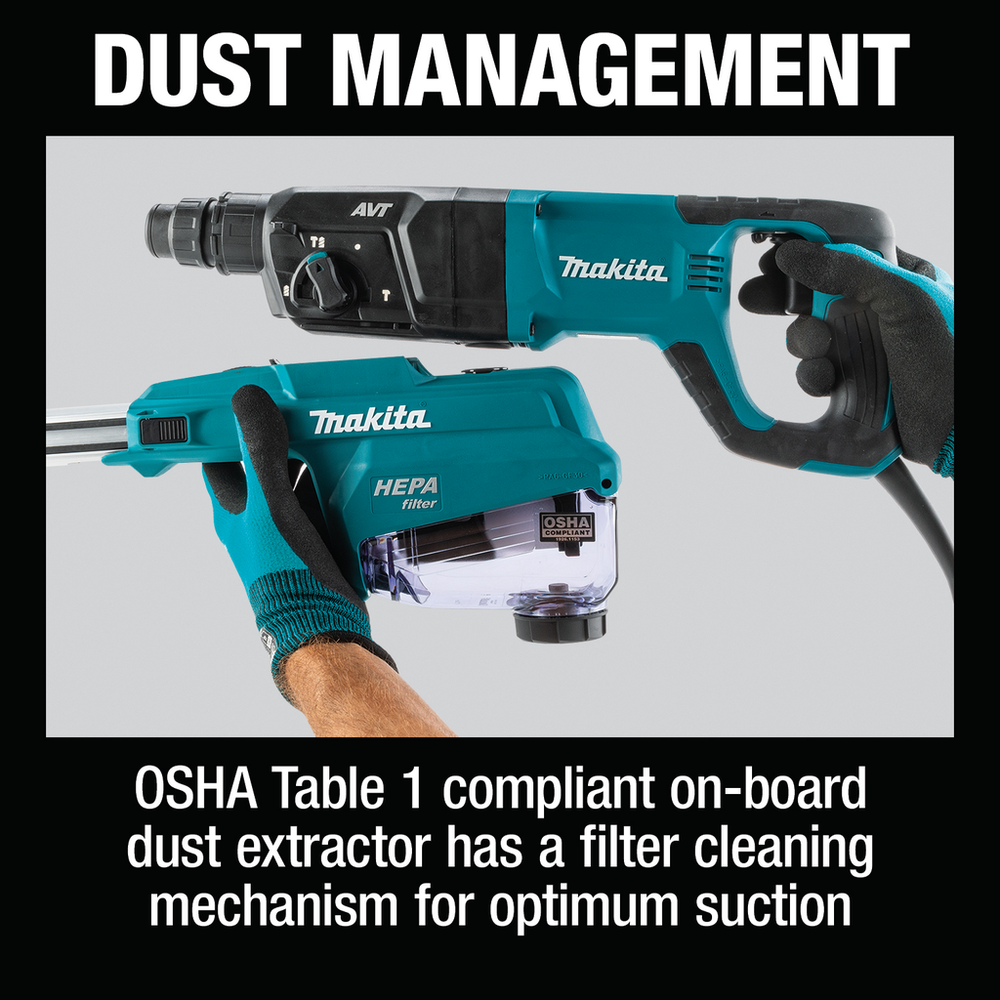

The OSHA Table 1 compliant on-board dust extractor provides a filter cleaning mechanism designed to help maintain optimum suction efficiency
Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
Retractable hook allows tool to remain close by but never in the way

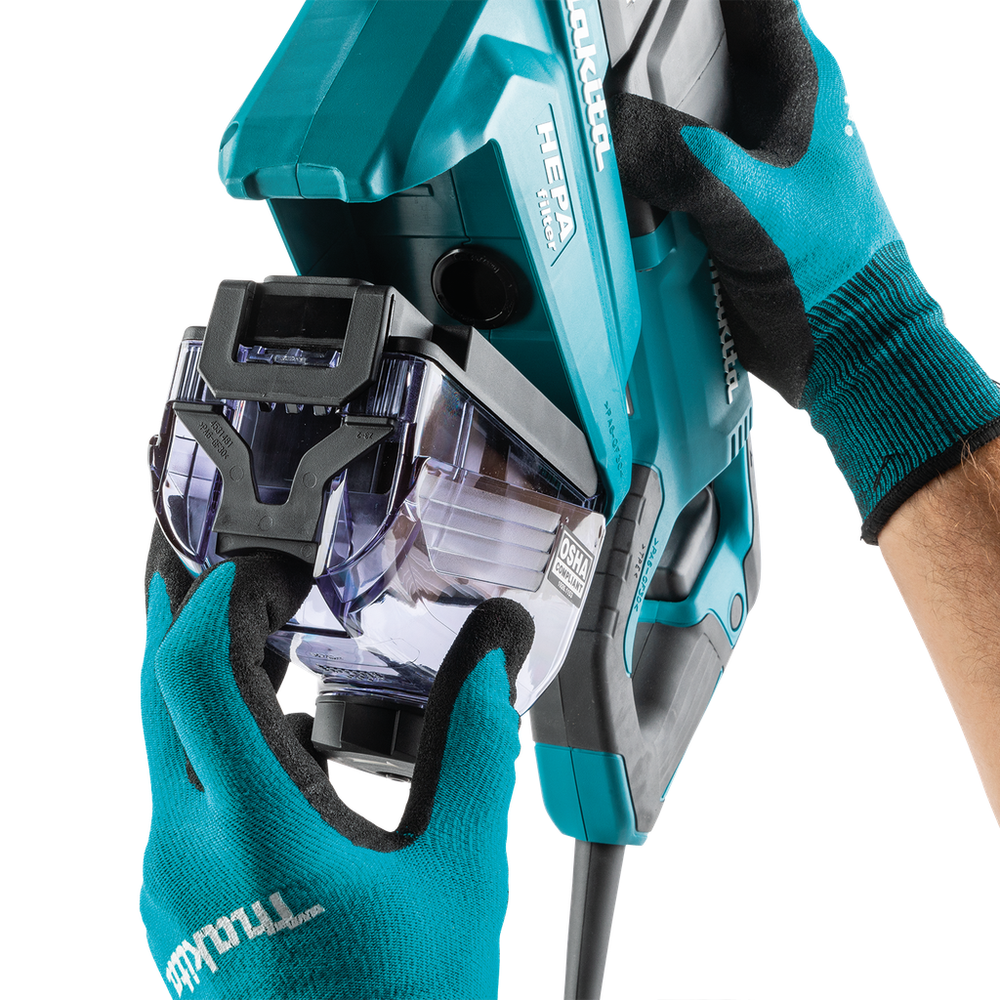

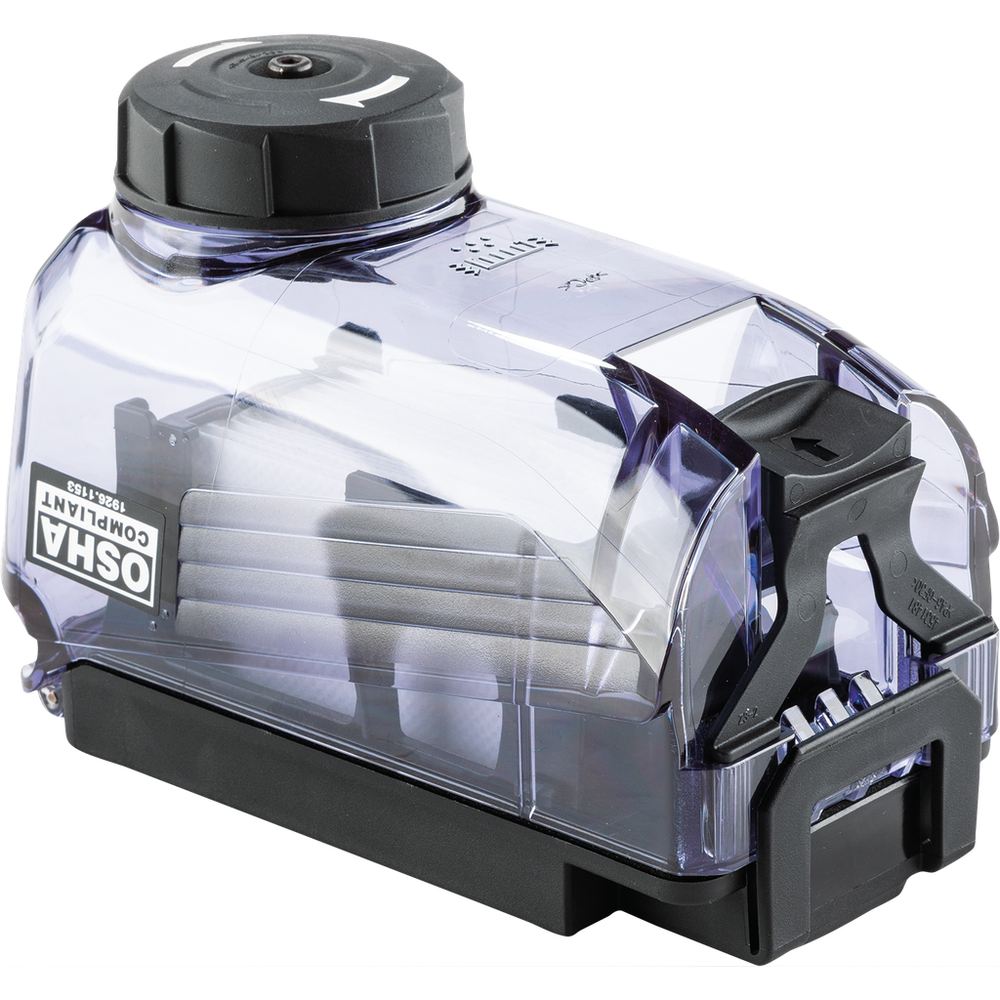

Transparent dust container provides needed visibility in determining when the dust box needs to be emptied
40 bit angle settings allow the bit to be set at different positions for operating convenience
Powerful 8 AMP motor delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications
Anti-Vibration Technology (AVT®) is an internal counterbalance system that actively works to reduce vibration to the operator
Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
Variable speed trigger enables user to match the speed to the application for greater versatility
3-mode operation for "Rotation Only", "Hammering with Rotation" or "Chipping Only" for multiple applications

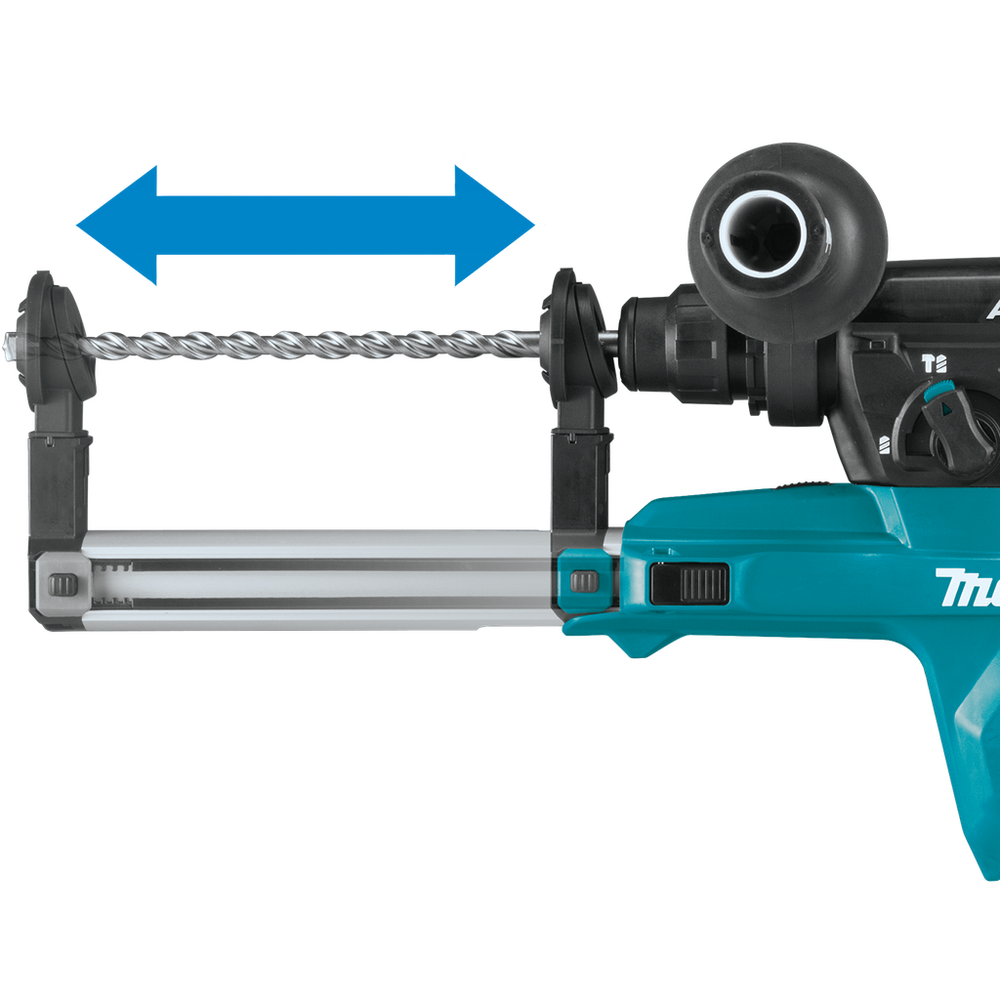

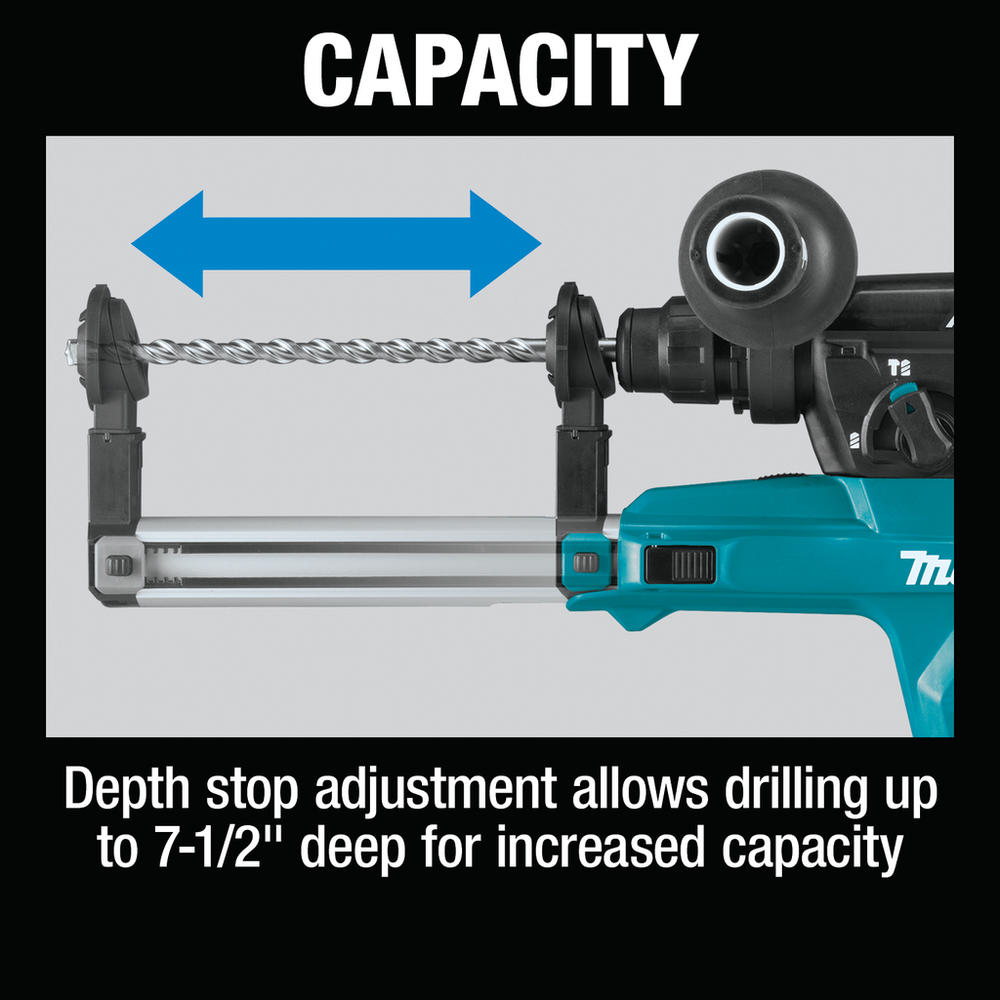

Depth stop adjustment allows drilling up to 7-1/2" deep for increased capacity

Manuals

Instruction Manual

Instruction Manual 2

Documents

Parts Breakdown

Specifications

Filter Life (Approx. container fillings)	200
Vibration Control	Yes
Cord Length	13.1'
Power Type	Corded
HEPA filter	Yes
Bit Type	Accepts SDS-PLUS
AMPS	8
Optimum Range (concrete drilling)	1/4" - 5/8"
Max. Capacity (concrete drilling w/ core bit)	3-1/8"
Length	18-7/8 in
Max. Hole Depth	7-7/16"
Impact Energy	1.6 ft.lbs. (2.2 J)
Blows Per Minute (variable speed)	0 - 4,500 BPM
Dust Collection	Yes
Container Hole Count Capacity	36 holes of dimension 3/8"x2-3/8"
Max. Capacity (concrete drilling)	1"
Vibration	9.5 m/s²
Sound Rating	90 dB(A)
No Load Speed (variable speed)	0 - 1,100 RPM
Weight	9.7 lbs
