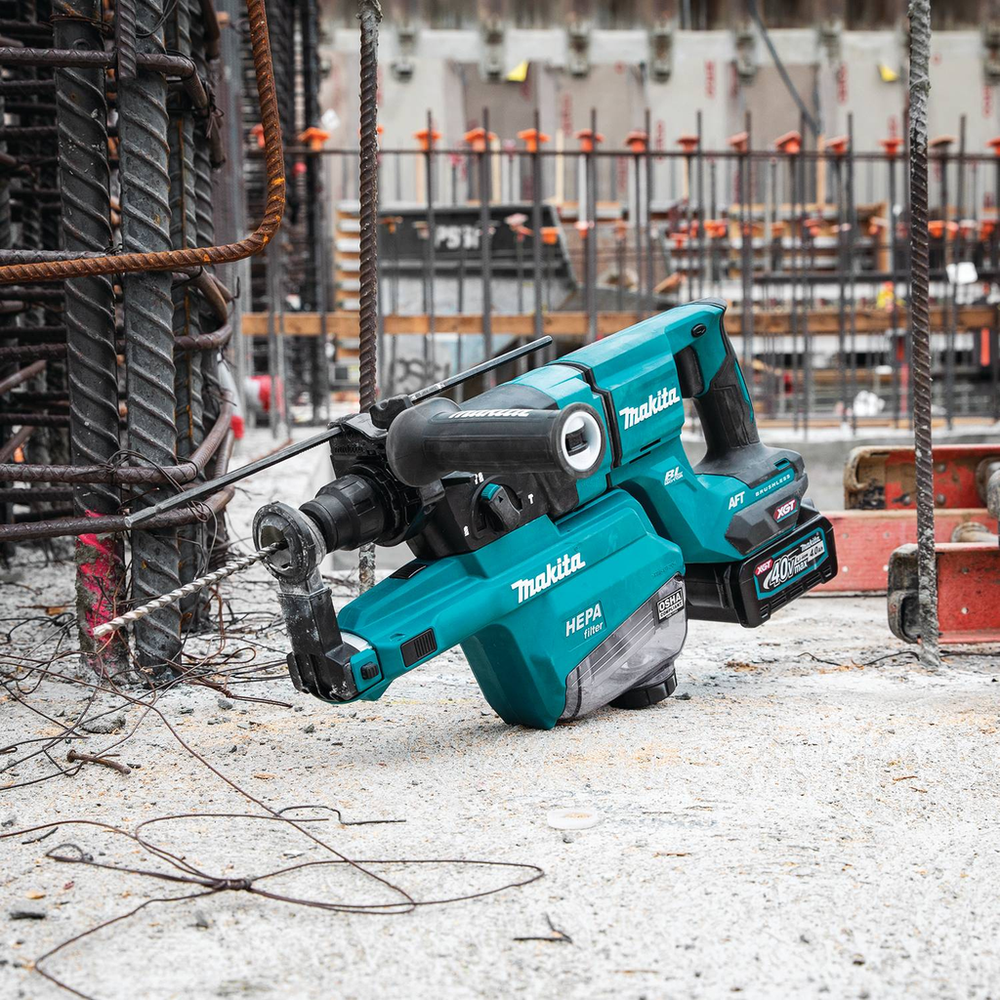

The 40V max XGT® Brushless 1-1/8" AVT® Rotary Hammer with Dust Extractor Kit (GRH07M1W) is a cordless concrete solution engineered for heavy-load applications. It delivers the power, speed, and run-time for corded demands, and features a convenient D-handle design that is ideal for overhead, downward or hard-to-reach horizontal drilling/chipping applications. The Makita-built brushless motor delivers a full 2.7 ft. lbs. of impact energy, with 0-980 RPM and 0-5,000 BPM. Constant speed control automatically applies additional power under load for optimum performance. It’s equipped with Active Feedback-Sensing Technology (AFT®), which electronically turns off the motor if rotation of bit is suddenly forced to stop, and Anti-Vibration Technology (AVT®) for reduced vibration. More than just a padded handle, AVT is an internal counterbalance that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. In addition, the vibration-absorbing back handle and side handle further reduce vibration. For added durability in harsh job site conditions, Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance. The rotary hammer has dust extraction capability with an OSHA Table 1 compliant on-board HEPA dust extractor attachment (model DX15). Users many also use a standalone dust extractor with Auto-Start Wireless System (AWS®). AWS uses Bluetooth® technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site. The torque limiting clutch is engineered to prevent gear damage by automatically disengaging the gears if the bit binds, and constant speed control automatically adds power to the motor to maintain speed under load to complete the most demanding jobs. Additional performance features include an electric brake, variable speed dial, built-in L.E.D. light, and a tethering loop/hanging hook to help secure the tool when working at heights or on a lift. It is ideal for a range of trades including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, maintenance operations, and more. It accepts SDS-PLUS bits. XGT is a system of equipment, tools, batteries and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
Features
- Anti-Vibration Technology (AVT®) is designed to reduce vibration for increased comfort
- DUST MANAGEMENT - Dust extraction capability with OSHA Table 1 compliant on-board HEPA Extractor
- COMFORT - Anti-Vibration Technology (AVT®) is designed to reduce vibration for increased comfort
- RUN TIME - Drills up to 38% more holes per charge
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
- Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job
- 40V max XGT® Brushless 1-1/8" SDS-PLUS AVT® Rotary Hammer (D-Handle), AWS® Capable (GRH07Z)
- Variable speed trigger enables user to match the speed to the application
- Overload protection is designed to protect the motor from burnout in abnormally high torque situations
- 40V max XGT® 4.0Ah Battery (BL4040)
- Multiple bit angles allow the bit to be set at different positions for increased comfort
- D-handle design is ideal for overhead, downward or hard-to-reach horizontal drilling/chipping applications
- OUTPOWER: Makita-built brushless motor along with 40V max XGT® battery combine to deliver the power performance required for heavy-load application

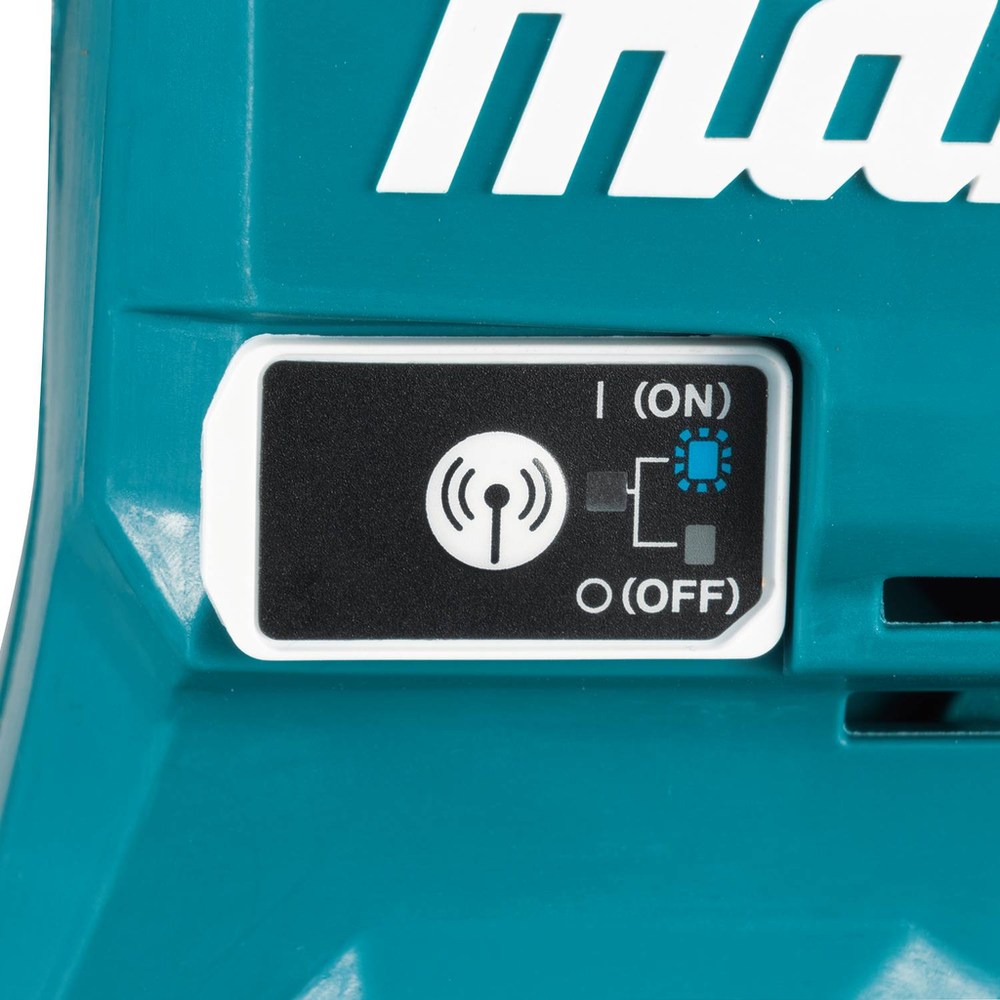

- AWS® utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
- The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
- Active Feedback-Sensing Technology (AFT®) electronically turns off the motor if rotation of bit is suddenly forced to stop
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation
- PERFORMANCE - Makita-built brushless motor and 40V max XGT® battery delivers up to 23% faster drilling in concrete
- Electric brake allows the tool to be repositioned faster for maximum productivity

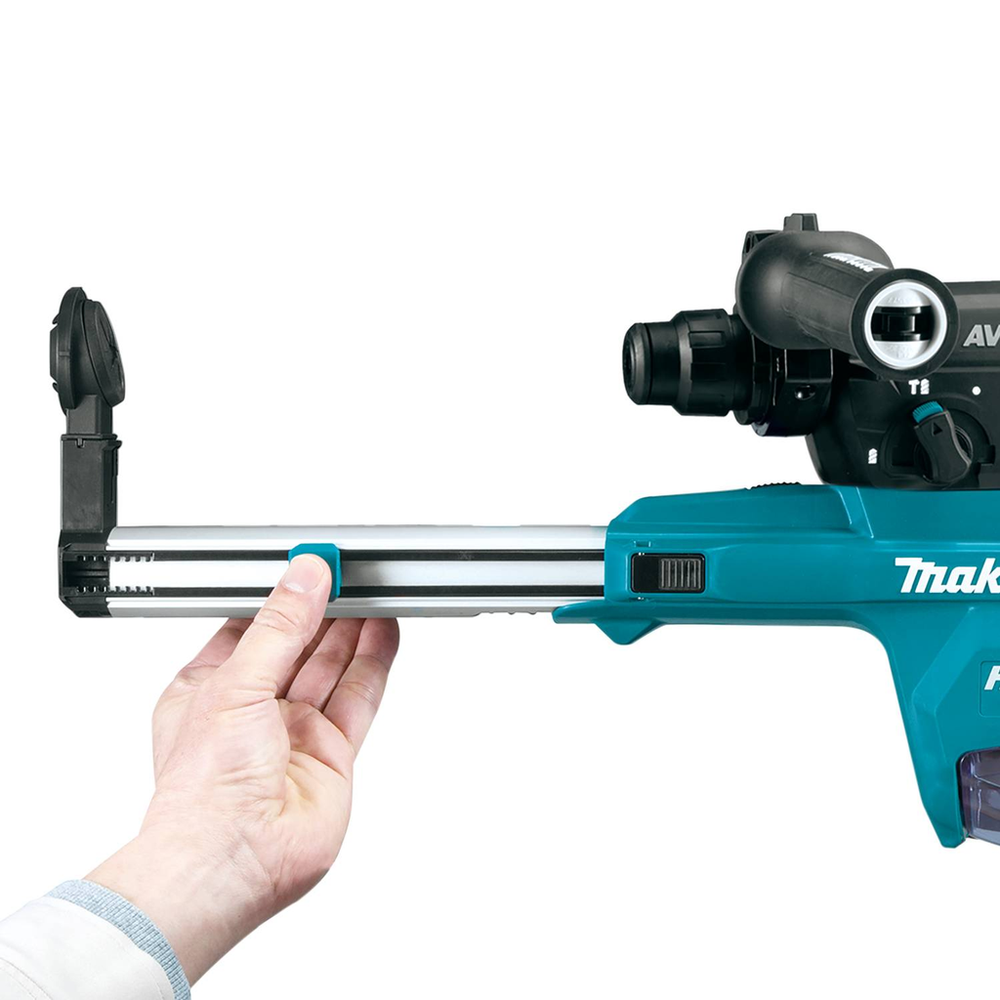

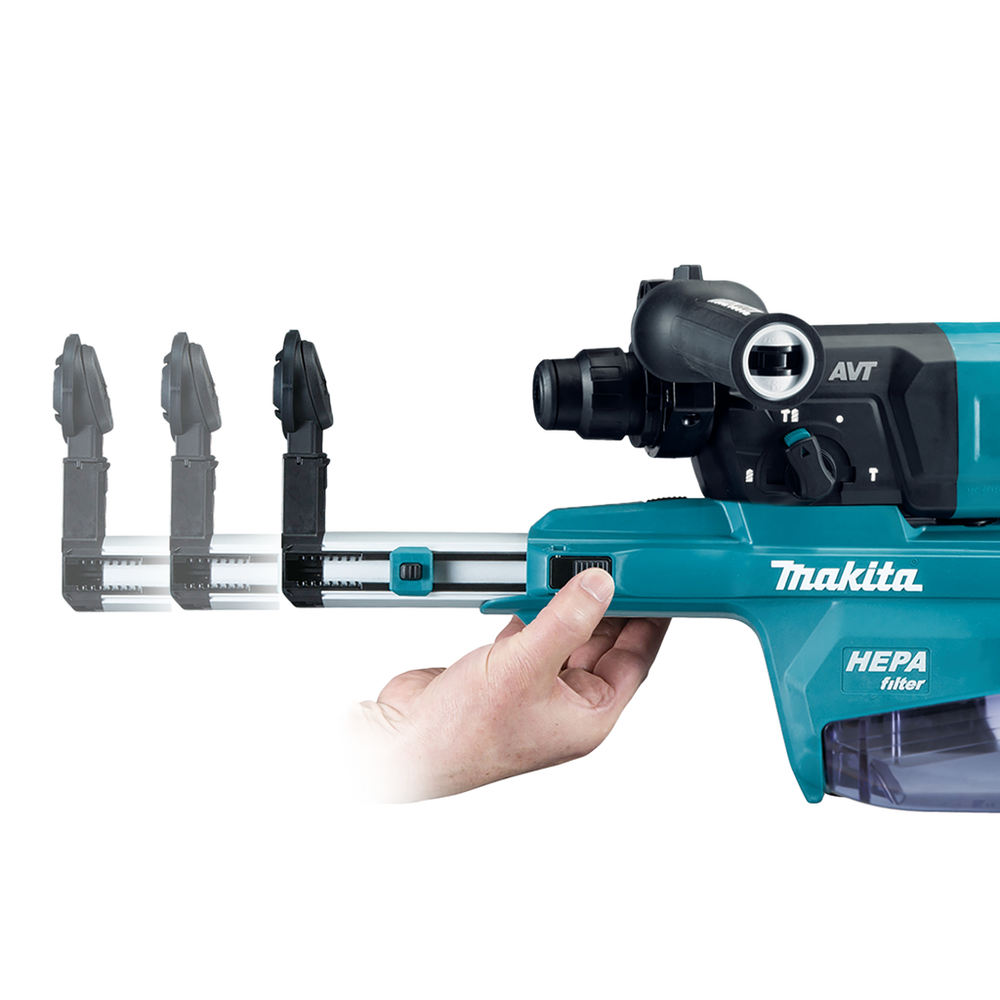

- Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX15)
- The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- OUTSMART: Constant speed control automatically applies additional power under load for optimum performance
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
- 40V max XGT® Rapid Optimum Charger (DC40RA)
- 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
- Dust extraction capability with OSHA Table 1 compliant on-board HEPA Dust Extractor or optional stand-alone AWS® Extractor
- The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- Tethering loop/hanging hook helps secure the tool when working at heights or on a lift (sold separately)
- Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- Constant speed control automatically applies additional power under load for optimum performance
- Auto-Start Wireless System (AWS®) which utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
- Built-in L.E.D. light with an independent on/off illuminates the work area
- Makita-built brushless motor along with 40V max XGT® battery combine to deliver the power performance required for heavy-load application
- INCLUDES - (1) 40V max XGT® battery, rapid charger, side handle, grease, towel
- OUTLAST: Overload protection is designed to protect the motor from burnout in abnormally high torque situations
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
GRH07 Parts BreakdownGRH07 Instruction Manual
