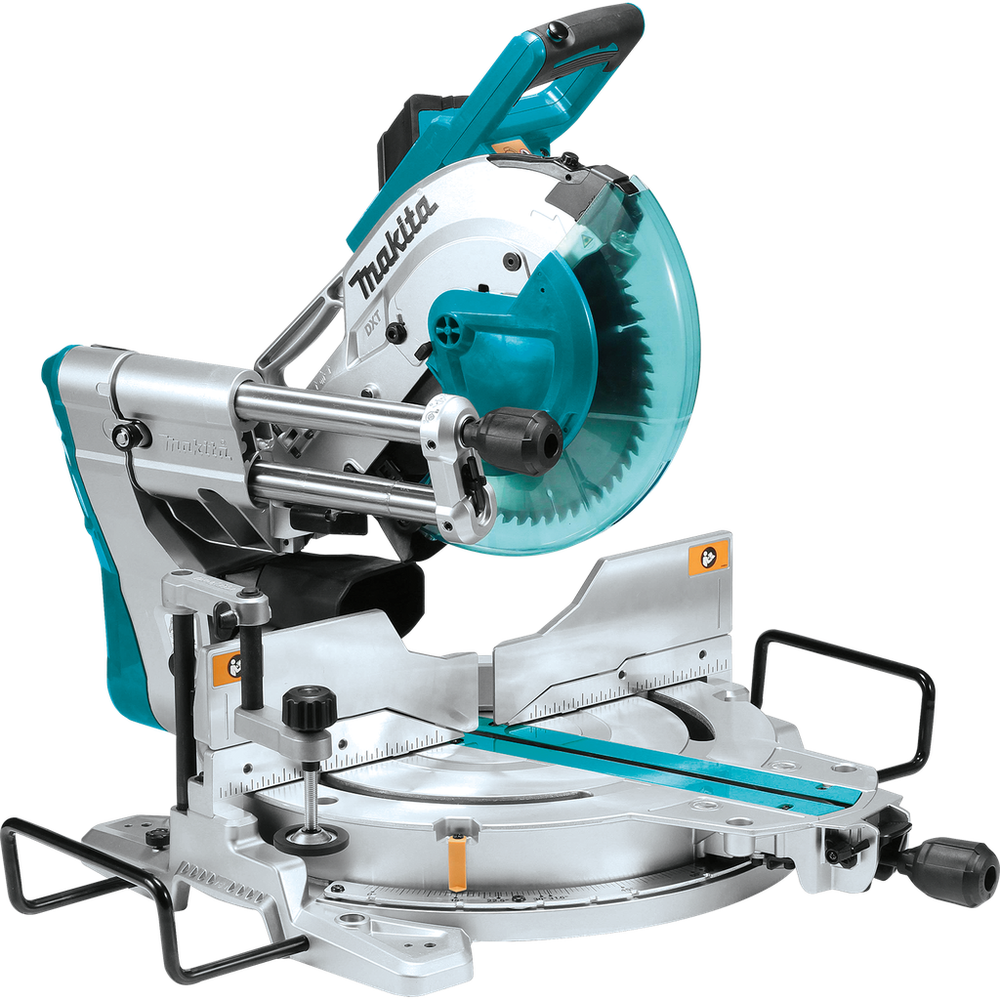

10" Dual-Bevel Sliding Compound Miter Saw with Laser - LS1019L

The Makita 10” Dual-Bevel Sliding Compound Miter Saw with Laser (model LS1019L) combines capacity, accuracy and efficient dust extraction in a more compact size, with a unique 2-Steel Rail Sliding System that offers a reduced footprint for operation flush against a wall. The innovative direct-drive gearbox and guard system is engineered for increased vertical cutting capacity of baseboard (5-1/4”) and crown molding (6-5/8” nested), the largest in its class. It will also crosscut a 4x12 at 90 degrees. The saw miters 0° to 60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left or right). The bevel lock is located in the front of the saw for easy access and quick adjustments from 0° to 48° (left and right). The saw is powered by a 15 AMP direct drive motor with soft start, a key point of difference. Direct drive enables smoother start-ups and consistent, constant power with no belts to slip or replace. The electric brake provides added convenience. In addition, the electronic speed control maintains constant speed under load for smoother, higher-quality cutting. Additional features include a high-quality 60T carbide-tipped blade, with a see-through blade guard system for greater visibility of the blade and line-of-cut. The built-in laser indicates the line-of-cut whether the blade is turning or not, and offers micro-adjustments for precise “left-of-blade” or “right-of-blade” cutting. For improved dust extraction it has an improved dust collection capability for use with a bag (included) or vacuum (sold separately). It also has a large-sized aluminum base that improves the stability of cutting stock for more efficient cutting.

Features

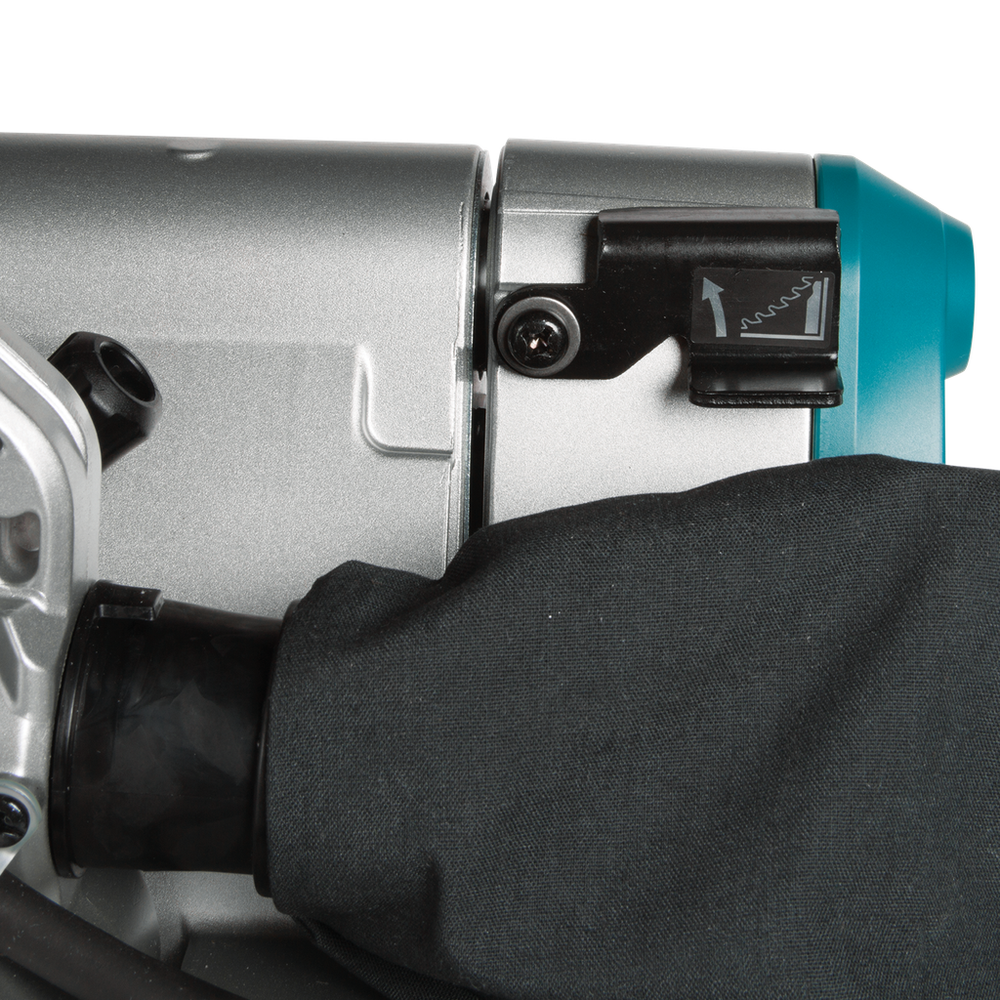

• Dust Bag (122852-0)
• Positive miter stops at: 0°, 15°, 22.5°, 31.6°, 45°, and 60° left or right
• Electronic speed control maintains constant speed under load for smoother, higher quality cutting
• Hex Wrench (781044-6)
• 10" slide miter saw with the crown molding cutting capacity (6-5/8" nested) of a 12" miter saw
• Integrated upper and lower 4-3/4" tall fence system offers added rigidity for more precise miter and bevel cuts
• INCLUDES - Blade, dust bag, vertical clamp, wrenches, and triangle
• Triangular Rule (762001-3)

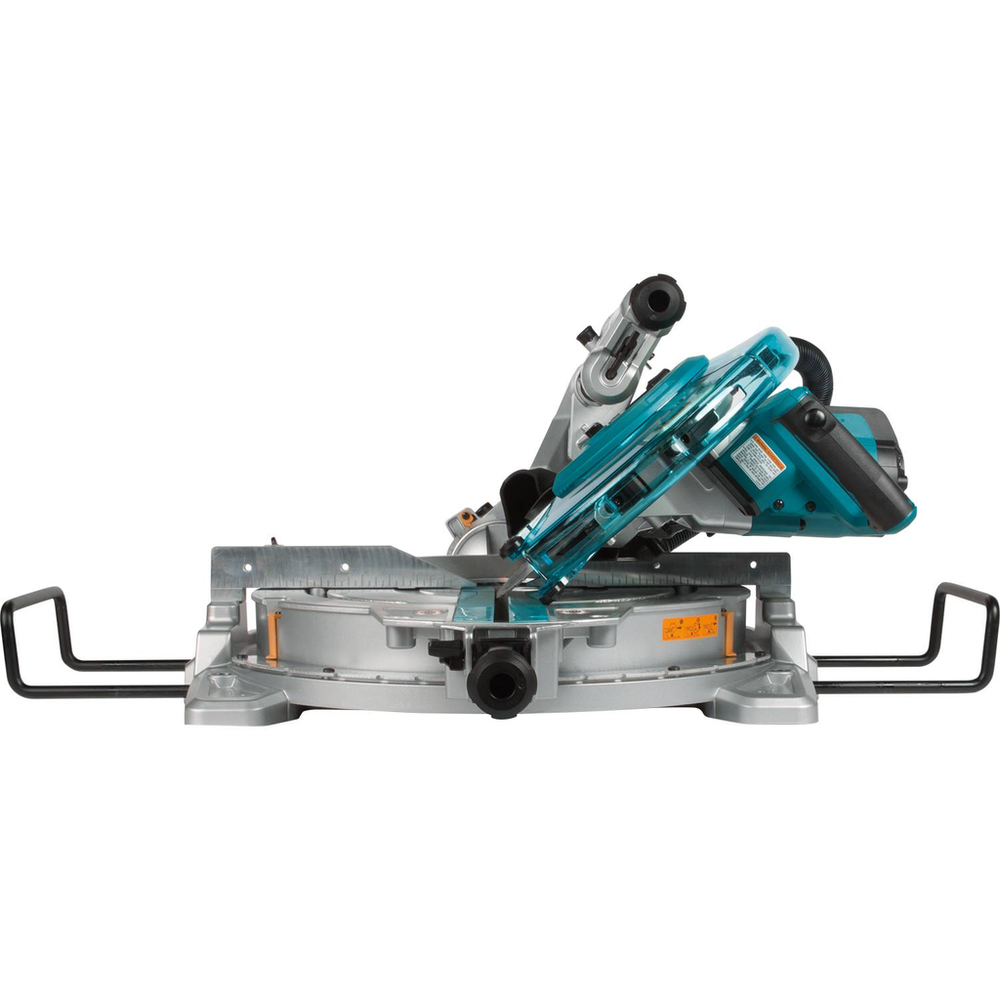

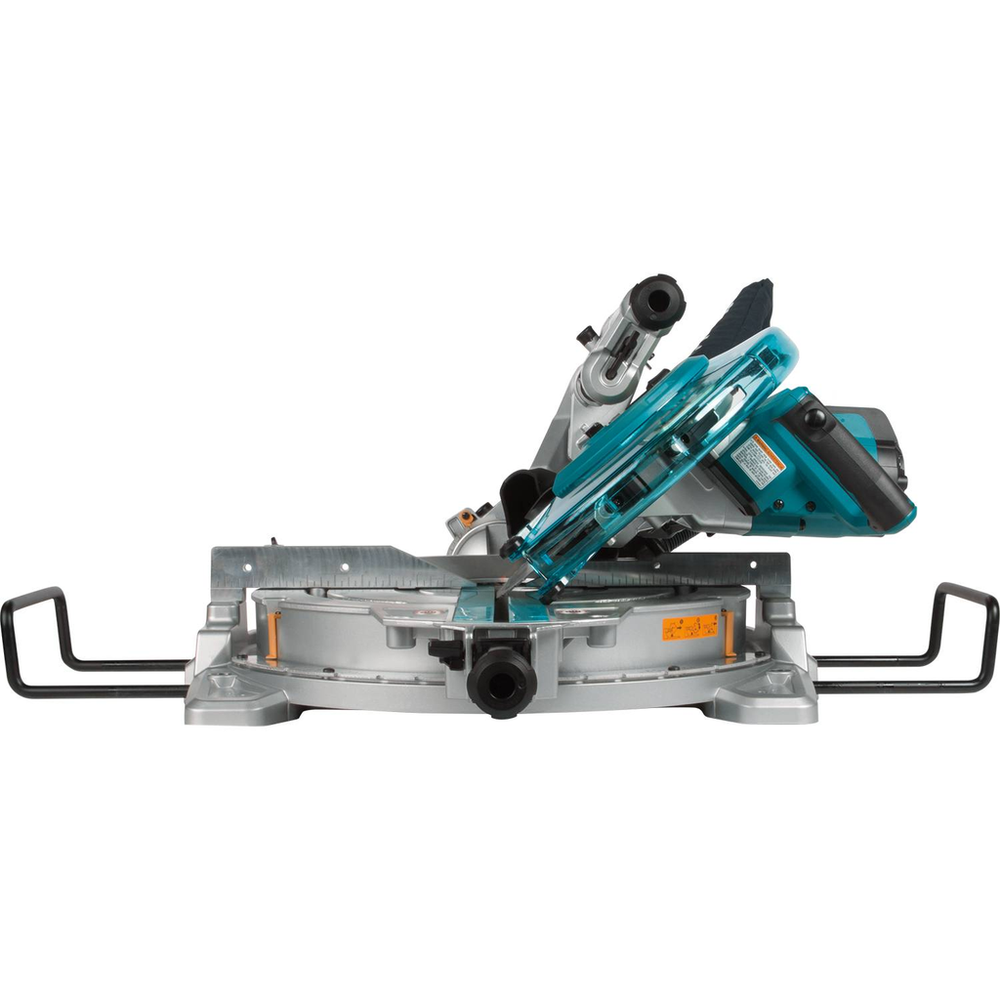

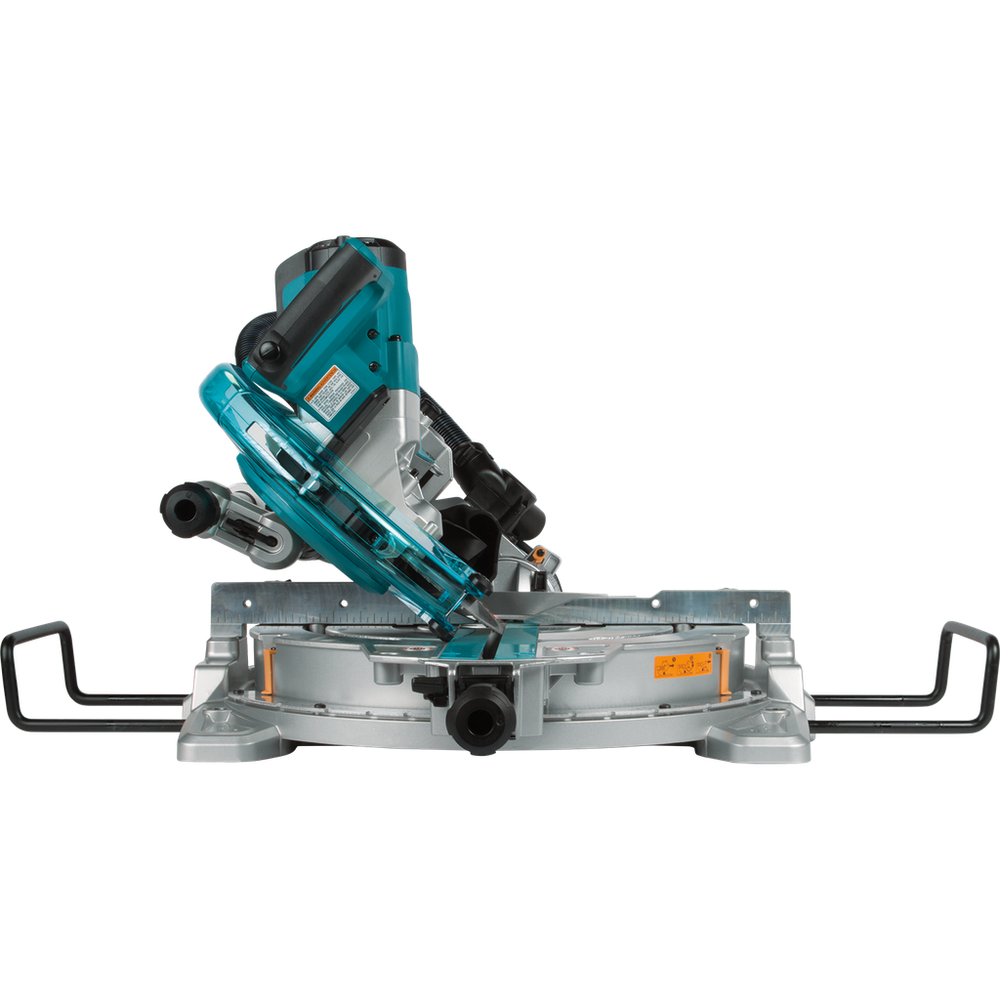

• Miters 0-60° left and right; bevels 0-48° left and right

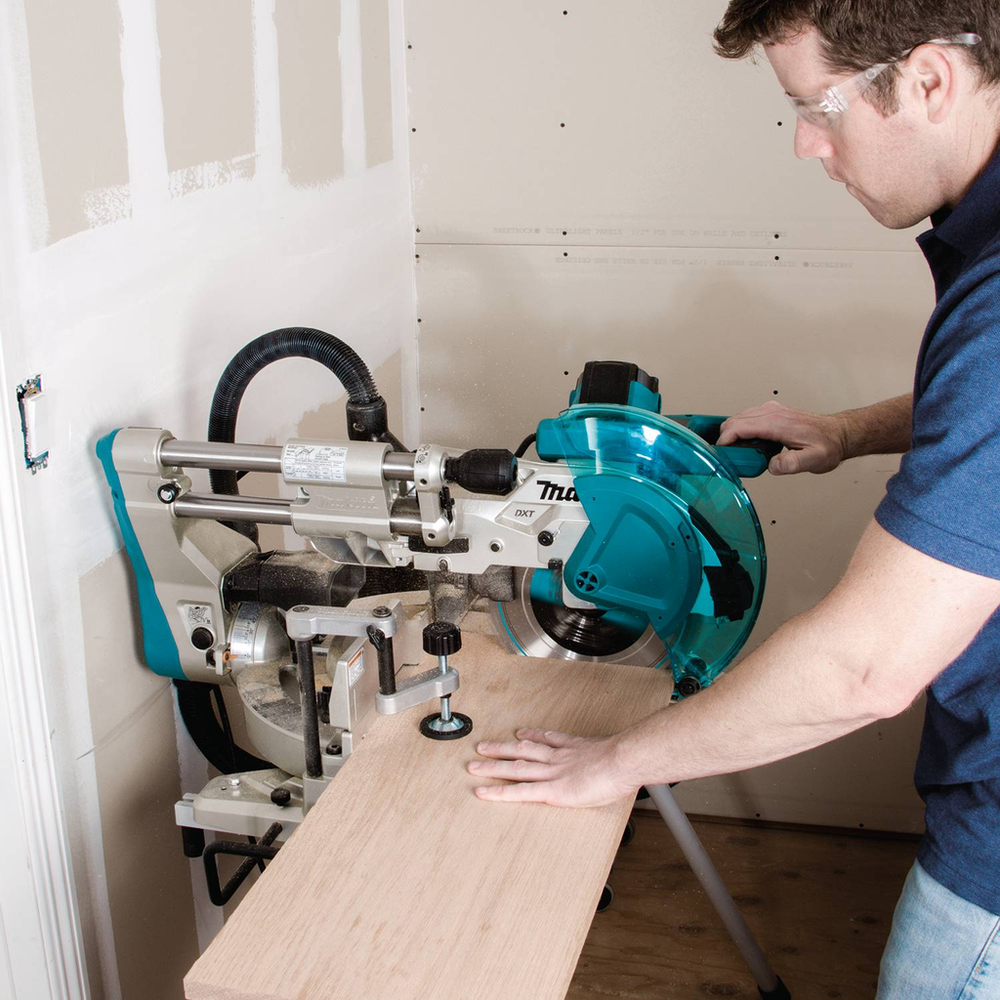

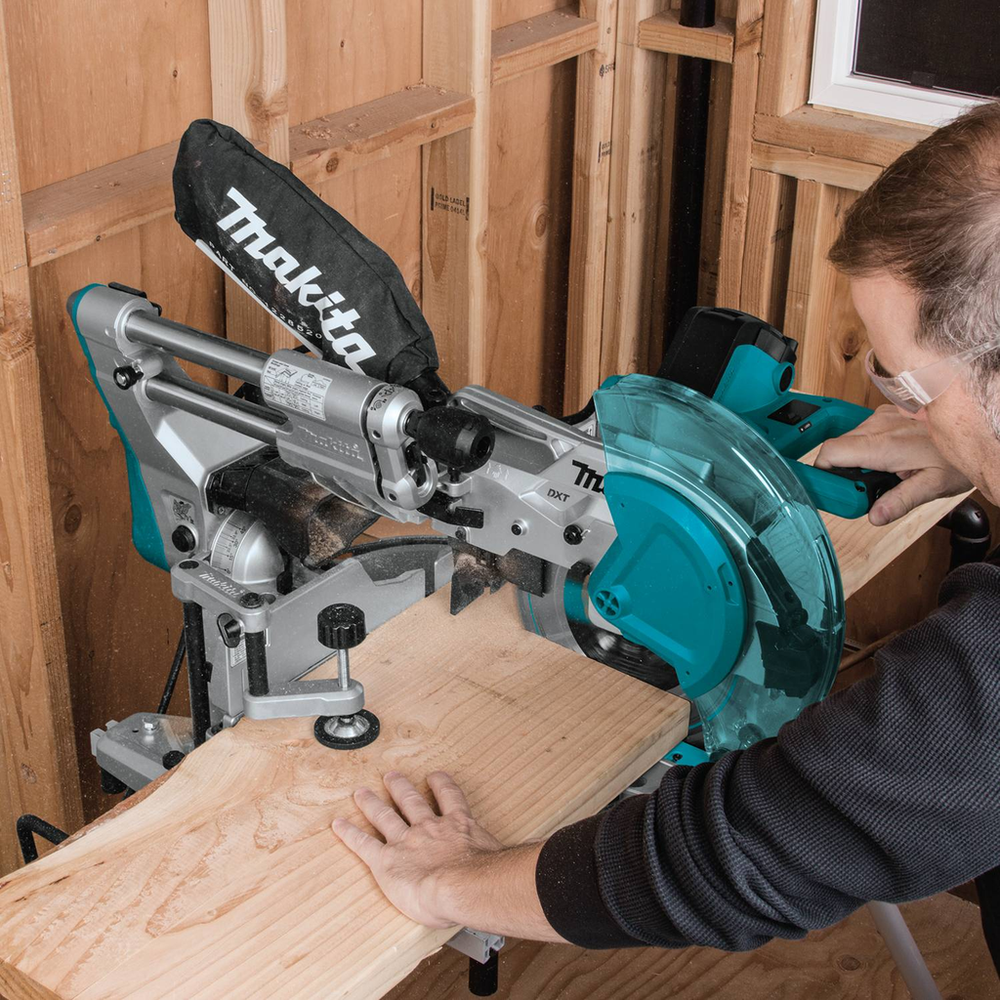

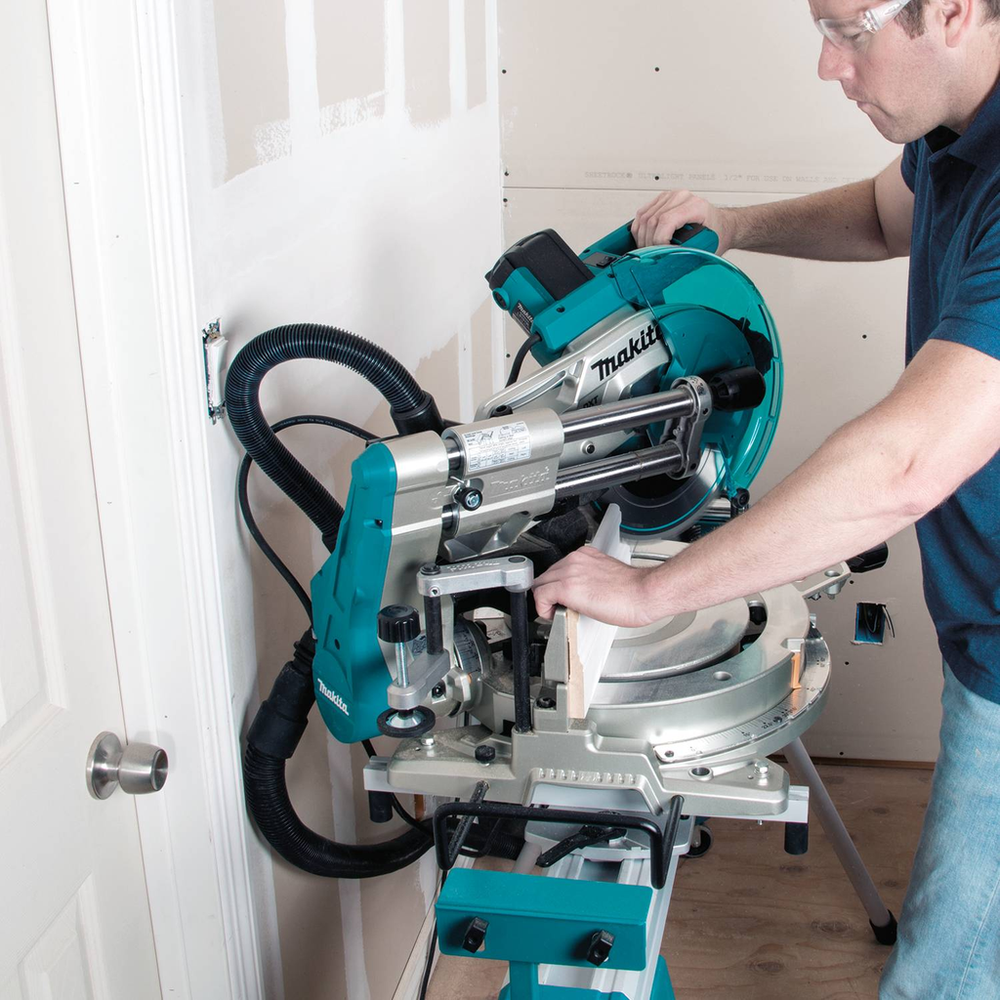

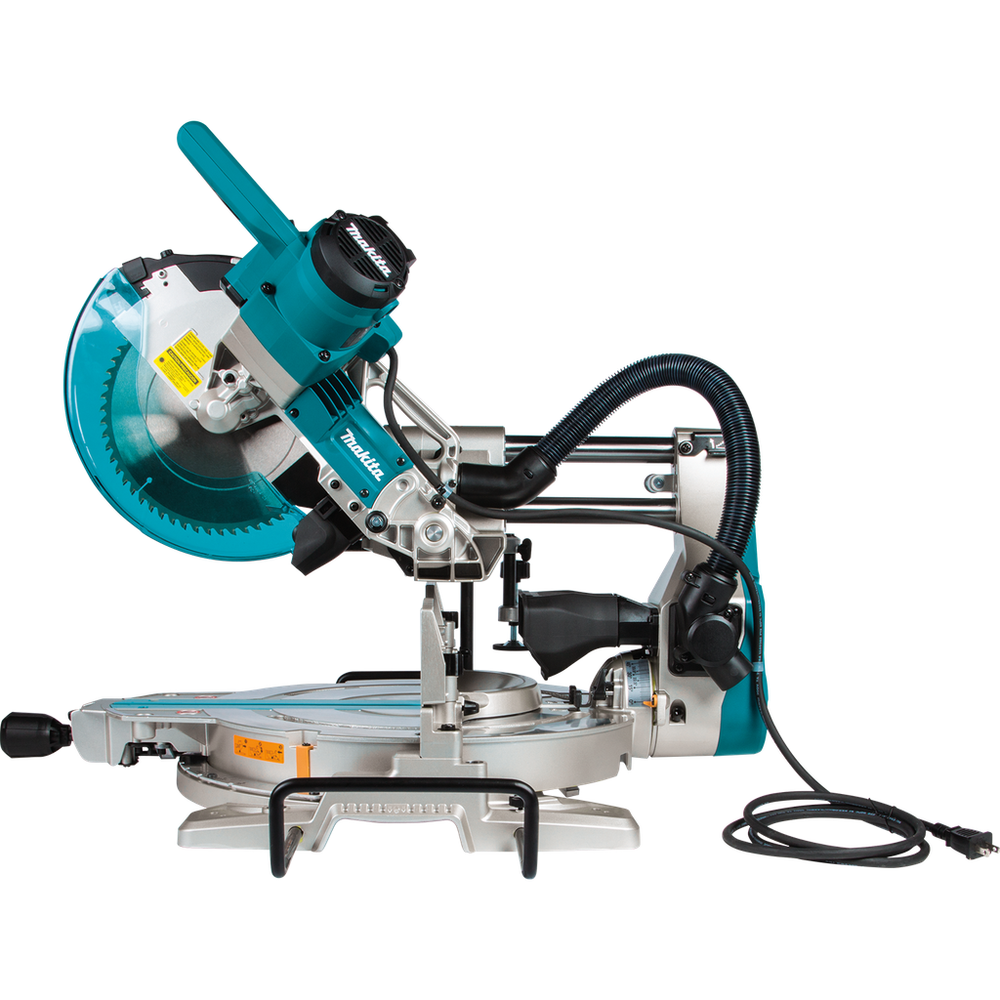

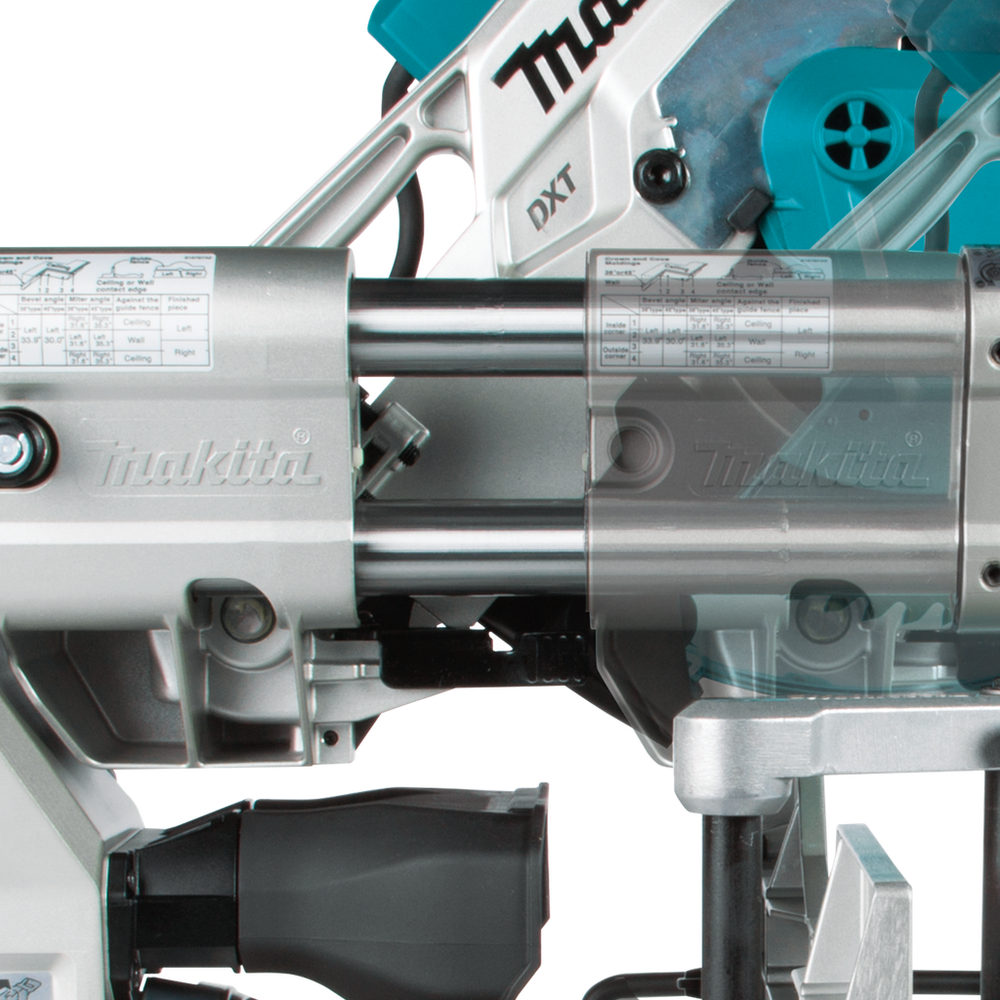

• Unique 2-Steel Rail Sliding System design offers single slide-glide operation; reduced saw footprint allows operation flush against a wall
• Easy blade changes for increased efficiency
• In-front bevel lock for convenient operation

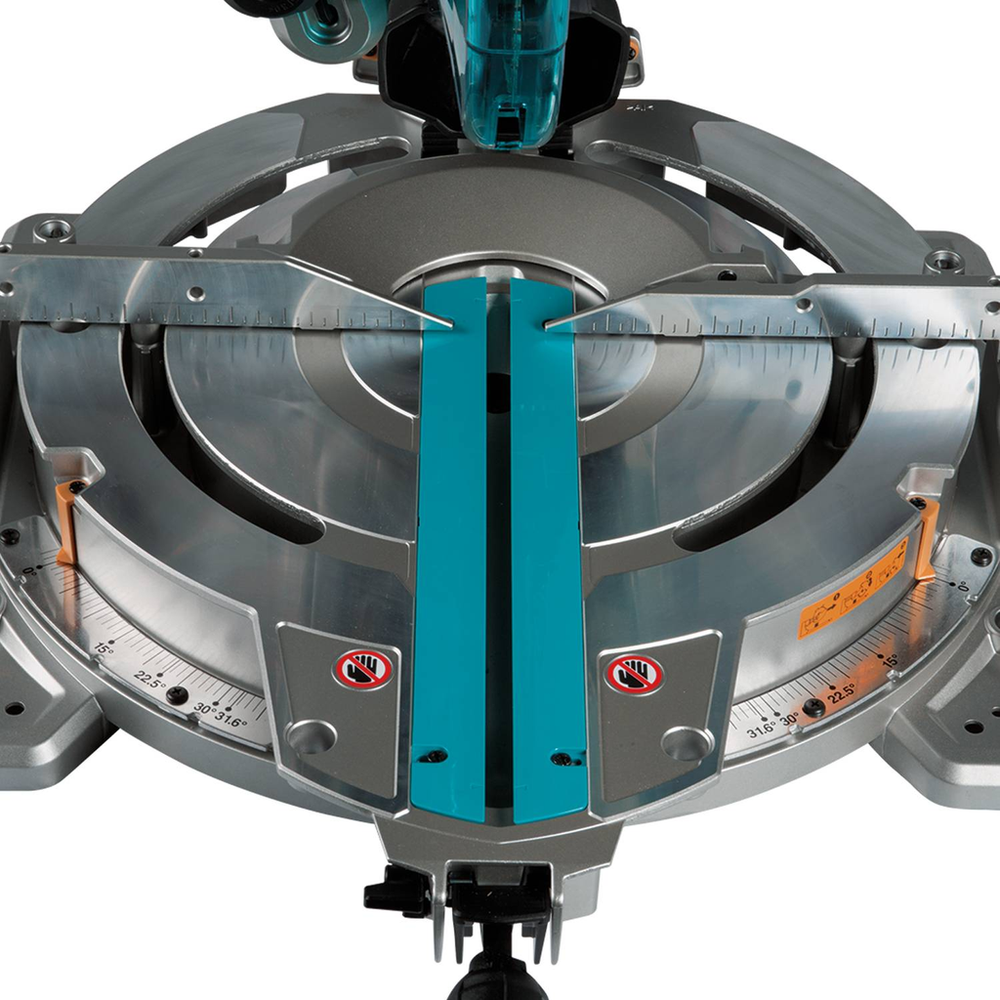

• Replaceable stainless steel miter scale features large and easy-to-read markings

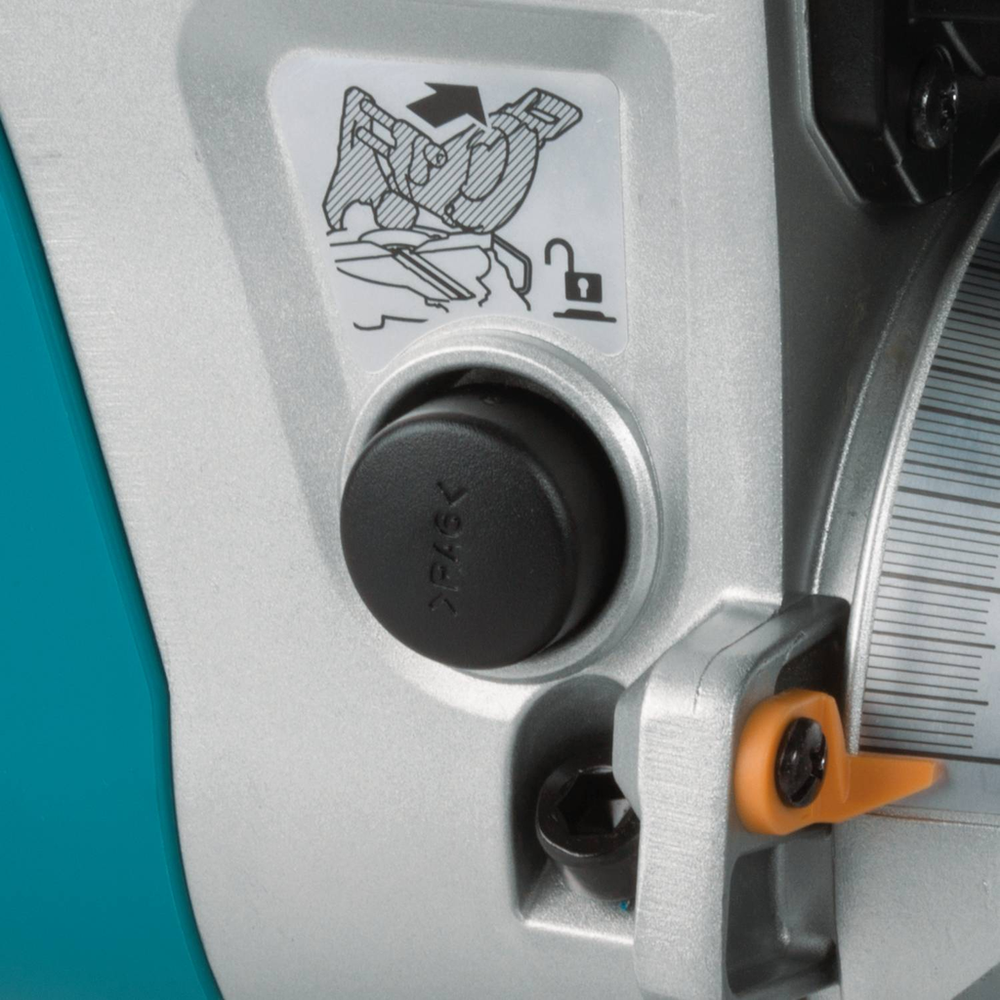

• Easy one-touch slide lock for convenience

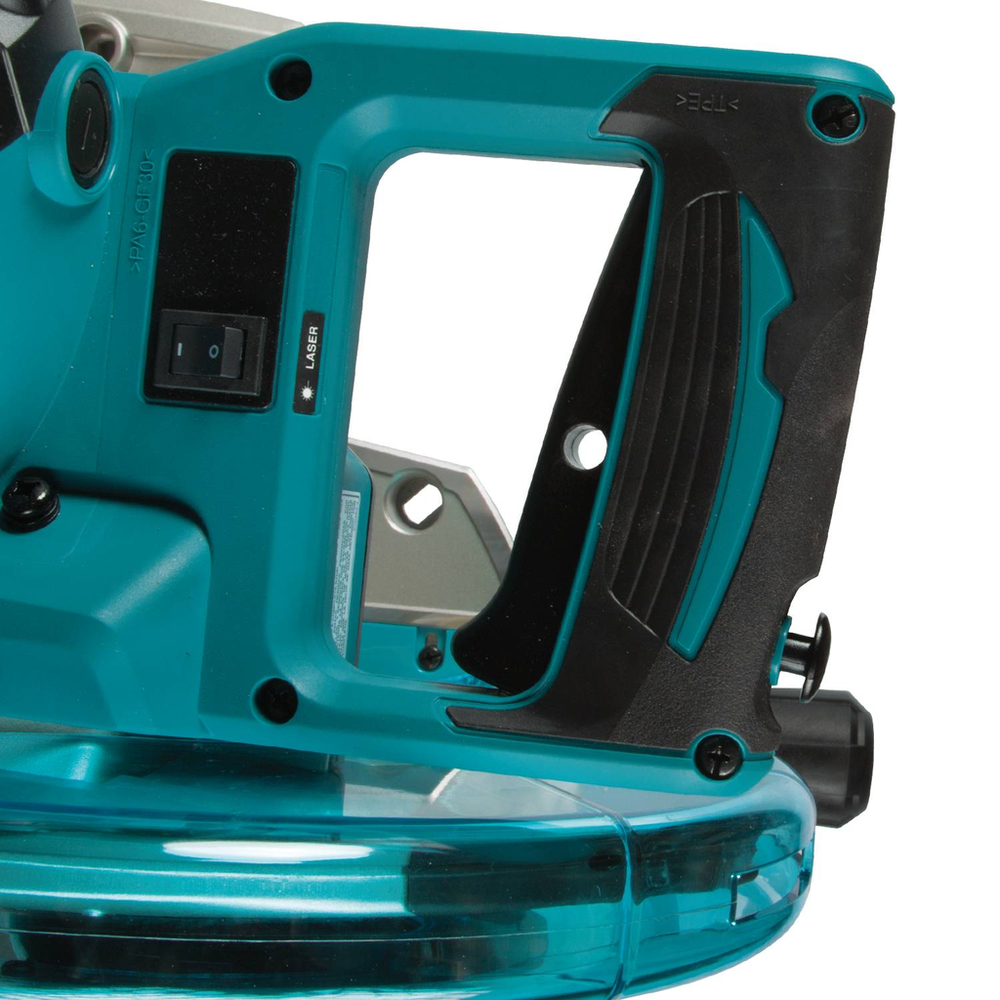

• Ergonomic rubberized horizontal D-handle design for better fit and added comfort
• DESIGN - Unique 2-Steel Rail Sliding System offers a reduced footprint and operation flush against a wall
• CONVENIENCE - In-front bevel lock for convenient operation
• Easy-to-read dual bevel scale for more precise adjustments
• Unique 2-Steel Rail Sliding System design allows operation flush against a wall

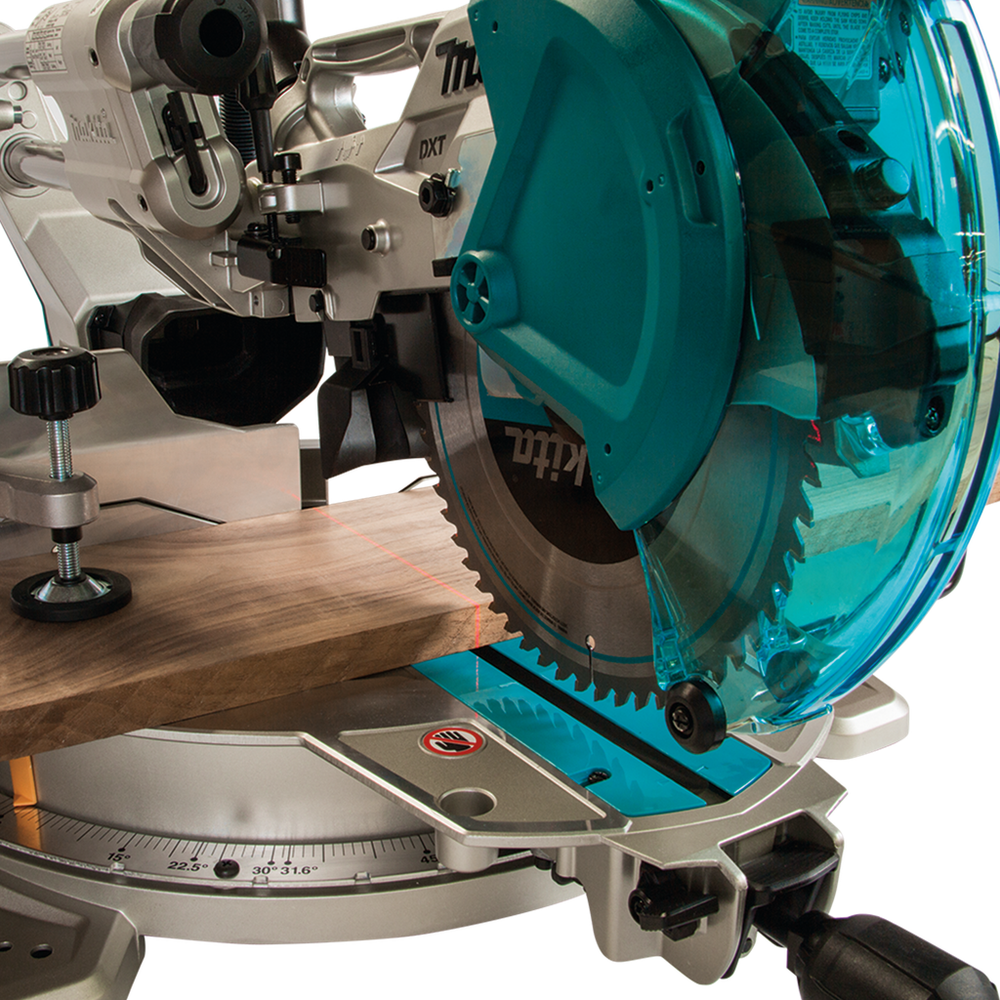

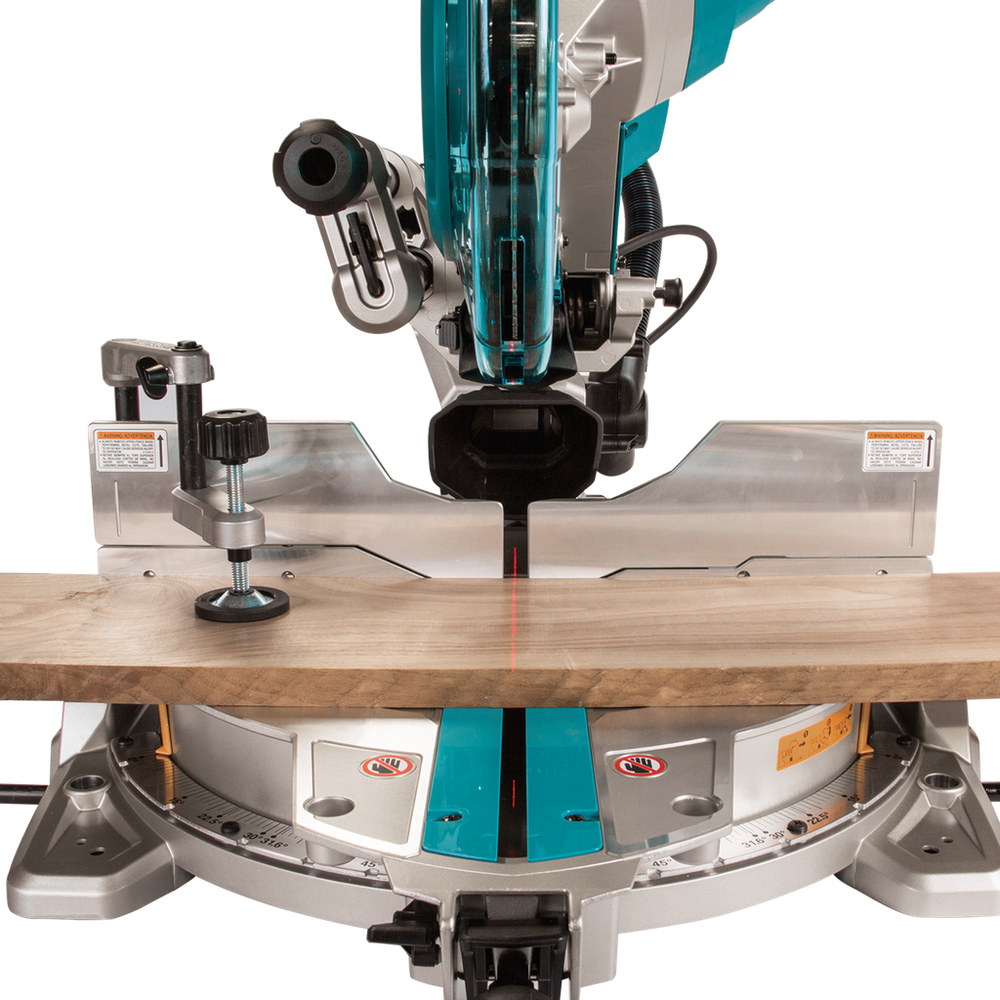

• Built-in laser clearly indicates line-of-cut whether blade is turning or not; on-off switch and micro-adjustments for precise "left-of-blade" or "right-of-blade" cutting

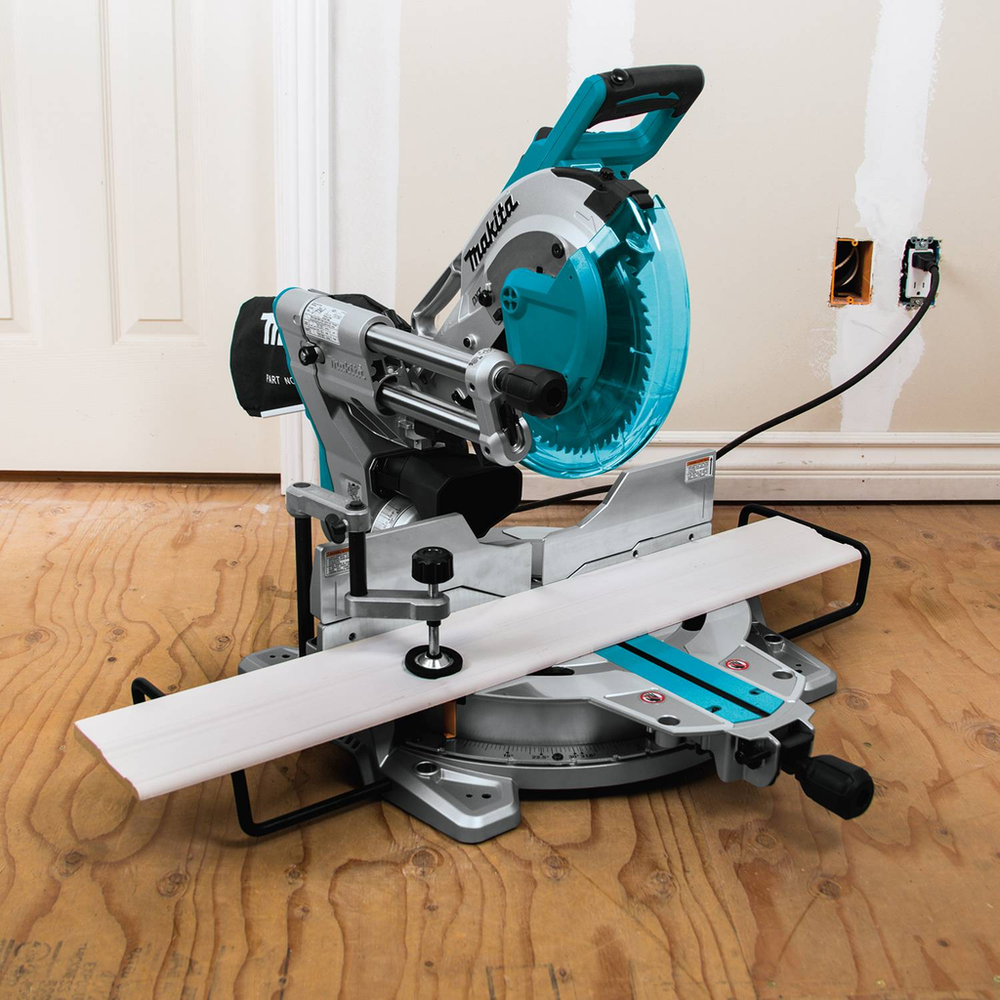

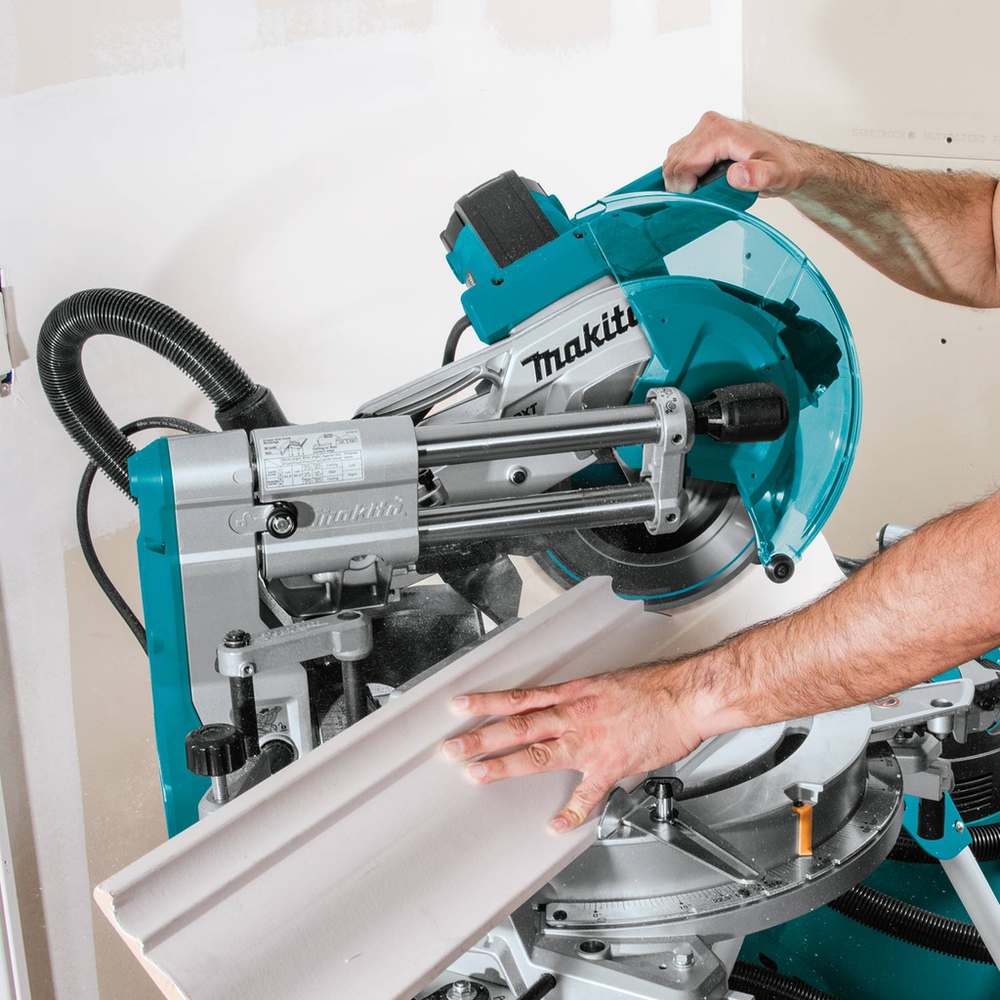

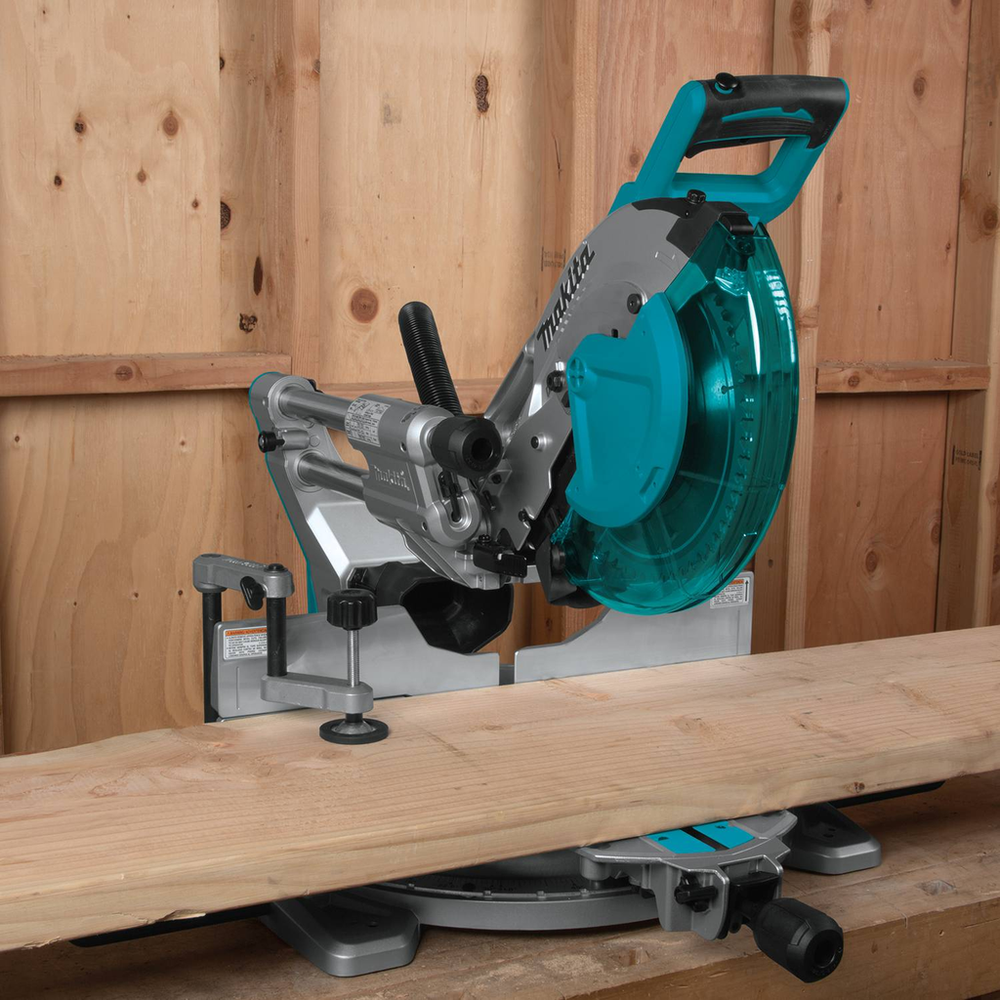

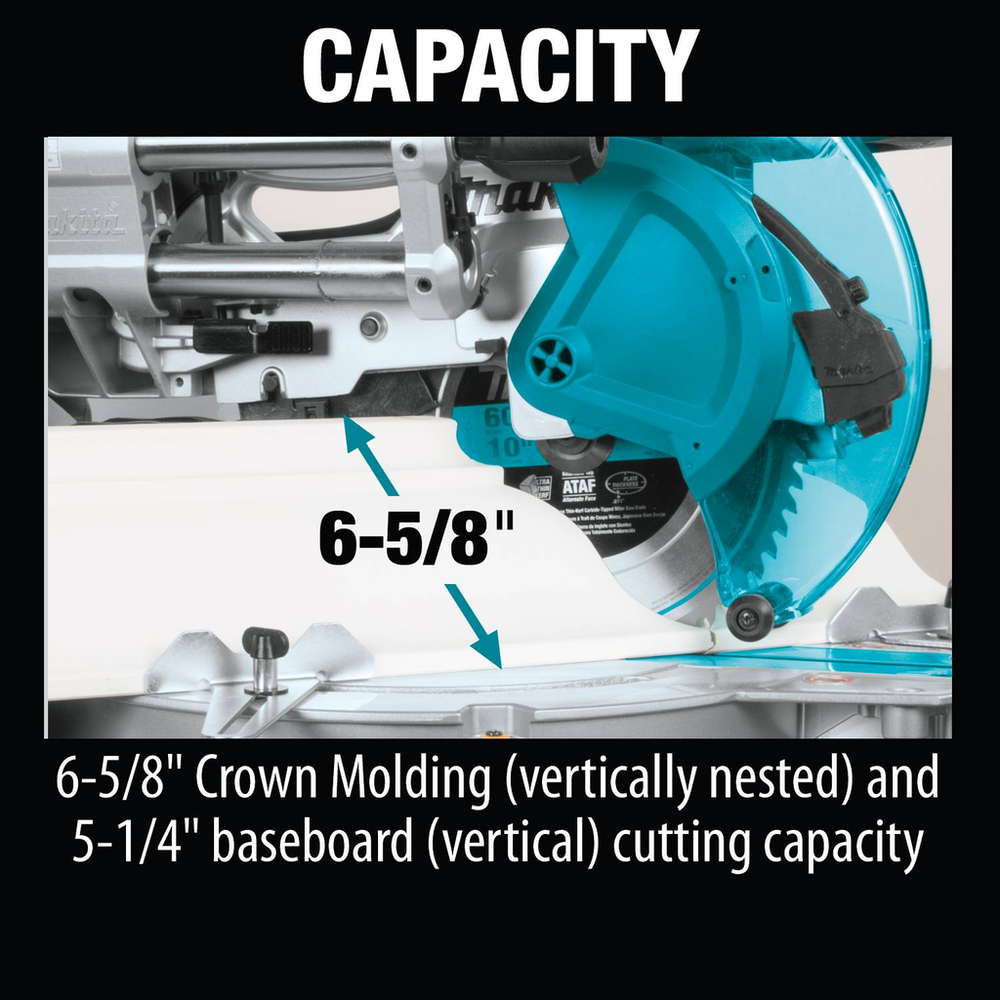

• CAPACITY - Cuts up to 6-5/8" crown (nested), 5-1/4" base (vertical), and crosscuts a 4x12 at 90°
• Less weight (57.9 lbs.) and the most compact design in its class for easy jobsite portability
• Powerful 15.0 AMP direct drive motor requires less maintenance and delivers 3,200 RPM
• Increased capacity for up to 6-5/8" crown molding (vertically nested), 5-1/4" baseboard (vertical), and 12" crosscuts at 90°

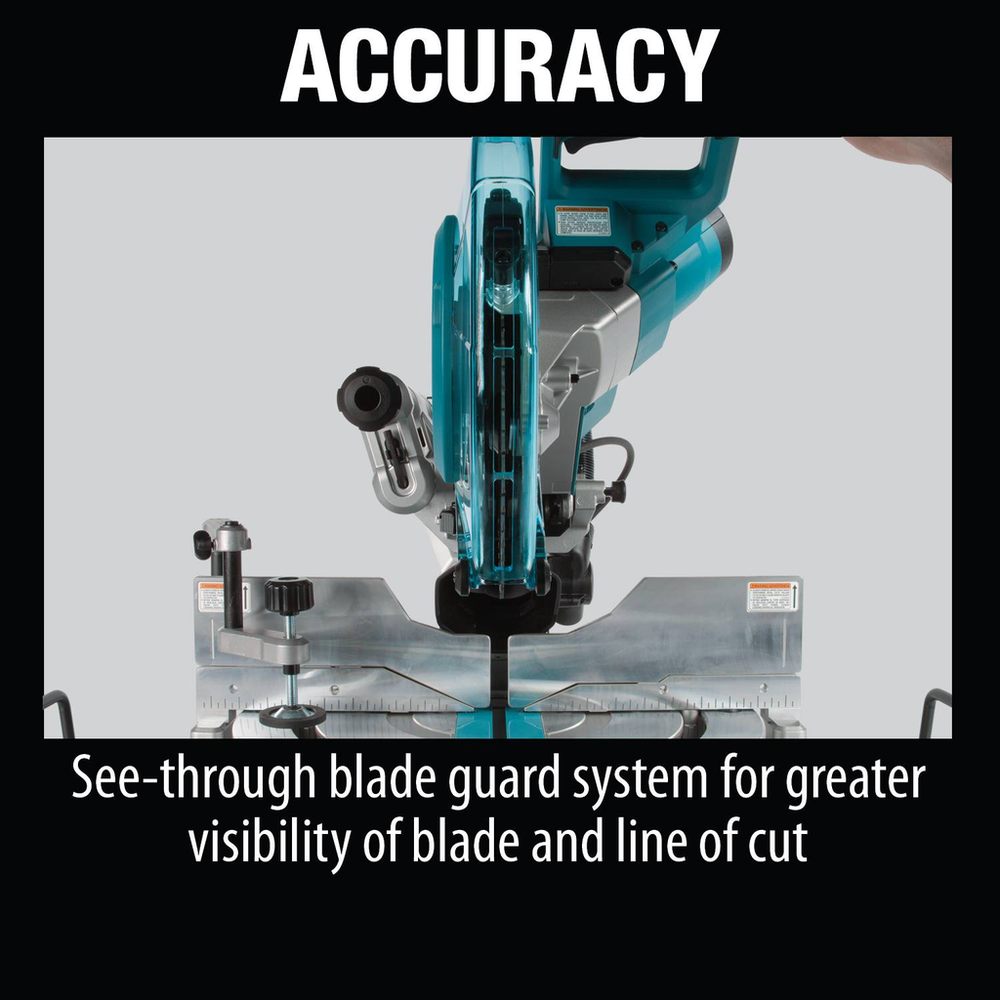

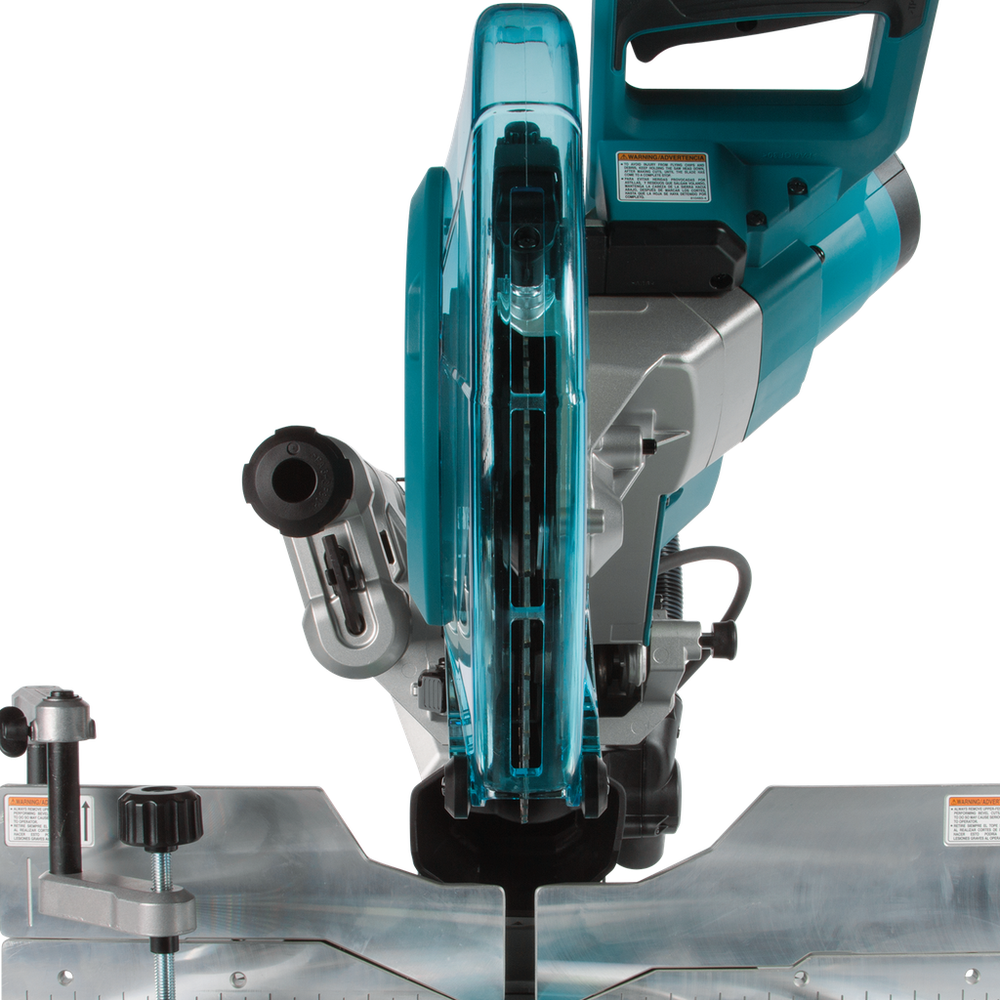

• ACCURACY - See-through blade guard system for greater visibility of blade and line of cut
• Simple 90º turn-of-the-knob miter angle lock/unlock mechanism
• Linear ball bearing system engineered to deliver "dead-on" accurate cuts
• Innovative direct drive motor and guard system is engineered for increased vertical cutting capacity (5-1/4")

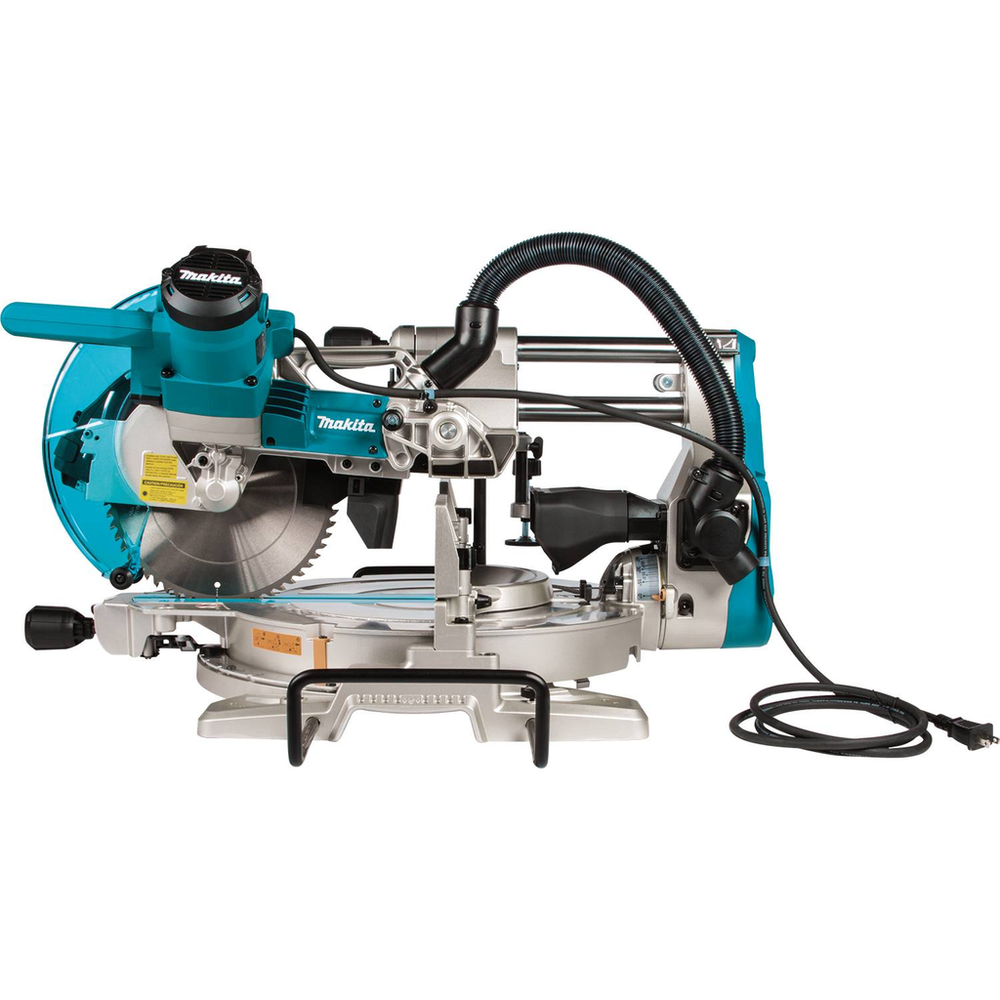

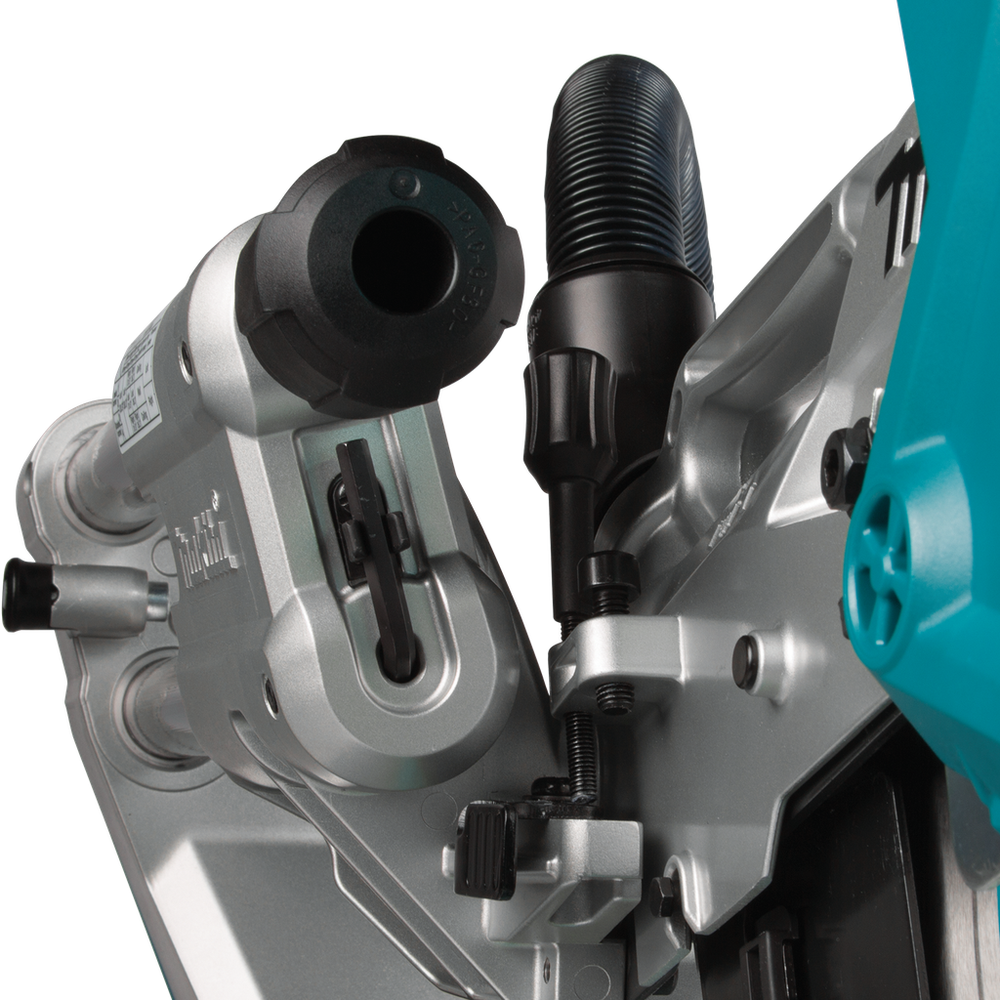

• Dual dust collection ports provide excellent dust extraction performance
• Soft start suppresses start-up reaction for smooth start-ups and longer gear life
• High power provides efficient cutting in wood and aluminum extrusion (aluminum blade and cutting lubricant sold separately)
• Oversized trigger switch for better fit, added comfort and easier operation
• See-through blade guard system for greater visibility of blade and line of cut
• Large-sized aluminum base improves stability of material for efficient cutting
• 10" x 5/8" 60T Micro-Polished Miter Saw Blade

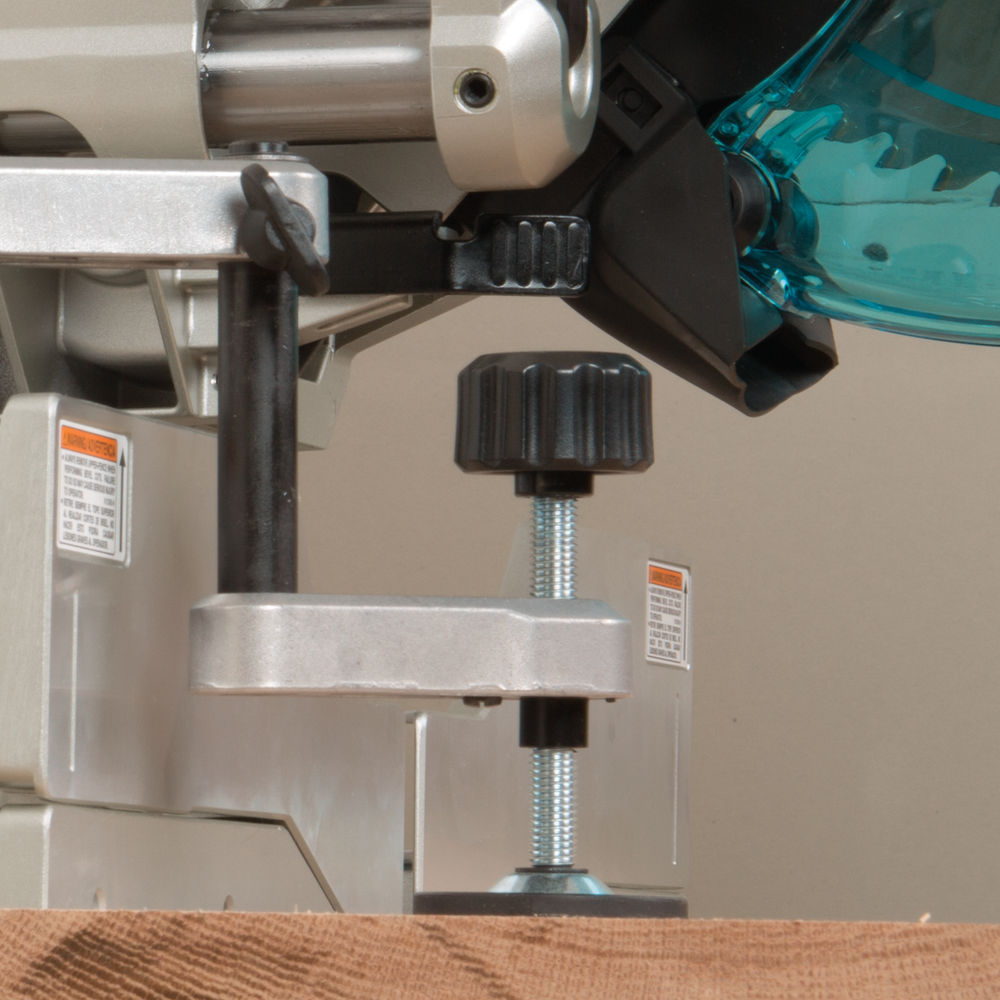

• Vertical Vise (122854-6)

Prop 65

• WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.

Downloads

Instruction Manual
Makita New Tool Flyer (English)
Parts Breakdown
