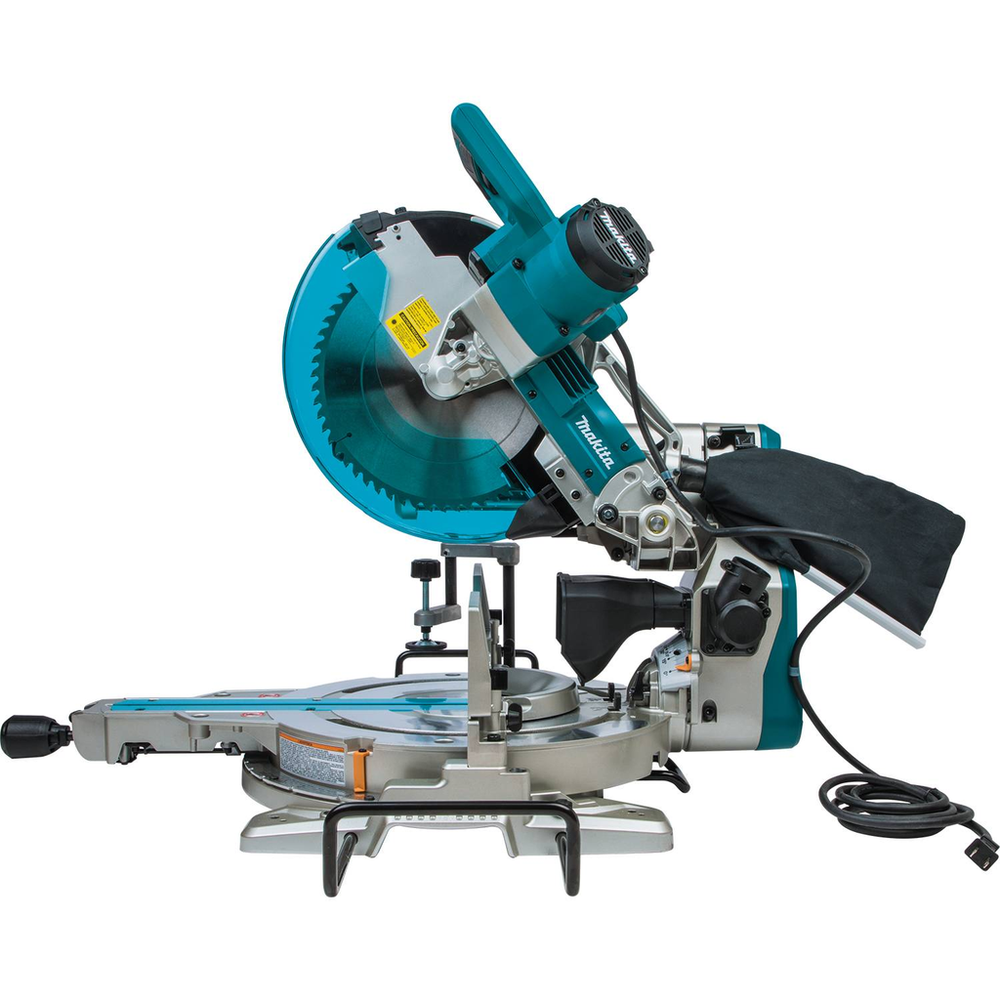

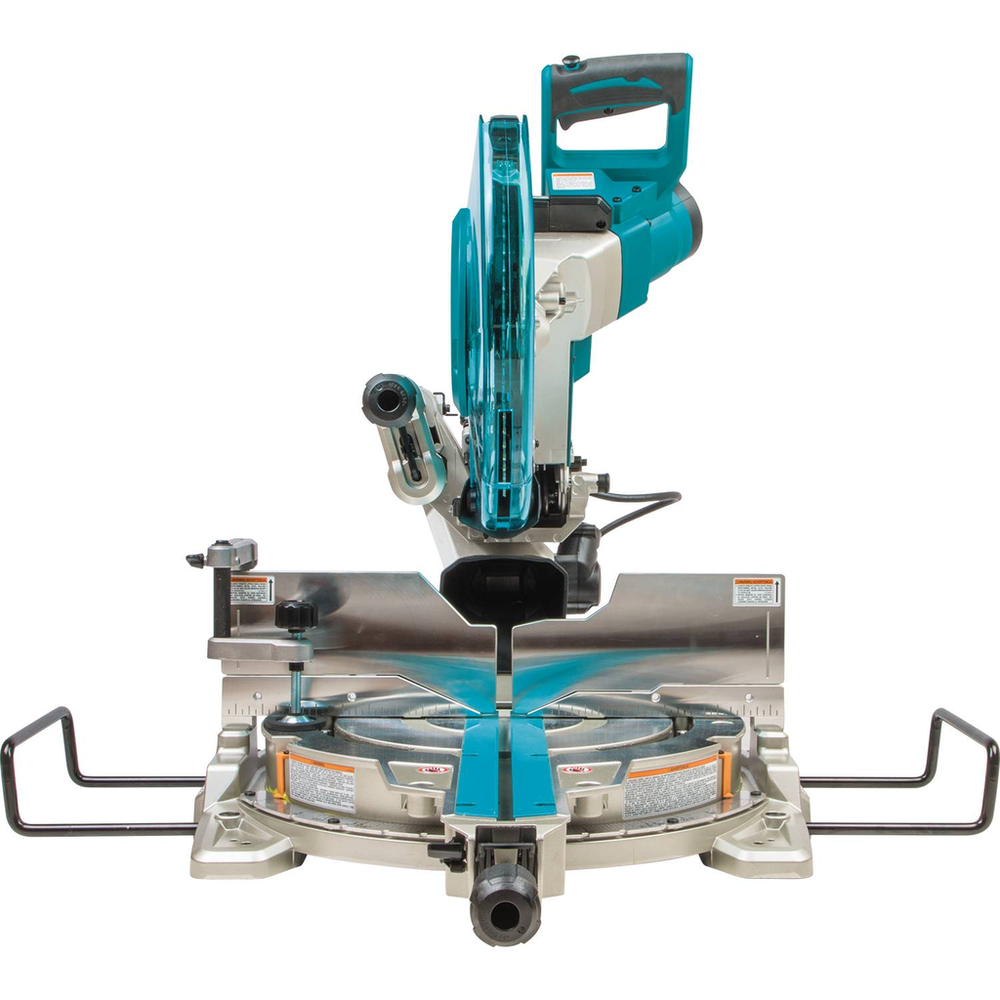

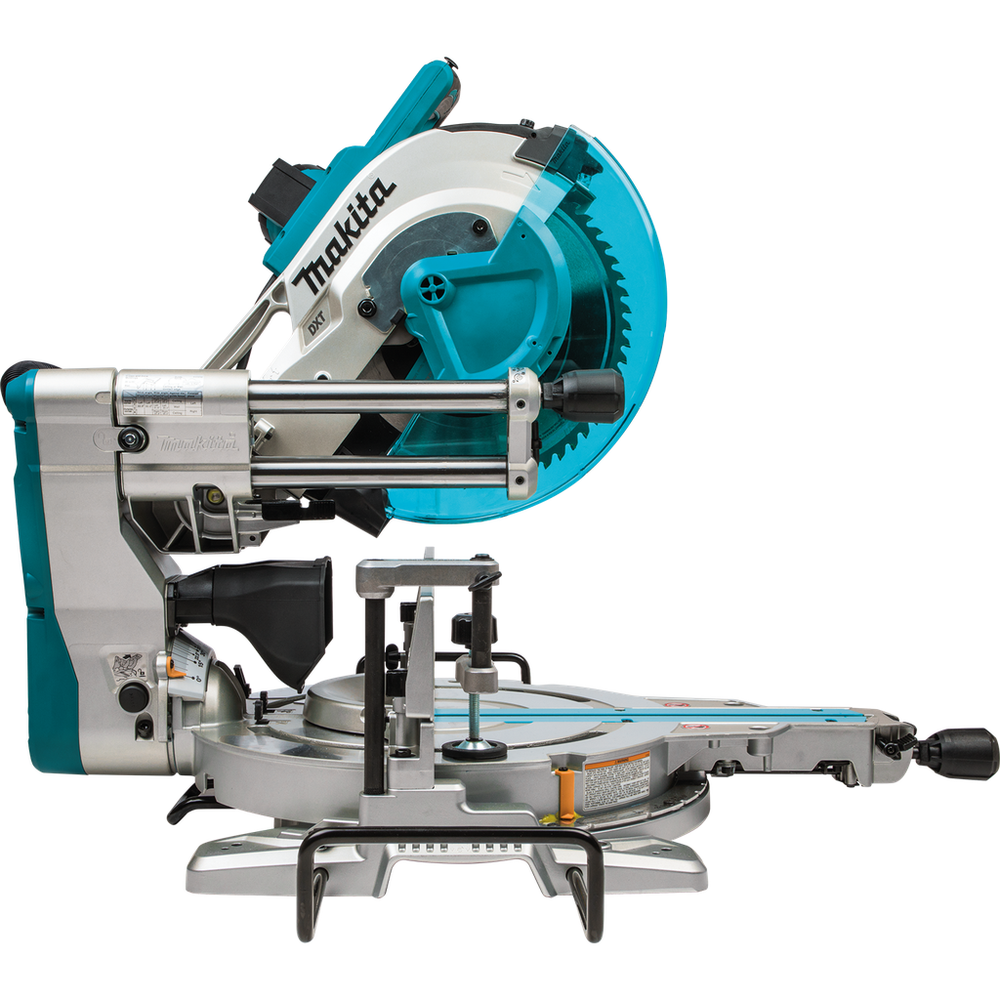

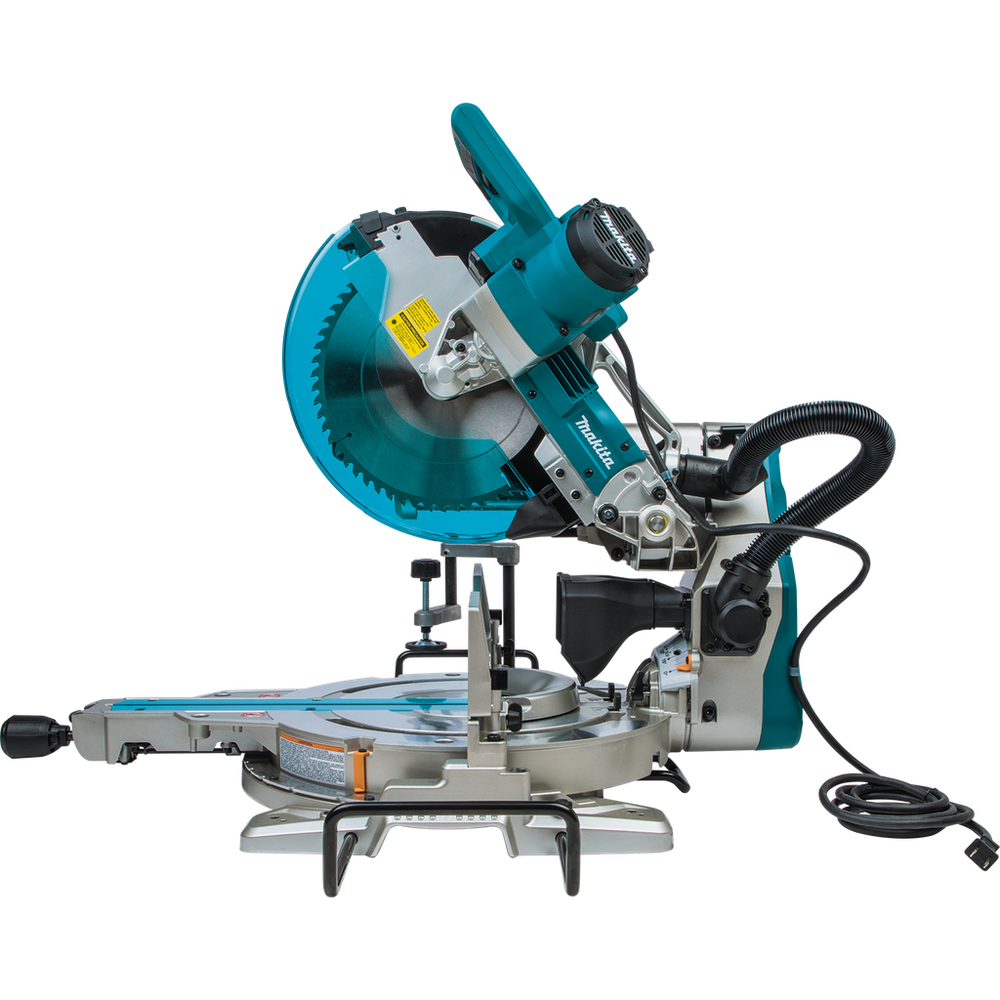

12" Dual-Bevel Sliding Compound Miter Saw with Laser - LS1219L

Name: 12" Dual-Bevel Sliding Compound Miter Saw with Laser - LS1219L
Brand: Makita
SKU: LS1219L
Price: 989 USD
Availability: InStock

SKU: LS1219L

MPN: LS1219L

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC Code: 088381-854627

$989.00 each

Hurry up! Current stock:

Quantity:

Product Description

The Makita 12” Dual-Bevel Sliding Compound Miter Saw with Laser (model LS1219L) combines capacity, accuracy and efficient dust extraction in a more compact size, with a unique 2-Steel Rail Sliding System that offers a reduced footprint for operation flush against a wall. The innovative direct-drive gearbox and guard system is engineered for increased vertical cutting capacity of baseboard (6-3/4”) and crown molding (8” nested). It will also make 15” crosscuts at 90 degrees. The saw miters 0° to 60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left or right). The bevel lock is located in the front of the saw for easy access and quick adjustments from 0° to 48° (left and right). The saw is powered by a 15 AMP direct drive motor with soft start, a key point of difference. Direct drive enables smoother start-ups and consistent, constant power with no belts to slip or replace. The electric brake provides added convenience. In addition, the electronic speed control maintains constant speed under load for smoother, higher-quality cutting. Additional features include a high-quality 60T carbide-tipped blade, and a see-through blade guard system for greater visibility of the blade and line-of-cut. The built-in laser indicates the line-of-cut whether the blade is turning or not, and offers micro-adjustments for precise “left-of-blade” or “right-of-blade” cutting. It has dual dust collection ports for improved dust collection capability for use with a bag (included) or vacuum (sold separately). It also has a large-sized aluminum base that improves the stability of cutting stock for more efficient cutting.

Features

In-front bevel lock for convenient operation

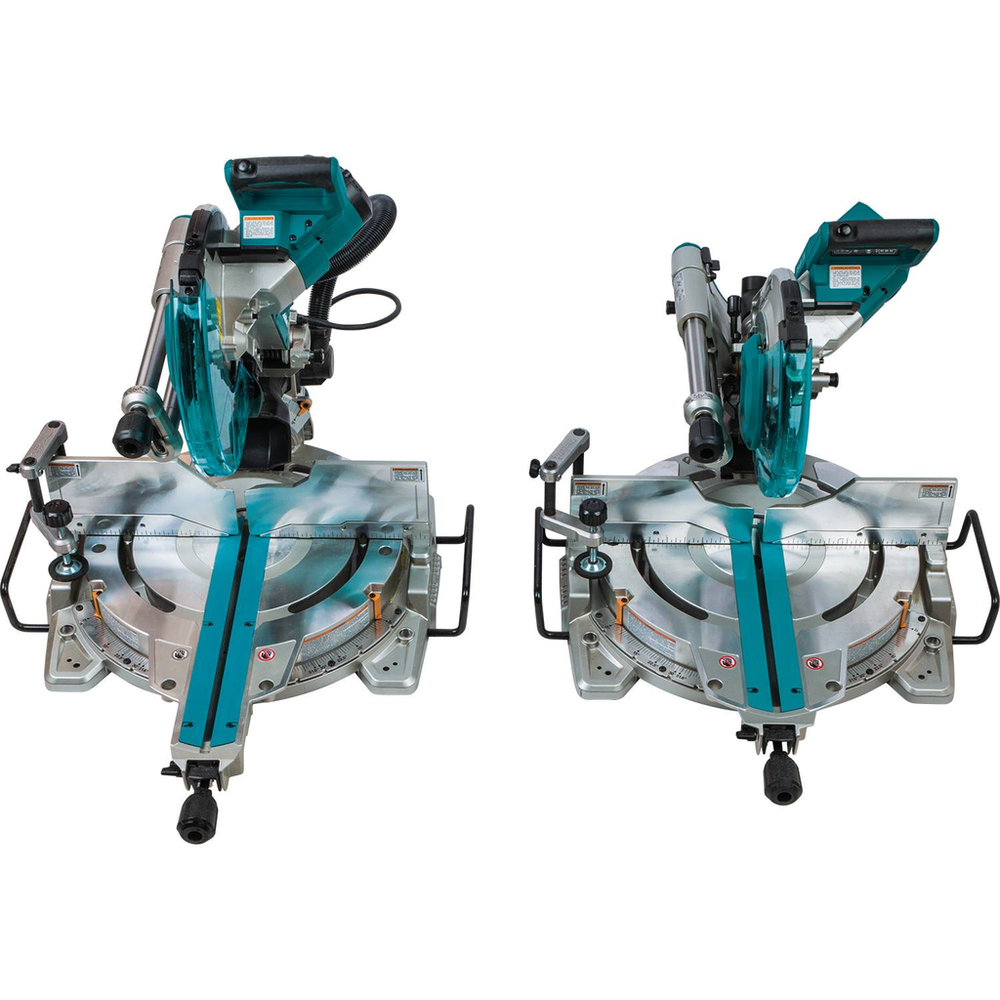

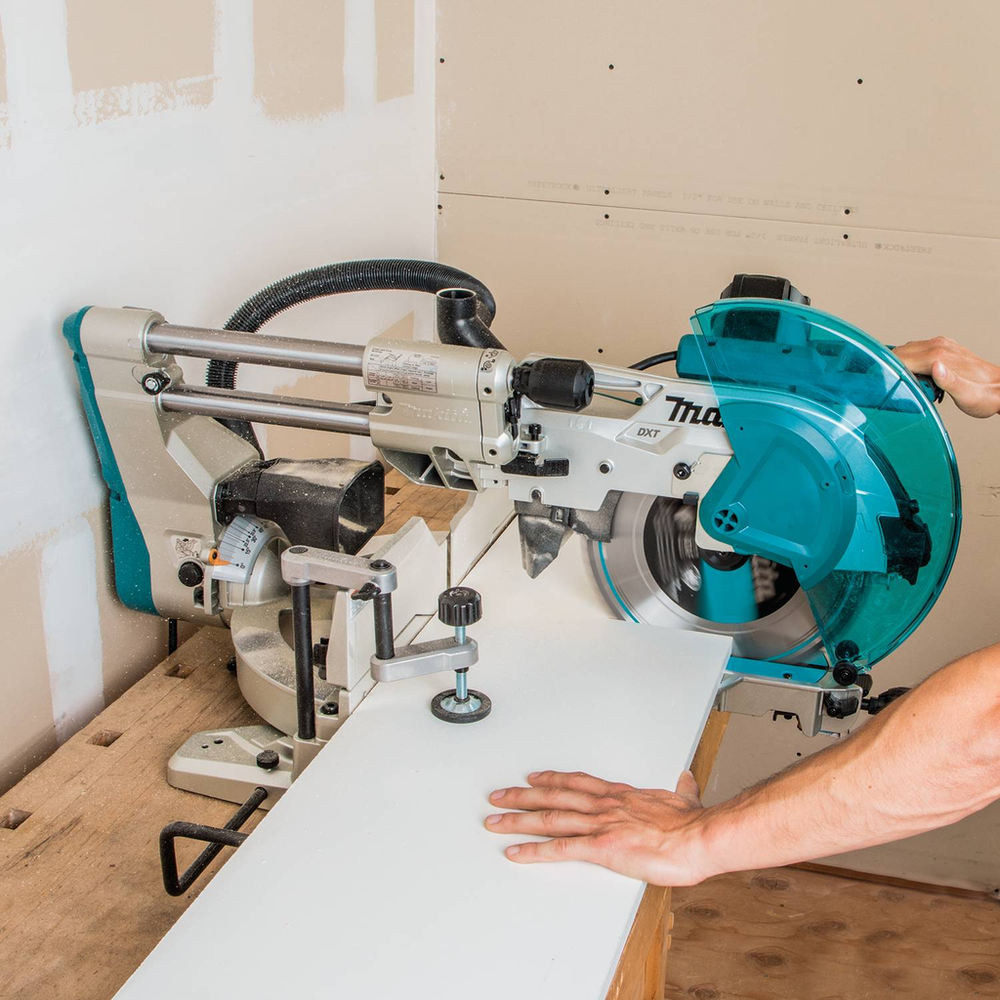

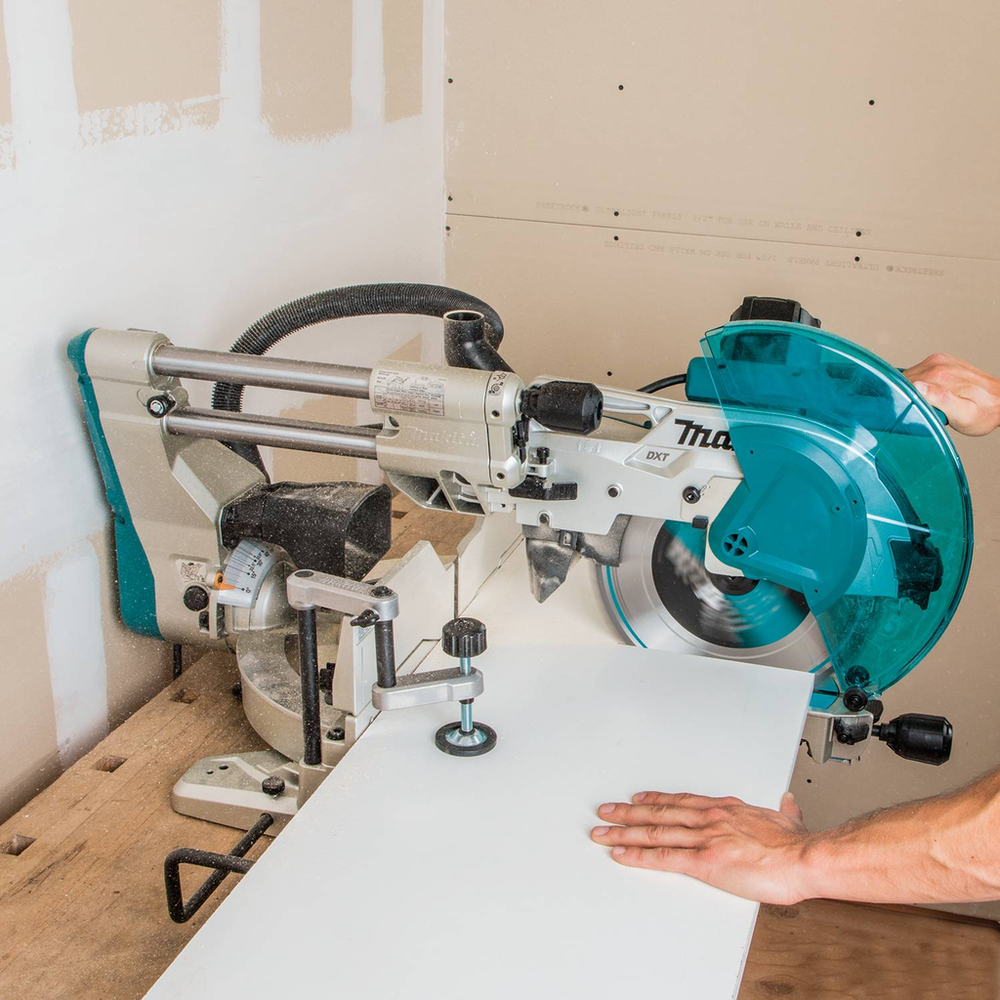

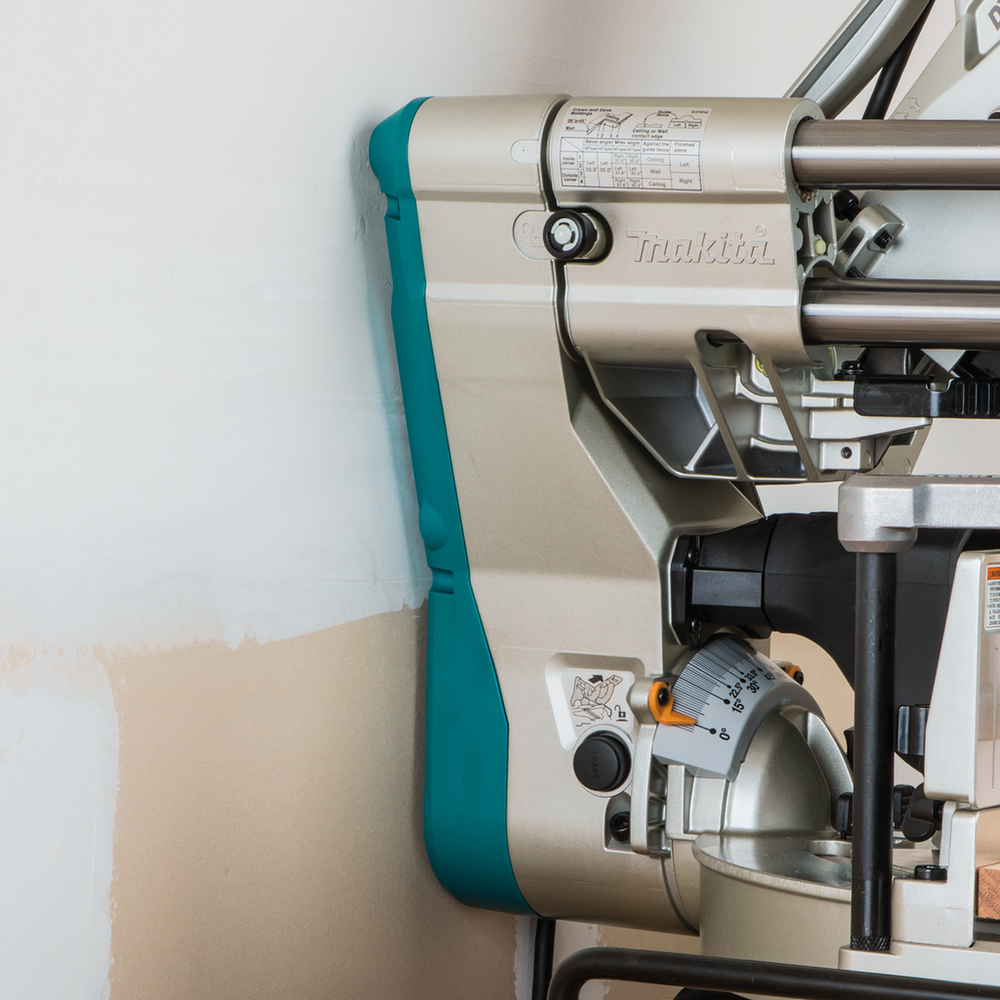

Unique 2-Steel Rail Sliding System design allows operation flush against a wall

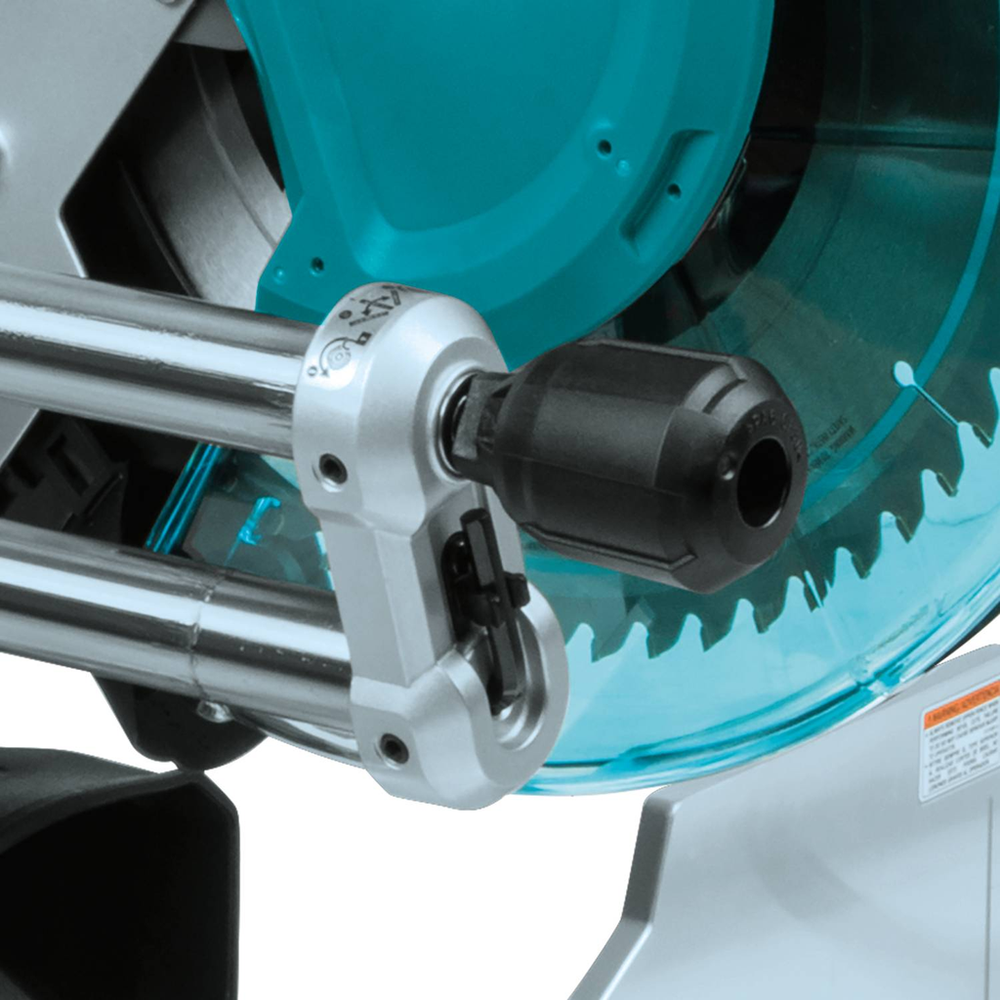

Easy one-touch slide lock for convenience
Linear ball bearing system engineered to deliver "dead-on" accurate cuts
Innovative direct drive motor and guard system is engineered for increased vertical cutting capacity (6-3/4")

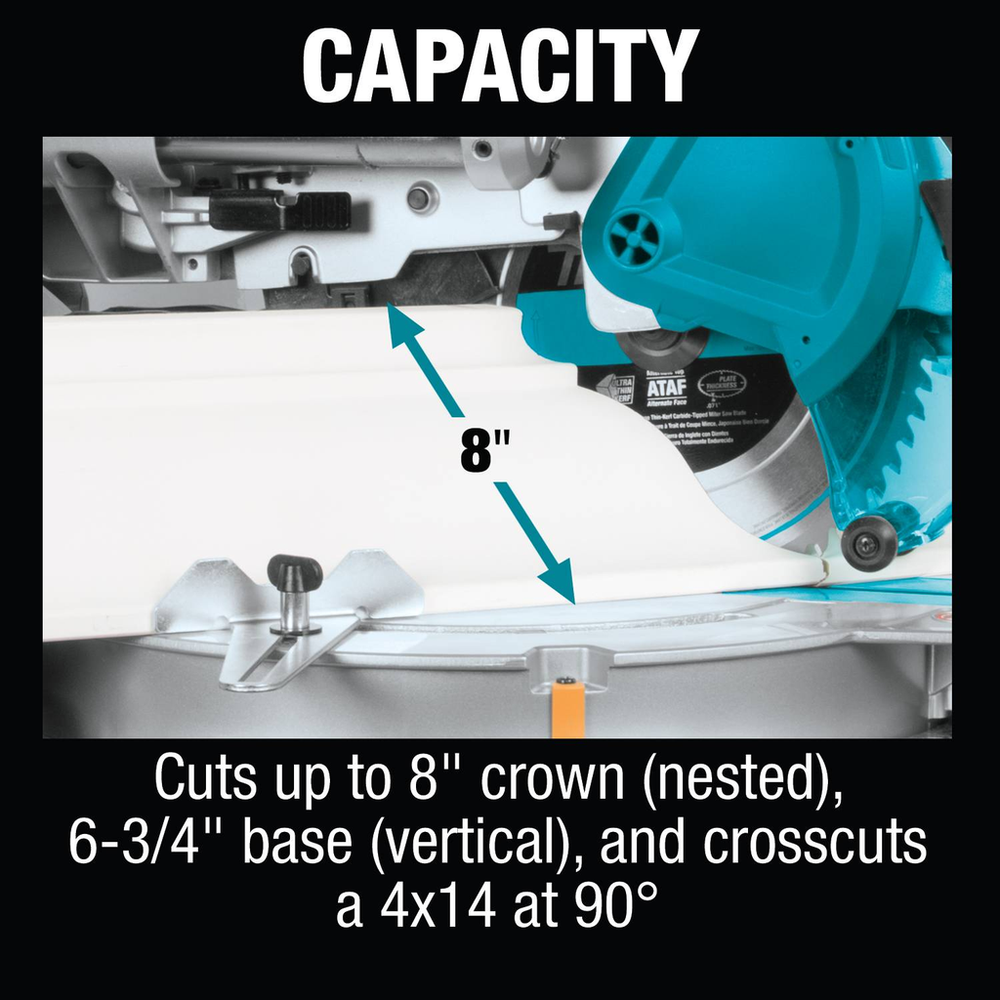

CAPACITY - Cuts up to 8" crown (nested), 6-3/4" base (vertical), and crosscuts a 4x14 at 90°

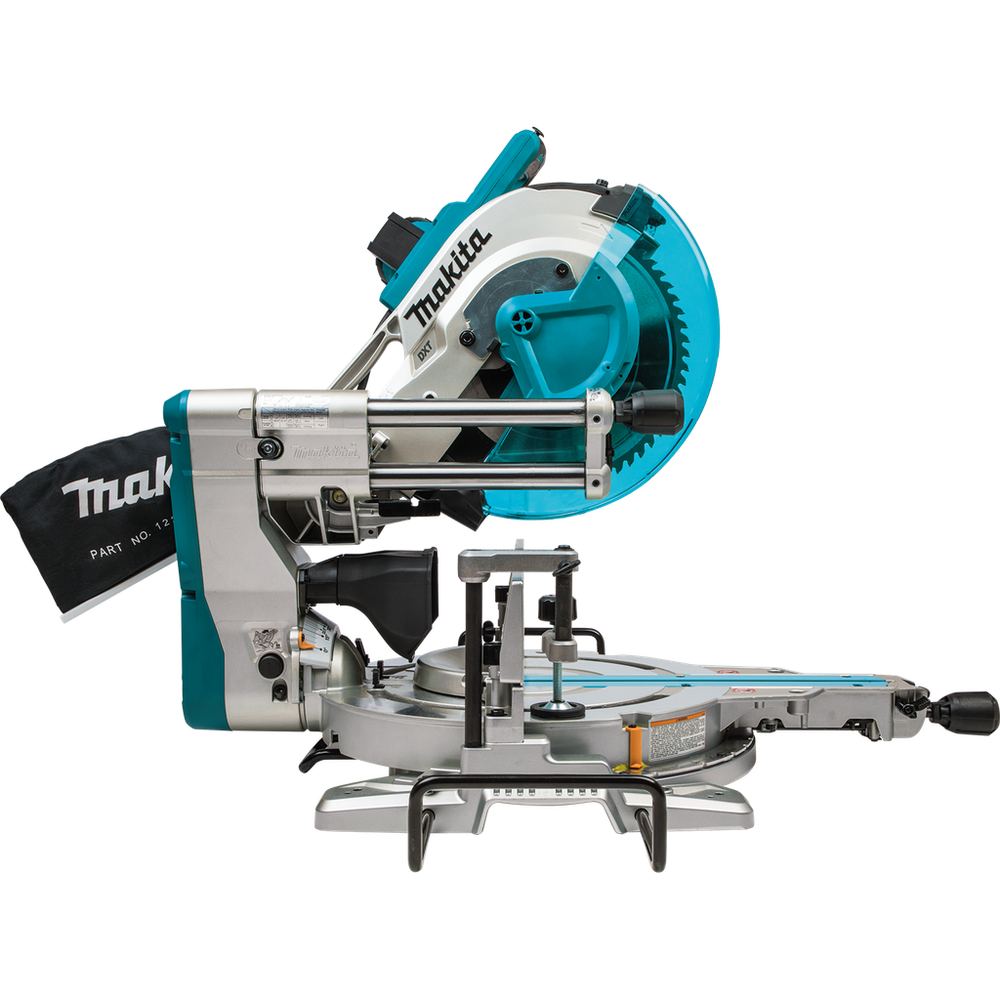

Dust Bag (122852-0)
Less weight (65 lbs.) and the most compact design in its class for easy jobsite portability
Hex Wrench (781044-6)
12" x 1" 60T Micro-Polished Miter Saw Blade

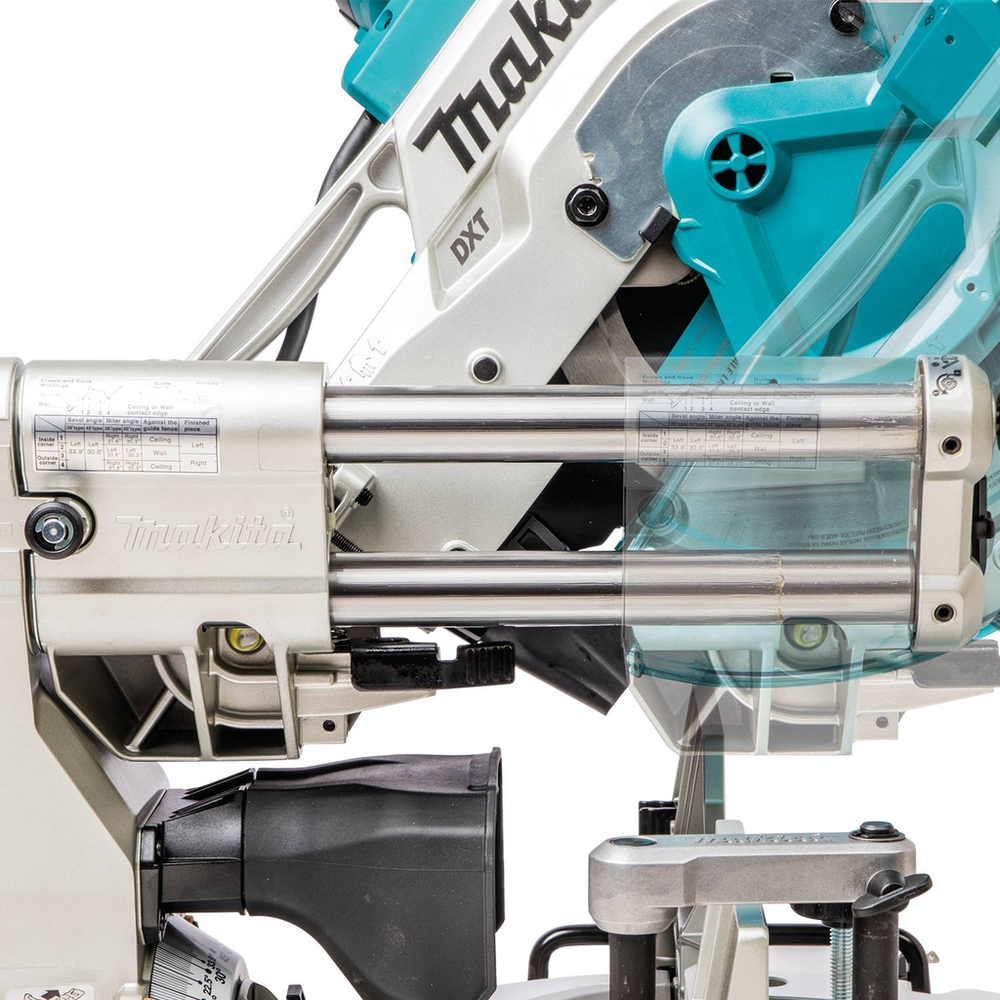

Unique 2-Steel Rail Sliding System design offers single slide-glide operation; reduced saw footprint allows operation flush against a wall

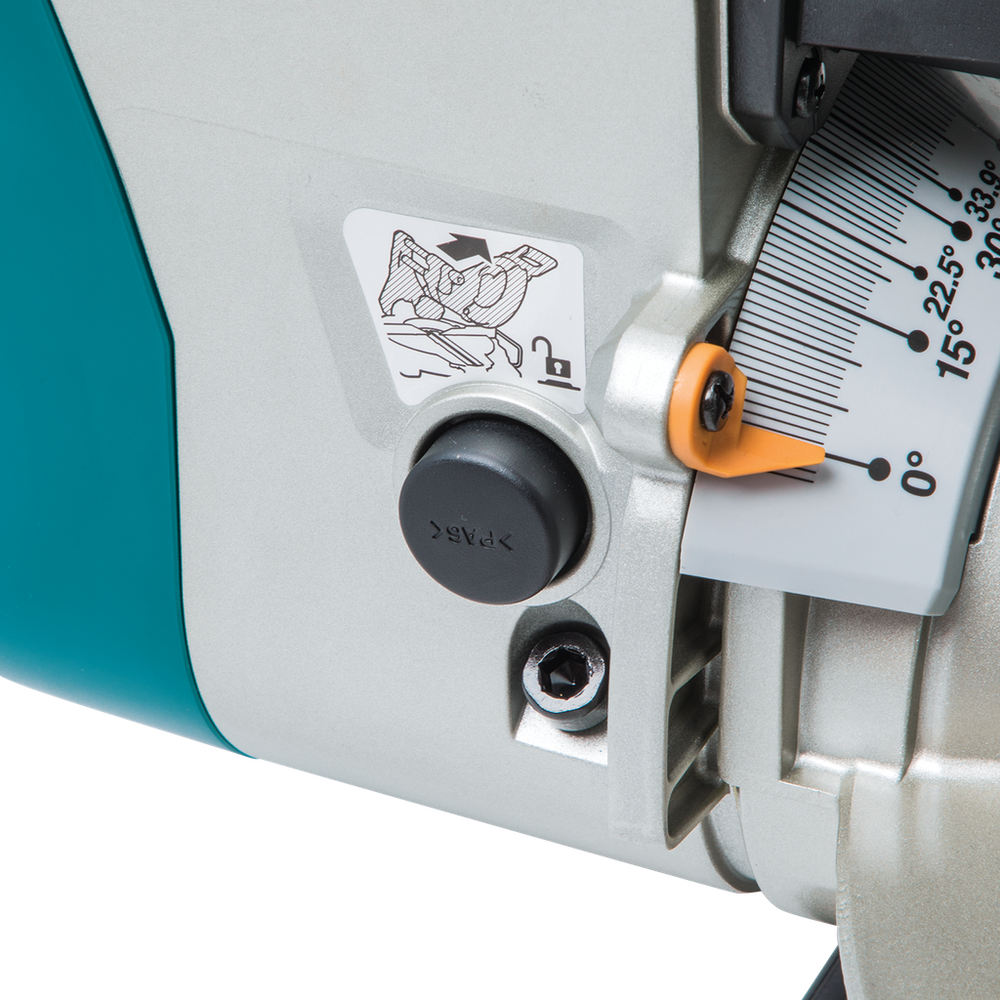

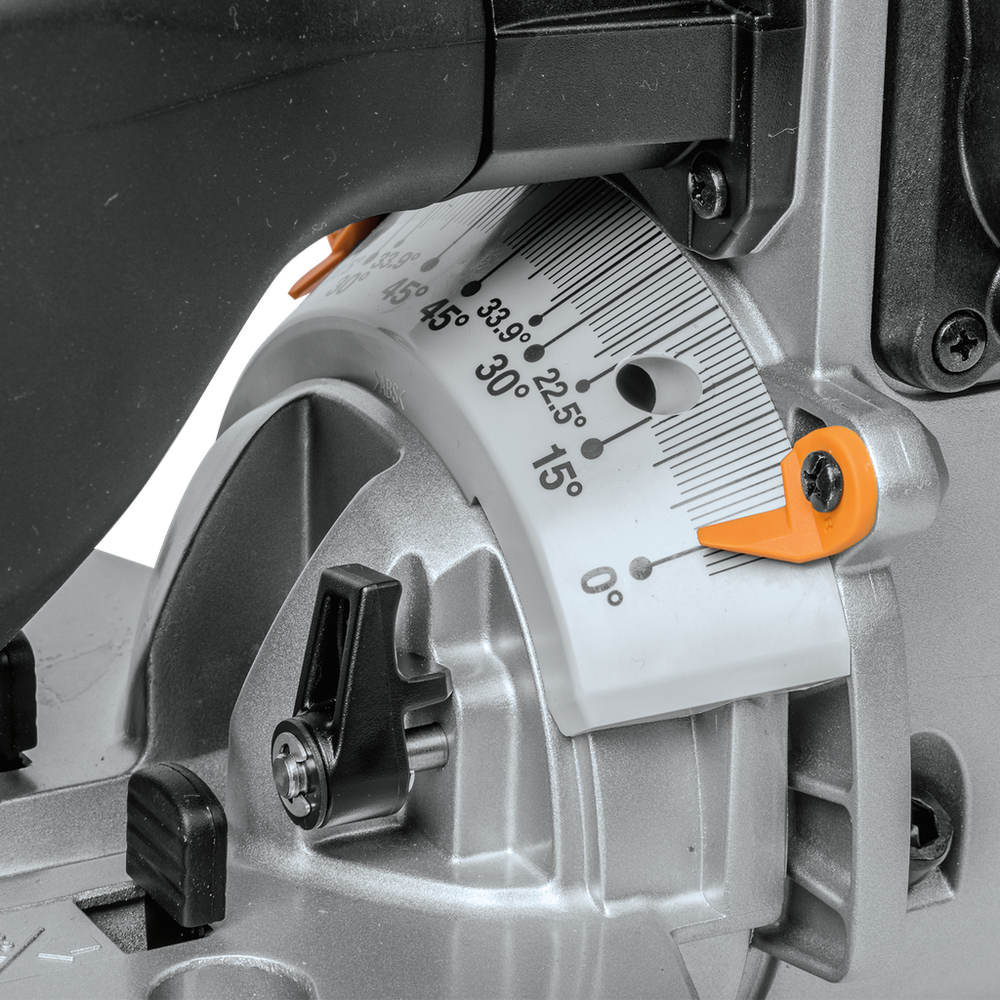

Easy-to-read dual bevel scale for more precise adjustments

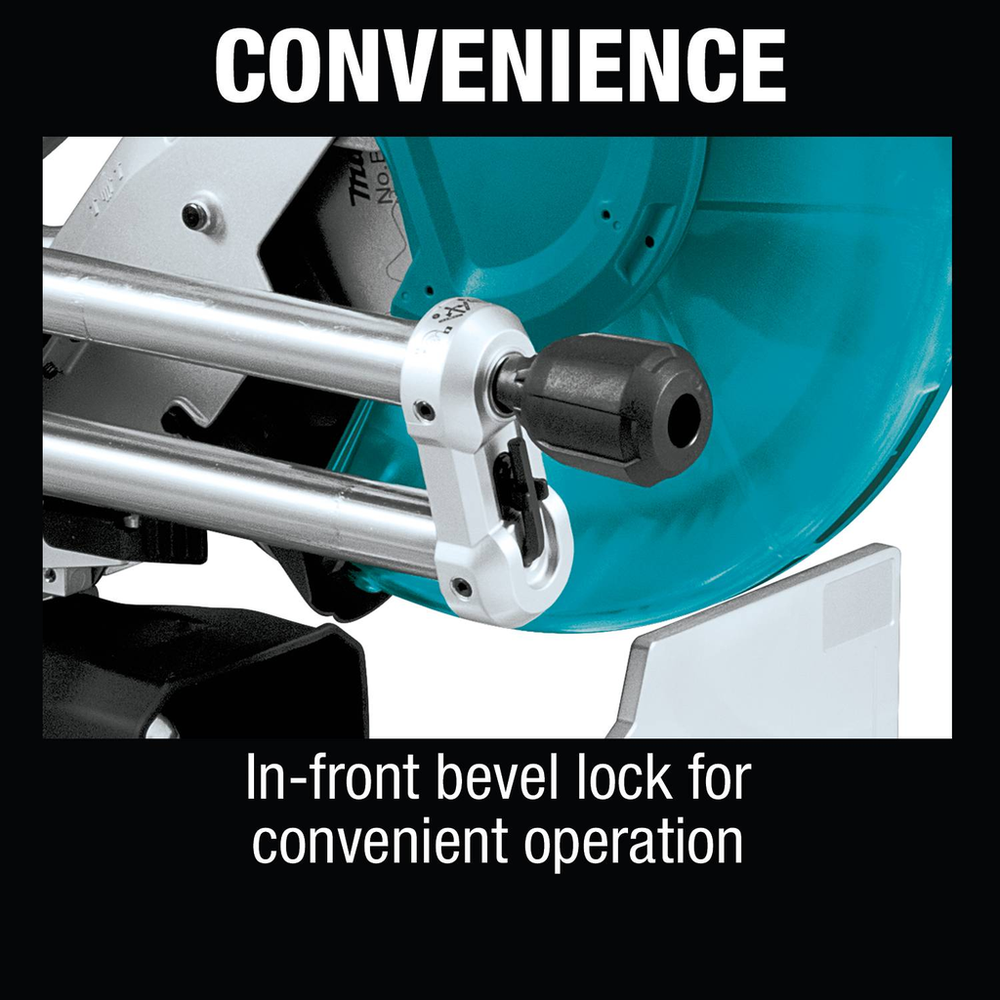

CONVENIENCE - In-front bevel lock for convenient operation

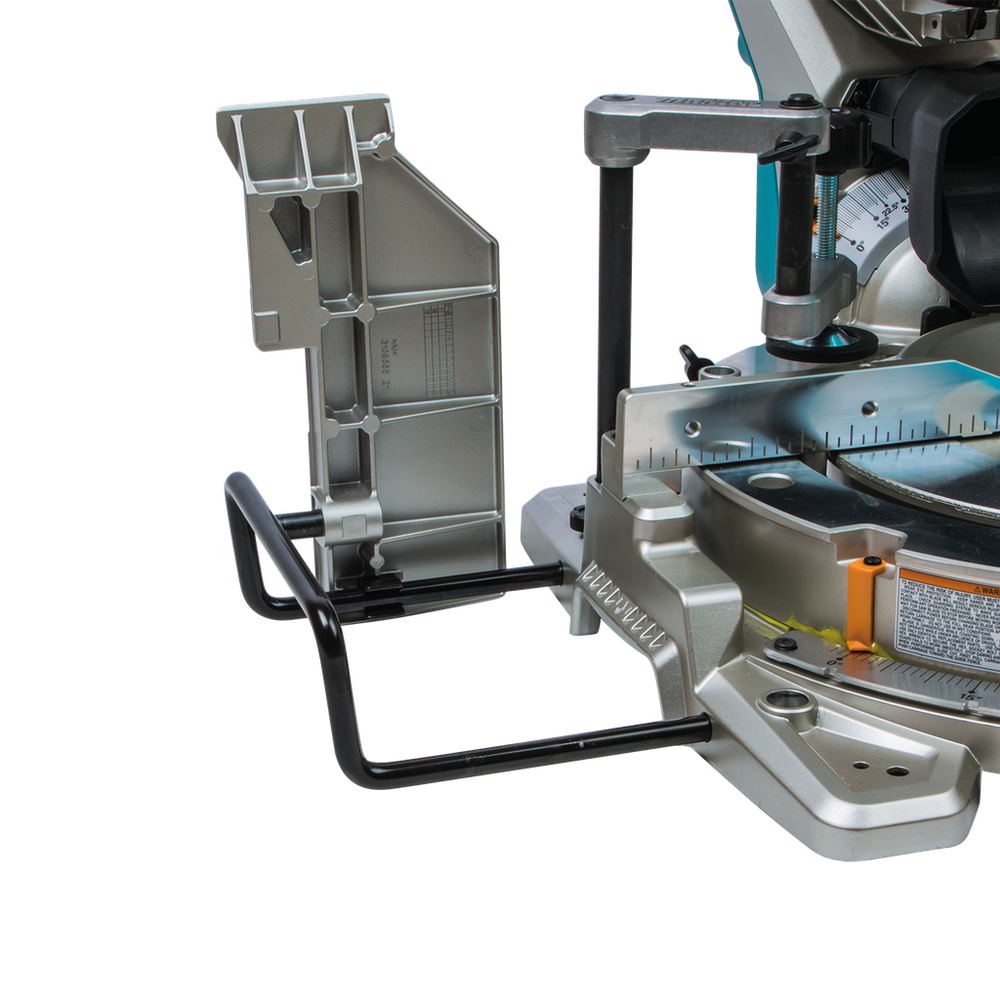

Vertical Vise (126617-2)
Powerful 15.0 AMP direct drive motor requires less maintenance and delivers 3,200 RPM

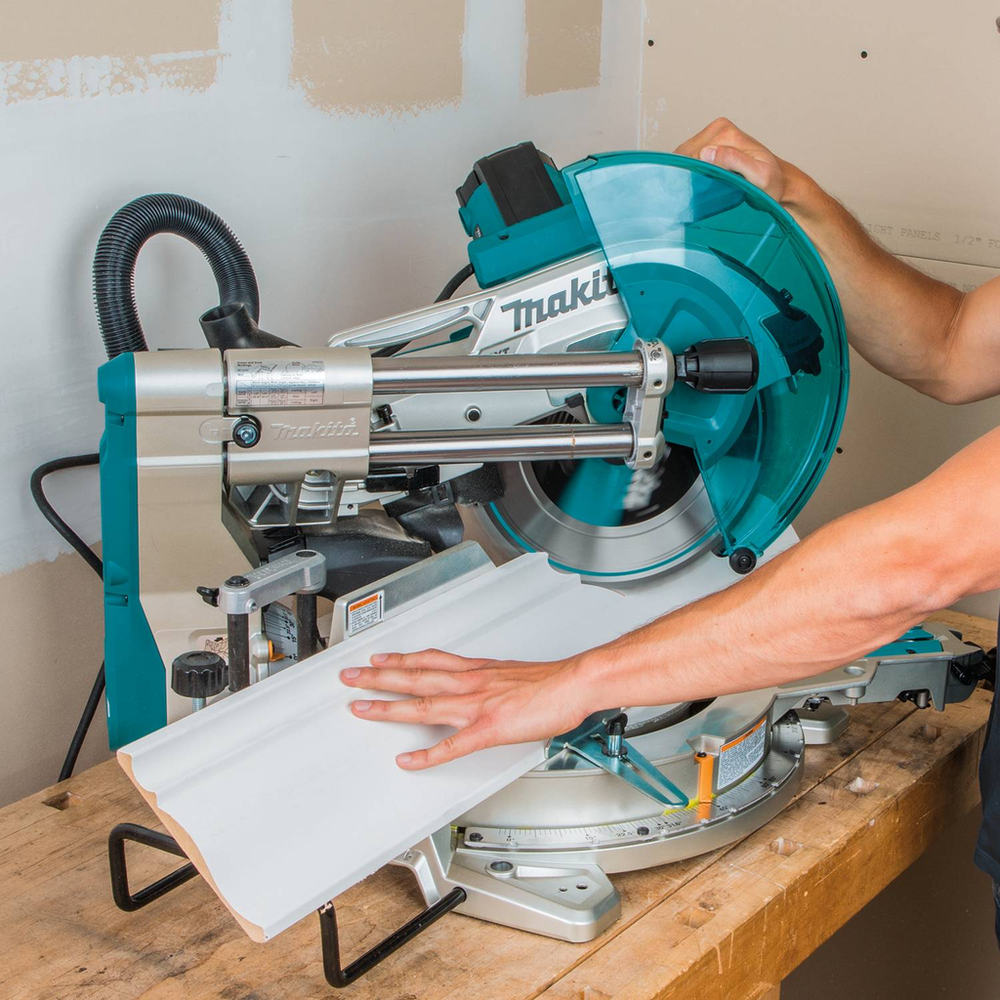

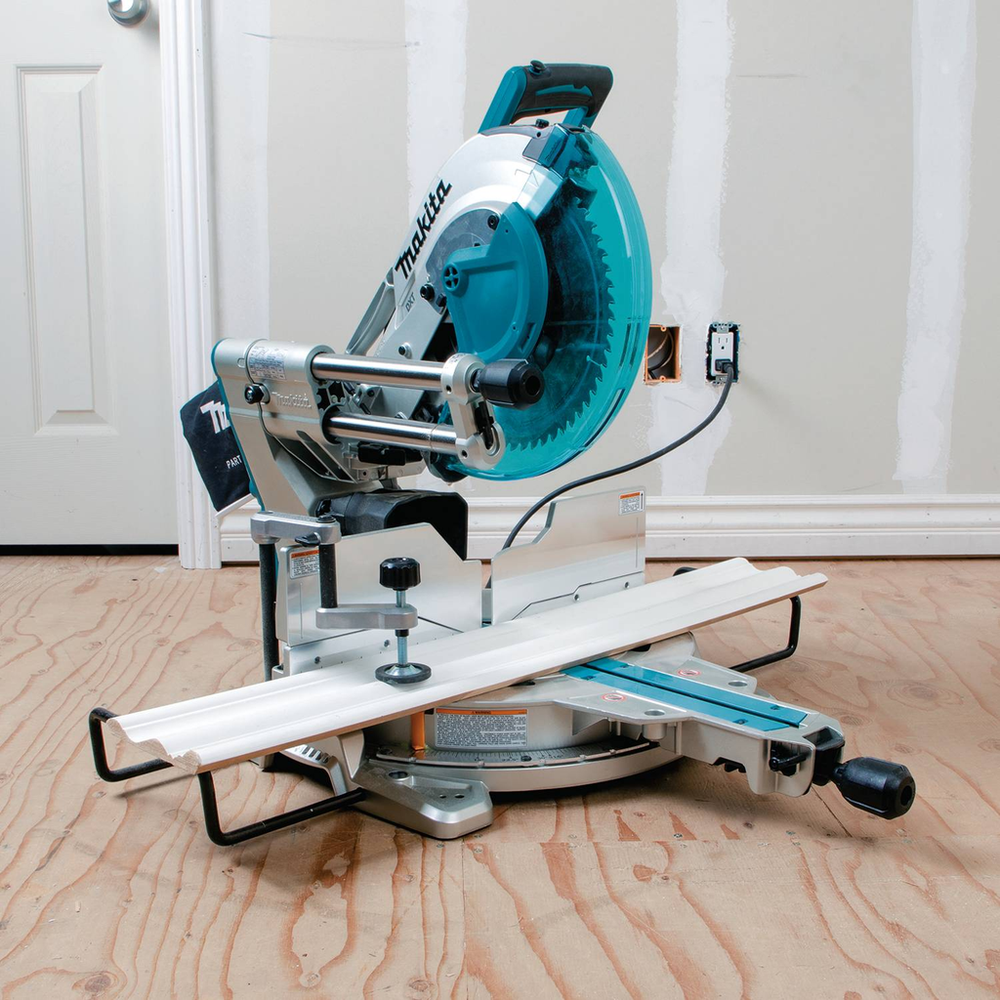

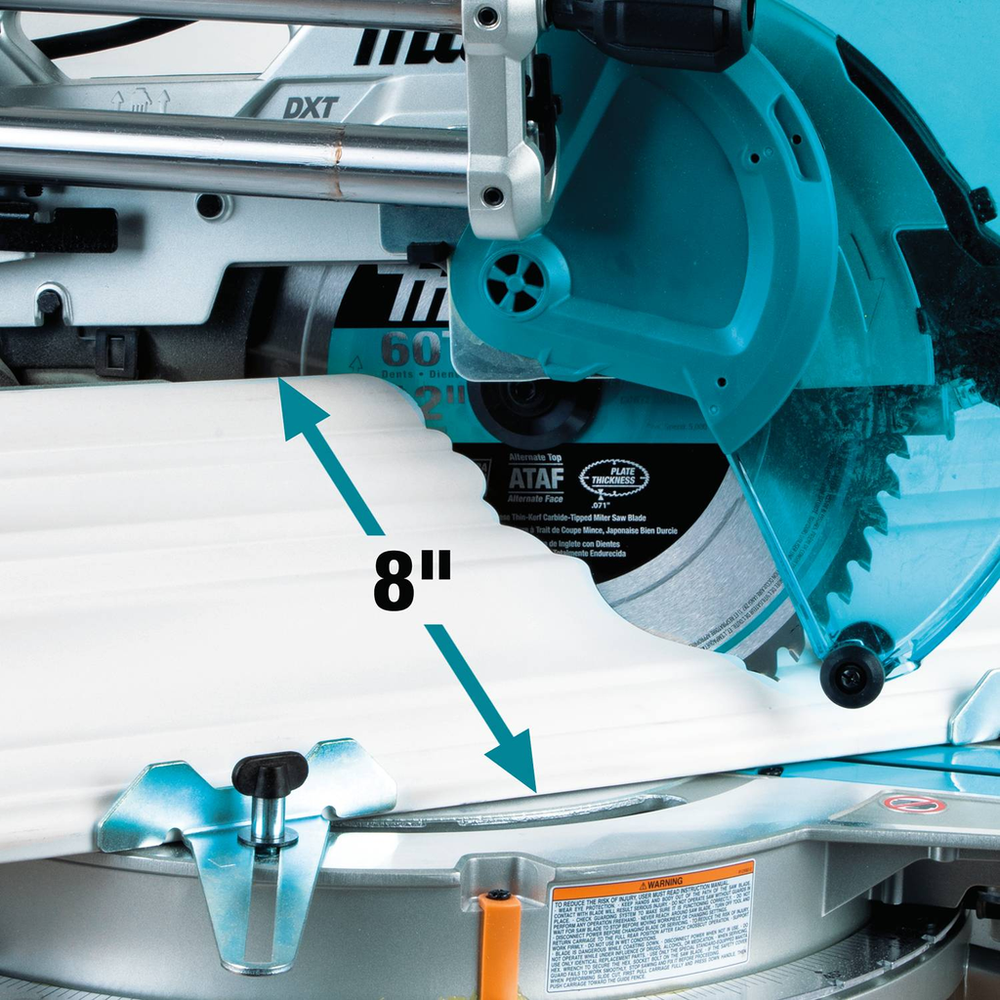

Increased capacity for up to 8" crown molding (vertically nested), 6-3/4" baseboard (vertical), and 15" crosscuts at 90°

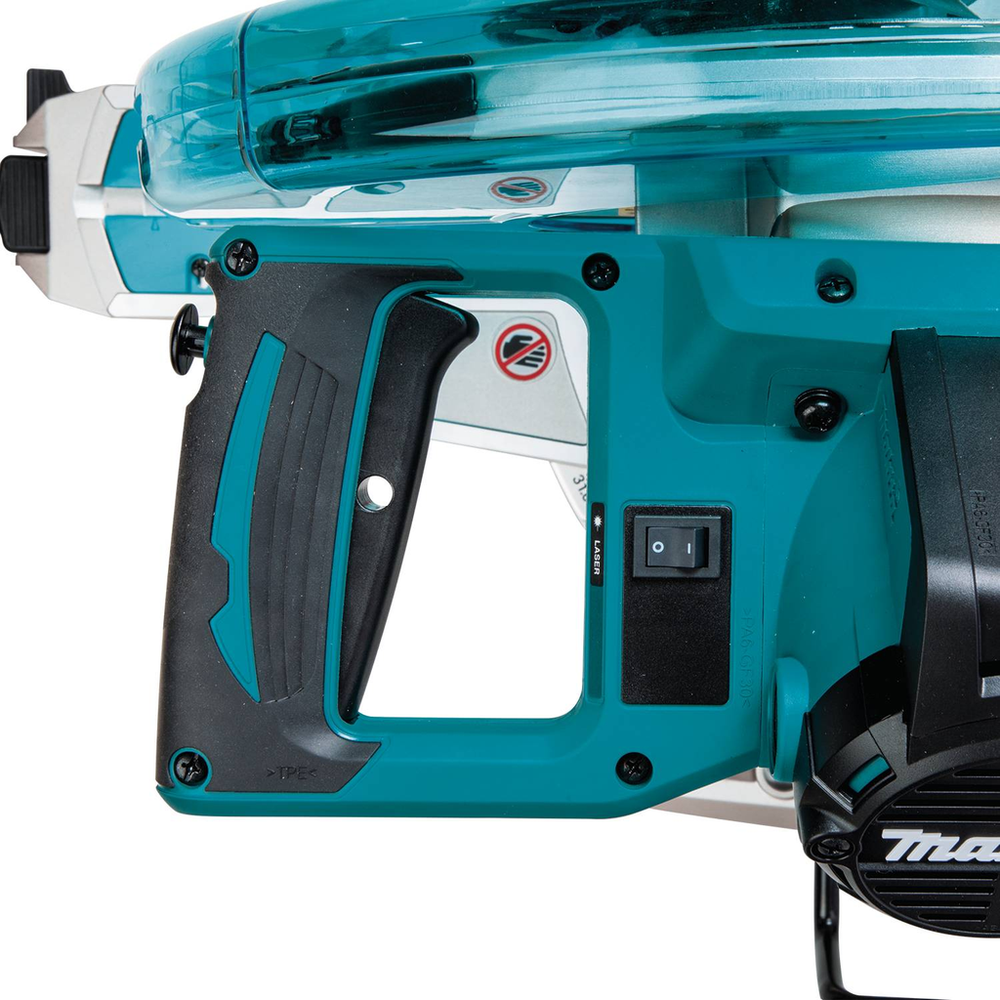

Oversized trigger switch for better fit, added comfort and easier operation

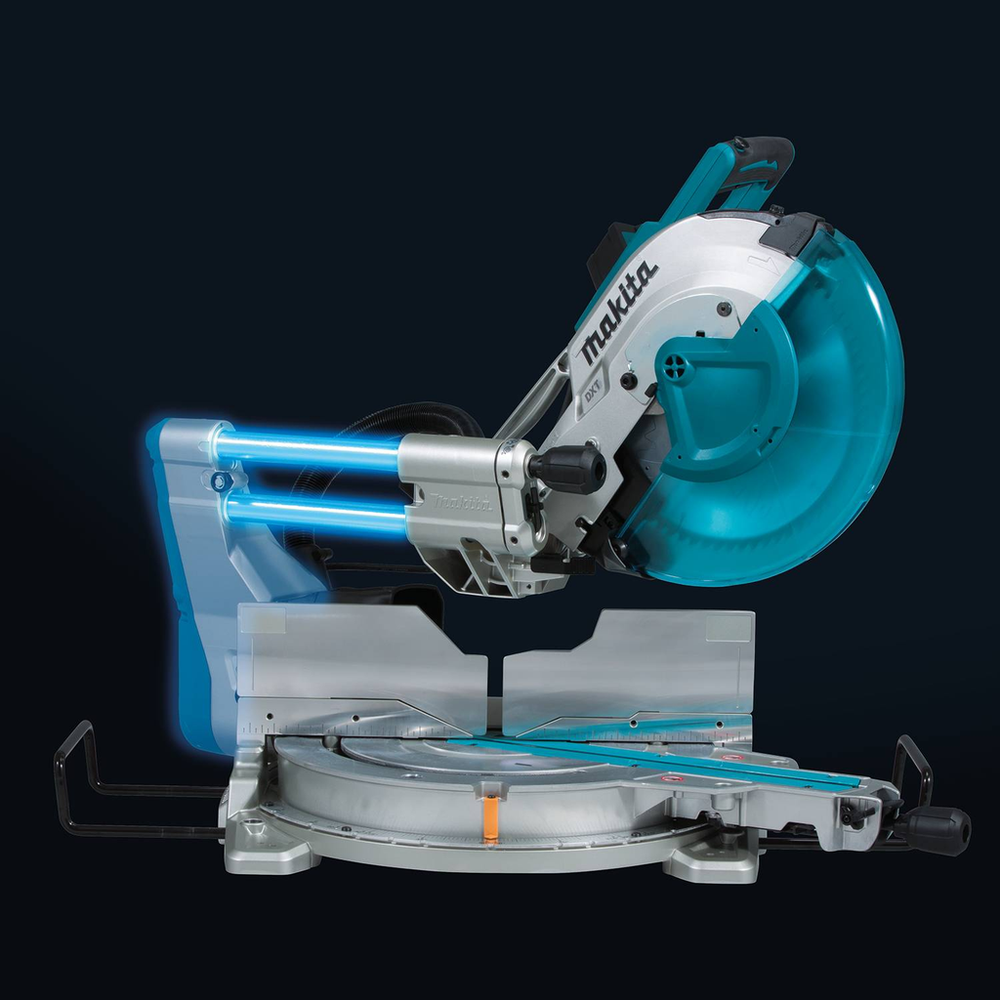

DESIGN - Unique 2-Steel Rail Sliding System offers a reduced footprint and operation flush against a wall

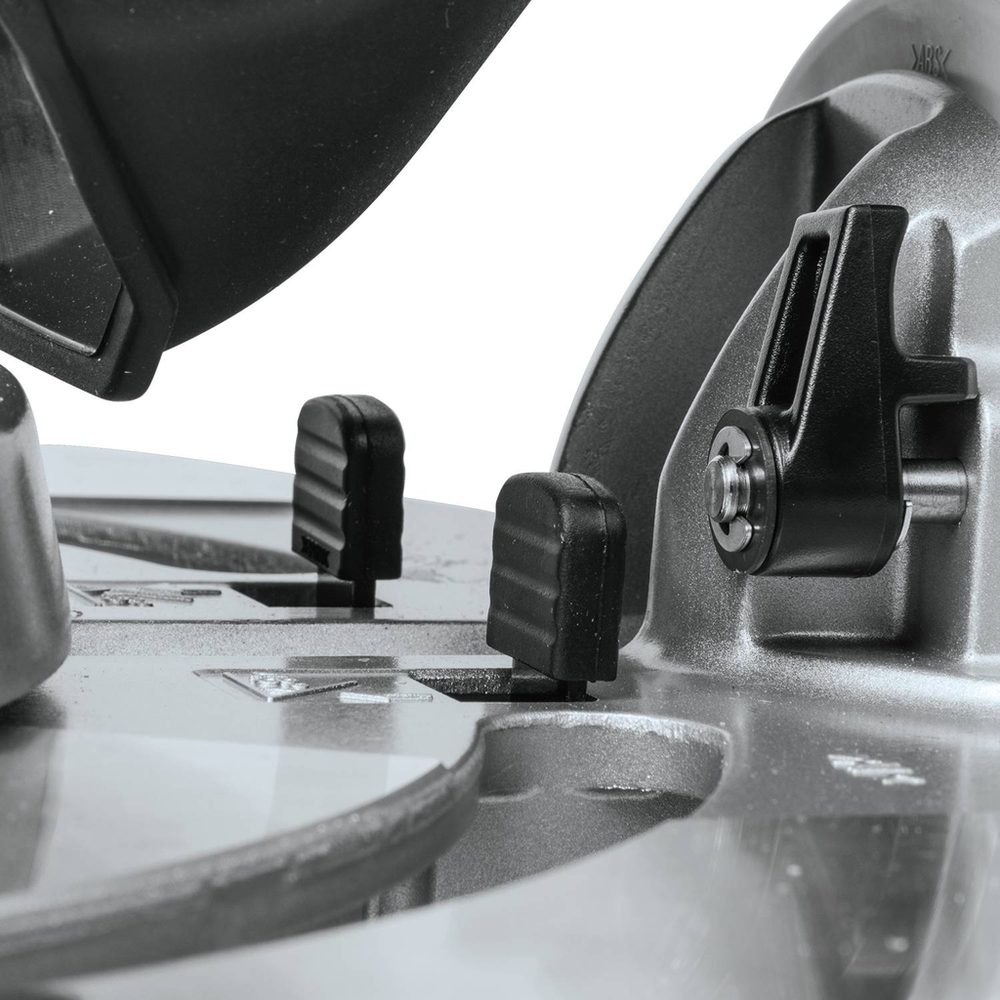

Positive miter stops at: 0°, 15°, 22.5°, 31.6°, 45°, and 60° left or right

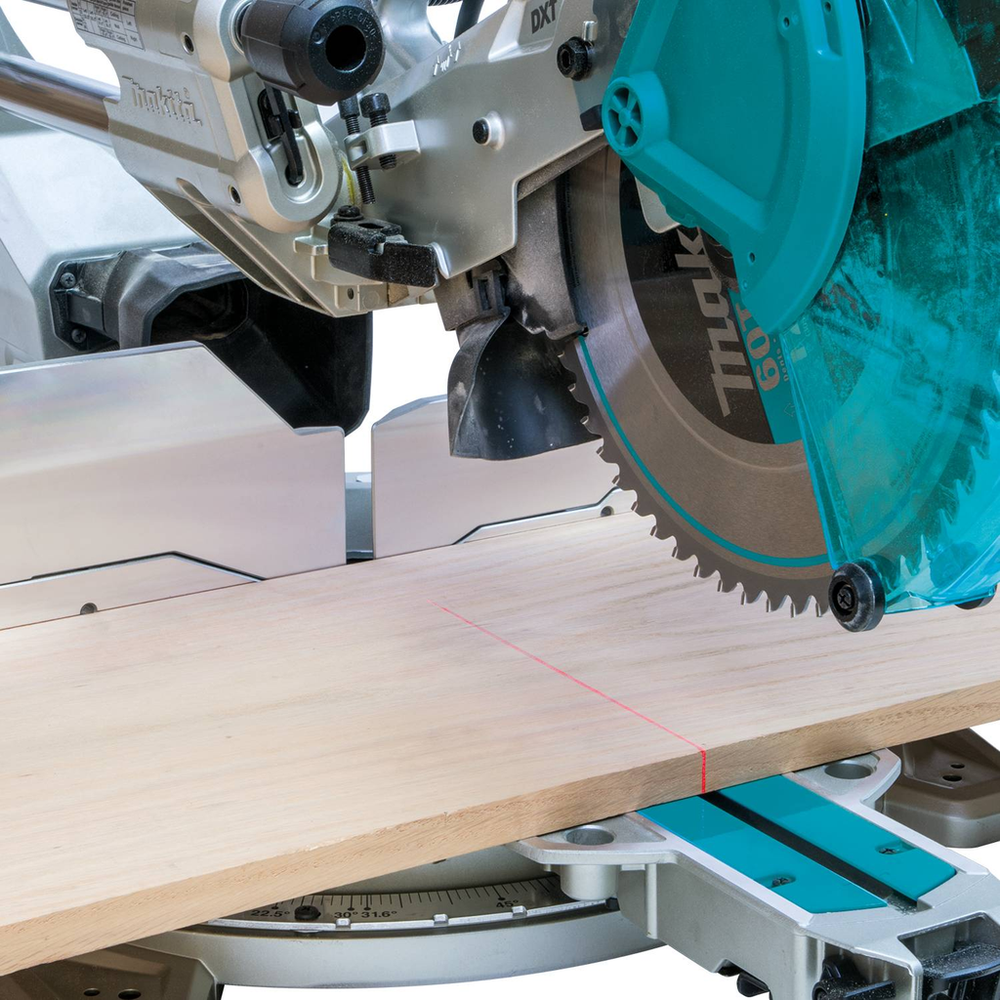

Built-in laser clearly indicates line-of-cut whether blade is turning or not; on-off switch and micro-adjustments for precise "left-of-blade" or "right-of-blade" cutting
Large-sized aluminum base improves stability of material for efficient cutting

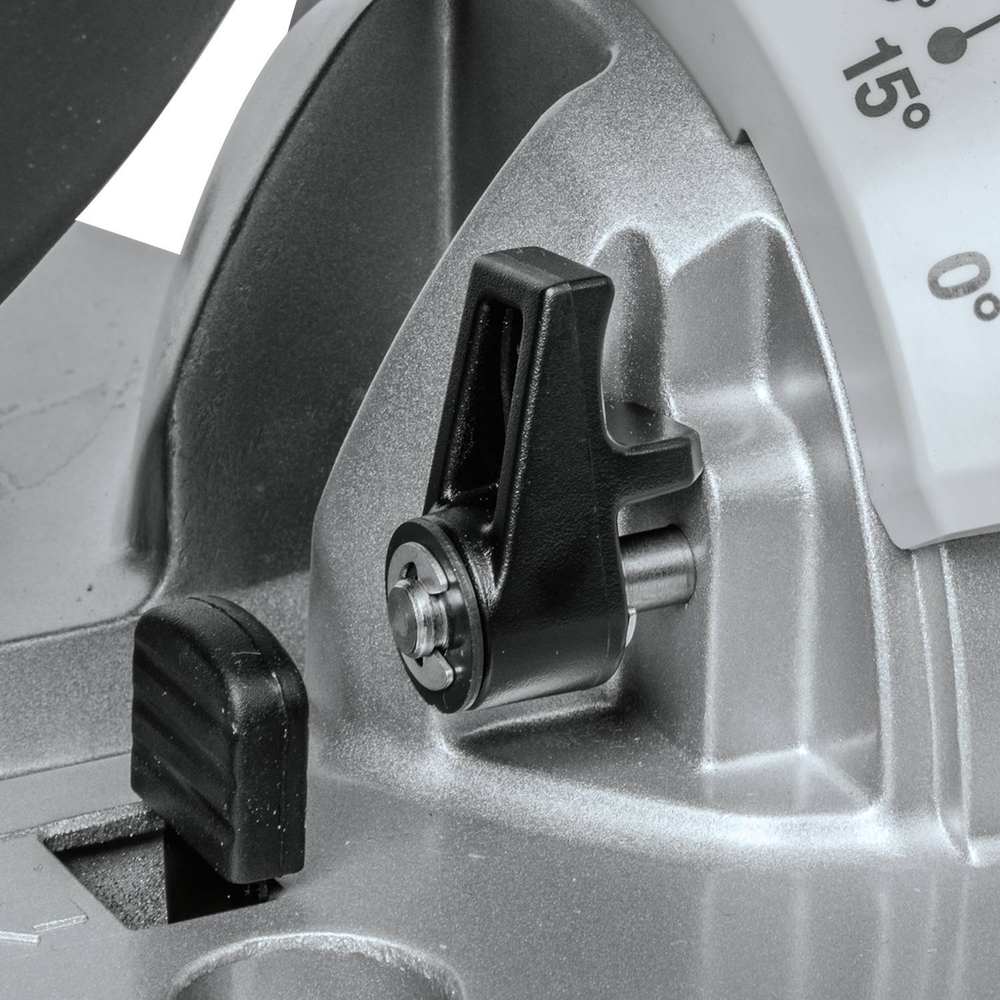

Simple 90º turn-of-the-knob miter angle lock/unlock mechanism
Replaceable stainless steel miter scale features large and easy-to-read markings

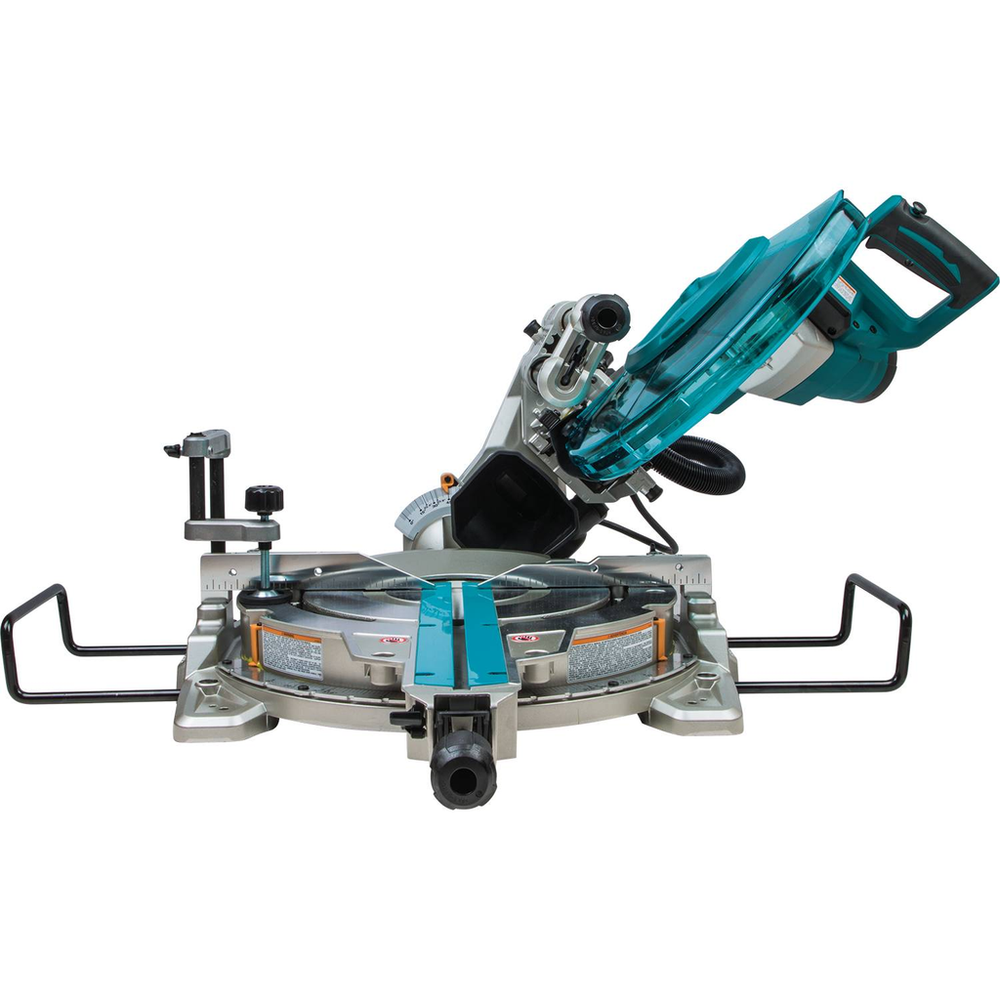

Miters 0-60° left and right; bevels 0-48° left and right

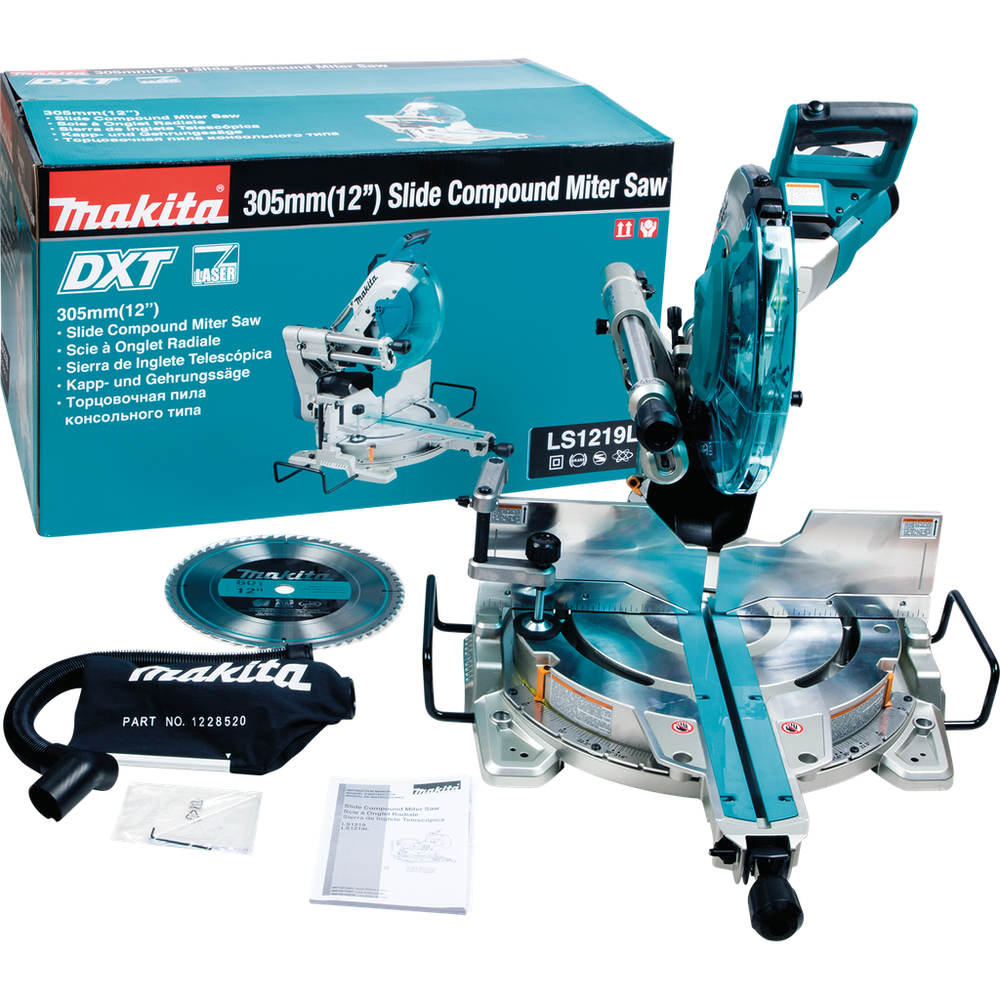

INCLUDES - Blade, dust bag, vertical vise, wrenches, and triangle
Electronic speed control maintains constant speed under load for smoother, higher quality cutting

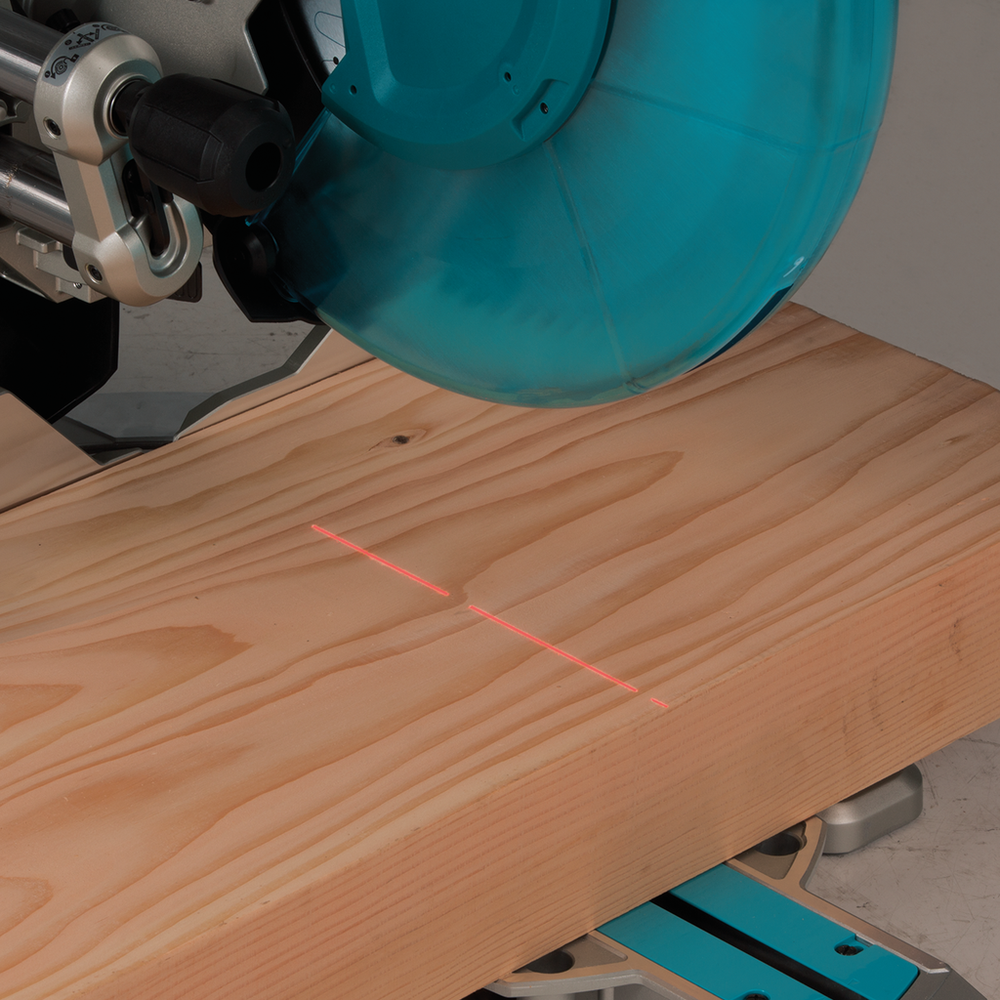

PRECISION - Built-in laser clearly indicates line-of-cut whether blade is turning or not
Easy blade changes for increased efficiency
Integrated upper and lower 5-1/2" tall fence system offers added rigidity for more precise miter and bevel cuts
Soft start suppresses start-up reaction for smooth start-ups and longer gear life
See-through blade guard system for greater visibility of blade and line of cut

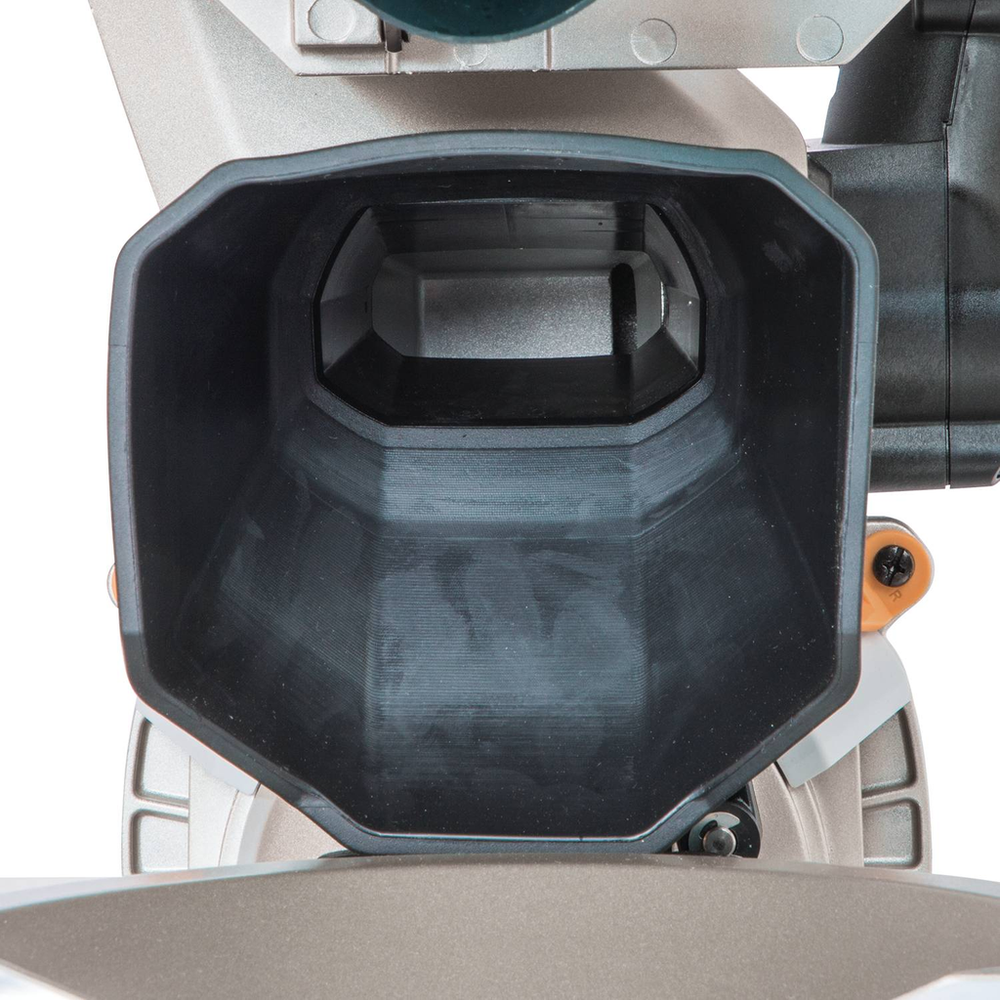

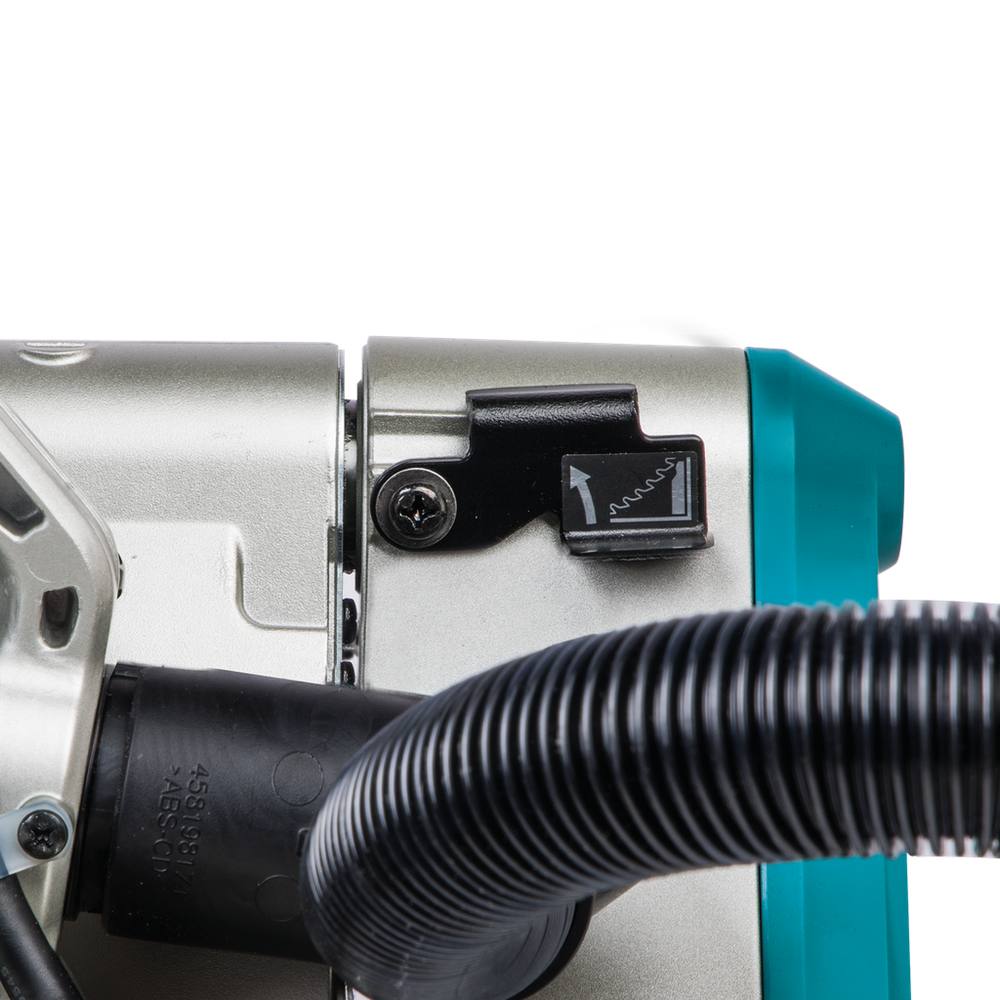

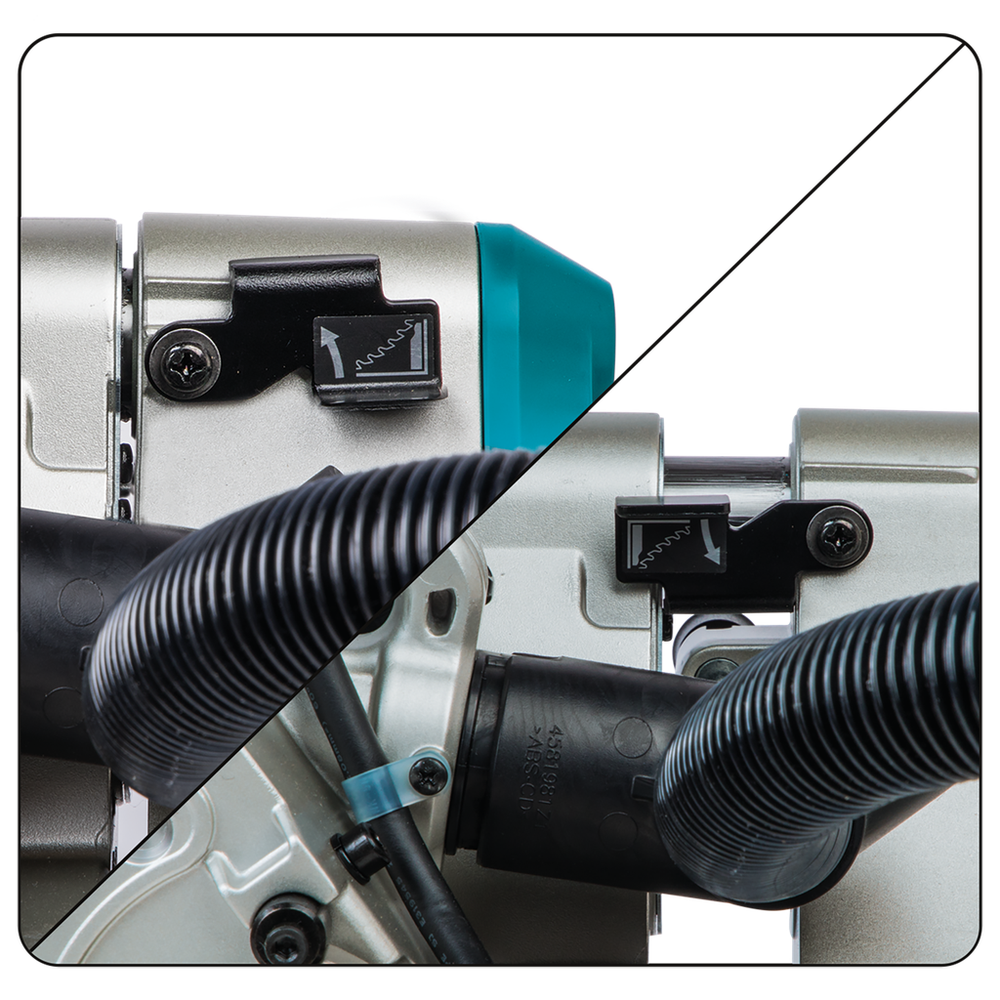

Dual dust collection ports provide excellent dust extraction performance
Triangular Rule (762001-3)
Ergonomic rubberized horizontal D-handle design for better fit and added comfort

Prop 65

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.

Downloads

Parts Breakdown

Instruction Manual

Makita New Tool Flyer (English)

Specifications

Dimensions (LxWxH)	35-1/4" x 26-1/8" x 28-1/2"
Country of Origin	China
Blade Diameter	12"
Arbor	1"
No Load Speed	3,200 RPM
Shipping Weight	81.6 lbs.
Net Weight	65 lbs.
Max. Cutting Capacity (miter 90°)	3-5/8" x 15"
Max. Cutting Capacity (miter 45°, L/R)	3-5/8" x 10-1/2"
