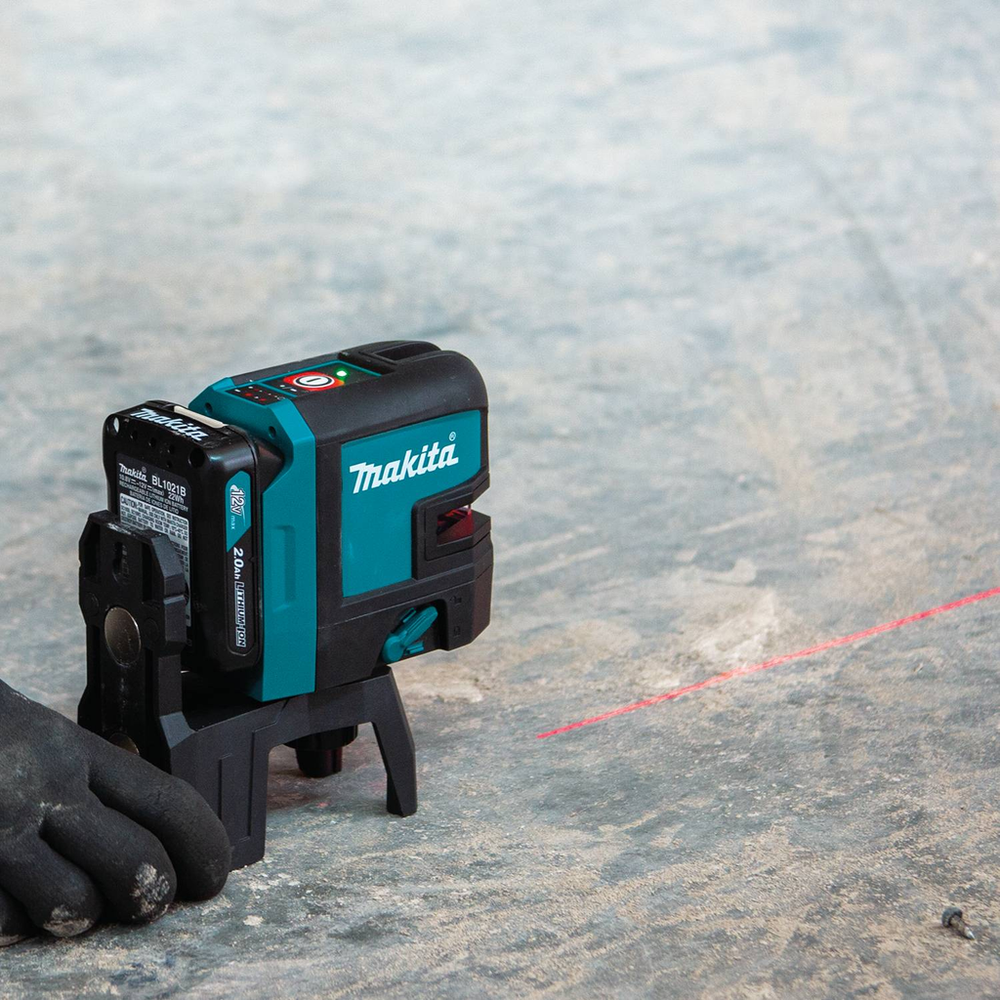

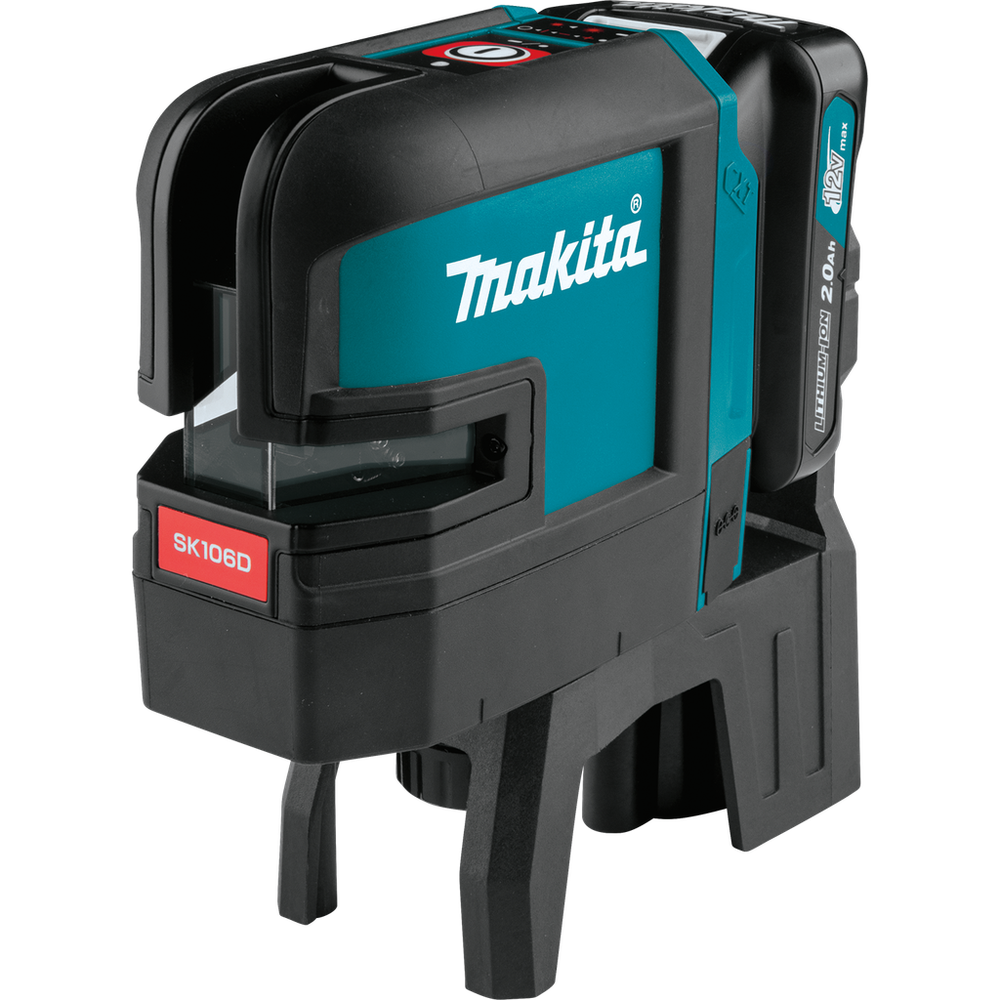

Lasers are typically utilized in the early stages of construction, and measurement needs will vary based on application requirements. The Makita 12V max CXT® Lithium-Ion Self-Leveling Cross-Line/4-Point Red Beam Laser (SK106DNAX) gives the user a cordless solution for selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb, and square applications. Depending on ambient light in the working environment, the SK106DNAX has a line visibility range up to 82' and is detectable up to 262' with a Makita Laser Detector (sold separately). The SK106DNAX has a bright 635 nm class II red laser with +/-1/8" at 33' for best-in-class accuracy. The laser line fan length spans past the 90 degree position to provide 180 degree horizontal and 160 degree vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity. For longer run time, all 12V max CXT® cordless tools are also compatible with the 12V max CXT® Lithium-Ion 4.0Ah battery (BL1041B). 12V max CXT® lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. It's part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size. For users in the 18V LXT® battery platform, the SK106DNAX has a power connector port that allows an 18V LXT® battery to be used with the Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately).
Features

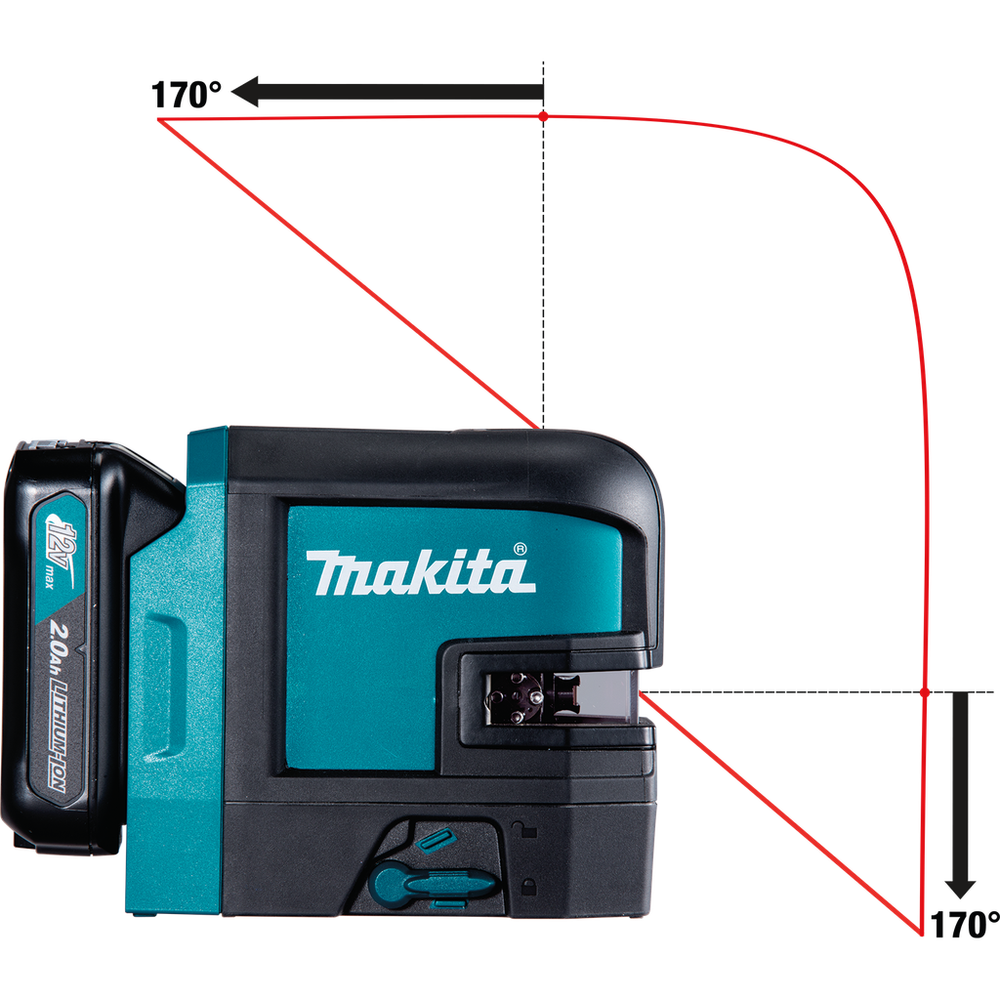

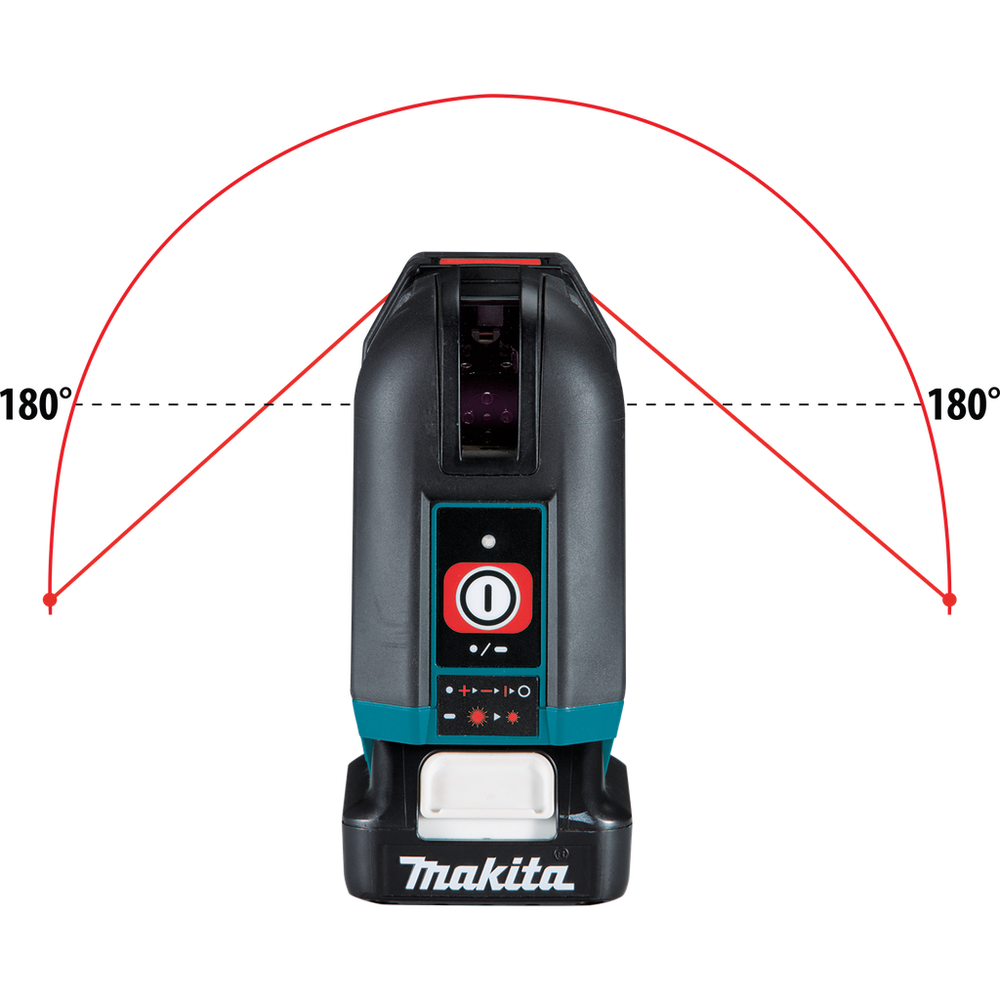

- Laser line fan angle spans past the 180° horizontal line and 170° vertical line positions for full reference line coverage
- Battery Protection Circuit protects against overloading, over-discharging and over-heating

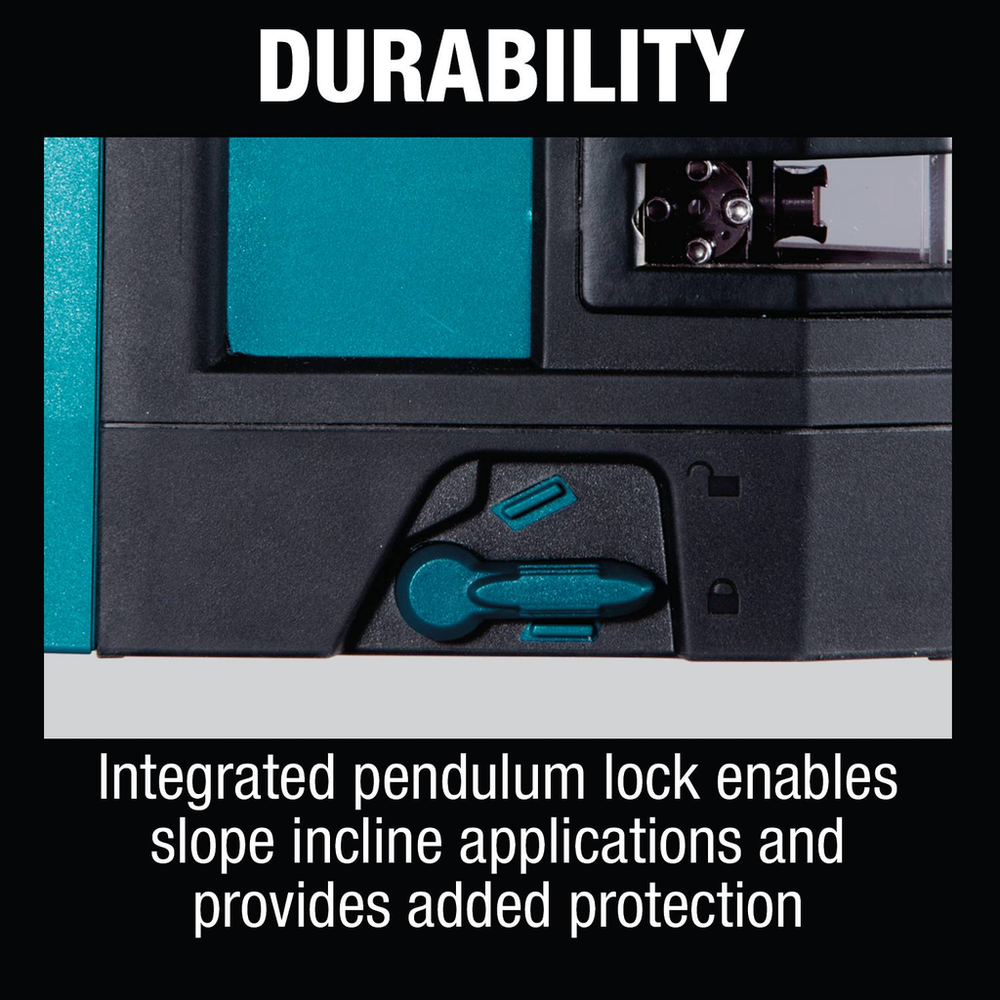

- Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage
- Not compatible with 12V max pod-style tools, batteries and chargers
- Dust and water resistance with IP 54 rating for increased durability
- 3-year limited warranty on tool, battery and charger
- Self-leveling is correctable up to 4° of slope allowing operation on uneven surfaces
- Rubberized housing over-mold for increased protection

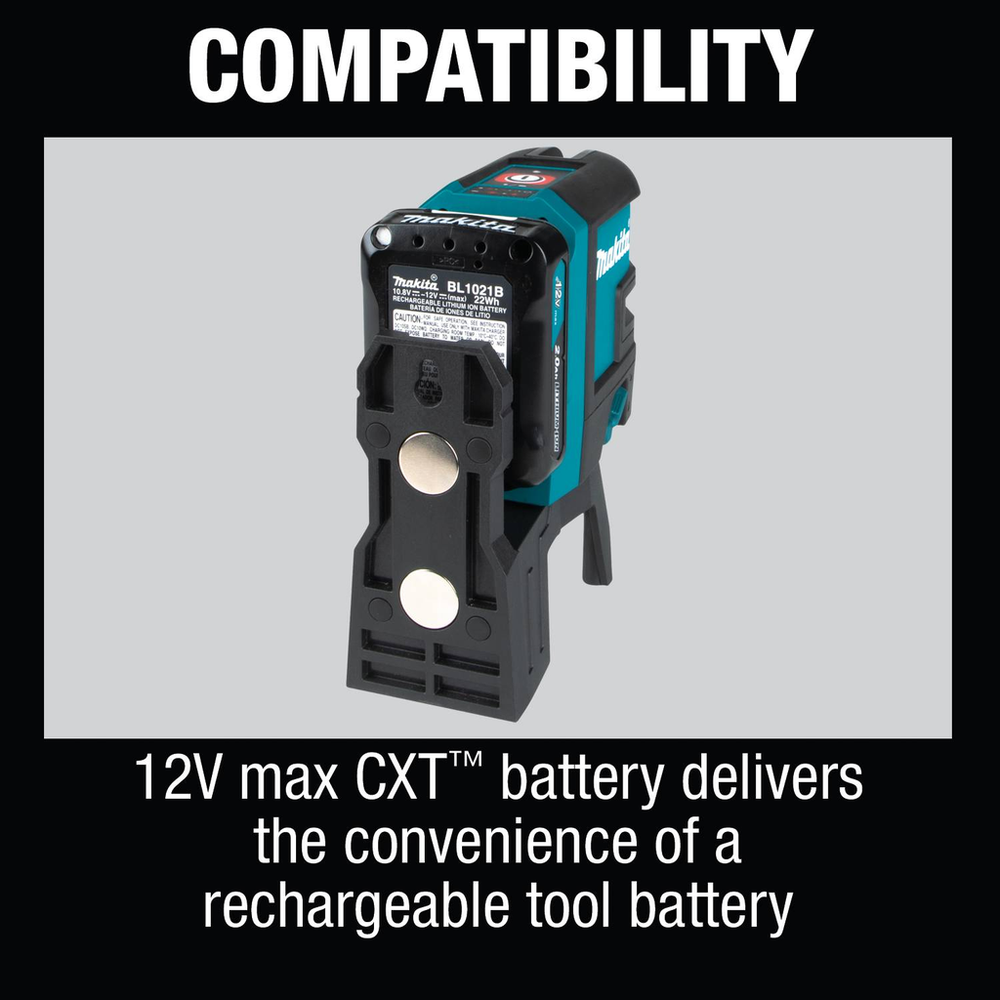

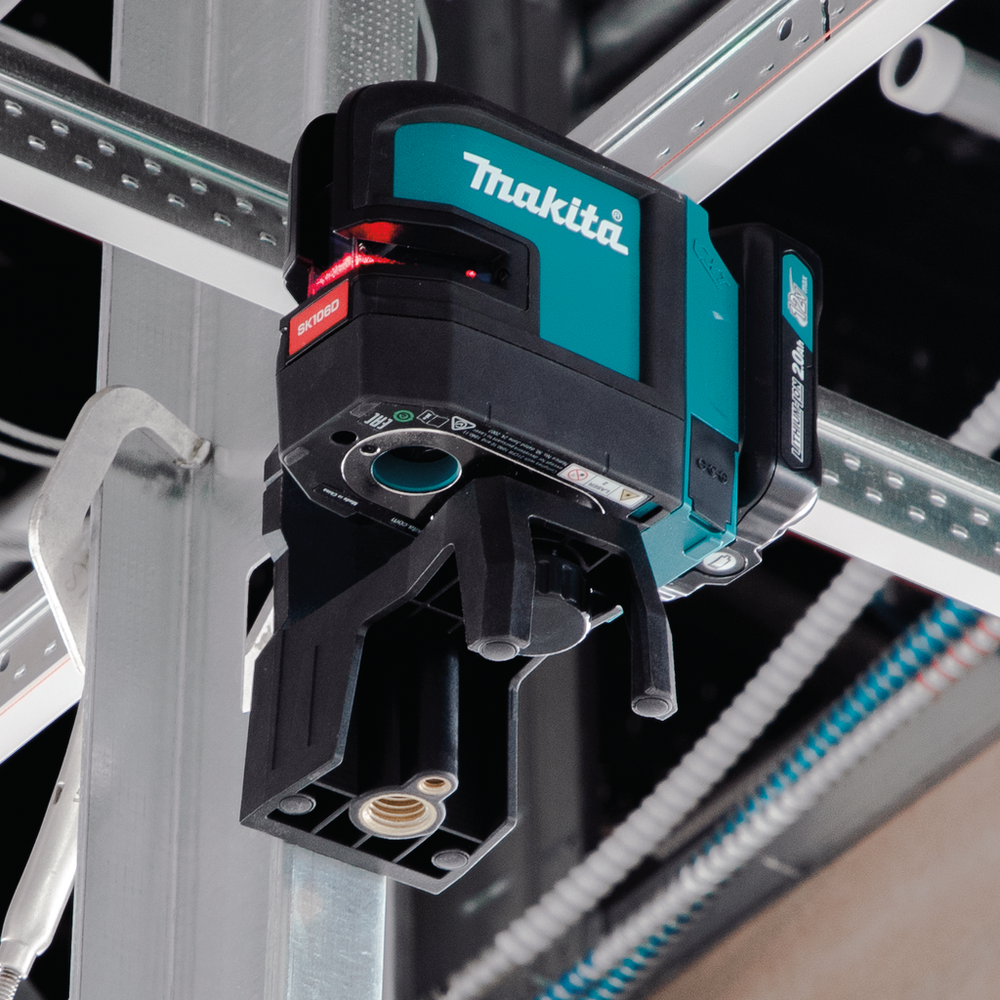

- Multi-purpose magnetic bracket with integrated 1/4" & 5/8" threads allow laser attachment to metal surfaces, wood surfaces or Makita Tripods (TK0LM1001F and TK0LM5030F)
- Highly protected laser windows are recessed into the housing for increased durability
- Power connector port allows 18V LXT® Lithium-Ion Battery to be used as alternate power source with Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately)
- Only use genuine Makita batteries and chargers
- Low laser brightness mode conserve battery power for extended run-time performance

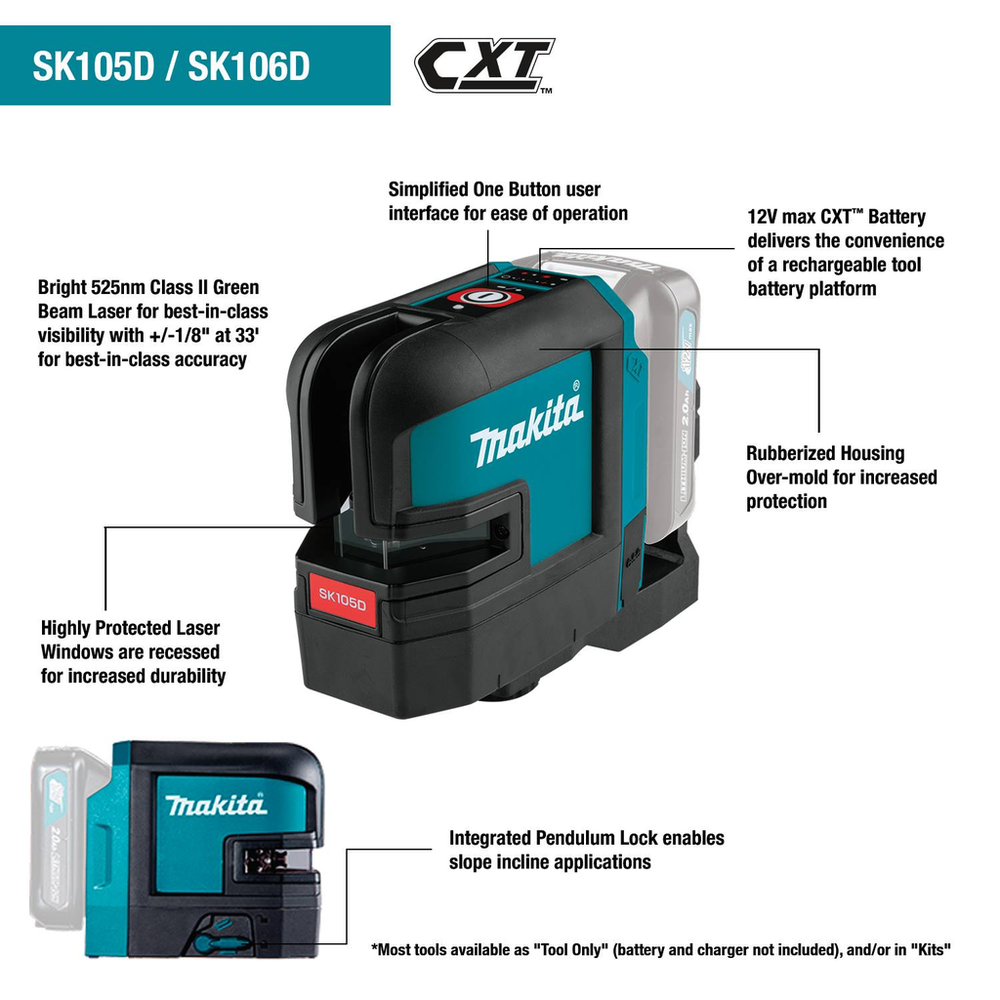

- Simplified one button user interface for ease of operation

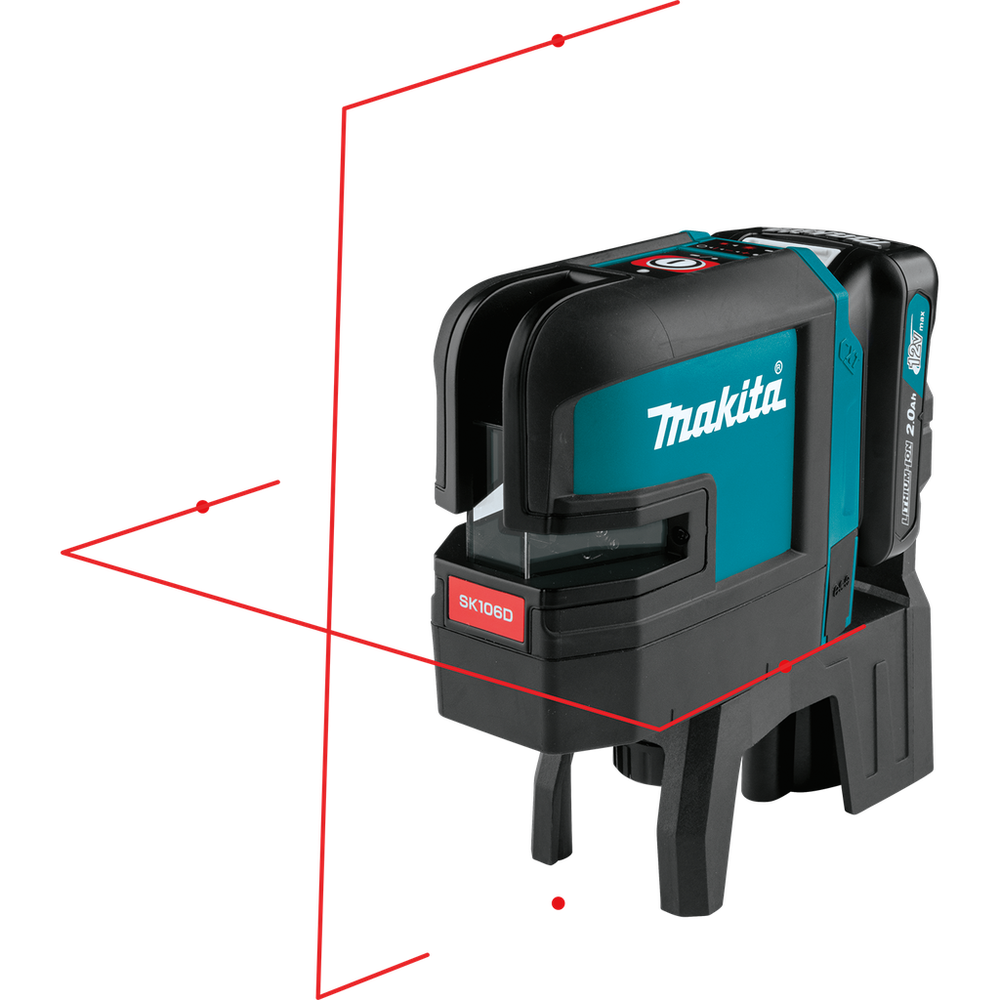

- Selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb and square applications

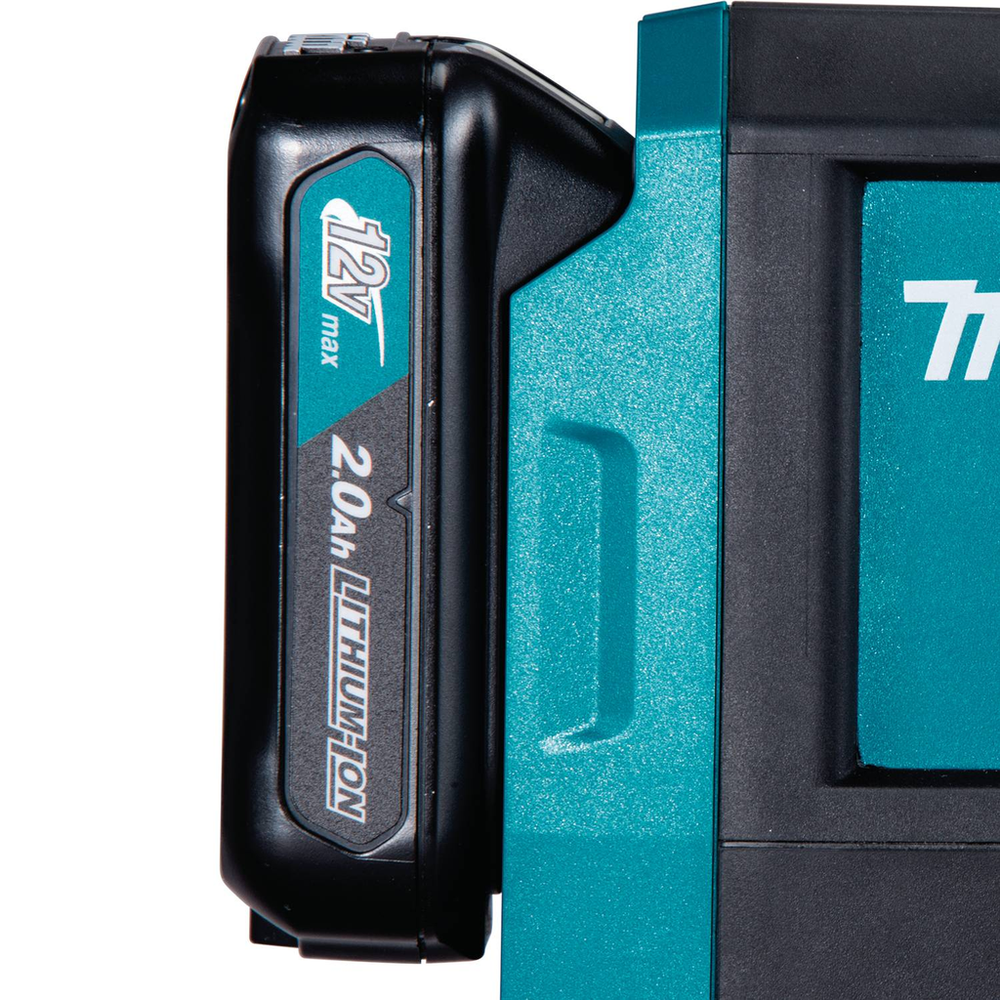

- 12V max CXT® Lithium-Ion 2.0Ah battery BL1021B, features an integrated L.E.D. battery charge level indicator
- Up to 20 hours of continuous run time using included Makita 12V max CXT® 2.0Ah rechargeable battery; up to 40 hours of continuous run time using a 12V max CXT® 4.0Ah battery
- Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity

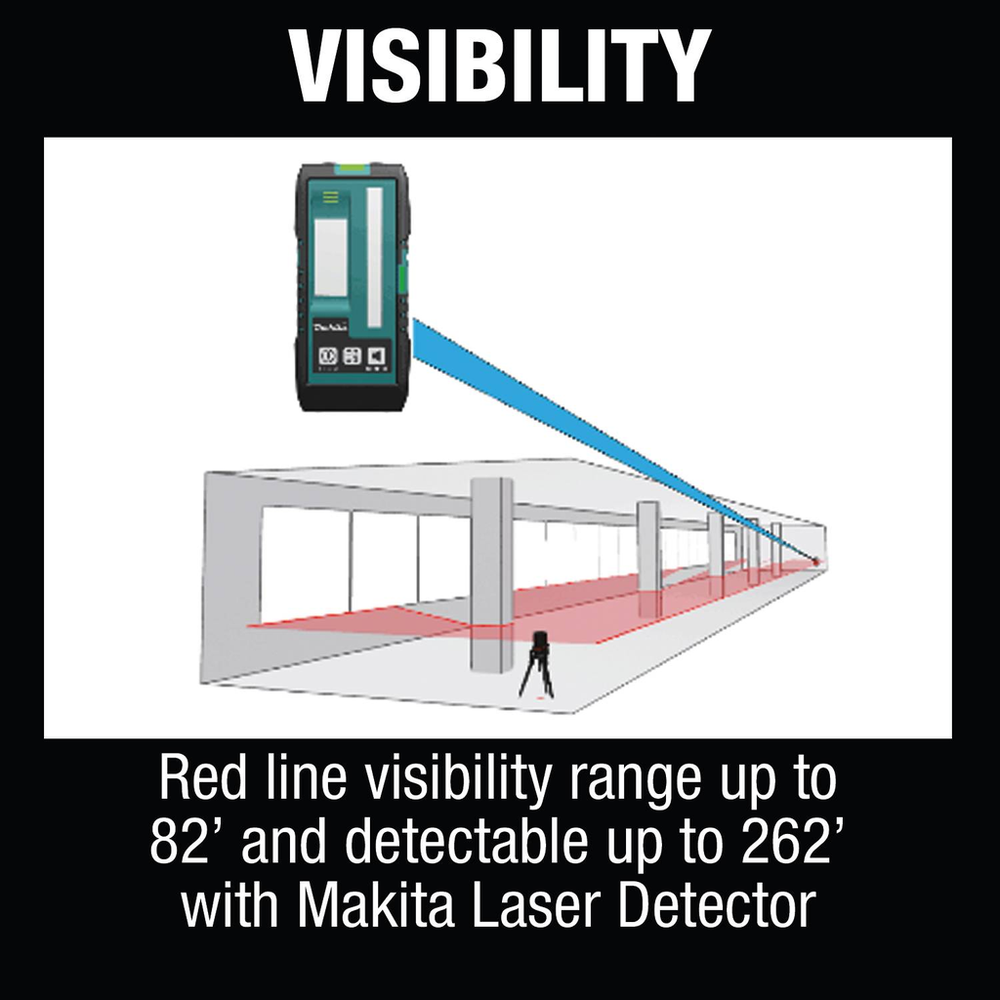

- Red line visibility range up to 82' depending on ambient light and detectable up to 262' with Makita Laser Detector LE00855702 (sold separately)
