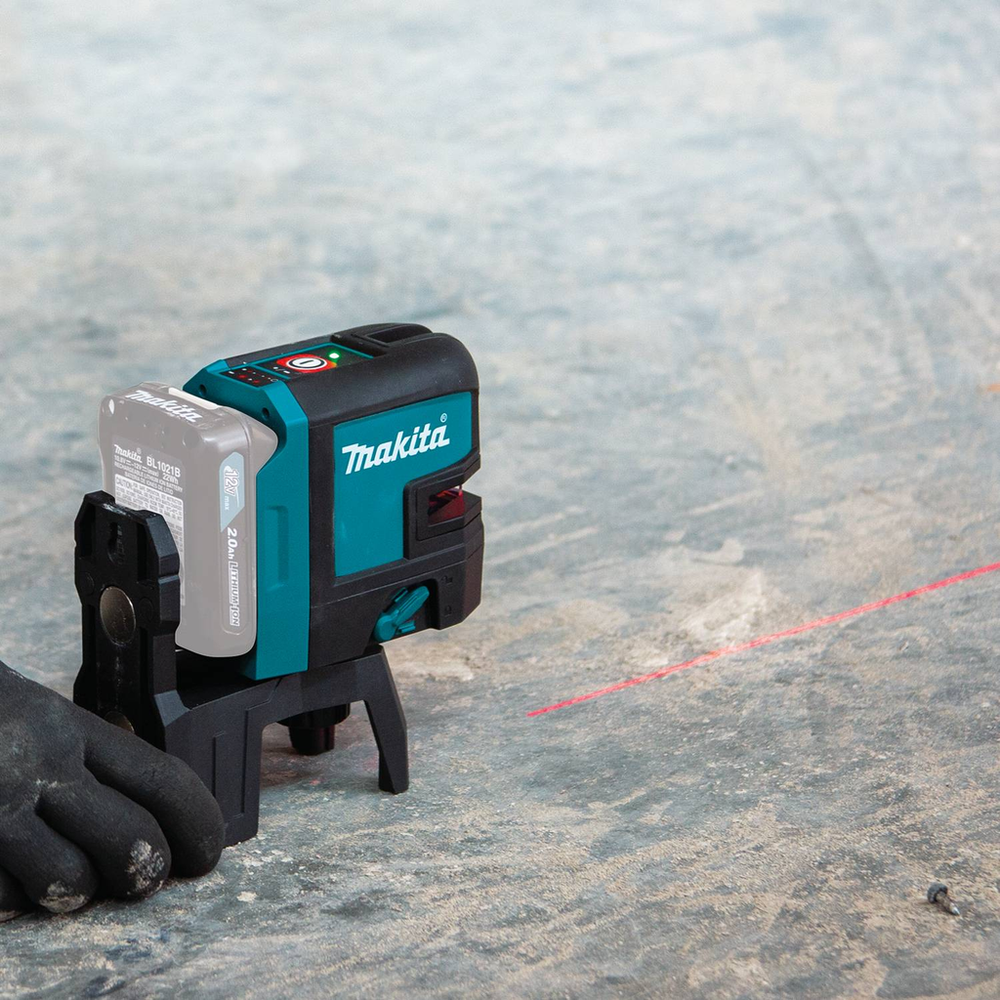

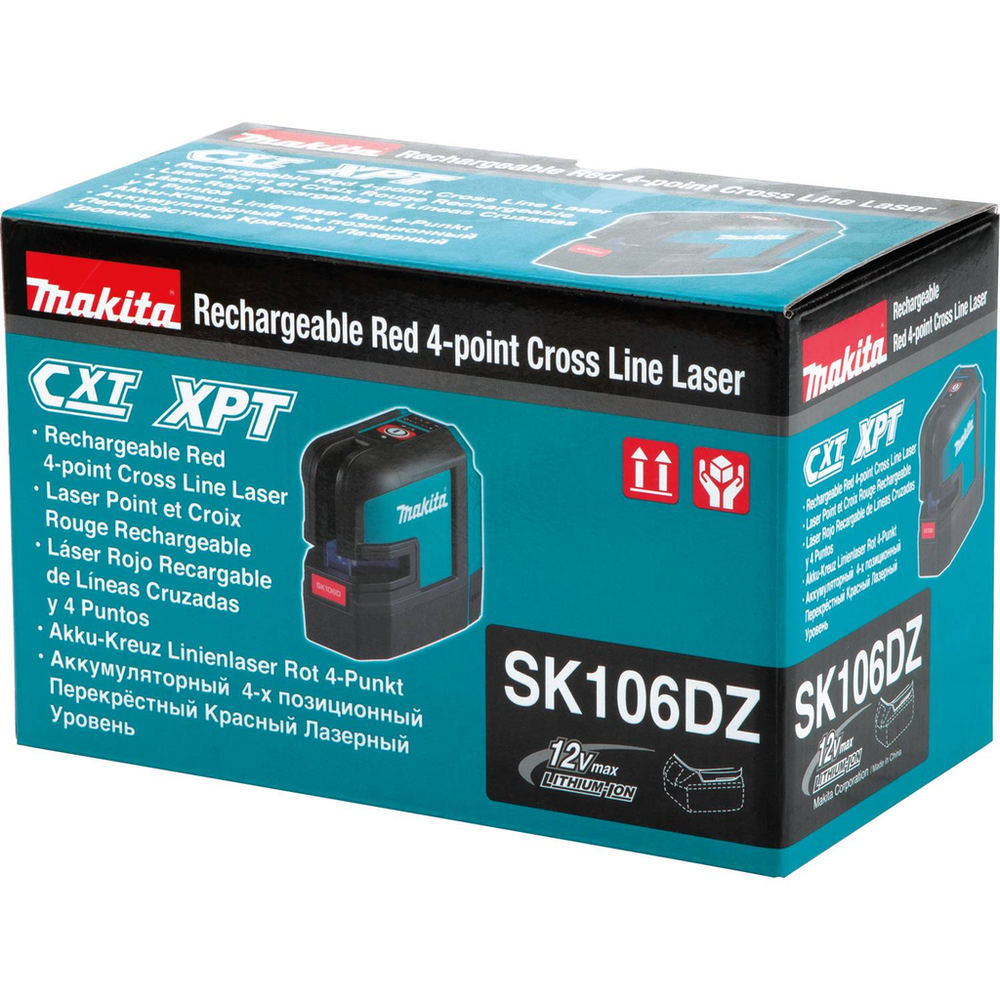

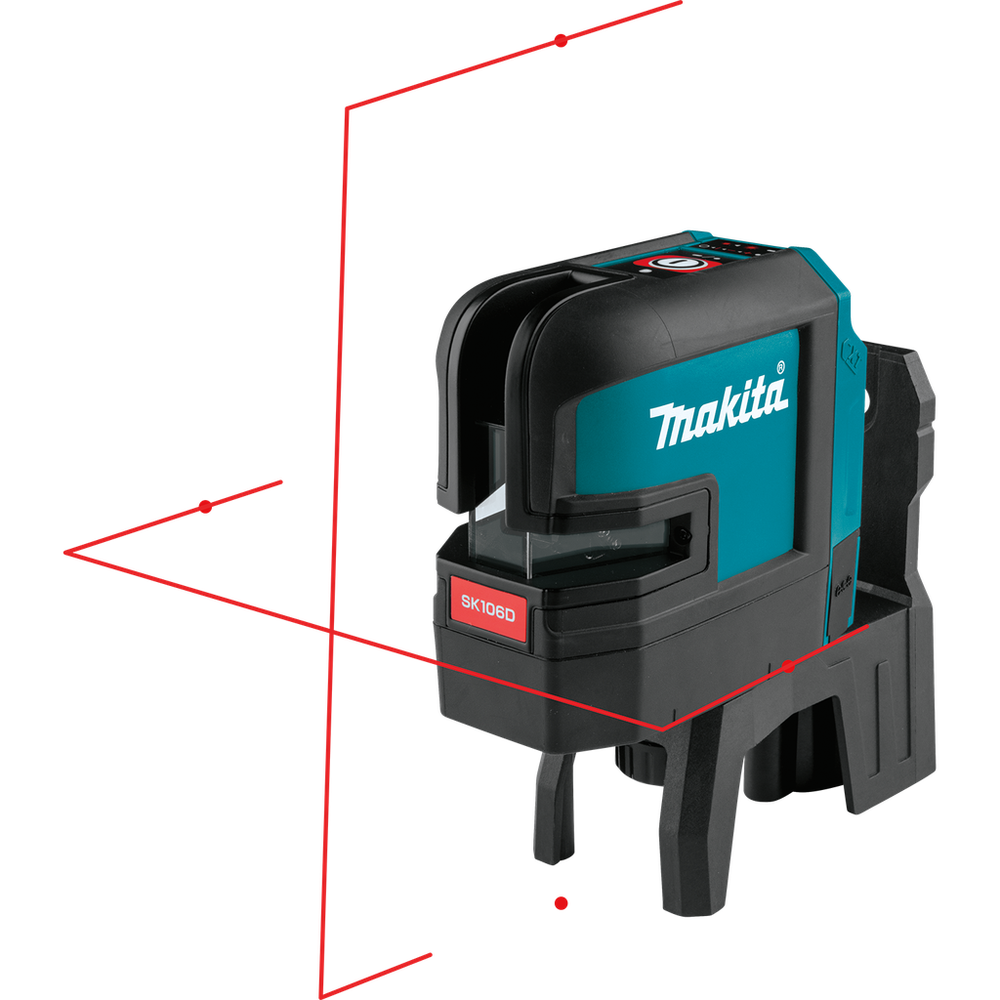

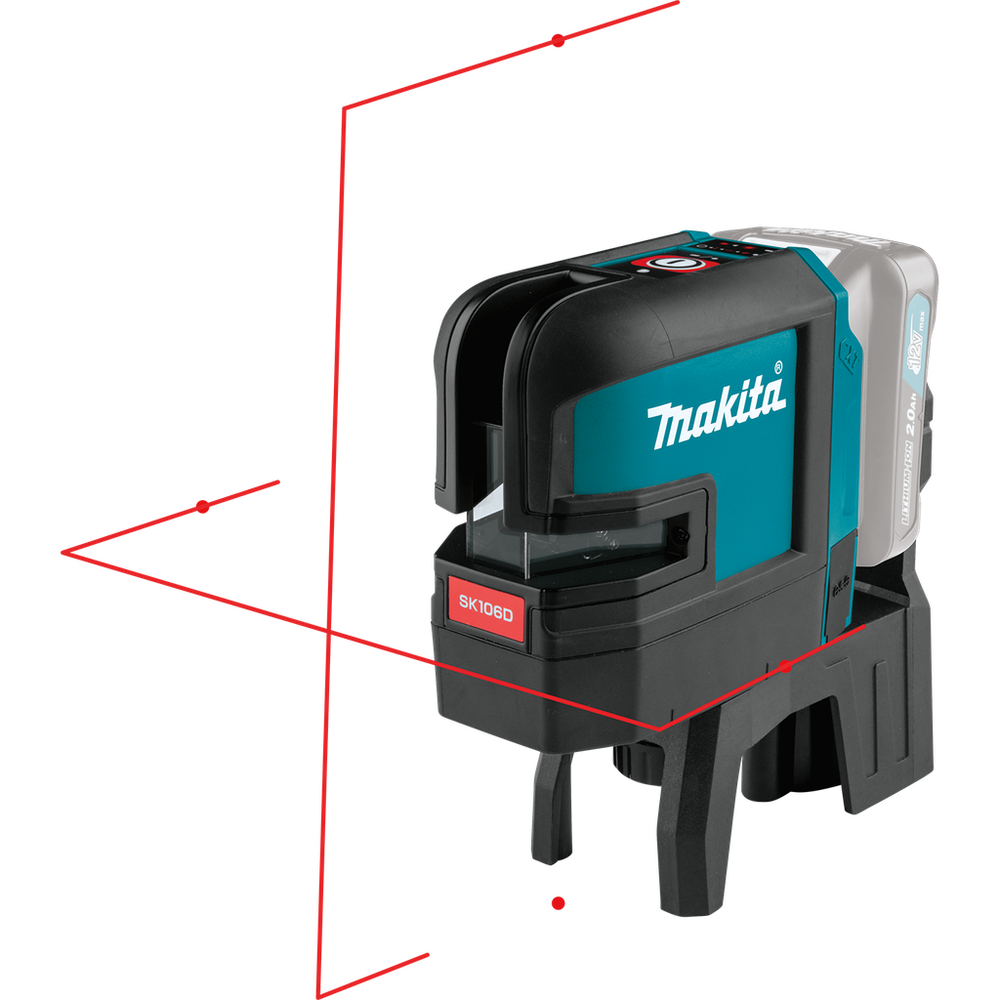

Lasers are typically utilized in the early stages of construction, and measurement needs will vary based on application requirements. The Makita 12V max CXT® Lithium-Ion Self-Leveling Cross-Line/4-Point Red Beam Laser (SK106DZ) gives the user a cordless solution for selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb, and square applications. Depending on ambient light in the working environment, the SK106DZ has a line visibility range up to 82' and is detectable up to 262’ with a Makita Laser Detector (sold separately). The SK106DZ has a bright 635 nm class II red laser with +/-1/8” at 33’ for best-in-class accuracy. The laser line fan length spans past the 90 degree position to provide 180 degree horizontal and 160 degree vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity. For longer run time, all 12V max CXT® cordless tools are also compatible with the 12V max CXT® Lithium-Ion 4.0Ah battery (BL1041B). 12V max CXT® lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. It’s part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size. For users in the 18V LXT® battery platform, the SK106DZ has a power connector port that allows an 18V LXT® battery to be used with the Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately).
Features
- Battery and charger not included
- Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces
- Low laser brightness mode conserve battery power for extended run-time performance
- Only use genuine Makita batteries and chargers

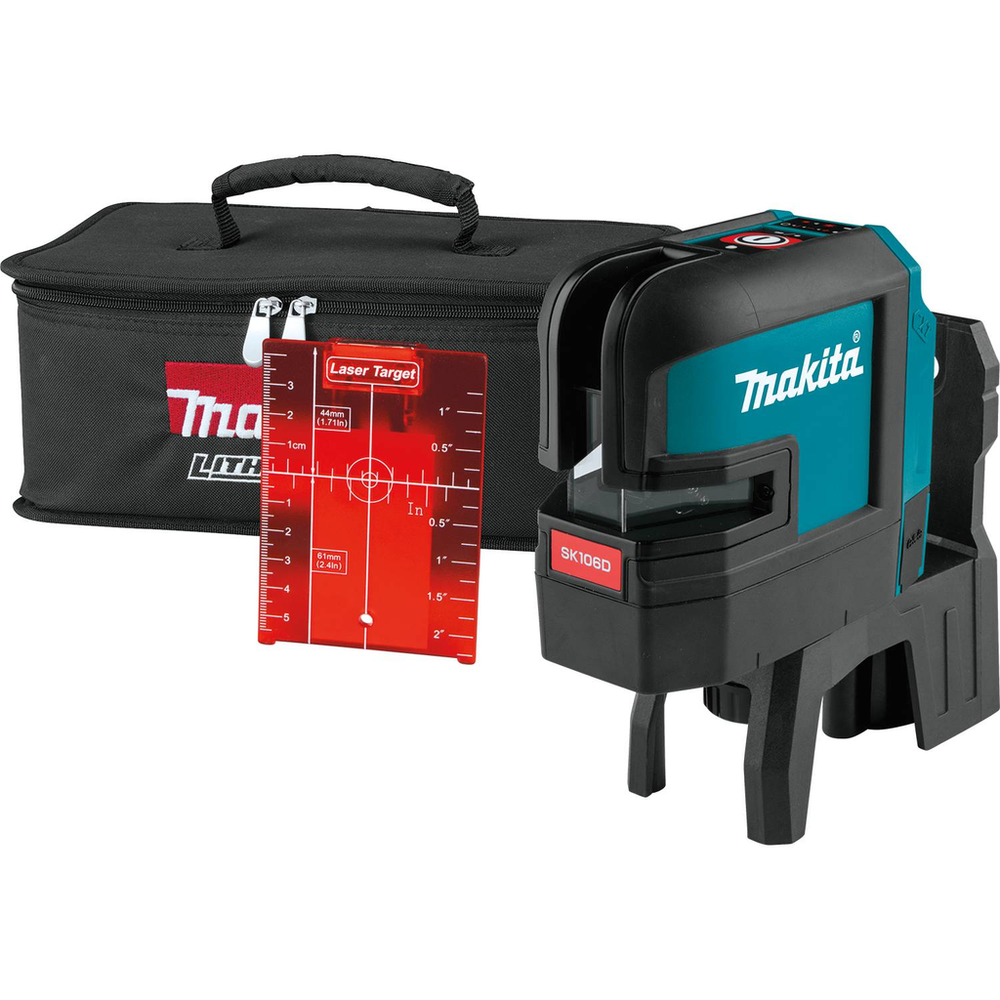

- INCLUDES - Bracket, Pouch, Target Card
- Rubberized housing over-mold for increased protection
- Bright 635 nm class II red laser with +/-1/8” at 33’ for best-in-class accuracy
- 3-year limited warranty
- Dust and water resistance with IP 54 rating for increased durability
- Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity
- Part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size
- DURABILITY - Integrated pendulum lock enables slope incline applications and provides added protection
- VERSATILITY - Selectable cross reference lines plus 4-point required for level, align, plumb & square applications
- RUN TIME - Makita 12V max CXT® 4.0Ah rechargeable battery provides up to 40 hours of run time (sold separately)
- Magnetic Red Target Plate (LE00785638)
- Selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb and square applications
- Storage Pouch
- Battery Protection Circuit protects against overloading, over-discharging and over-heating
- Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage

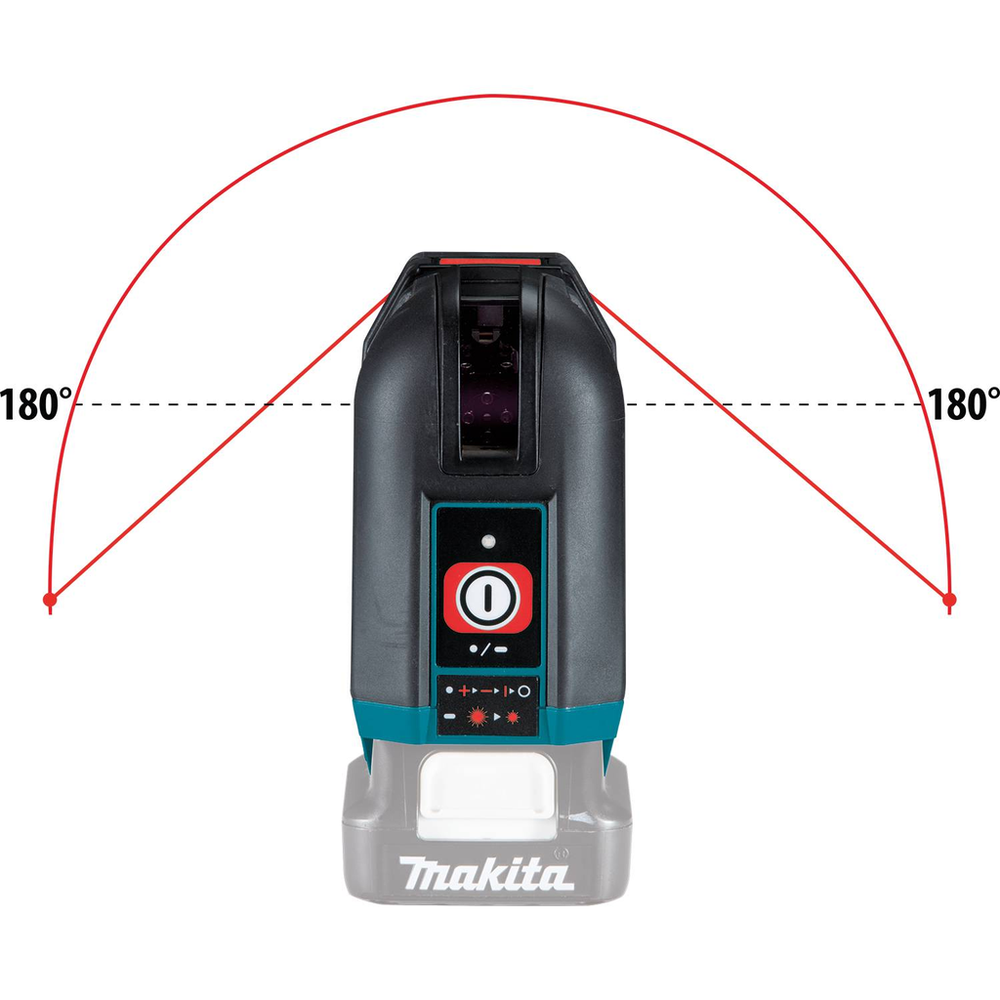

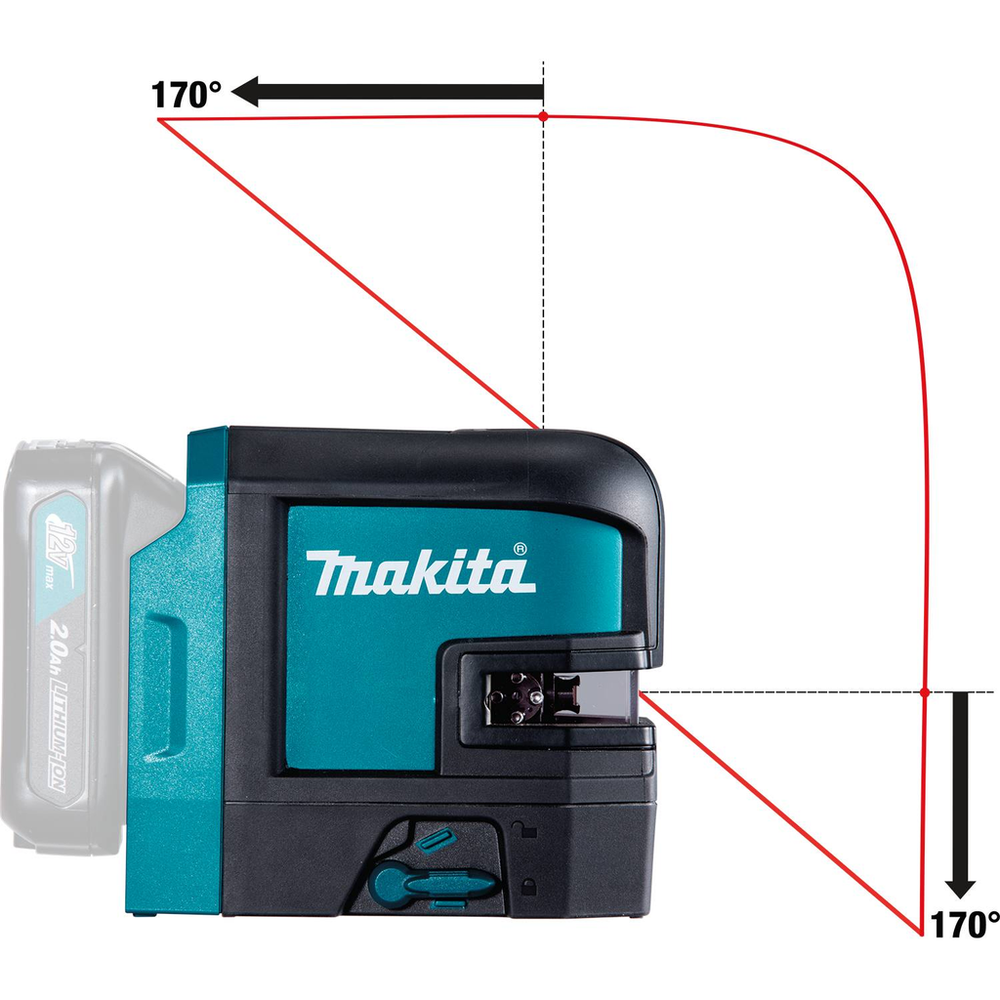

- Laser line fan angle spans past the 180° horizontal line and 170° vertical line positions for full reference line coverage
- Simplified one button user interface for ease of operation

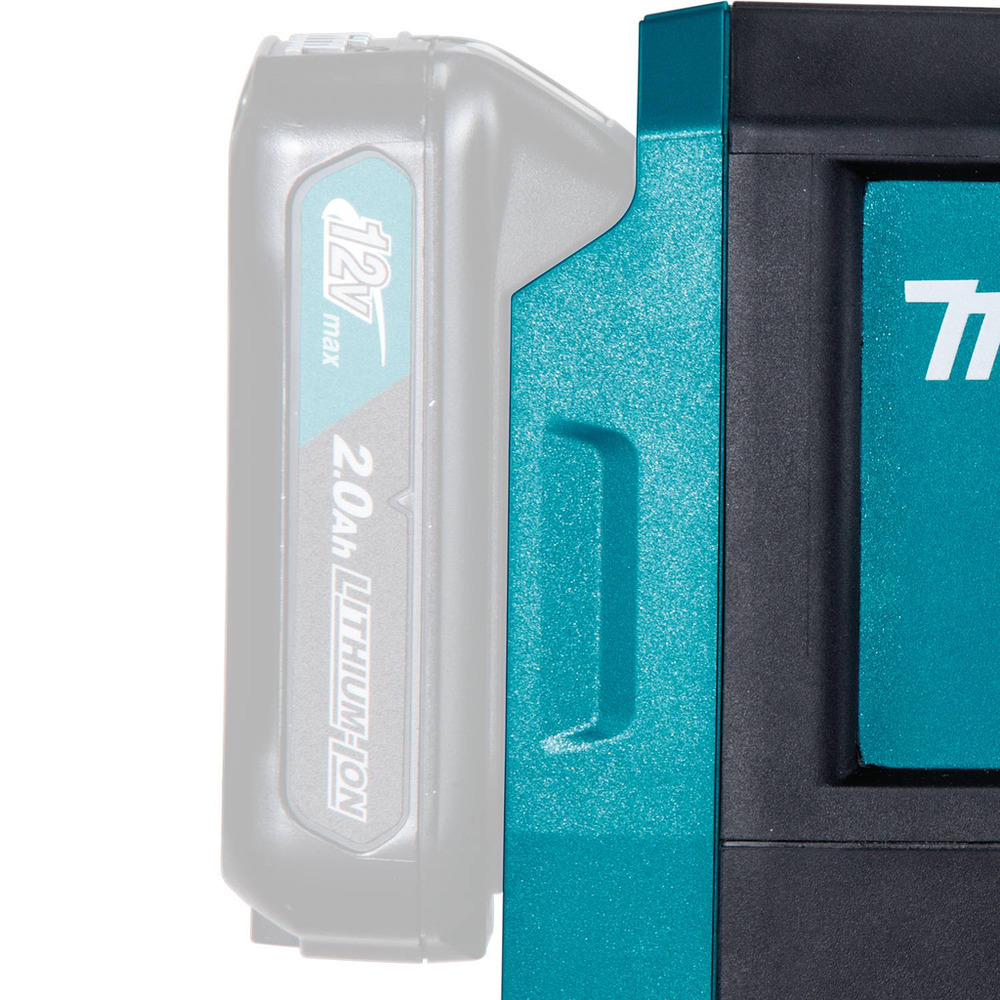

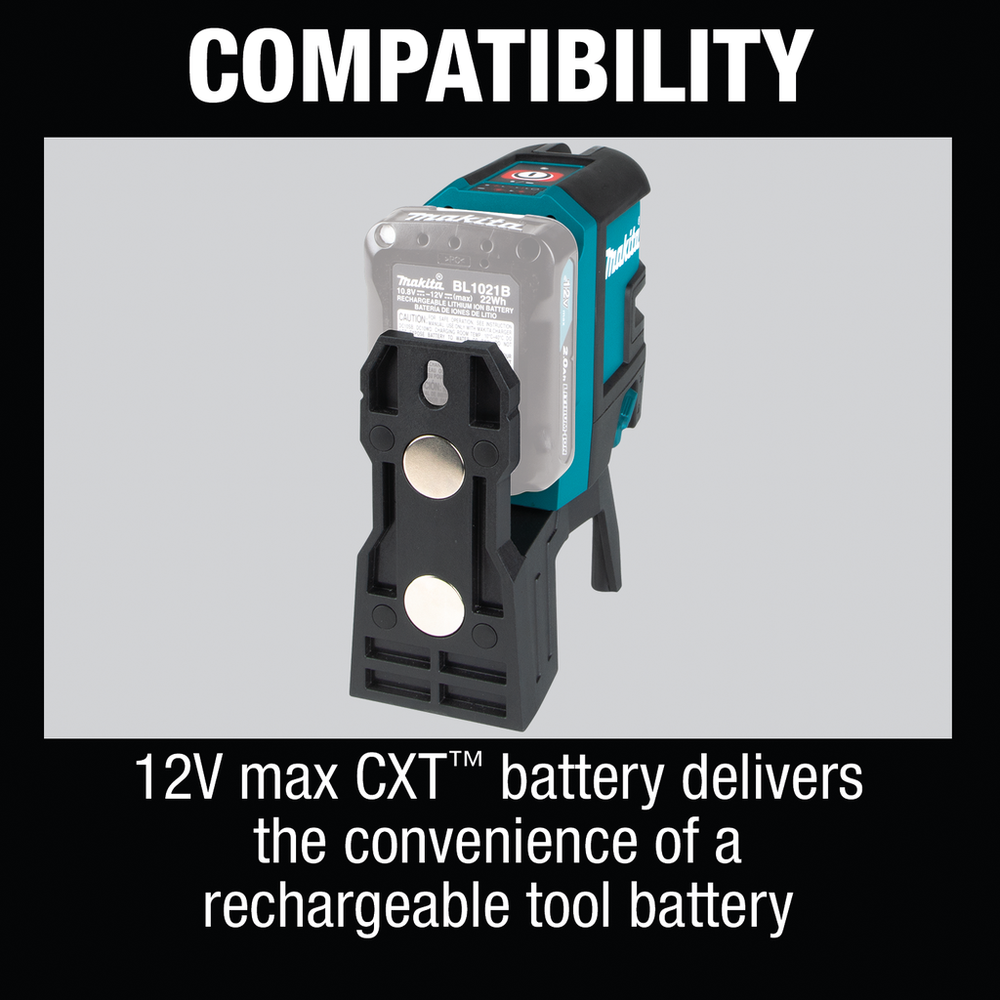

- 12V max CXT® battery delivers the convenience of a rechargeable tool battery and up to 40 hours of continuous run-time (battery not included)
- Not compatible with 12V max pod-style tools, batteries and chargers
- VISIBILITY - Red line visibility range up to 82’ and detectable up to 262' with Makita Laser Detector
- Makita 12V max CXT® 4.0Ah rechargeable battery provides up to 40 hours of continuous run time (battery not included)

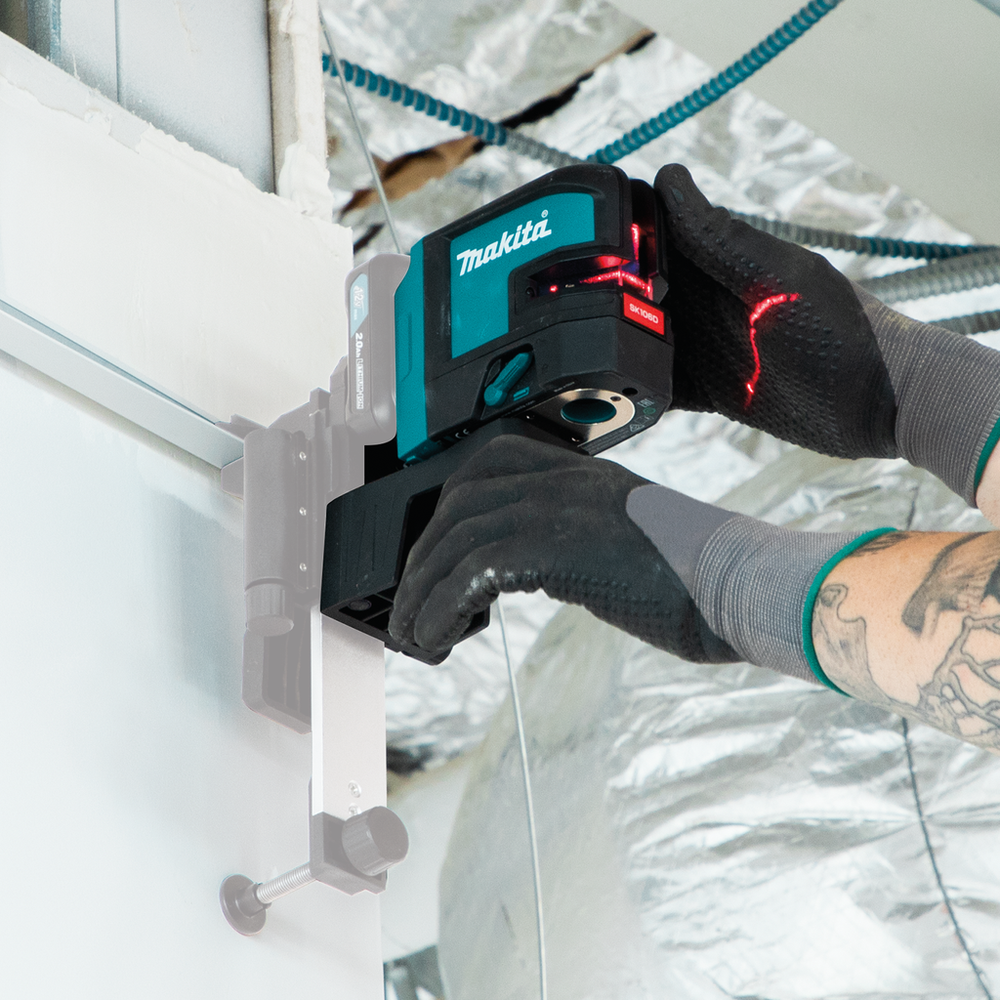

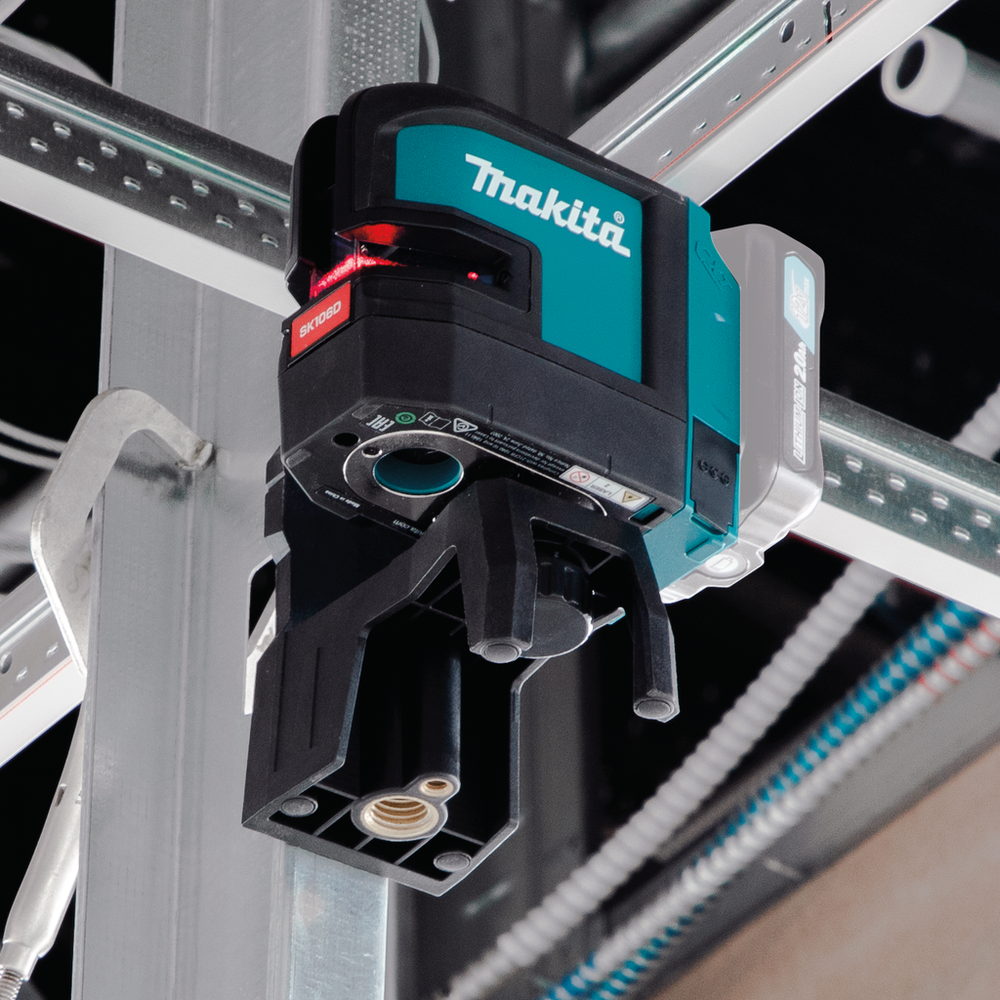

- Multi-purpose magnetic bracket with integrated 1/4” & 5/8” threads allow laser attachment to metal surfaces, wood surfaces or Makita Tripods (TK0LM1001F and TK0LM5030F)
- Magnetic PRO L-Adapter (LE00870134)
- Power connector port allows 18V LXT® Lithium-Ion Battery to be used as alternate power source with Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately)
- Red line visibility range up to 82’ depending on ambient light and detectable up to 262' with Makita Laser Detector LE00855702 (sold separately)
- Highly protected laser windows are recessed into the housing for increased durability
Prop 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Downloads
SK106 Instruction ManualMakita SK106DNAX New Tool Flyer (English)
