Makita

16 Gauge, 2-1/2" Straight Finish Nailer - AF601

Name: 16 Gauge, 2-1/2" Straight Finish Nailer - AF601
Brand: Makita
SKU: AF601
Price: 224 USD
Availability: InStock

SKU: AF601

MPN: AF601

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381822404

$224.00 each

Hurry up! Current stock:

Quantity:

Product Description

The Makita 16 Gauge Straight Finish Nailer (model AF601) combines a myriad of features and powerful performance in a compact size. The AF601 has a rear-loading magazine that accepts standard 16 ga. straight finish nails sized 1" to 2-1/2". The nail lock-out and large windows alert the user when to reload nails as the contact arm and trigger are used together for controlled firing. With a compact size and weighing in at only 3.8 lbs., the AF601 was engineered for all-day professional use. Additional convenience features include a reversible belt hook that allows the tool to remain close-by, a multi-directional exhaust port that directs exhaust air away from the user, a built-in air duster that provides convenient air flow to clear your workspace, and a 2-mode selector switch offering quick control over nailing operation.

Features

Multi-directional exhaust port directs exhaust air away from operator
Nail lock-out mechanism protects tool and work surface from dry-fires

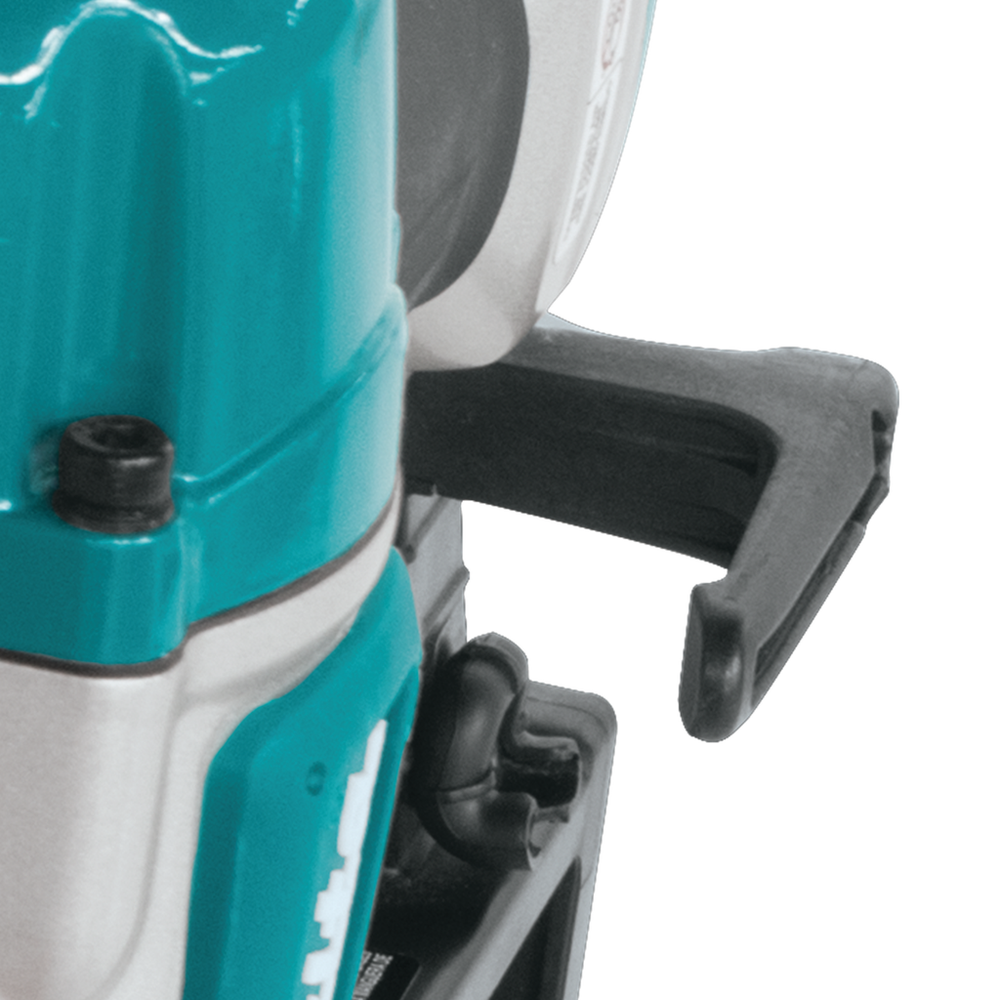

Reversible belt hook allows the tool to remain close
Efficient motor design offers leading power performance
"Tool-less" depth adjustment for more precise flush and countersink nailing
Integrated rubber soft grip for operator comfort
Magnesium body offers durability and less weight
Ideal for trim work, baseboard and crown molding installation, flooring and other woodworking applications
Narrow nose design allows easy nailing access in confined areas
"Tool-less" easy to clear nose for fast and easy nail extraction
Powerful motor design drives standard 16 gauge, straight finish nails from 1" to 2-1/2" in length
Minimum recommended air delivery of 2.7 SCFM @ 90PSI
2-mode selector switch for control over nailing operation
3-year limited warranty

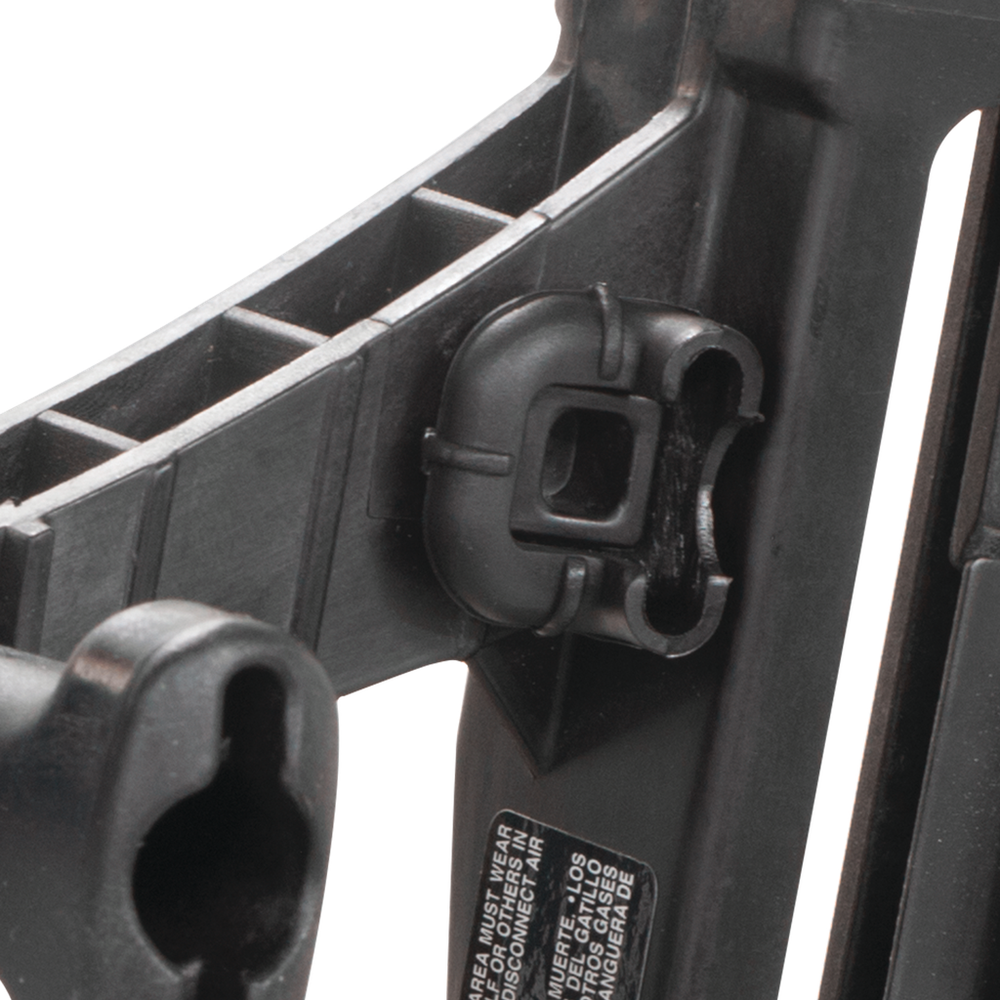

Includes two removable no-mar tips; convenient on tool storage
Housing bumpers protect tool and work surface
Built-in air duster provides convenient air flow to clear work surface
Rear lock-and-load magazine holds up to 100 nails for maximum efficiency

Documents

AF601 NTFE

Parts Breakdown

Manuals

Instruction Manual

Specifications

Operating Air Pressure (Bar)	4.9 - 8.3
Maximum Magazine Capacity	100
Tool Hook Included	Yes
Industrial Style Fitting Included	1/4" NPT x 1/4"
Dimensions (LxWxH)	12" x 3-3/4" x 11-3/4"
Power Type	Pneumatic
Nail Size	1" to 2-1/2" (16 ga.)
Air Fitting Included	Yes
Fastening category	Finish
Inlet Size	1/4" NPT
Weight	3.8 lbs
Air Consumption	2.8 SCFM
Operating Air Pressure	70 - 120 PSI
