Makita

15 Gauge, 2-1/2" Angled Finish Nailer, 34⁰ - AF635

Name: 15 Gauge, 2-1/2" Angled Finish Nailer, 34⁰ - AF635
Brand: Makita
SKU: AF635
Price: 249 USD
Availability: InStock

SKU: AF635

MPN: AF635

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381822398

$249.00 each

Hurry up! Current stock:

Quantity:

Product Description

The Makita 15 Gauge Angled Finish Nailer (model AF635) offers an array of features and powerful performance in a compact size. The AF635 has a rear-loading magazine that accepts standard DA style (34⁰), 15 ga. angled finish nails sized 1-1/4" to 2-1/2". The nail lock-out and large windows alert the user when to reload nails as the contact arm and trigger are used together for controlled firing. With a compact size and weighing in at only 4 lbs., the AF635 was engineered for all-day professional use. Additional convenience features include a reversible belt hook that allows the tool to remain close-by, a multi-directional exhaust port that directs exhaust air away from the user, a built-in air duster that provides convenient air flow to clear your workspace, and a 2-mode selector switch offering quick control over nailing operation.

Features

Multi-directional exhaust port directs exhaust air away from operator
2-mode selector switch for control over nailing operation
Ideal for trim work, baseboard and crown molding installation, hanging doors, exterior fascia and soffits, and other woodworking applications
Includes two removable no-mar tips; convenient on tool storage
3-year limited warranty
"Tool-less" depth adjustment for more precise flush and countersink nailing
Reversible belt hook allows the tool to remain close
Powerful motor drives 15 gauge "DA" style angled finish nails from 1-1/4" to 2-1/2"
Housing bumpers protect tool and work surface
Minimum recommended air delivery of 3.1 SCFM @ 90PSI

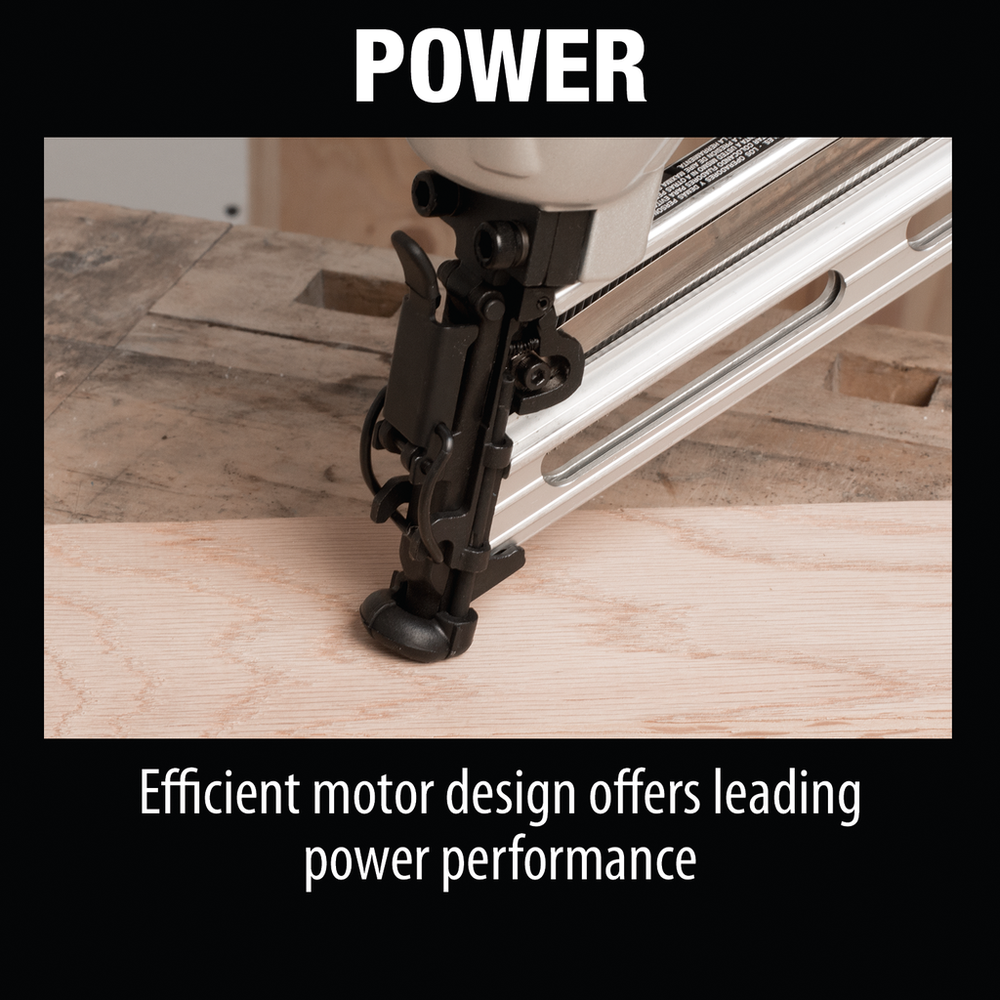

Efficient motor design offers leading power performance
Rear lock-and-load magazine holds up to 100 nails for maximum efficiency
Narrow nose design allows easy nailing access in confined areas
Integrated rubber soft grip for operator comfort
Magnesium body, aluminum magazine and cylinder deliver strength and durability
Nail lock-out mechanism protects tool and work surface from dry-fires
"Tool-less" easy to clear nose for fast and easy nail extraction
Built-in air duster provides convenient air flow to clear work surface

Manuals

Instruction Manual

Documents

AF635 NTFE

Parts Breakdown

Specifications

Inlet Size	1/4" NPT
Industrial Style Fitting Included	1/4" NPT x 1/4"
Tool Hook Included	Yes
Maximum Magazine Capacity	100
Dimensions (LxWxH)	13-3/8" x 3-15/16" x 12-1/8"
Power Type	Pneumatic
Operating Air Pressure (Bar)	4.9 - 8.3
Fastening category	Finish
Nail Size	1-1/4" to 2-1/2" (15 ga. DA style)
Air Fitting Included	Yes
Weight	4 lbs
Air Consumption	3.1 SCFM
Operating Air Pressure	70 - 120 PSI
