Makita

15° 2-1/2" Siding Coil Nailer - AN613

Name: 15° 2-1/2" Siding Coil Nailer - AN613
Brand: Makita
SKU: AN613
Price: 439 USD
Availability: InStock

SKU: AN613

MPN: AN613

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381897525

$439.00 each

Hurry up! Current stock:

Quantity:

Product Description

The Makita® 2-1/2" Siding Coil Nailer (AN613) offers rugged construction and robust performance. The AN613 drives 15° wire and plastic collated nails for added convenience. The AN613 is engineered for longer tool life with durable and lightweight aluminum housing and an easy-loading adjustable canister. Ease-of-use features include a "tool-less" depth adjustment with nine detents settings engineered for more precise control and flush nailing. Additional features include rubber bumpers to protect the tool, smooth nose tip to prevent scratching, a multi-directional exhaust port, and reversable belt hook.

Features

Efficient motor and trigger design offers leading fastening performance

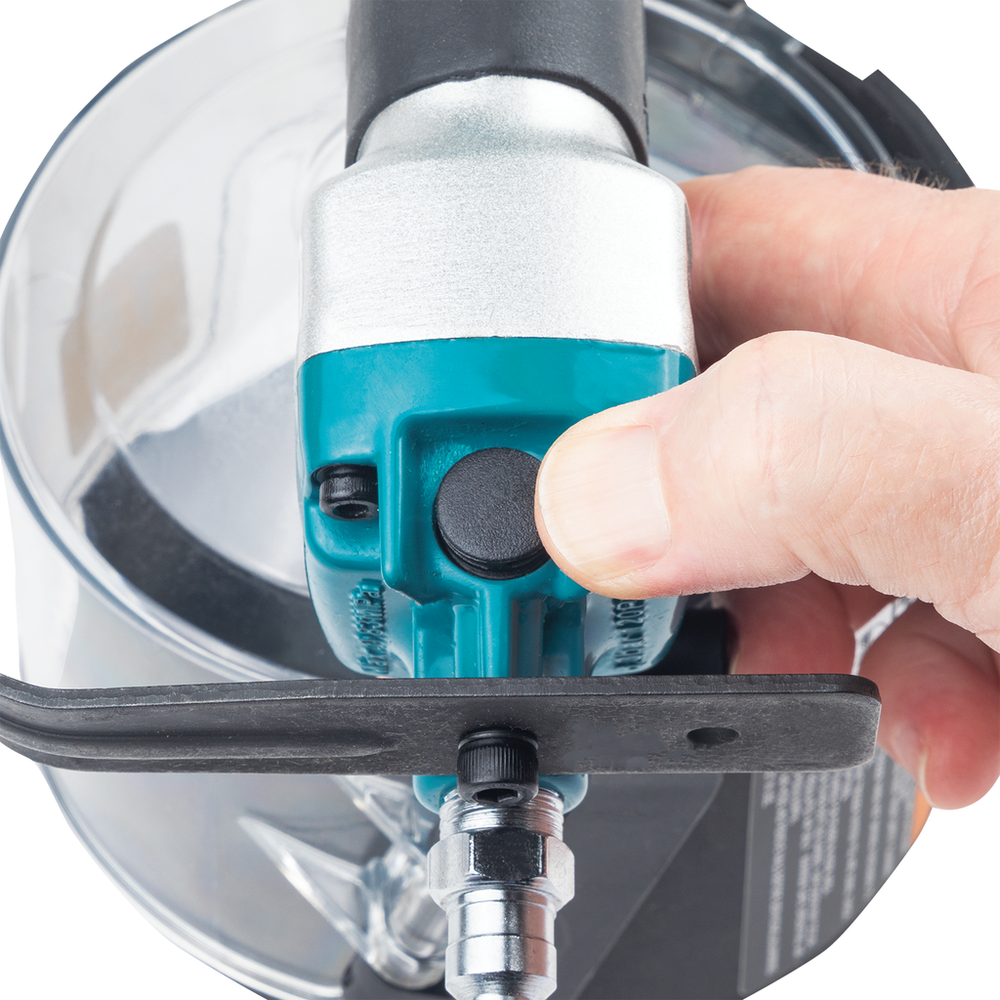

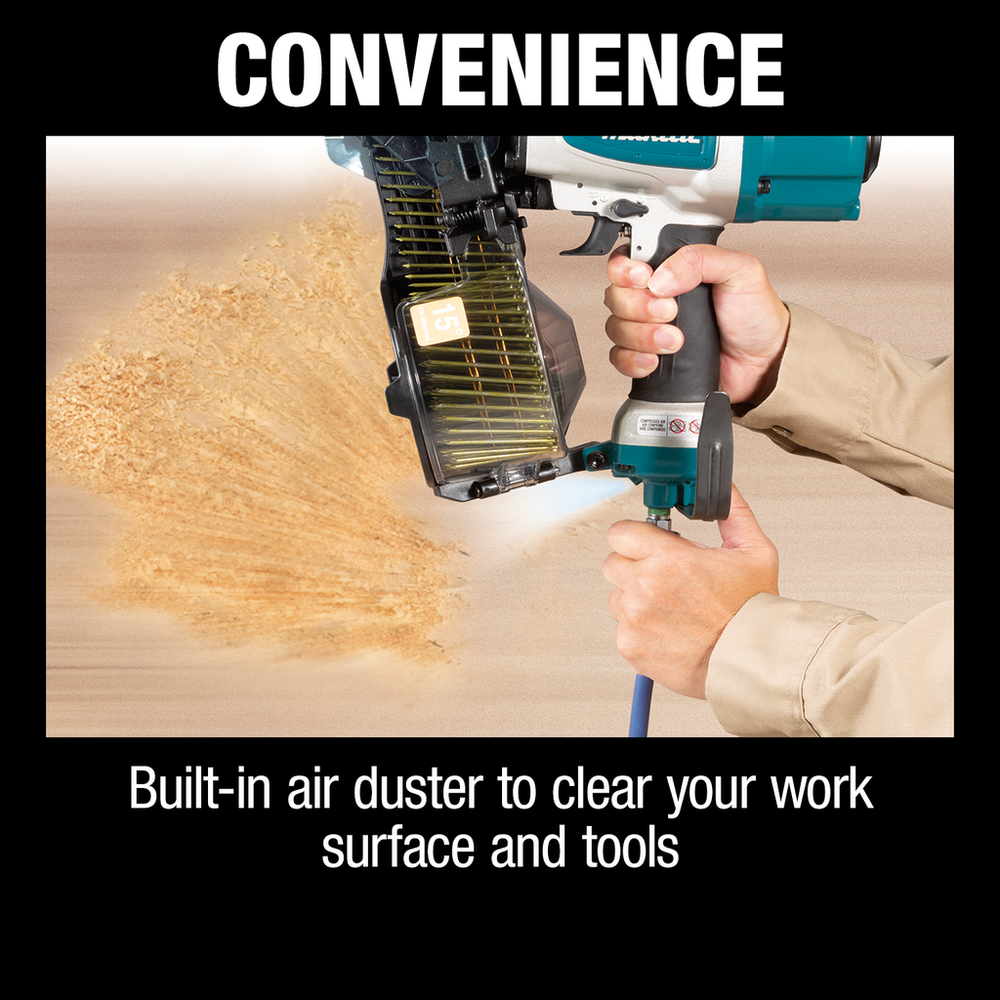

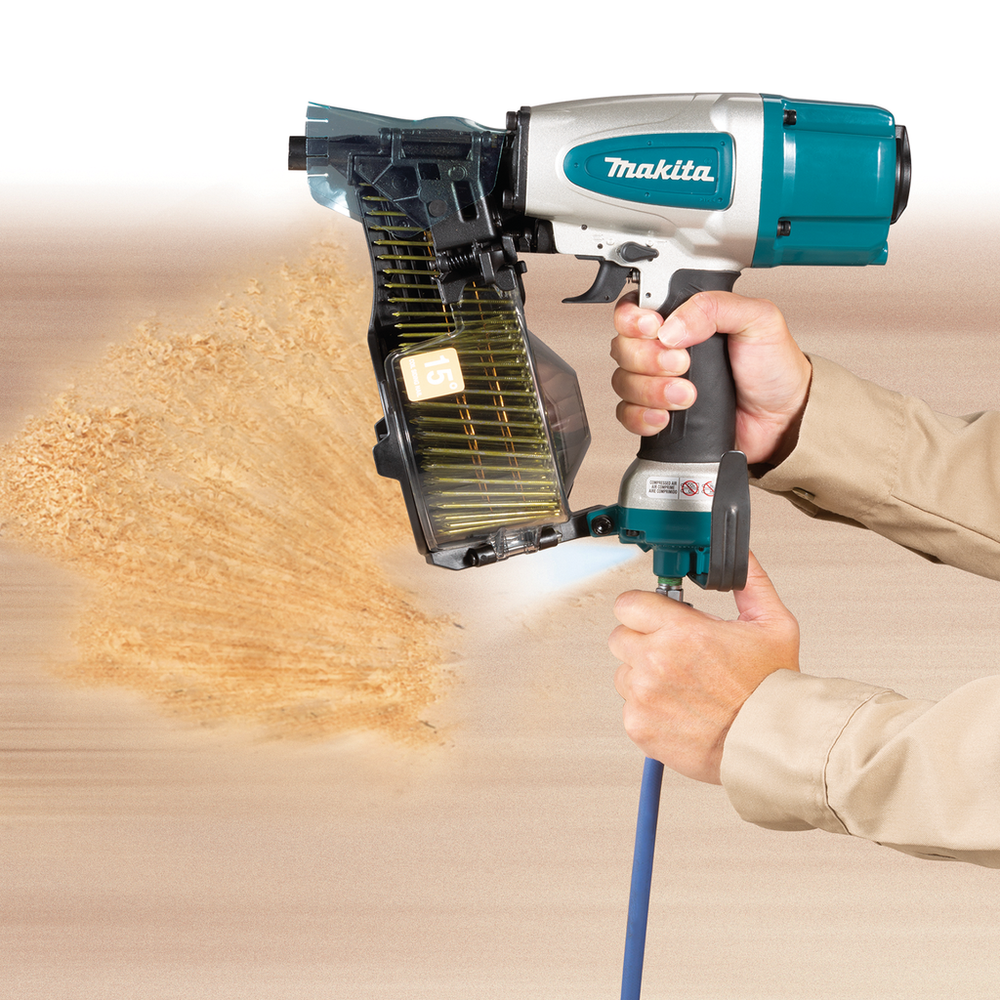

Built-in air duster provides convenient air flow to clear work materials and tools
Smooth nose tip prevents scratching

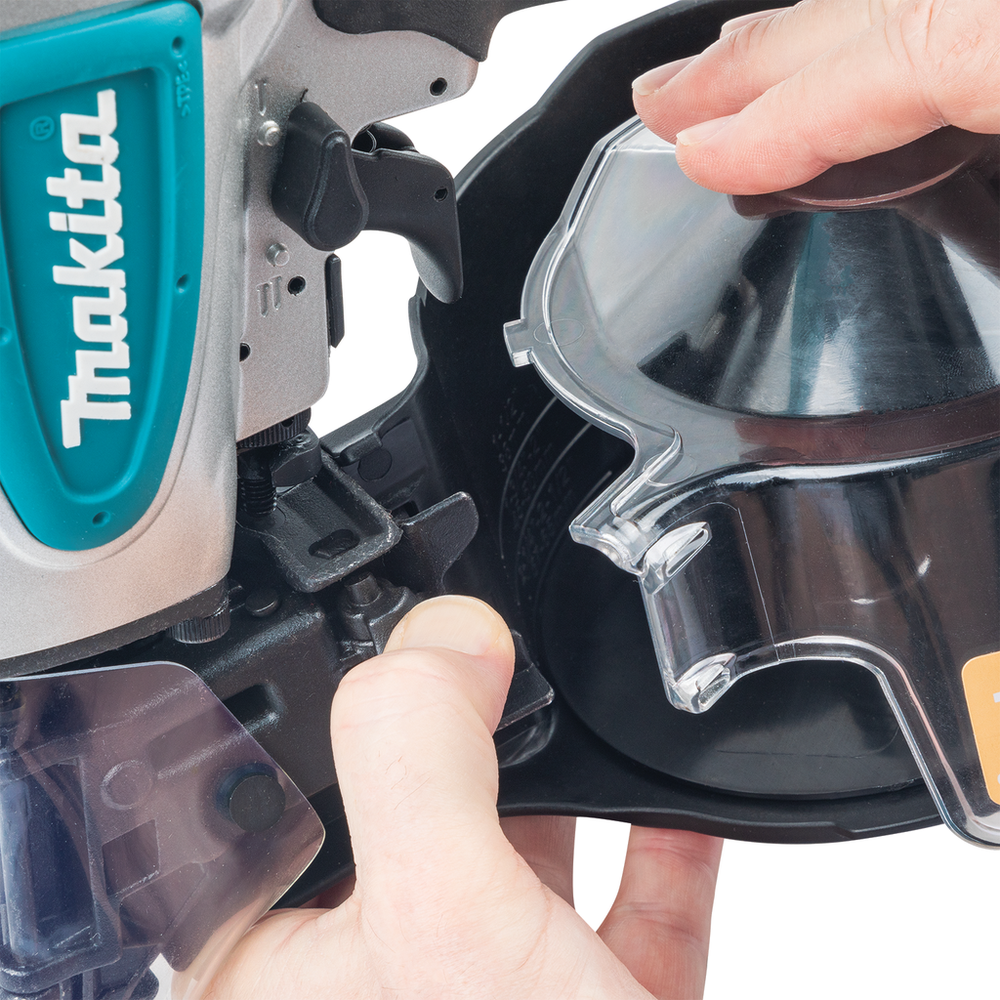

Clear loading canister with nail size adjustment allows user to quickly view when it is time to reload nails
"Tool-less" depth adjustment with 9 detents settings engineered for more precise flush and countersink nailing
Rubber bumpers protect work surface and tool

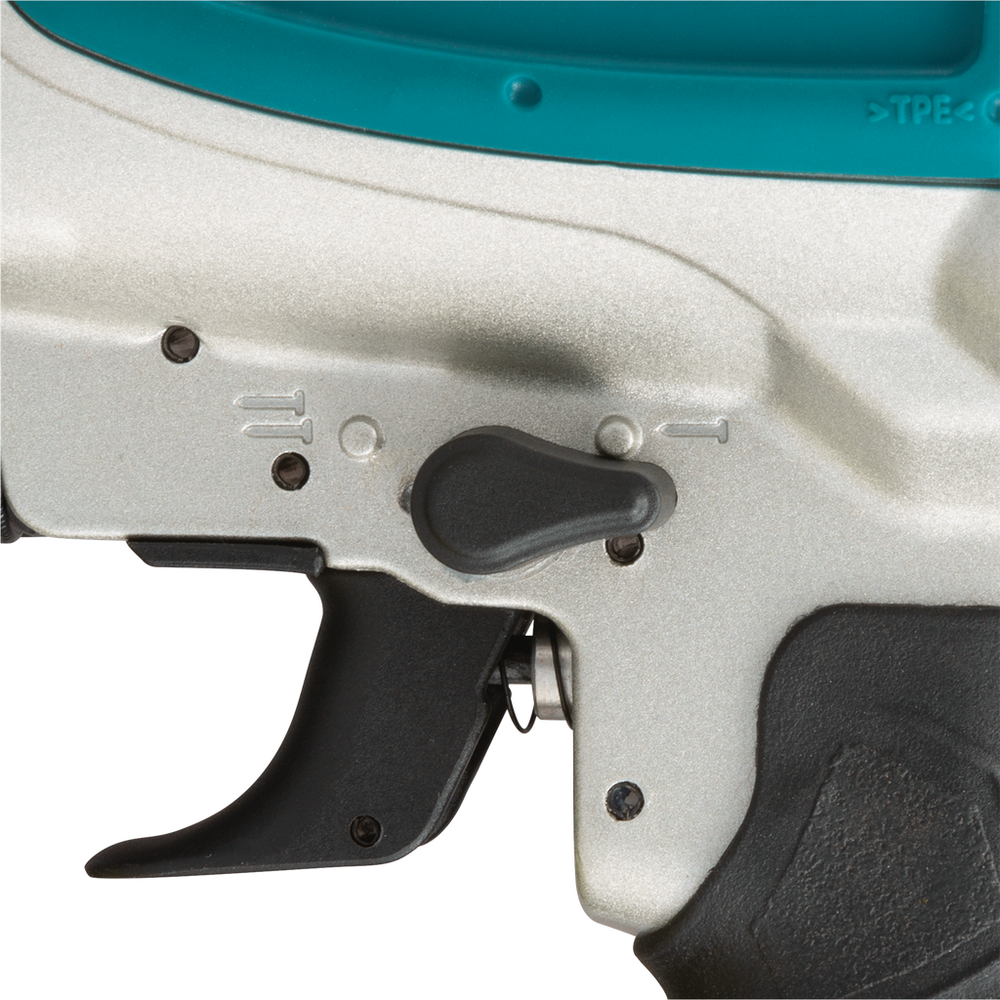

2-mode selector switch; single sequential mode and contact actuation mode
3-year limited warranty
Ergonomic rubberized grip for increased comfort on the job
Reversible hook allows the tool to remain close
Multi-directional exhaust port directs exhaust air away from operator

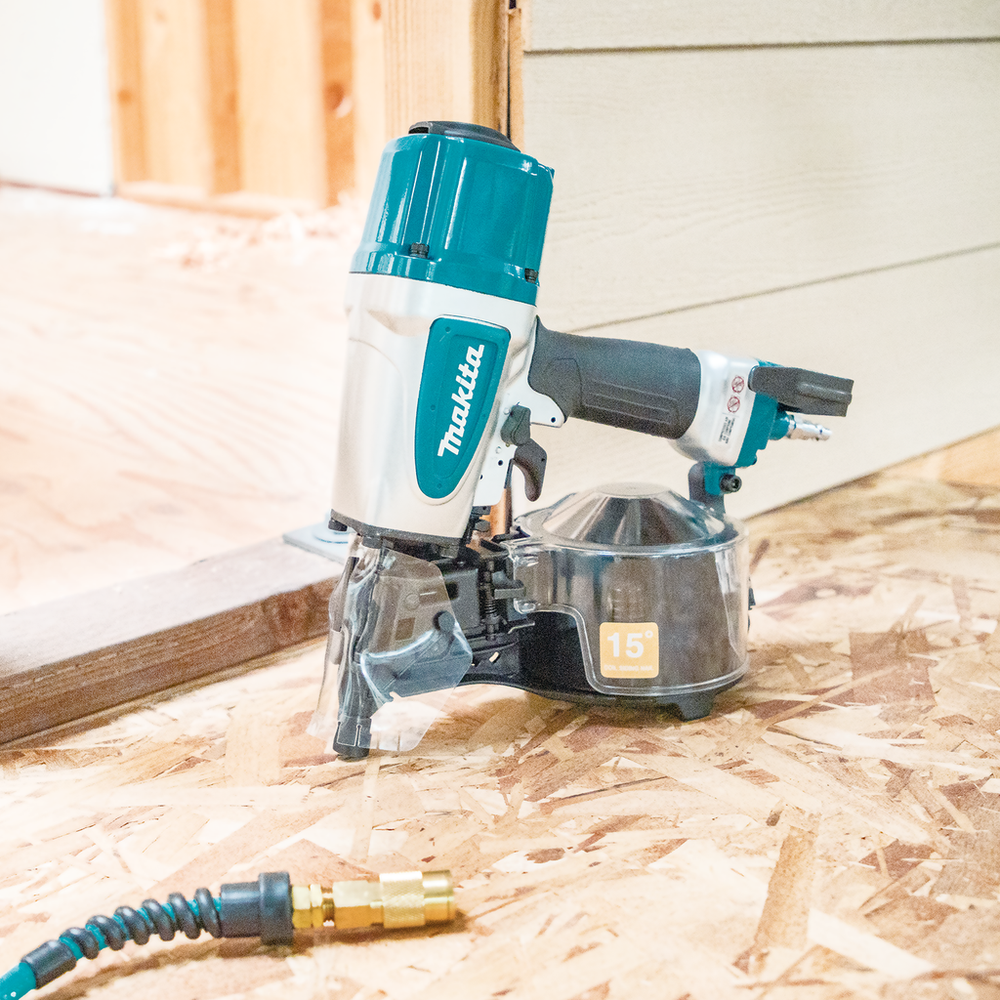

Ideal for installing fiber cement and wood shingle siding

Documents

AN613 NTFE

Parts Breakdown

AN613 NA3 1912

Specifications

Inlet Size	1/4" NPT
Dimensions (LxWxH)	10-3/4" x 5" x 12-1/2"
Tool Hook Included	Yes
Nail Size	1-1/2" – 2-1/2" .090" - .099" shank diameter
Maximum Magazine Capacity	300
Air Fitting Included	Yes
Power Type	Pneumatic
Fastening category	Siding
Industrial Style Fitting Included	1/4" NPT x 1/4"
Operating Air Pressure (Bar)	4.9 - 8.3
Operating Air Pressure	70 - 120 PSI
Air Consumption	3.2 SCFM
Weight	5.1 lbs
