Makita

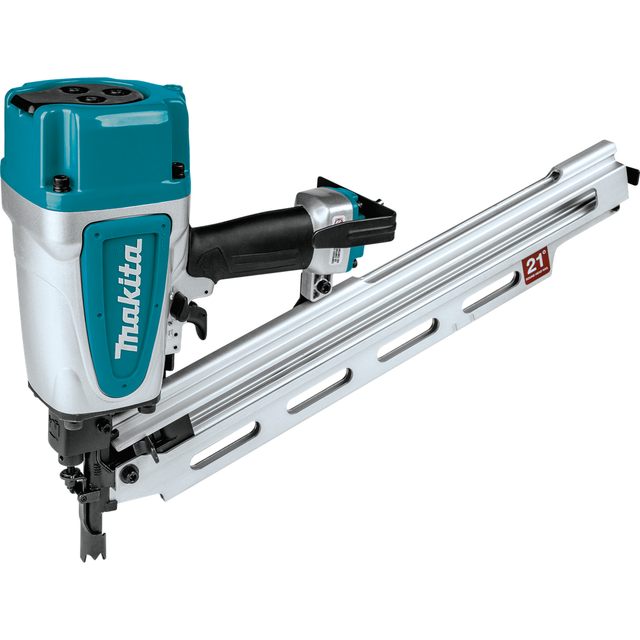

3-1/2" Framing Coil Nailer - AN902

Name: 3-1/2" Framing Coil Nailer - AN902
Brand: Makita
SKU: AN902
Price: 559 USD
Availability: InStock

SKU: AN902

MPN: AN902

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381624510

$559.00 each

Hurry up! Current stock:

Quantity:

Product Description

The Makita 3-1/2" Framing Coil Nailer (AN902) combines power with less weight for increased performance and versatility. The AN902 weighs only 7.7 lbs. but drives 1-3/4" to 3-1/2" coil framing nails. Additional features include a "tool-less" depth adjustment engineered for more precise flush and countersink nailing and a contact mode trigger. The AN902 is ideal for framing, sheathing, fencing, decking and more.

Features

Pronounced spurs grip wood for controlled nailing at an angle
Easy loading canister with nail size adjustment provides maximum versatility
3-year limited warranty
Easy access nose design for clearing jammed nails
Rubber bumpers protect tool housing
Metal exhaust cover plate engineered for increased durability
Magazine holds up to 300 nails for high production applications
Contact mode trigger allows operator to control nailing operations
Includes no-mar tip to help prevent damage to work surface
Minimum recommended air delivery of 6.1 SCFM @ 90PSI
Ideal for framing, sheathing, fencing, decking, pallets, crating and more
Rubberized handle for better fit and added comfort

Manuals

Instruction Manual

Documents

AN902 FE

Breakdown AN902 10 13 2024

Specifications

Dimensions (LxWxH)	12-1/2" x 5" x 14-7/8"
Industrial Style Fitting Included	1/4" NPT x 1/4"
Fastening category	Framing
Power Type	Pneumatic
Minimum Recommended Air Delivery	6.1 SCFM @ 90 PSI
Air Fitting Included	Yes
Operating Air Pressure (Bar)	4.9 - 8.3
Maximum Magazine Capacity	300
Inlet Size	1/4" NPT
Nail Size	1-3/4" - 3-1/2" .099" - .148" shank diameter wire collated
Operating Air Pressure	70 - 120 PSI
Weight	7.7 lbs
