Makita

1-3/4" Coil Roofing Nailer - AN454

Name: 1-3/4" Coil Roofing Nailer - AN454
Brand: Makita
SKU: AN454
Price: 309 USD
Availability: InStock

SKU: AN454

MPN: AN454

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381857109

$309.00 each

Hurry up! Current stock:

Quantity:

Product Description

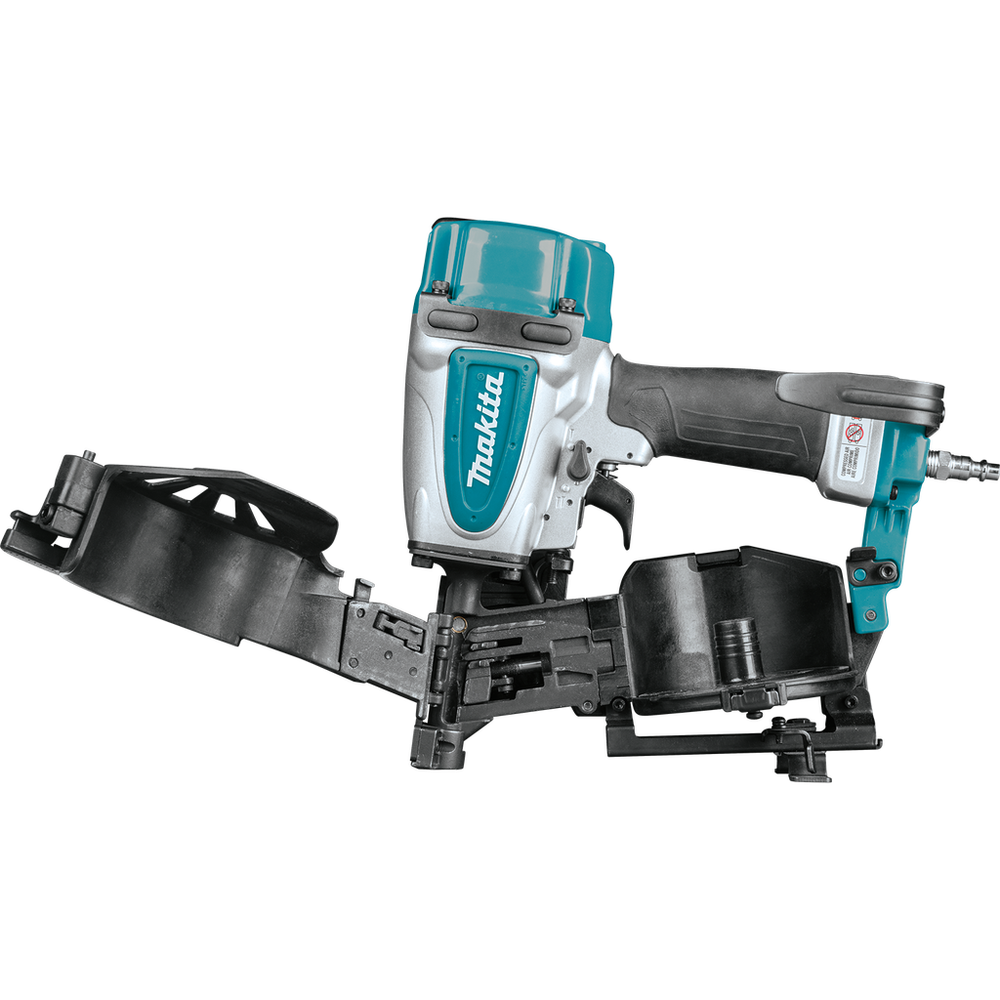

The Makita 1-3/4" Roofing Coil Nailer (model AN454) combines rugged construction and robust performance with less weight (only 5.2 lbs.). The AN454 accepts standard .120 shank diameter coil roofing nails from 3/4" to 1-3/4" nails in length. The AN454 is engineered for longer tool life with durable and lightweight aluminum housing and an easy-loading adjustable canister. Ease-of-use features include a "tool-less" depth adjustment engineered for more precise control and flush nailing. Additional features include large carbide inserts on the nosepiece for long lasting performance. Oversized steel wear plates are engineered to reduce abrasion on the tool.

Features

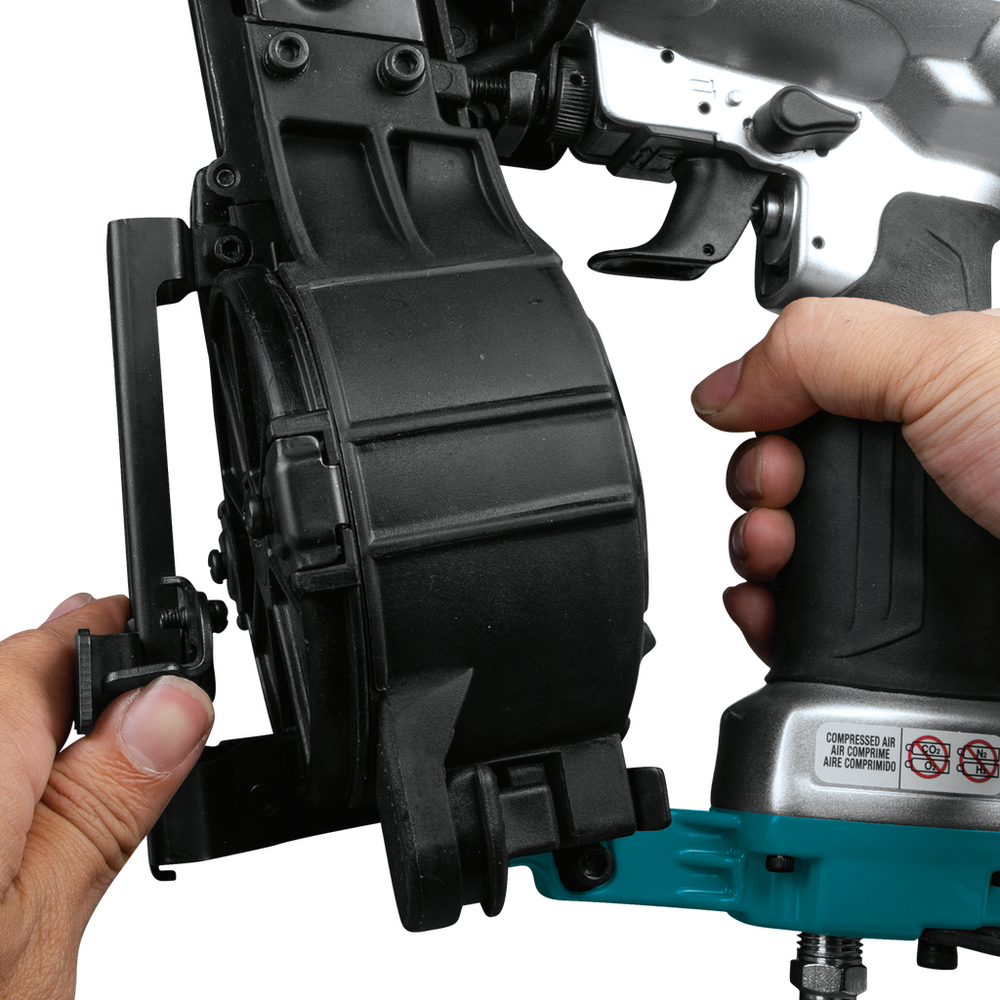

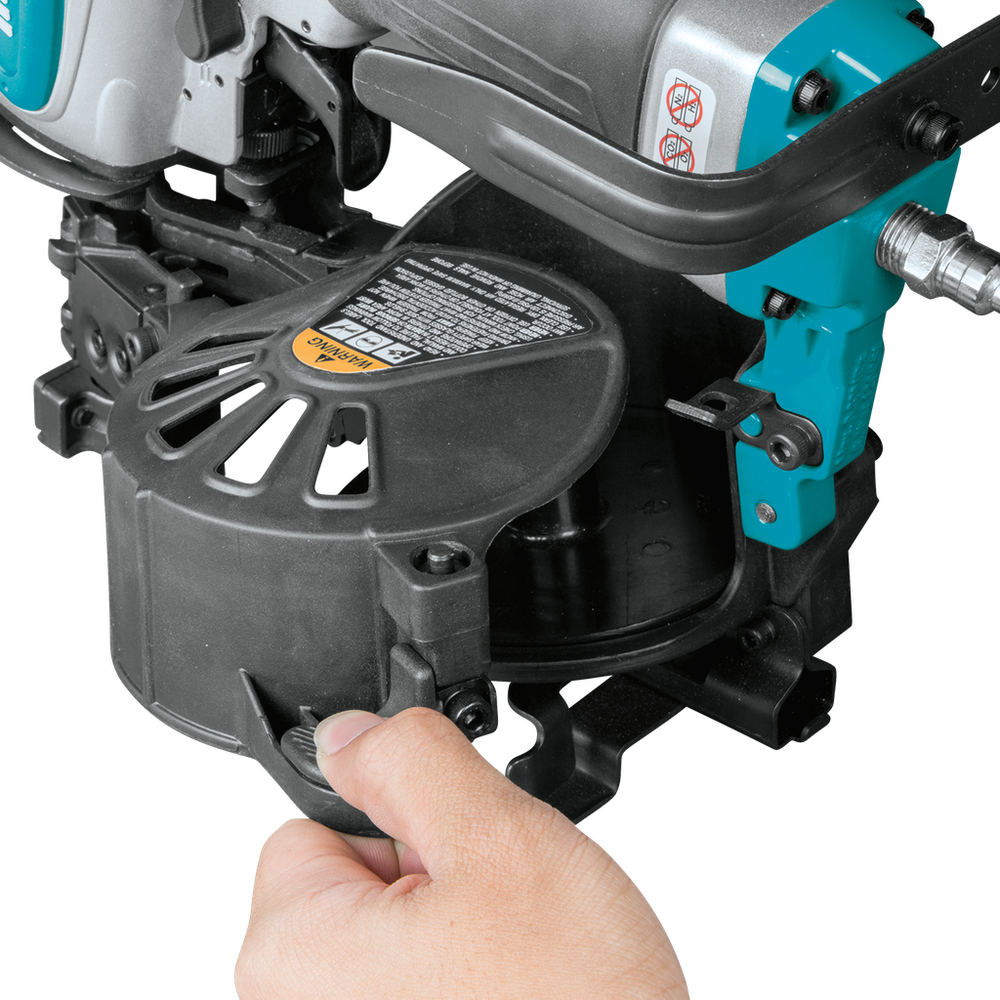

Easy, one-step open, adjustable canister system for faster, more precise nail loading
Aluminum housing for longer tool life
Powerful motor design drives standard .120 shank diameter coil roofing nails from 3/4" to 1-3/4" in length
3-year limited warranty
Faster nail driving speed for maximum performance
Minimum recommended air delivery of 2.2 SCFM @ 90PSI

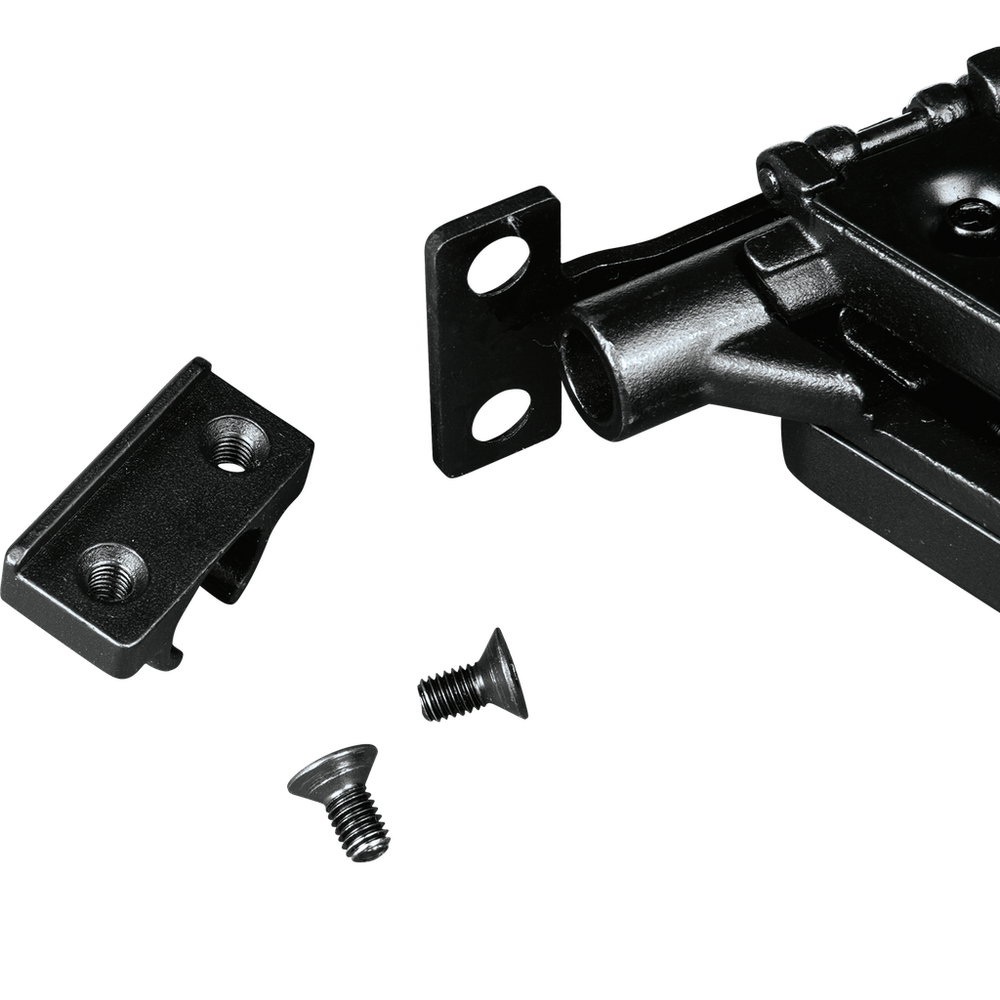

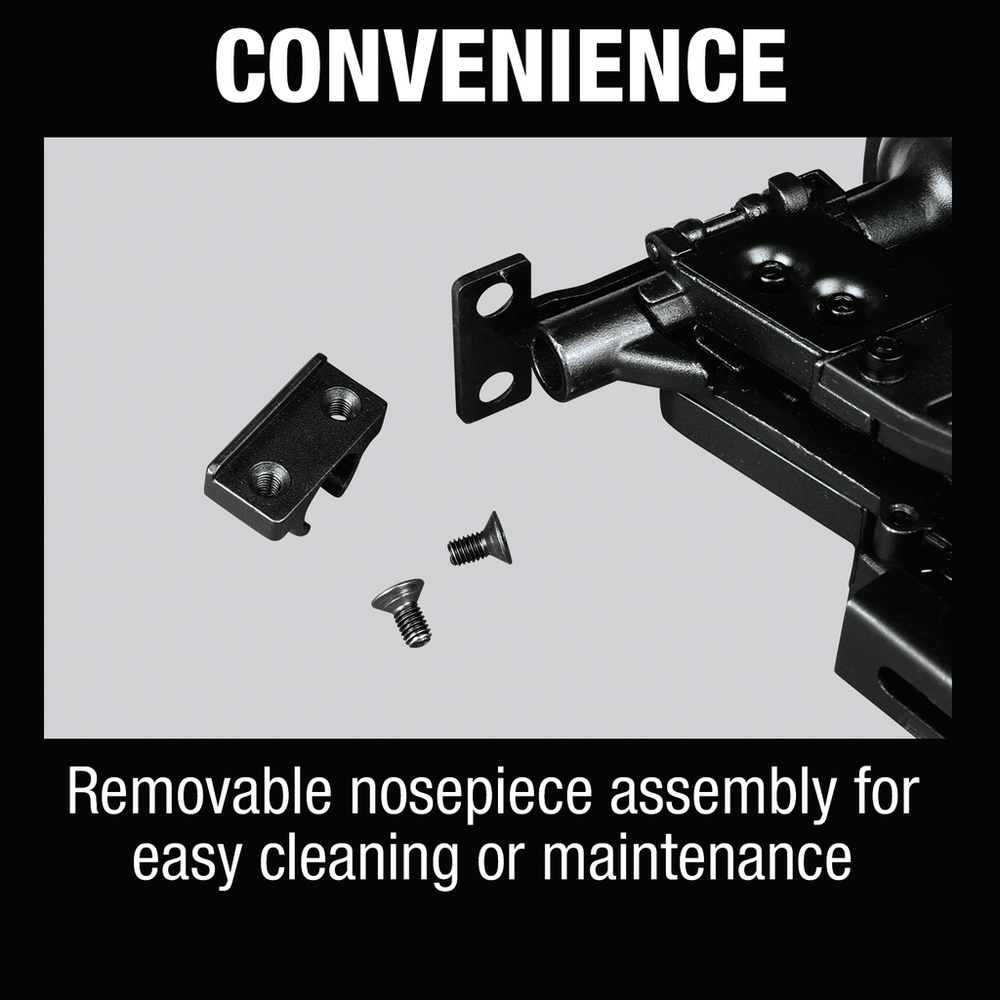

Removable nosepiece assembly for easy cleaning or maintenance
Reversible belt hook allows the tool to remain close
"Tool-less" depth adjustment dial for more precise control in flush nailing shingles
Lightweight design at only 5.2 lbs.
Oversized steel wear plates reduce abrasion on tool
Smooth nose design for easy removal of tar buildup
Ergonomic rubberized grip for increased comfort on the job
Built-in magnet ensures last nail is driven
"Tool-less" shingle guide designed for easy adjustments and consistent shingle placement
Large carbide inserts on nose piece for long lasting performance

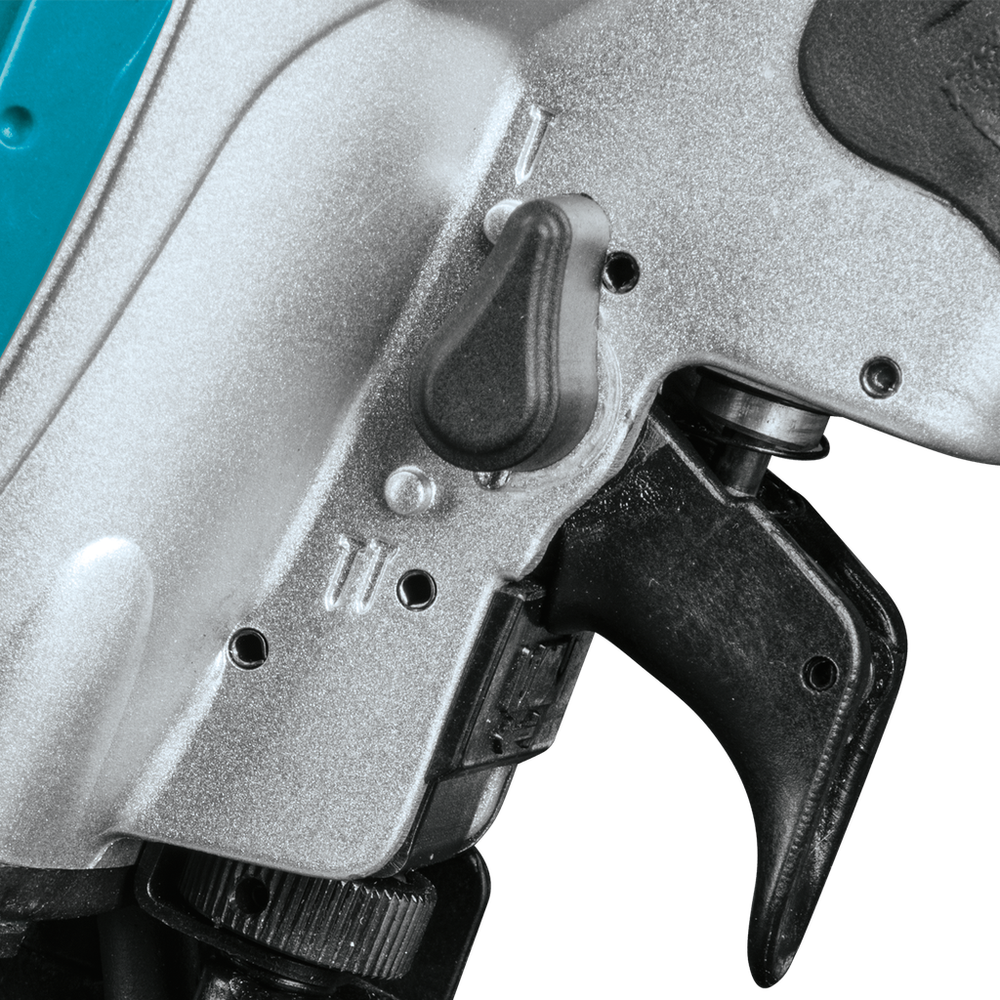

2-mode selector switch for control over nailing operation

Manuals

Instruction Manual

Documents

AN454 NTFE

Parts Breakdown

Specifications

Operating Air Pressure (Bar)	4.9 - 8.3
Industrial Style Fitting Included	1/4" NPT x 1/4"
Fastening category	Roofing
Air Fitting Included	Yes
Dimensions (LxWxH)	10-1/8" x 4-5/8" x 10-5/8"
Nail Size	3/4" - 1-3/4"
Power Type	Pneumatic
Inlet Size	1/4" NPT
Tool Hook Included	Yes
Maximum Magazine Capacity	120
Weight	5.2 lbs
Operating Air Pressure	70 - 120 PSI
Air Consumption	2.2 SCFM
