Makita

21° Full Round Head 3-1/2" Framing Nailer - AN924

Name: 21° Full Round Head 3-1/2" Framing Nailer - AN924
Brand: Makita
SKU: AN924
Price: 299 USD
Availability: InStock

SKU: AN924

MPN: AN924

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381857093

$299.00 each

Hurry up! Current stock:

Quantity:

Product Description

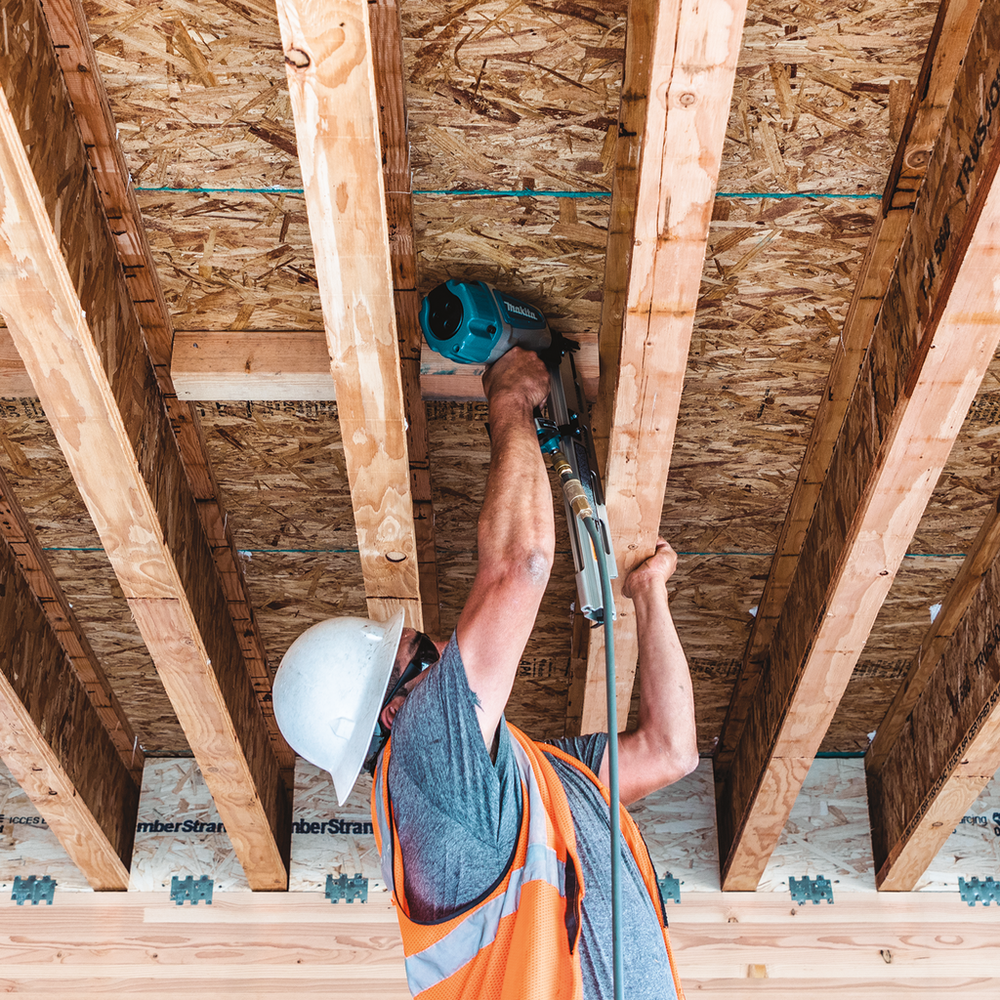

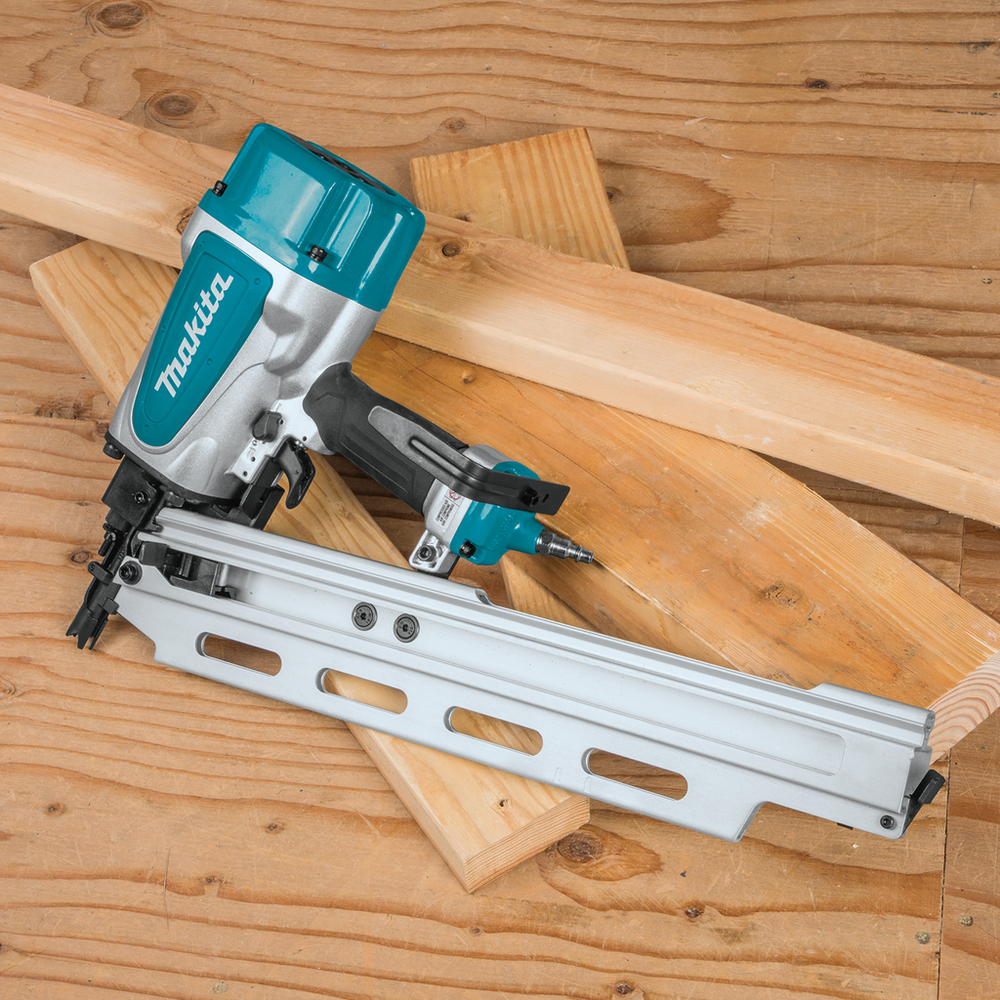

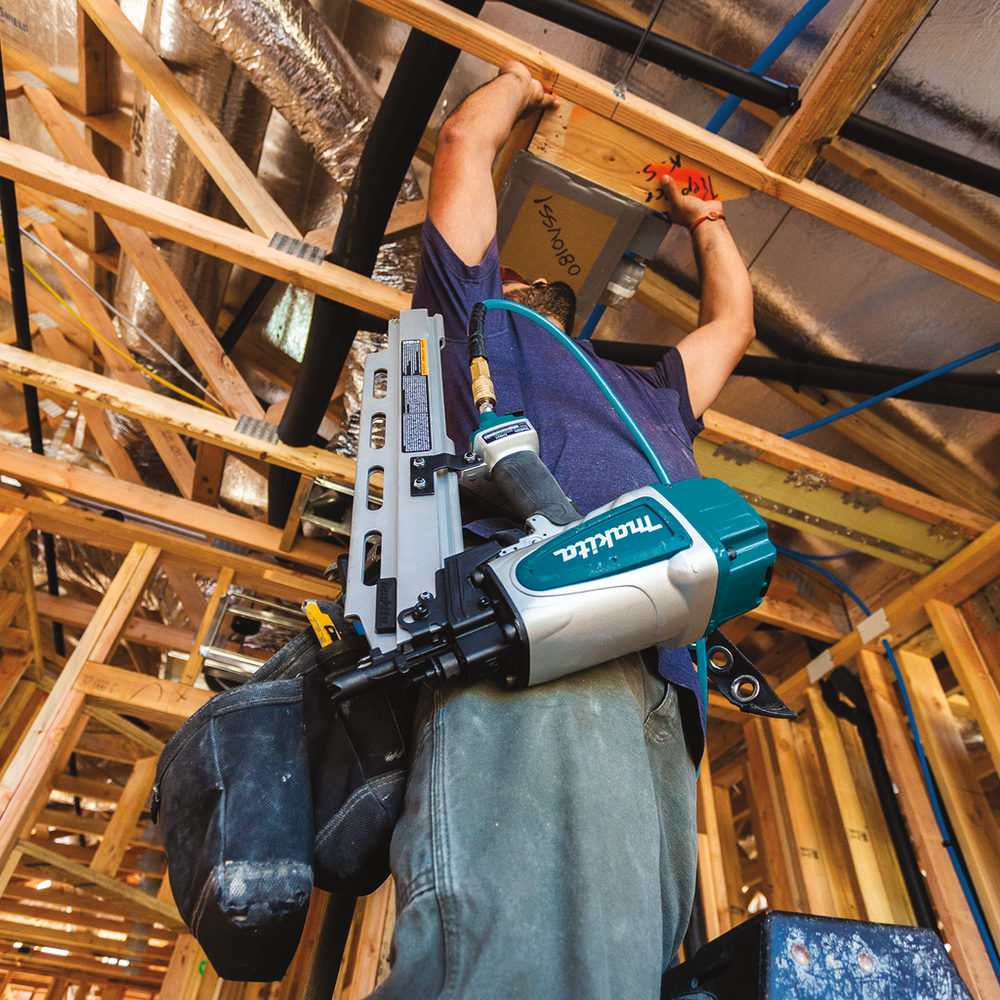

The 21° Full Round Head 3-1/2" Framing Nailer (model AN924) combines durable construction and robust performance with ease-of-use features for wood framing applications. The AN924 is engineered for a range of applications including framing walls, floors and roofs, as well as construction of roof and floor decking, floor and wall sheathing/siding, and sub-flooring. It is ideal for framers, roofers and carpenters. The AN924 drives 21° plastic collated framing nails from 2" to 3 1/2" in length and .113 to .148 in diameter. It has a 2-mode selector switch (bump, sequential) for increased convenience. The AN924 has a lightweight design (only 8.3 lbs.) with durability features that include a heat-treated S7 steel driver blade, a solid aluminum top-loading magazine, and a nail lock-out mechanism that protects the tool and work surface from dry-fires. Added features include tool-less depth adjustment for flush or countersink nailing, added tool hook, and an ergonomic rubberized grip.

Features

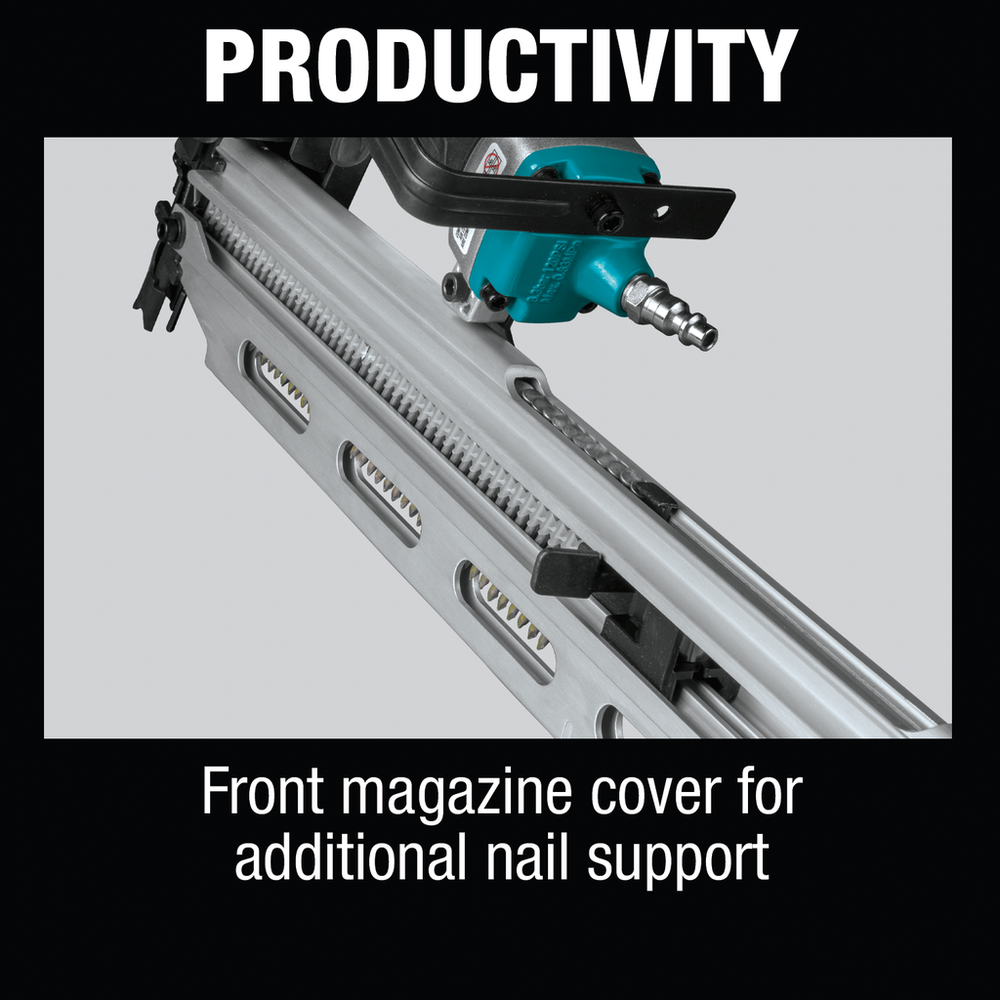

Front magazine cover for additional nail support

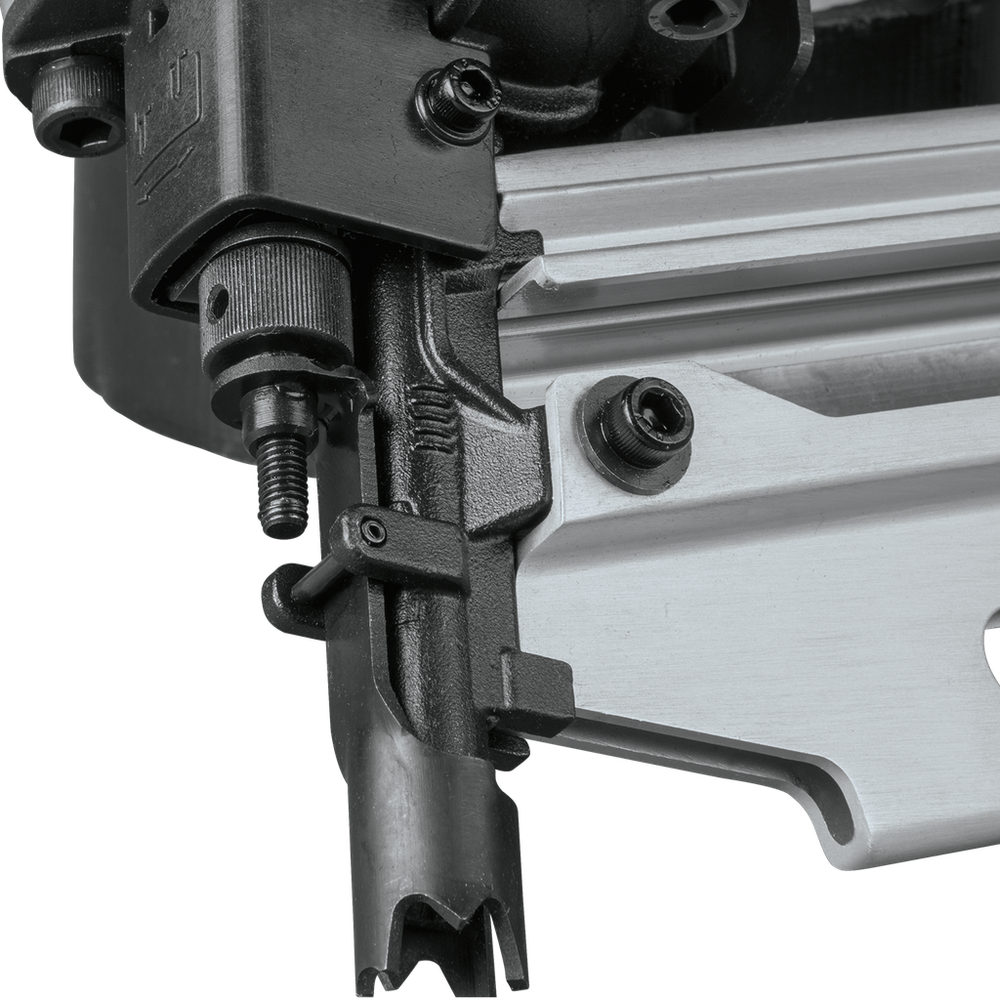

Sharp, pronounced spurs grip wood for controlled nailing at an angle
"Tool-less" depth adjustment engineered for more precise flush and countersink nailing
Large capacity air chamber for increased power to drive nails up to 3-1/2" x .148 in diameter
Heat treated S7 steel driver blade for durability
3-year limited warranty
Lightweight design at only 8.3 lbs.
Minimum recommended air delivery of 4.3 SCFM @ 90PSI
Ergonomic rubberized grip for increased comfort on the job
2-mode selector switch allows operator to select contact or sequential nailing options

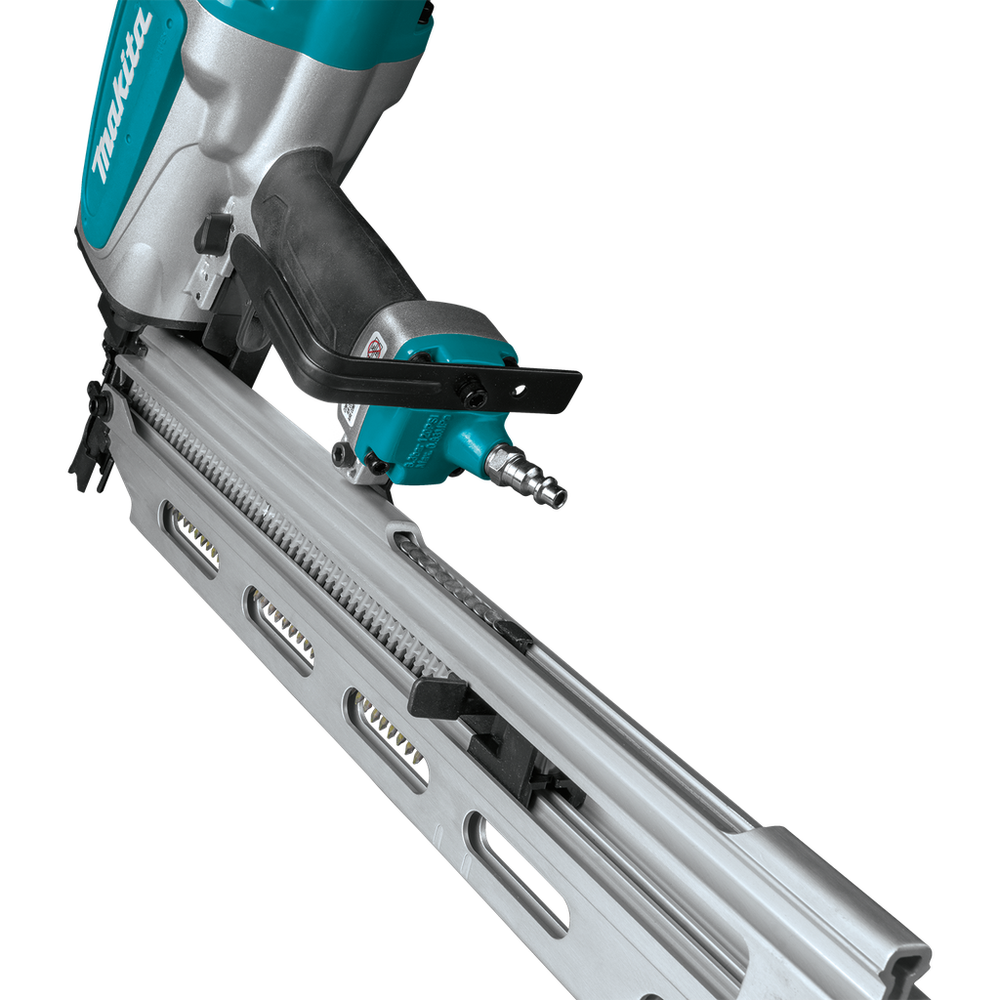

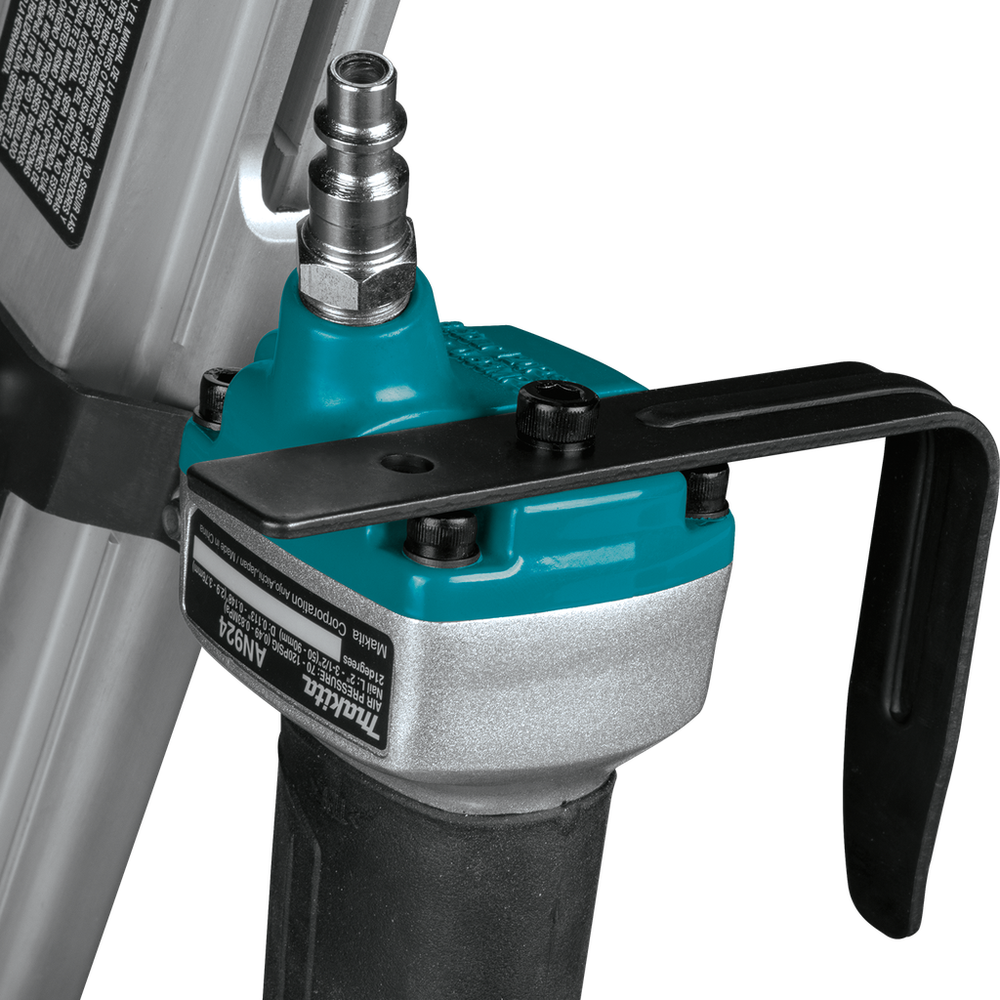

Reversible hook allows tool to remain close by
Faster nail driving speed for maximum performance
Nail lock-out mechanism protects tool and work surface from dry-fires

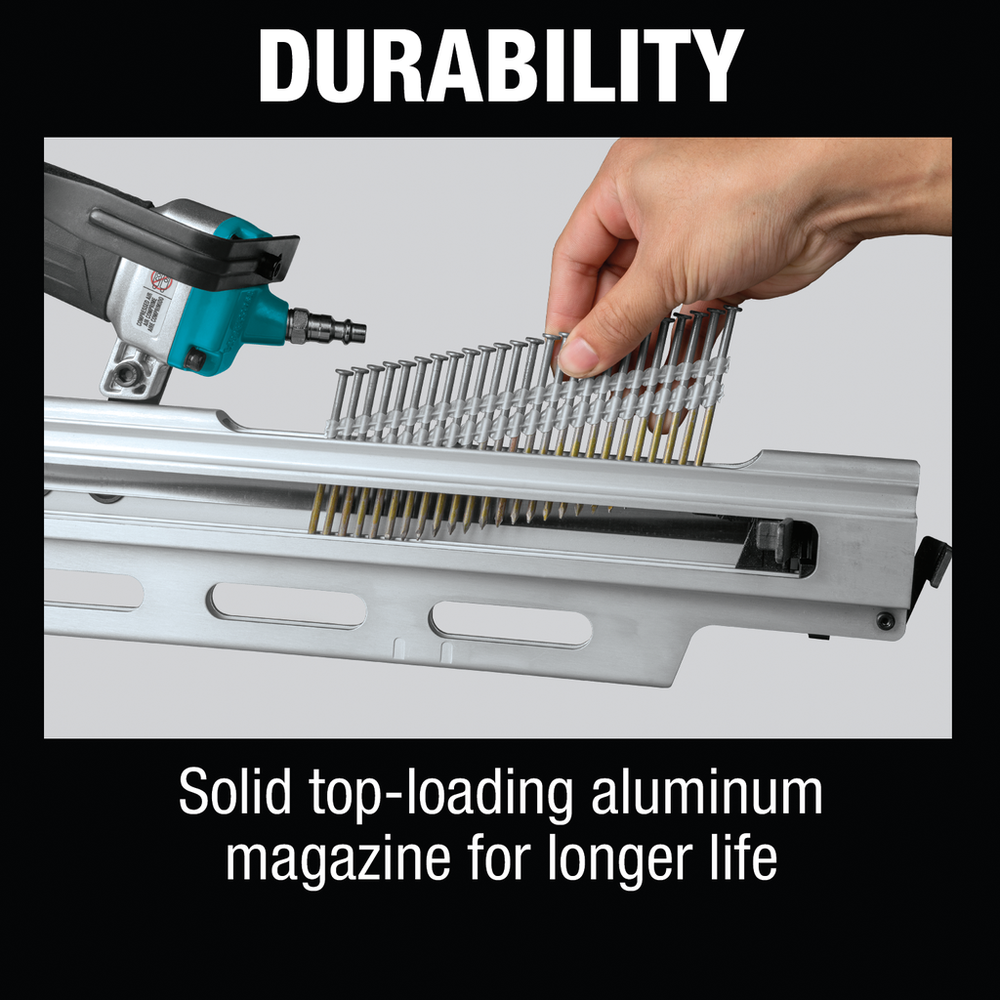

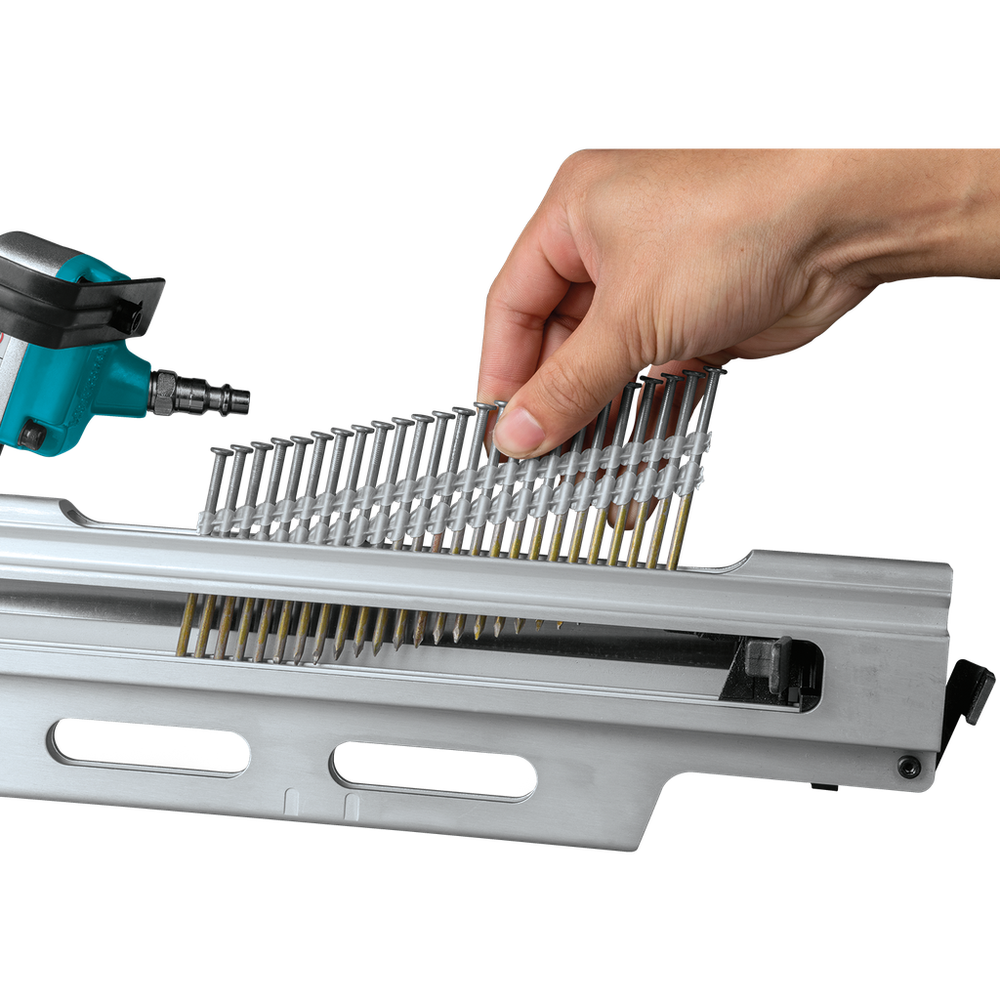

Solid top-loading aluminum magazine for longer life
Rubber bumpers protect the tool and surface from damage

Documents

AN924 NTFE

Parts Breakdown

Manuals

Instruction Manual

Specifications

Industrial Style Fitting Included	1/4" NPT x 1/4"
Power Type	Pneumatic
Dimensions (LxWxH)	22" x 4-5/8" x 13-3/4"
Maximum Magazine Capacity	73
Fastening category	Framing
Tool Hook Included	Yes
Operating Air Pressure (Bar)	4.9 - 8.3
Air Fitting Included	Yes
Inlet Size	1/4" NPT
Nail Size	2"-3-1/2" .113"-.148" shank diameter plastic collated
Weight	8.3 lbs
Operating Air Pressure	70 - 120 PSI
Air Consumption	4.3 SCFM
