Makita

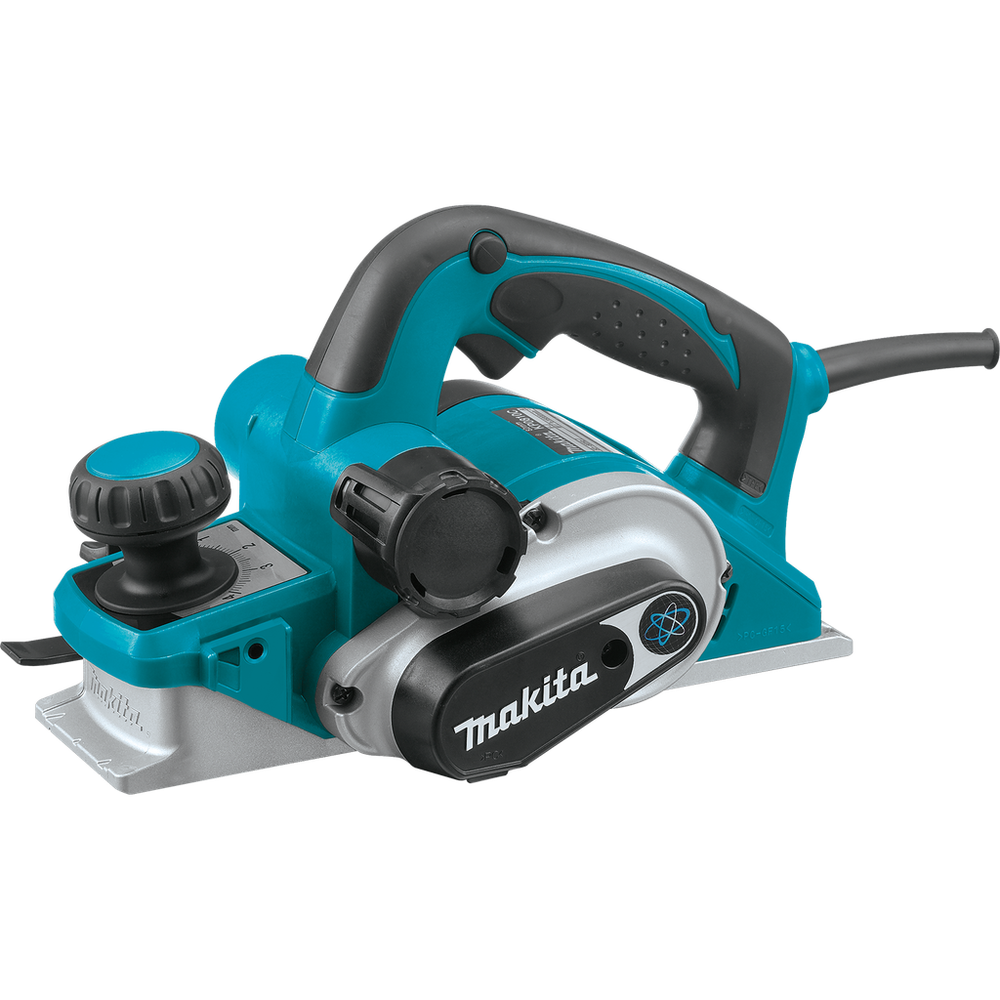

3-1/4" Planer - KP0810

Name: 3-1/4" Planer - KP0810
Brand: Makita
SKU: KP0810
Price: 299 USD
Availability: InStock

SKU: KP0810

MPN: KP0810

Stock Item: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381079501

$299.00 each

Hurry up! Current stock:

Quantity:

Product Description

The Makita 3-1/4-Inch Planer, model KP0810, delivers power, cutting capacity and ease of use. It is ideal for professional construction framing, window and door installation, and fine woodworking. 7.5 AMP Power The KP0810 features a 7.5 AMP motor that delivers more output power, with a two-blade cutter head and 16,000 RPM for increased stock removal. The KP0810 is equipped with double edge carbide blades for added performance, and can plane up to 3-1/4 inch wide and 5/32-inch deep in a single pass. The rigid die-cast aluminum housing with all ball bearing construction is engineered for long tool life and supports the planer drum for increased durability. Ease-of-Use Features The KP0810 weighs only 7.3 pounds for a high power-to-weight ratio, with an ergonomically-centered balance and rubberized front and rear handles for more comfortable operation. The spring loaded stand elevates the base to protect the blades and workpiece. The chip ejection can be directed to either side of the tool. The depth adjust knob features an easy-to-read scale with click stops in 0.1 millimeter increments for precision planning, and the front base features three chamfering groove options: approximately 1.4 millimeter, 3 millimeter and 4 millimeter. Additional ease-of-use features include a conveniently-located lock-on button for continuous operation. Engineered for Framing and Woodworking The KP0810 is engineered for professional construction framing, window and door installation, and fine woodworking.

Features

Two-blade cutter head with 16,000 RPM delivers smooth finish and fast stock removal
Planes up to 3-1/4" wide and 5/32" deep in a single pass

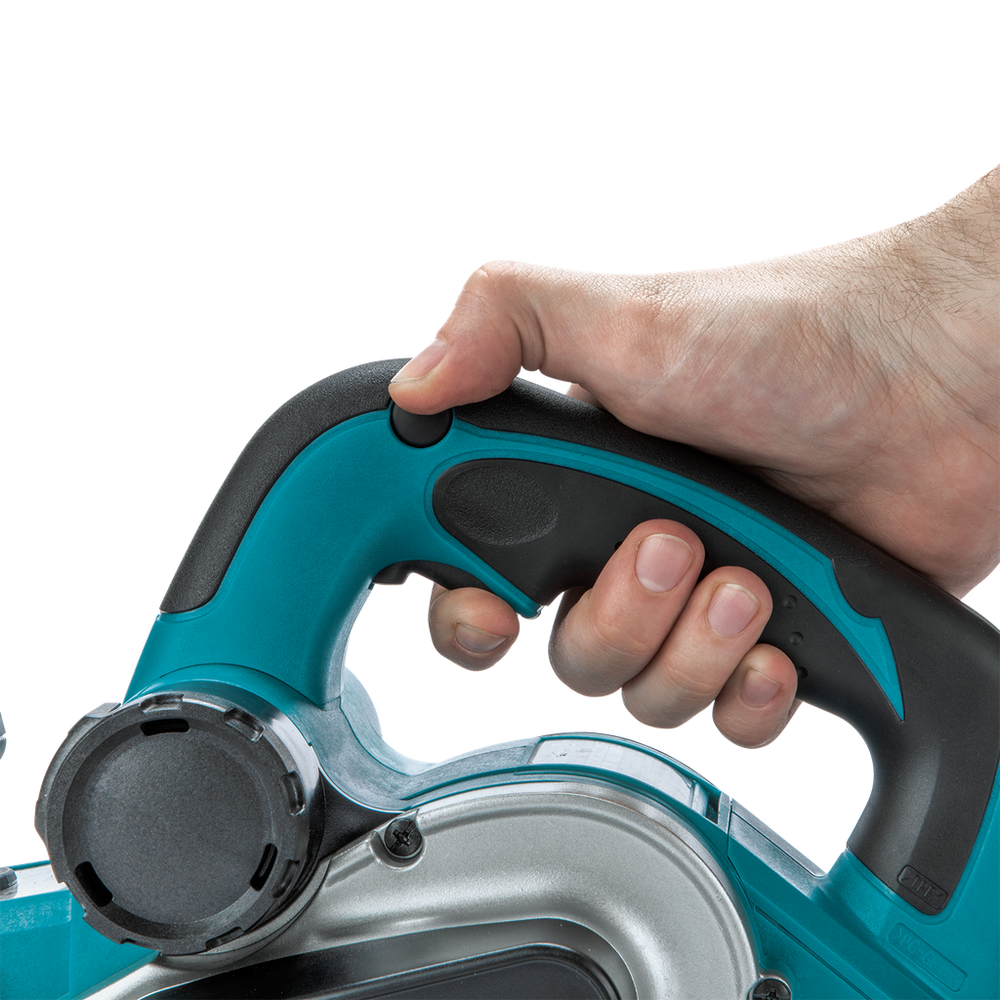

Ergonomically designed rubberized grip and depth adjustment knob for comfort and control

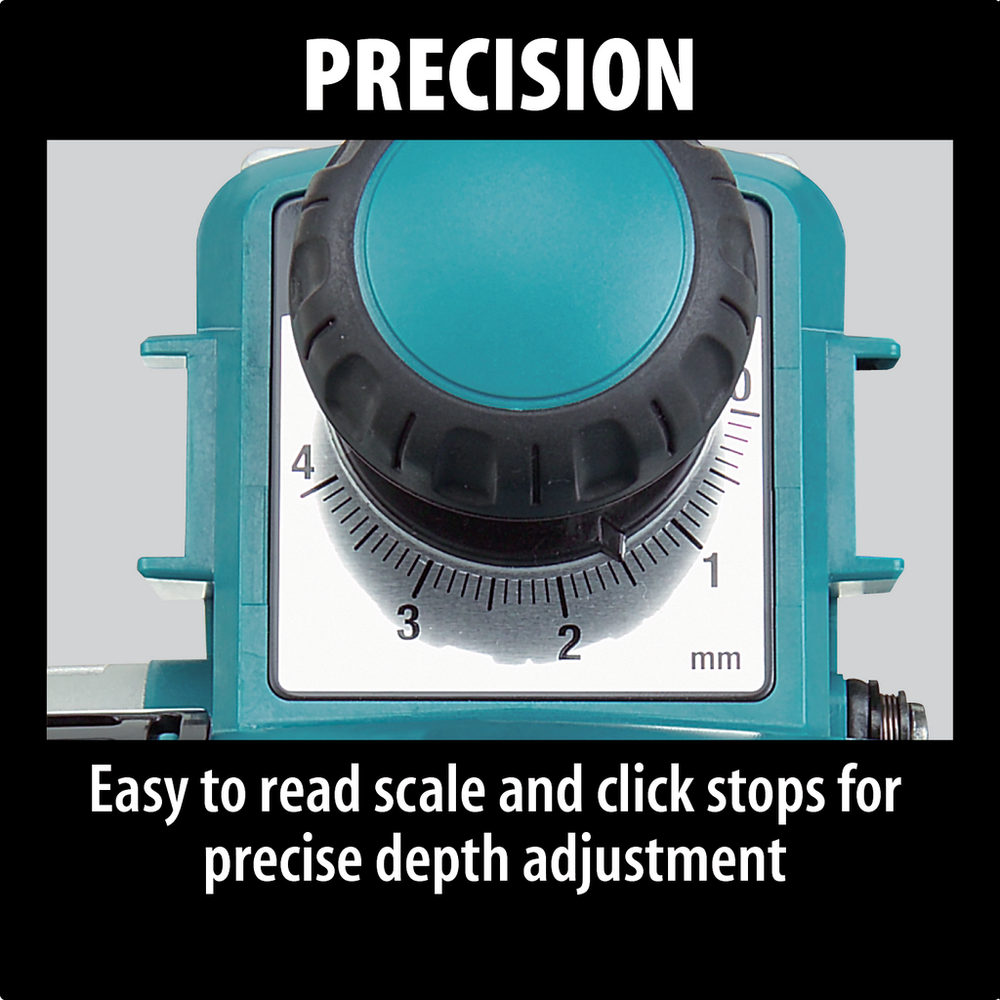

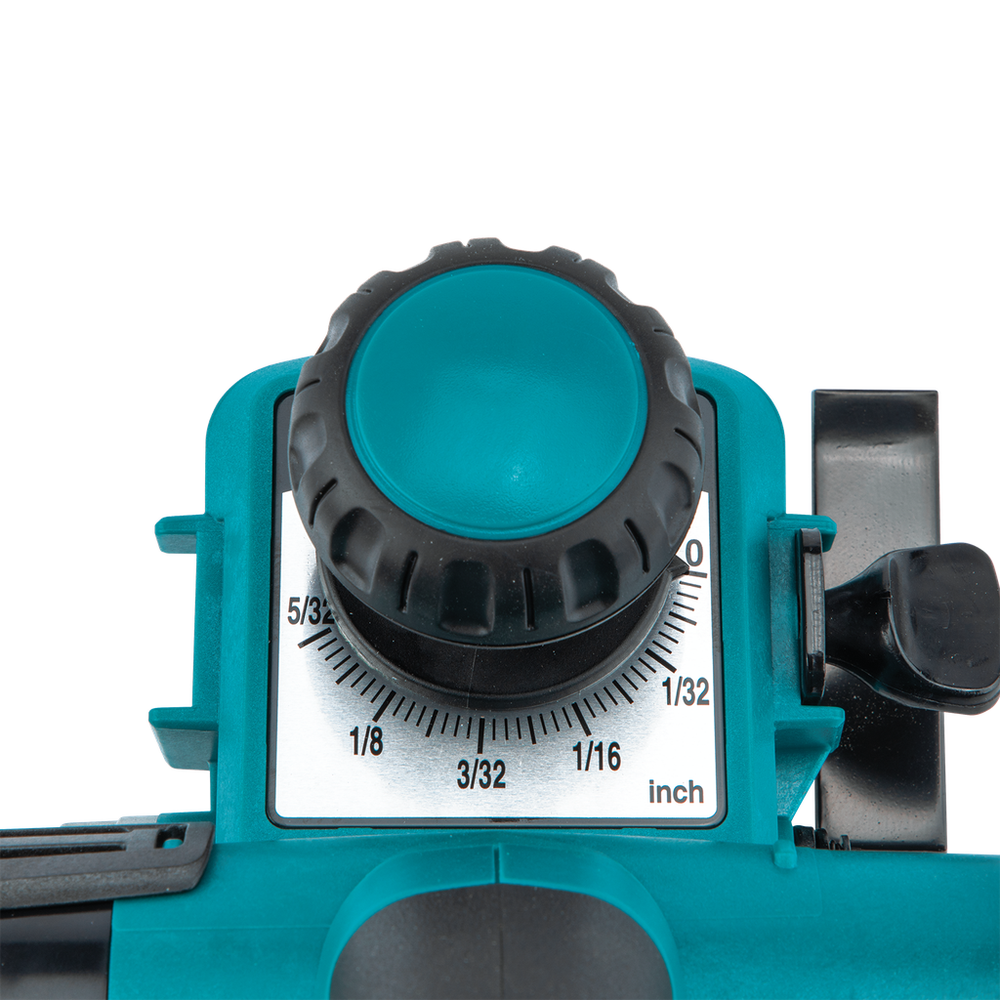

Depth adjust knob features an easy-to-read scale with click stops in 0.1mm increments for precise depth adjustment
Spring-loaded stand elevates the base to protect the blades and workpiece
Rigid die-cast aluminum housing supports planer drum for increased durability
Conveniently located lock-on/off button can be operated from either side of handle
Powerful with less weight (7.5 AMP motor; 7.3 lbs.)

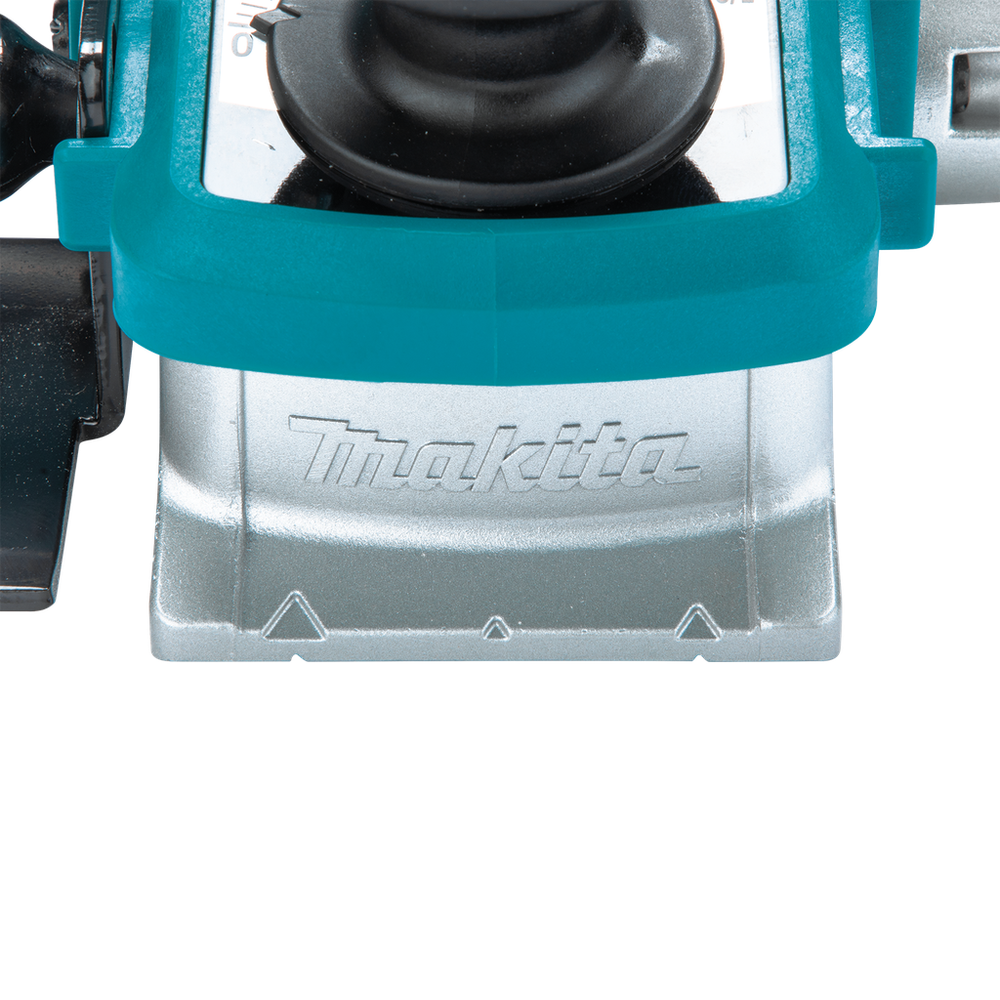

Front base features 3 chamfering groove options: approximately 1.4 mm, 3 mm and 4 mm
Chip ejection can be directed to either side of the tool for convenience

Manuals

Instruction Manual

Documents

Parts Breakdown

KP0810 FE

Specifications

Max. no load speed	16,000 RPM
Power Type	Corded
Planing Width	3-1/4"
Planing Depth	5/32"
Type (Planers)	Handheld
No Load Speed	16,000 RPM
AMPS	7.5
Length	11-3/8 in
Weight	7.3 lbs
