Makita

4-3/8" Curved Base Planer - 1002BA

Name: 4-3/8" Curved Base Planer - 1002BA
Brand: Makita
SKU: 1002BA
Price: 679 USD
Availability: InStock

SKU: 1002BA

MPN: 1002BA

Lead Time: Typical lead time for Makita products is 1-2 weeks.

UPC: 088381007511

$679.00 each

Hurry up! Current stock:

Quantity:

Product Description

The Makita 1002BA Curved Base Planer is used for creating arches and arcs in timbers and working on scarfs in logs. With a simple modification to the blades, the tool is frequently used to create the hand-hewn look in timbers and logs. The 1002BA has a large two-handed design and a large front grip for improved comfort and fine depth adjustment. Additinoal features include the large chip ejection chute, and a lock-on button for continuous use. The adjustable bevel radius adjust up to 11-13/16 in., and the bevel base is factory adjusted for notching out logs at a 12-5/8 in. radius.

Features

Lock-on button for continuous operation
Powerful 9.6 AMP motor with 15,000 RPM for improved performance
Ideal for planning curved lumber and other radius materials

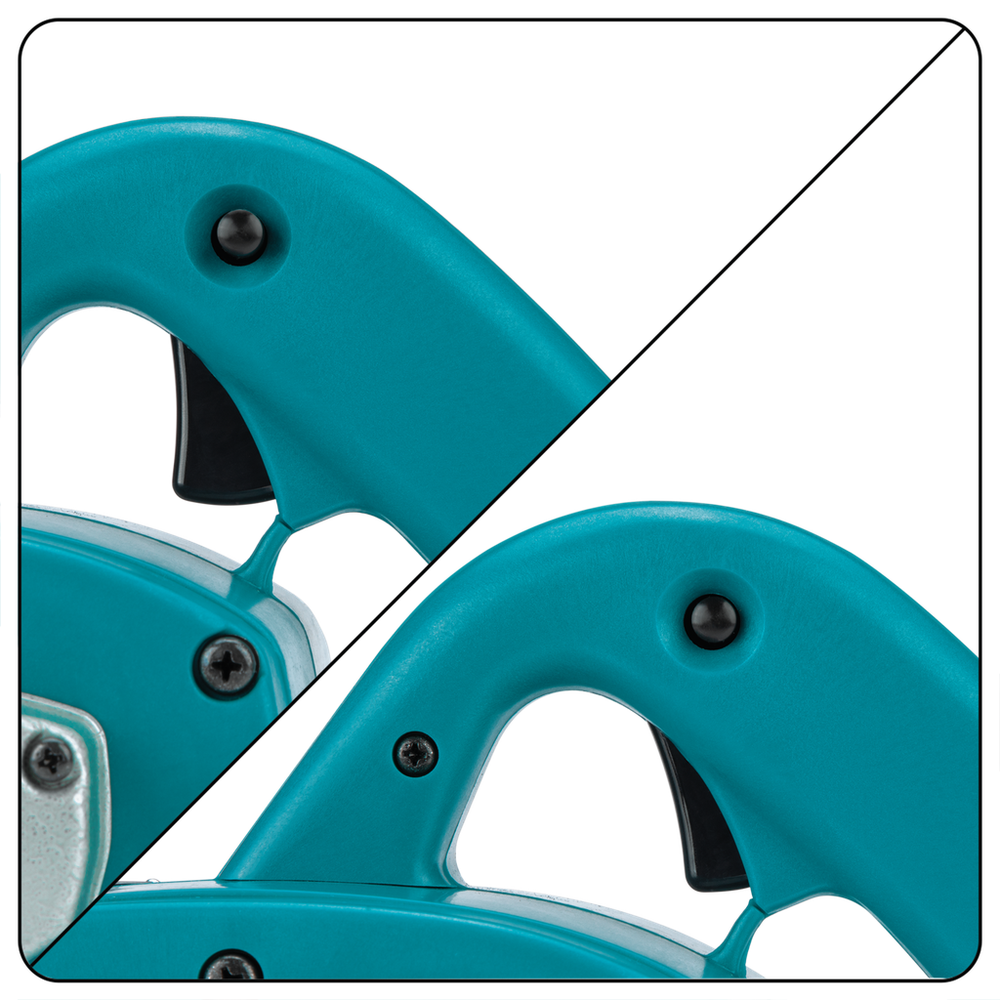

Conveniently located front and rear grips for operator control
Precision machined base for notching out logs at a 12-5/8" curved radius
Smoothes and notches out logs for a perfect fit

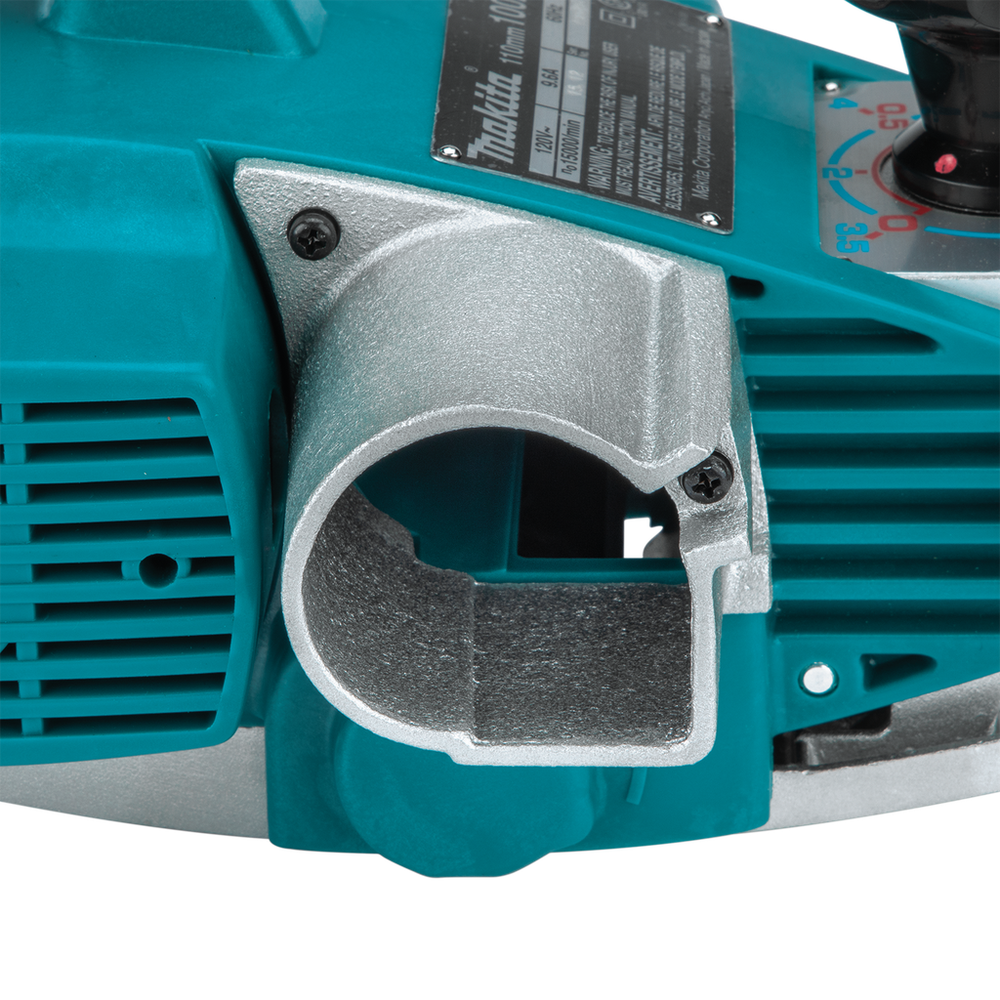

Large ejection chute for high rate of chip discharge
Large conveniently located depth settings knob for easy adjustments
Planes 4-3/8" width and 3/16" deep in a single pass
Adjustable bevel radius to 11-13/16"

Documents

Parts Breakdown

Manuals

Instruction Manual

Specifications

Planing Width	4-3/8"
No Load Speed	15,000 RPM
Power Type	Corded
Planing Depth	3/16"
Type (Planers)	Handheld
Max. no load speed	15,000 RPM
AMPS	9.6
Length	13-11/32 in
Weight	11.4 lbs
