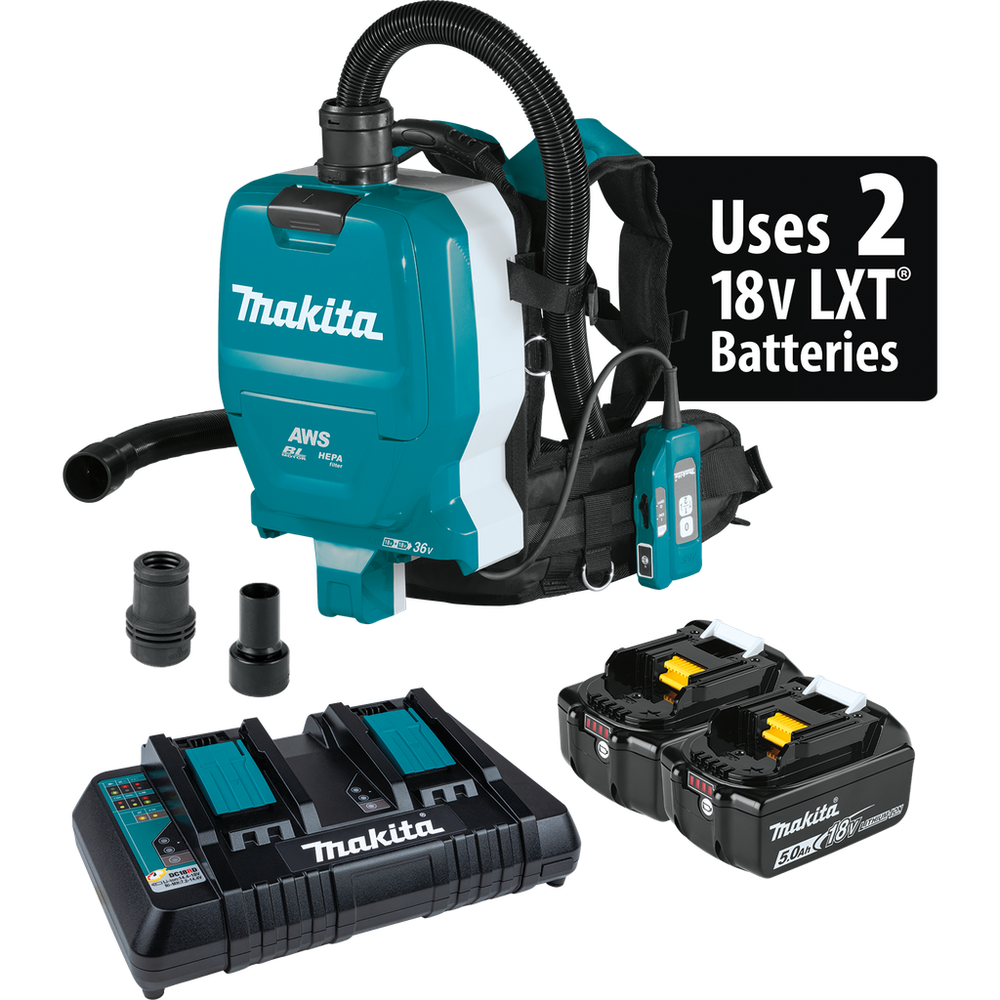

The Makita® 36V (18V X2) LXT® Brushless 1/2 Gallon HEPA Filter Backpack Dry Dust Extractor Kit, AWS® Capable is a powerful and portable clean-up solution that eliminates extension cords that trail corded backpack vacuums. The XCV10PTX is ideal for cleaning crews. It's also a powerful and portable dust extraction solution for contractors for construction applications when used as part of a dust extraction system with the included tool connecting adapters. The XCV10PTX includes the 3 tool adapters for hose connection to most Makita® Dust Extraction Attachments (sold separately). The XCV10PTX is powered by two 18V lithium-ion batteries for 36V power and performance, without leaving the 18V LXT® battery platform. The efficient BL™ Brushless Motor generates 64 CFM of suction and 44” of static water lift for fast clean-ups and improved dust extraction, with no cord to pull along or get in the way. The XCV10PTX weighs only 10 lbs. (with empty dust bag and two 18V 5.0Ah batteries) and has padded shoulder straps and waist belt with multiple adjustments for a comfortable fit. Cordless and compact, the push button power selection controller attaches to the waist belt of the harness for convenient operation, and the 39” flexible hose has a telescoping extension wand with 20” – 34” of additional reach. The efficient HEPA filter combined with the filter bag captures large, small and micro dust particulates, and the half-gallon dust collection container is easily removed for dust disposal. When using two 18V 5.0Ah batteries, users will get up to 62 minutes of continuous operation on low setting and 33 minutes on the high setting. It’s part of Makita’s expanding 18V LXT® system, the world’s largest cordless tool system powered by 18V lithium-ion batteries. Makita® 18V Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita® 18V LXT® and Compact Lithium-Ion Batteries with the star symbol on the battery indicating Star Protection inside.
Features
- Flexible Hose, 1" x 59" (152992-0)
- Dual Port Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging
- Only use genuine Makita batteries and chargers
- 36V (18V X2) LXT® Brushless 1/2 Gal. HEPA Filter Backpack Dust Extractor, AWS® Capable (XCV10ZX)
- The brushless motor eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer life

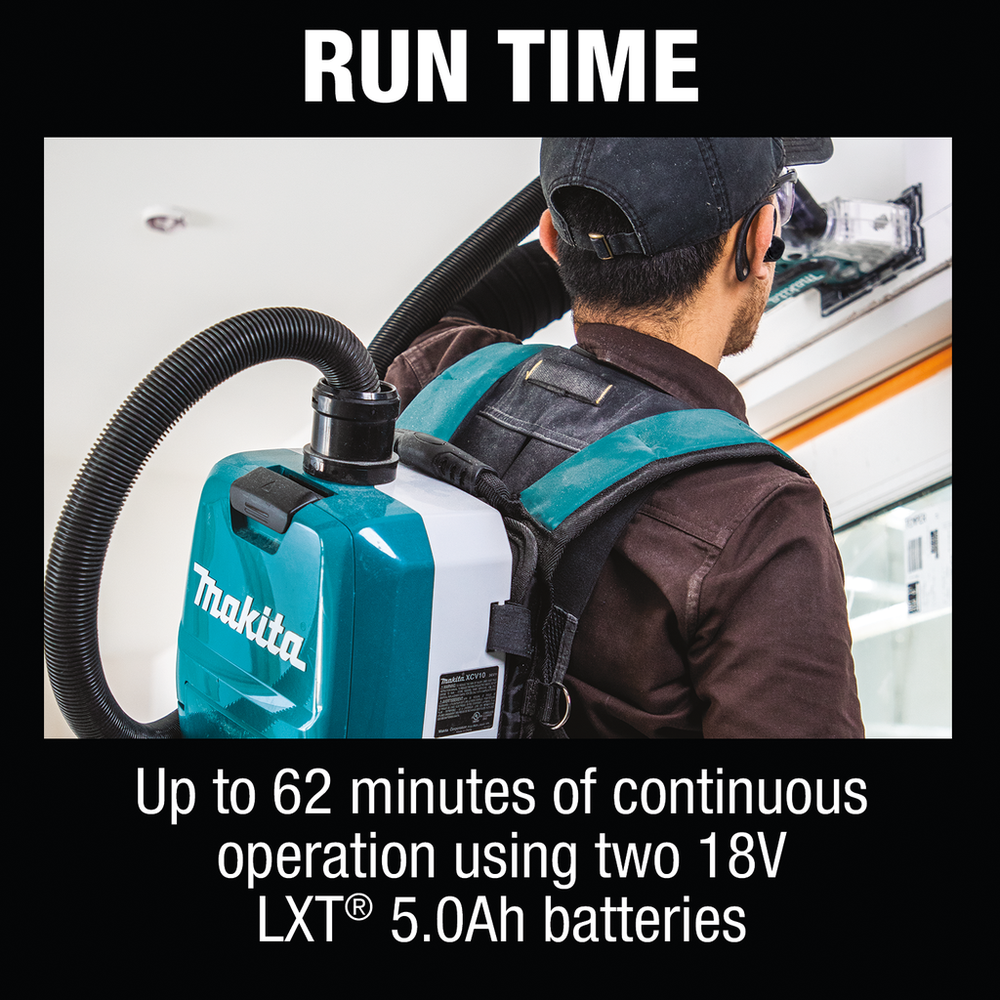

- RUN TIME - Up to 62 minutes of continuous operation using two 18V LXT® 5.0Ah batteries
- Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger
- Auto-start Wireless System (AWS®) utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor
- Compact and lightweight design; weighs only 10 lbs. with batteries
- Filter Dust Bag

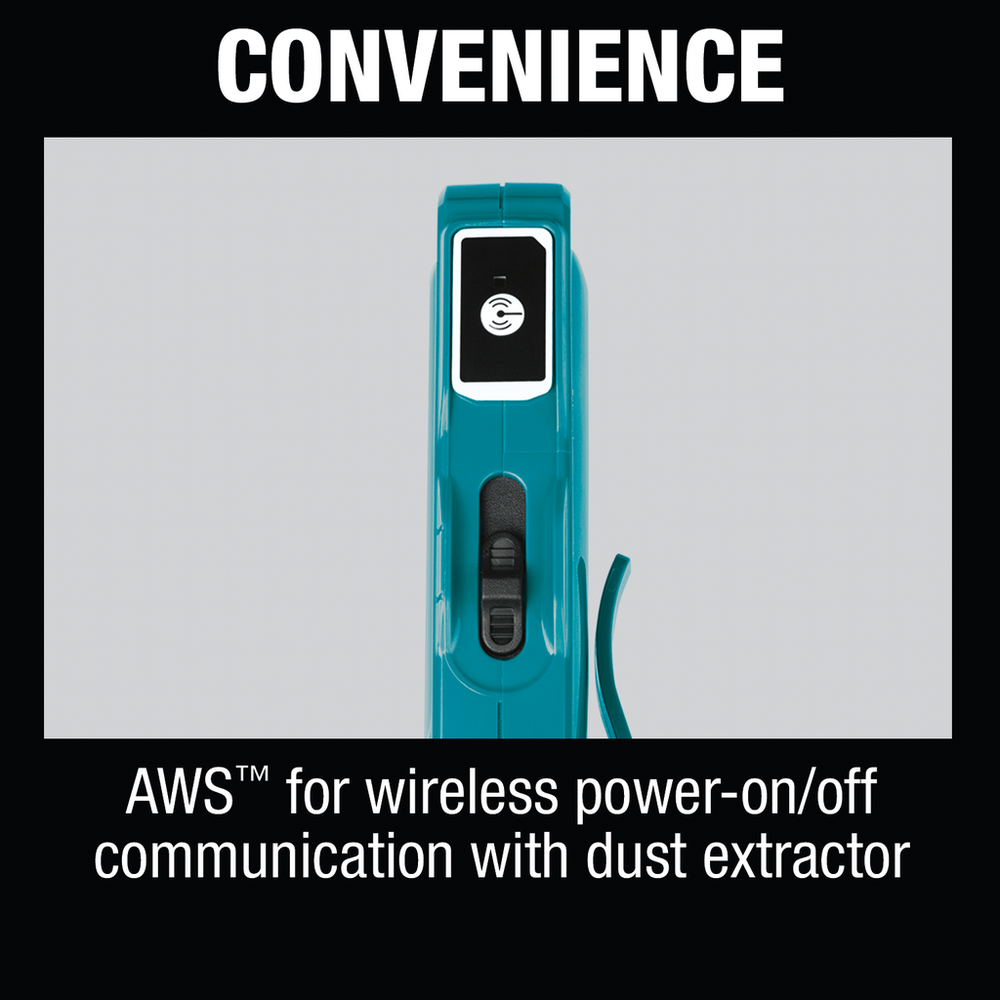

- CONVENIENCE - AWS® for wireless power-on/off communication with dust extractor
- Tool Cuff Adapter, 38mm for 1" hose (417766-9)
- Up to 62 minutes of continuous operation on normal setting and 33 minutes on high setting using two 18V LXT® 5.0Ah batteries BL1850B
- EFFICIENCY - Two stage HEPA filtration system captures 99.97% of particulates .3 microns and larger

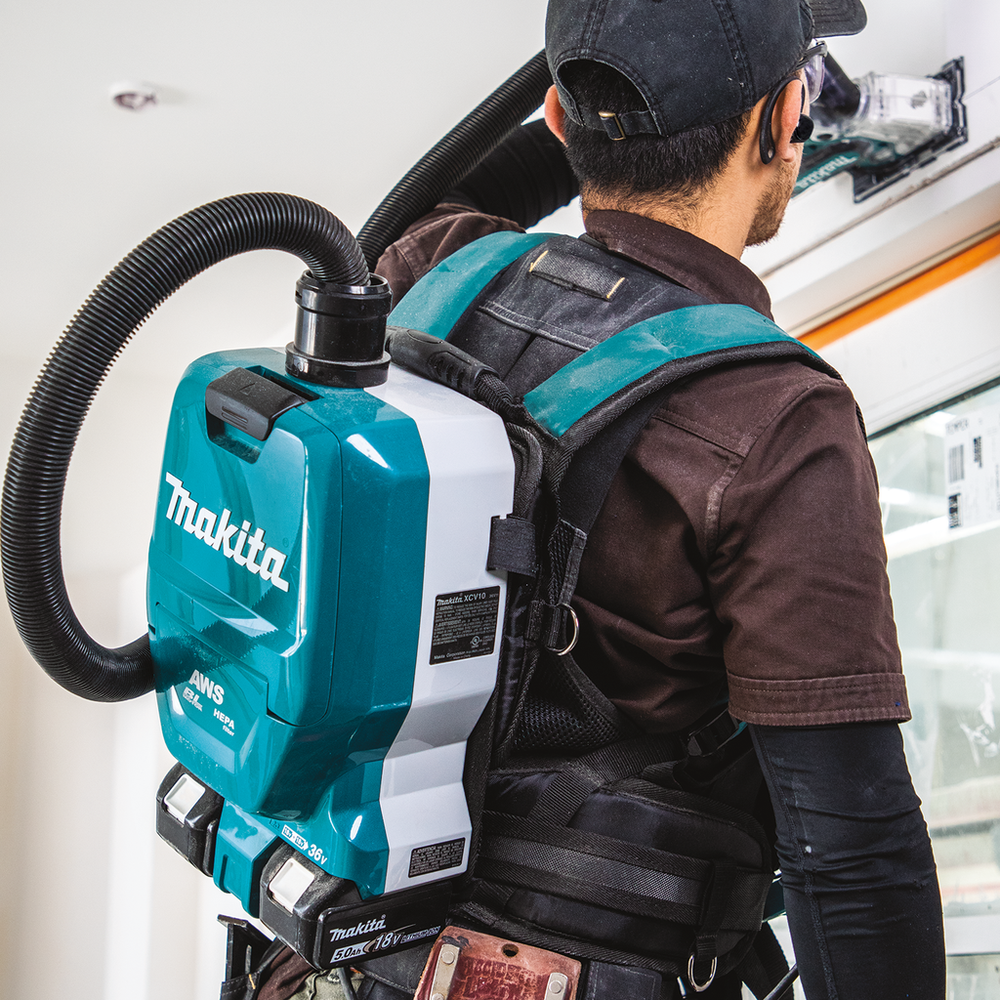

- Padded shoulder straps and waist belt with multiple adjustments for improved fit and comfort

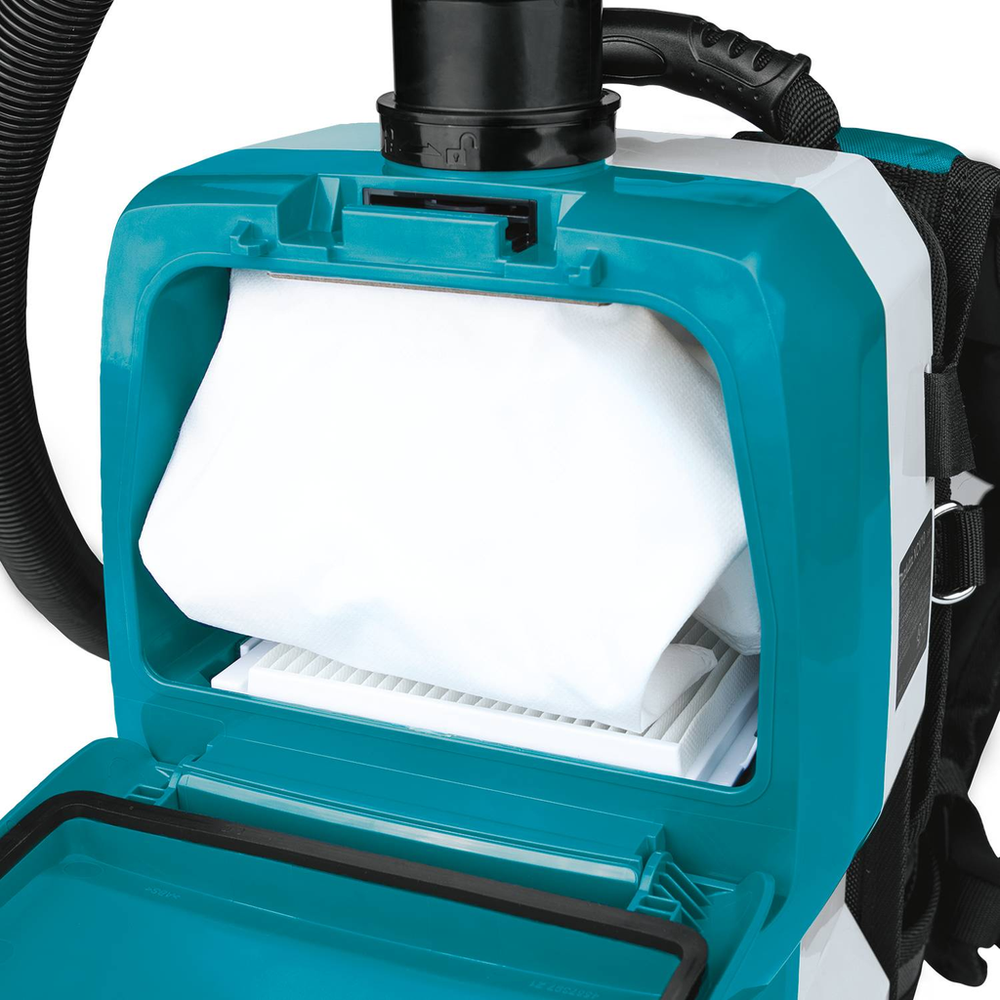

- Convenient and easy to replace disposable filter dust bag
- 2 18V LXT® Lithium-Ion 5.0Ah Battery (BL1850B)
- AWS® capable with Auto-Start Wireless Transmitter (part no. 198901-5) sold separately
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating

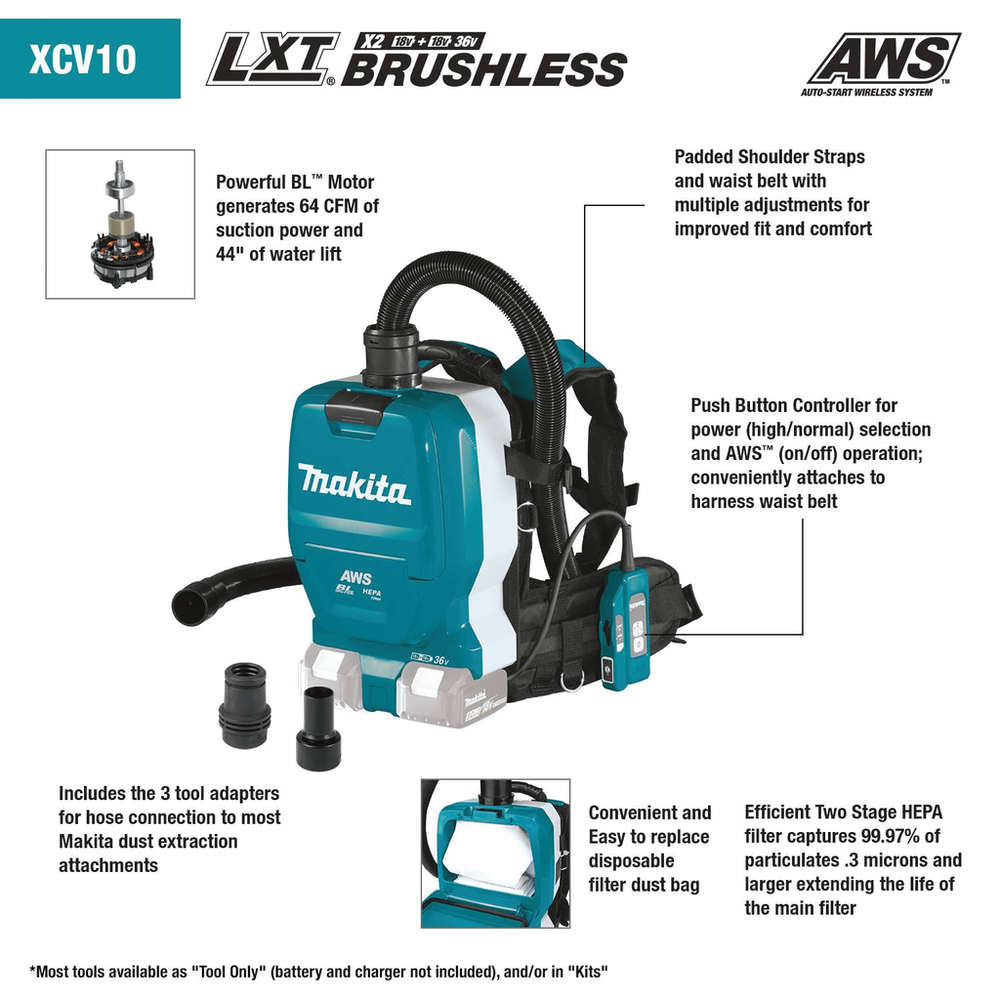

- Push button controller for power (high/normal) selection and AWS® (on/off) operation; conveniently attaches to harness waist belt
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol
- Includes the 3 tool adapters for hose connection to most Makita dust extraction attachments
- Efficient two stage HEPA filter captures 99.97% of particulates .3 microns and larger extending the life of the main filter
- POWER - Powerful brushless motor generates 64 CFM of suction power and 44" of water lift
- 18V LXT® Lithium-Ion 5.0Ah battery BL1850B reaches a full charge in 45 minutes or less
- 18V LXT® Lithium-Ion 5.0Ah battery BL1850B, features an integrated L.E.D. battery charge level indicator
- Tool Cuff Adapter, 22mm for 1" hose (417765-1)
- Quiet operating sound level of 69 dB(A) on high power and 65 on normal power
- 18V LXT® Lithium-Ion 5.0Ah battery BL1850B provides up to 65% more run time per charge compared to BL1830
- Dual Port Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
- 3-year limited warranty on tool, battery and charger
- Tool Cuff Adapter, 24mm for 1" hose (424379-9)
- Harness (162469-7)
- Up to 62 minutes of continuous operation on normal setting and 33 minutes on high setting using two 18V LXT® 5.0Ah batteries
- Powerful brushless motor generates 64 CFM of suction power and 44" of water lift
- HEPA Filter (127725-2)

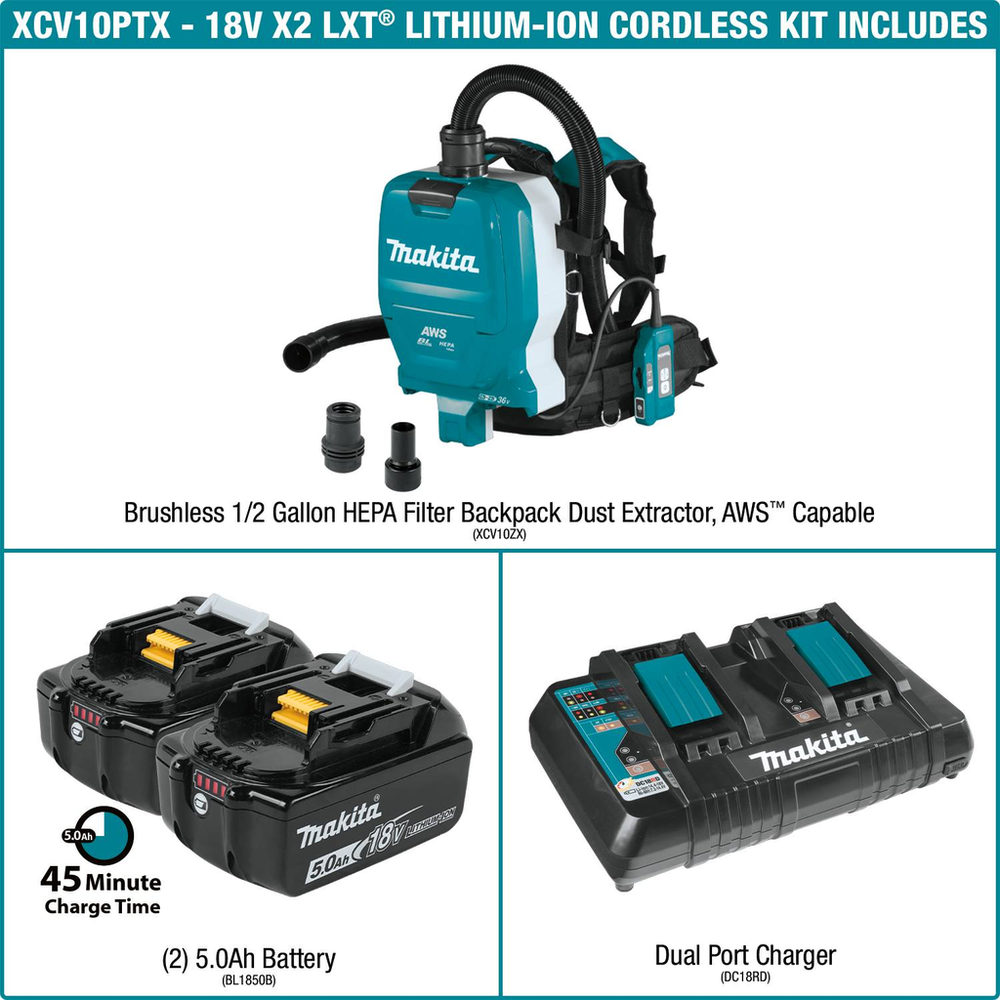

- INCLUDES - (2) 18V LXT® Lithium-Ion 5.0Ah batteries, dual port rapid charger, 3 Adapters, HEPA filter and filter dust bag
- 18V LXT® Lithium-Ion Dual Port Charger (DC18RD)
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Downloads
Makita New Tool Flyers (English)Makita OSHA Silica Compliance CatalogMakita XCV10ZX Instruction ManualXCV10 Parts Breakdown
