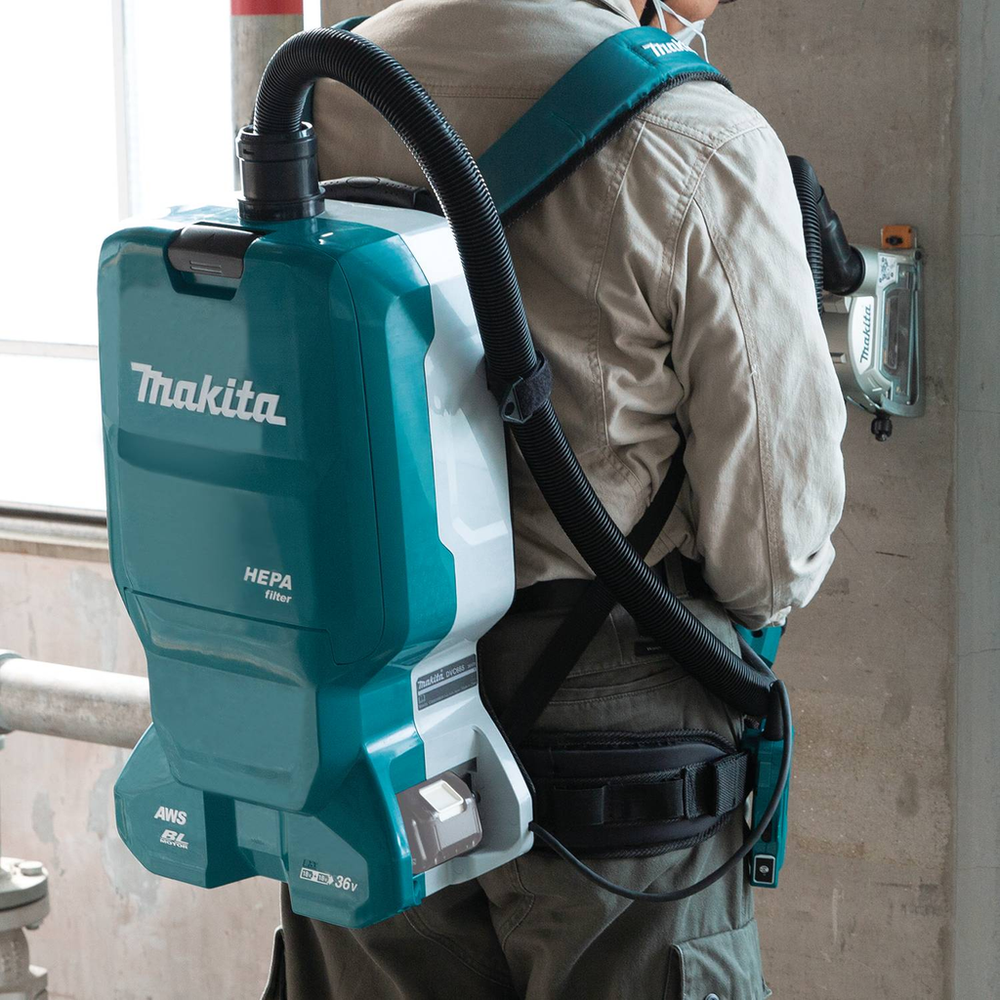

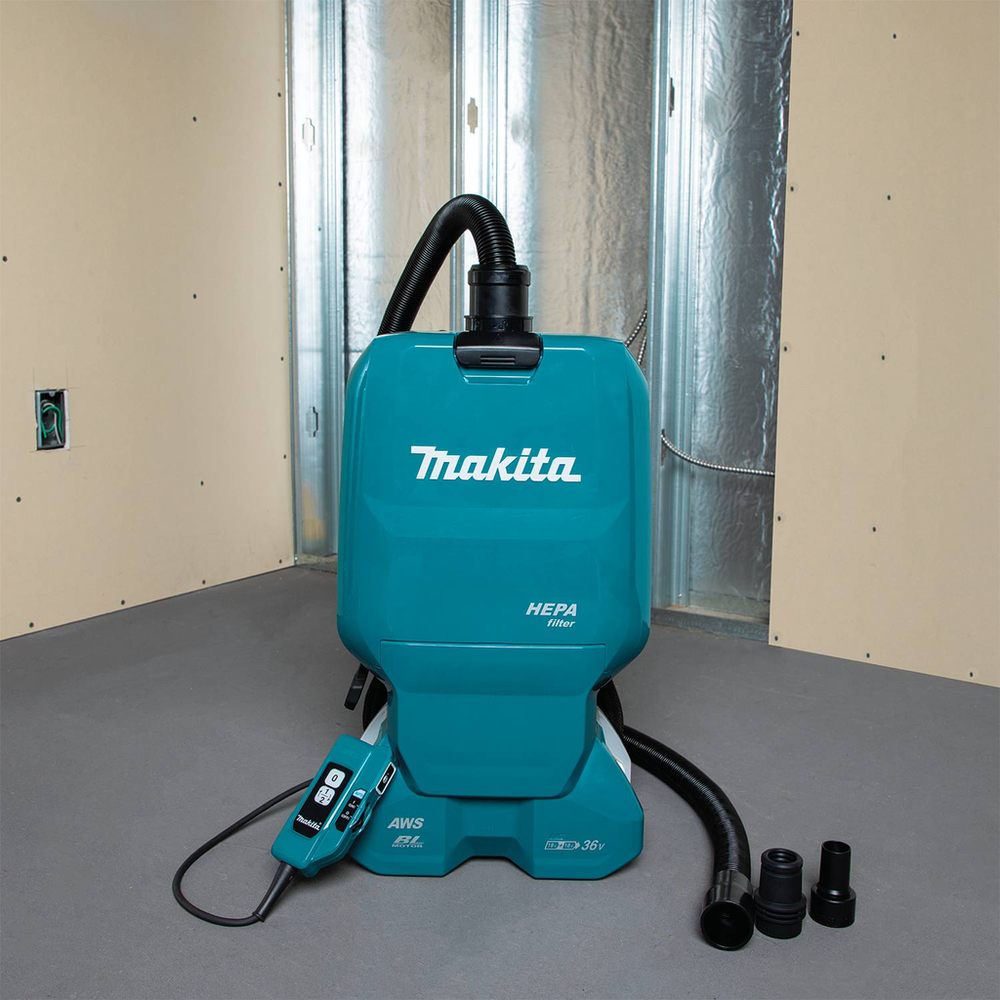

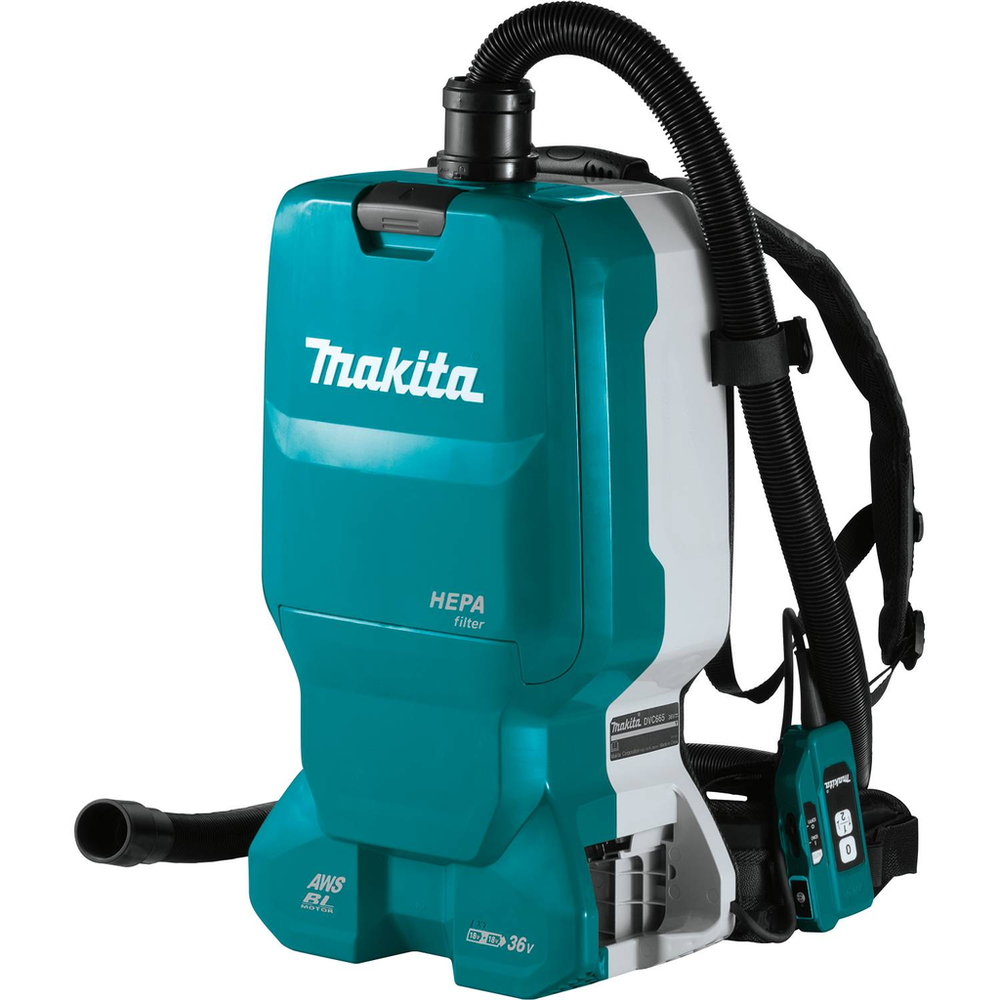

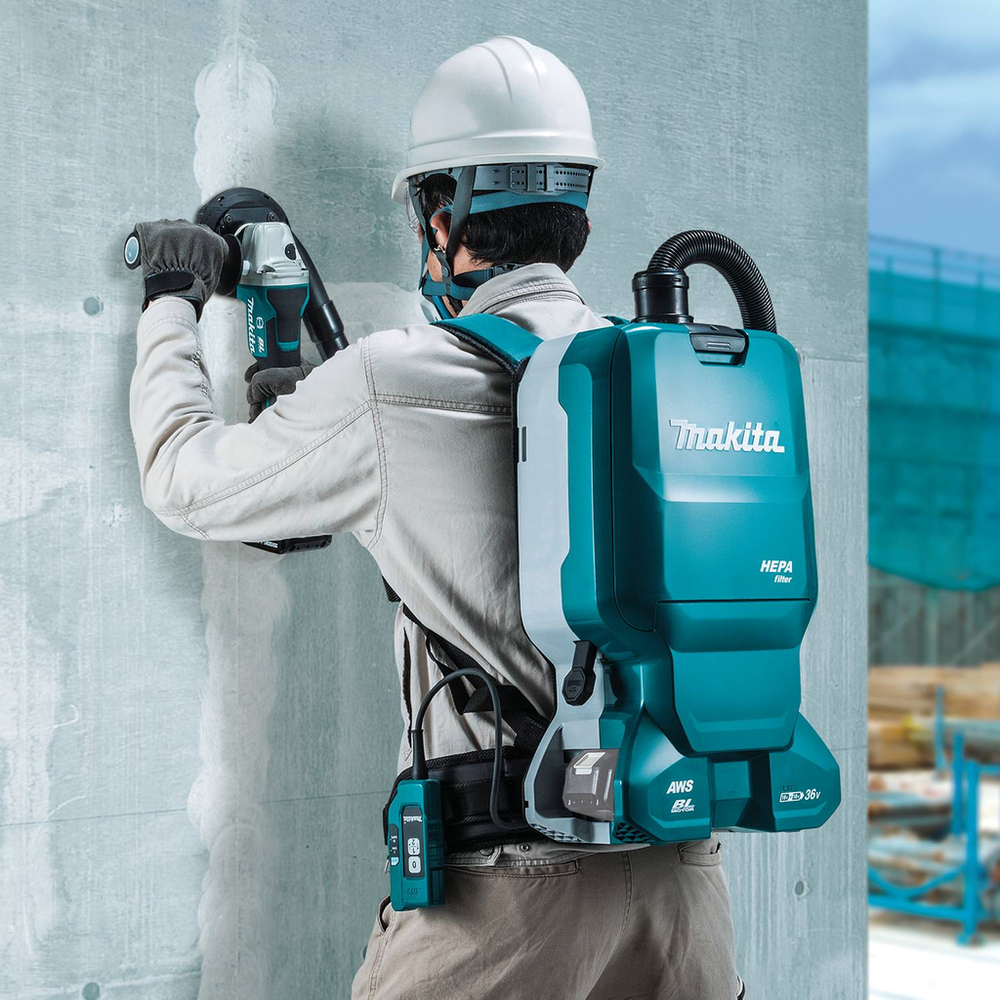

The Makita® 36V (18V X2) LXT® Brushless 1.6 Gallon HEPA Filter Backpack Dry Dust Extractor, AWS Capable (XCV18ZX) is a powerful and portable clean-up solution that eliminates extension cords that trail corded backpack vacuums. The XCV18ZX is ideal for construction applications when used as part of a dust extraction system. It's also a powerful and portable dust extraction solution for contractors by bridging the gap between low-capacity on-board dust extraction systems and larger capacity but less portable wheeled canister job site vacuums. The XCV18ZX is powered by two 18V Lithium-Ion batteries (sold separately) for 36V power and performance but without leaving the 18V LXT® battery platform. The efficient BL™ Brushless Motor generates 64 CFM of suction and 44” of static water lift for fast clean-ups and improved dust extraction, with no cord to pull along or get in the way. The XCV18ZX weighs 15 lbs. (with empty dust bag and two 18V 5.0Ah batteries, batteries sold separately) and has padded shoulder straps and waist belt with multiple adjustments for a comfortable fit. Cordless and compact, the push button power selection controller attaches to the waist belt of the harness for convenient operation. The efficient HEPA filter combined with the filter bag captures large, small and micro dust particulates, and the dust collection container is easily removed for dust disposal. When using two 18V 5.0Ah batteries, users will get up to 62 minutes of continuous operation on low setting and 33 minutes on the high setting. It’s part of Makita’s expanding 18V LXT® System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT® Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.
Prop 65
- WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Features
- Efficient two stage HEPA filter captures 99.97% of particulates .3 microns and larger extending the life of the main filter
- Only use genuine Makita batteries and chargers
- Main HEPA Filter (191D12-9)
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
- Complies with the OSHA standard for Exposure to Respirable Crystalline Silica (rule 1926.1153)
- Padded shoulder straps and waist belt with multiple adjustments for improved fit and comfort
- Harness, XCV18 (162750-6)

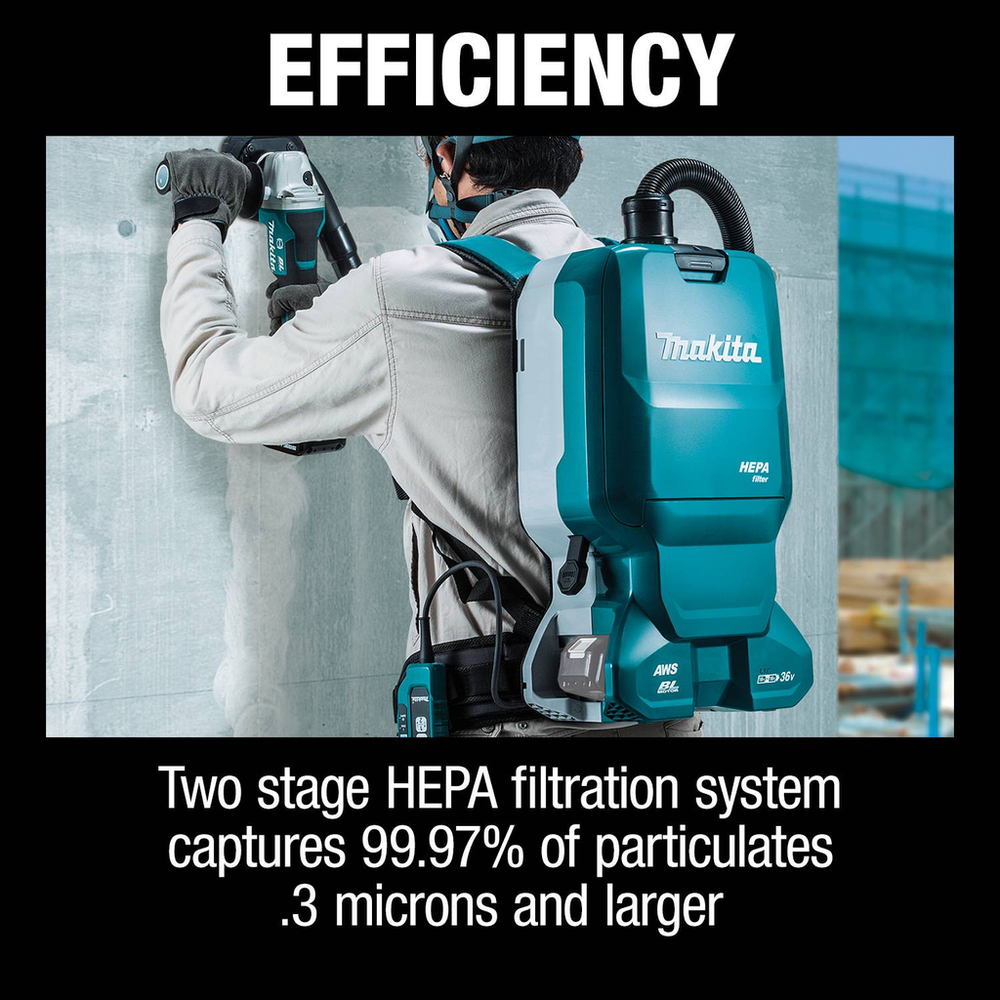

- EFFICIENCY - Two stage HEPA filtration system captures 99.97% of particulates .3 microns and larger
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol
- INCLUDES - 2 Adapters, HEPA filter and filter dust bag
- Up to 62 minutes of continuous operation on normal setting and 33 minutes on high setting using two 18V LXT® 5.0Ah batteries BL1850B (batteries not included)

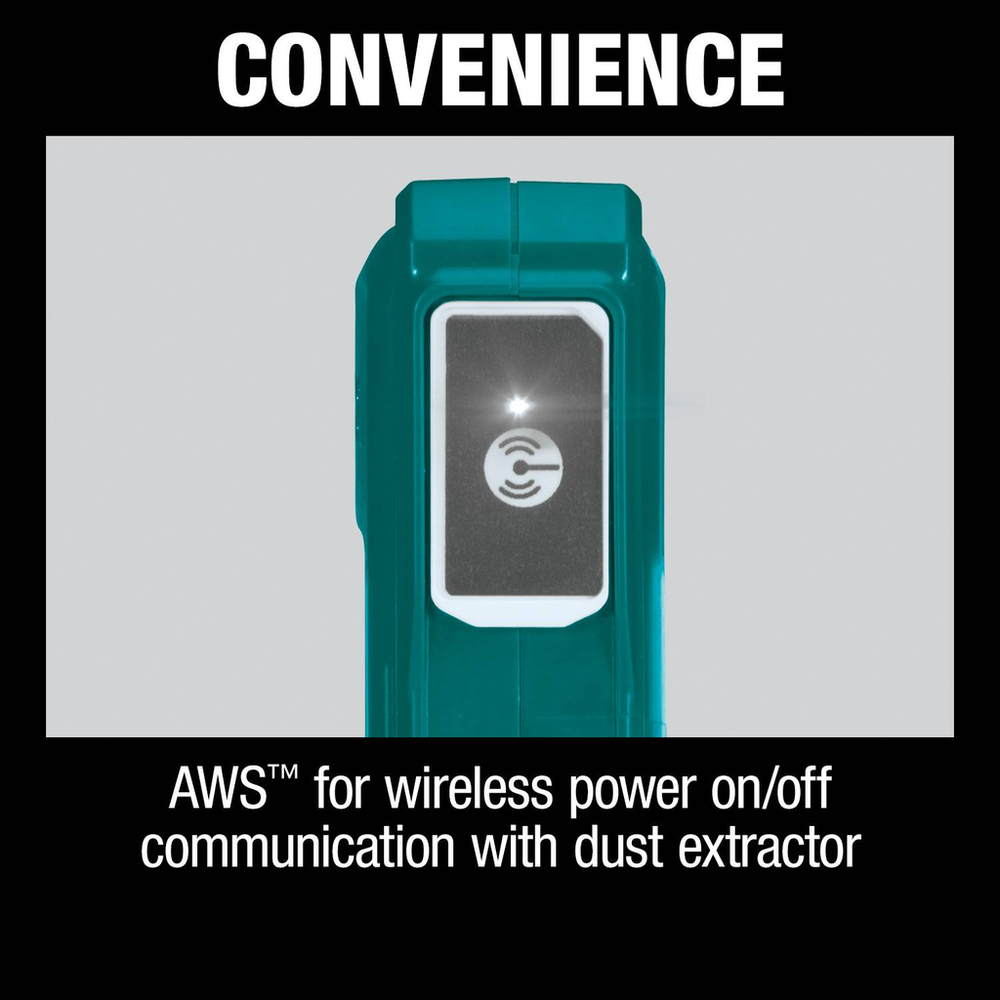

- CONVENIENCE - AWS® for wireless power-on/off communication with dust extractor

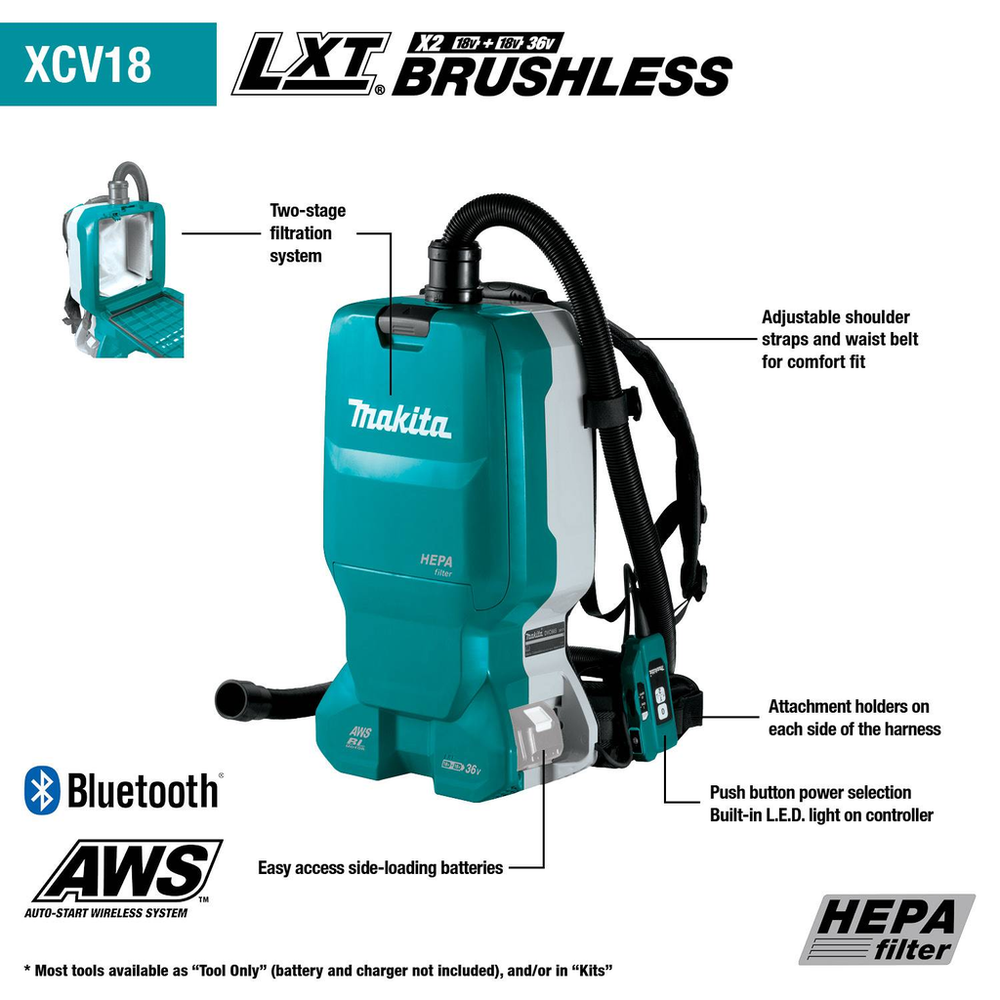

- Push button controller for power (high/normal) selection and AWS® (on/off) operation; conveniently attaches to harness waist belt
- Quiet operating sound level of 70 dB(A) on high power and 65 on normal power
- Complies with the OSHA standard for Exposure to Respirable Crystalline Silica (rule 1926.1153) for select applications under the conditions that the equipment is used as specified by Makita. See specified products at https://www.makitatools.com/dust-management
- Easily accessible side-loading batteries for uninterrupted workflow (batteries not included)
- Compact and lightweight design; weighs only 15 lbs. with batteries (batteries not included)
- AWS® capable with Auto-Start Wireless Transmitter (part no. 198901-5) sold separately

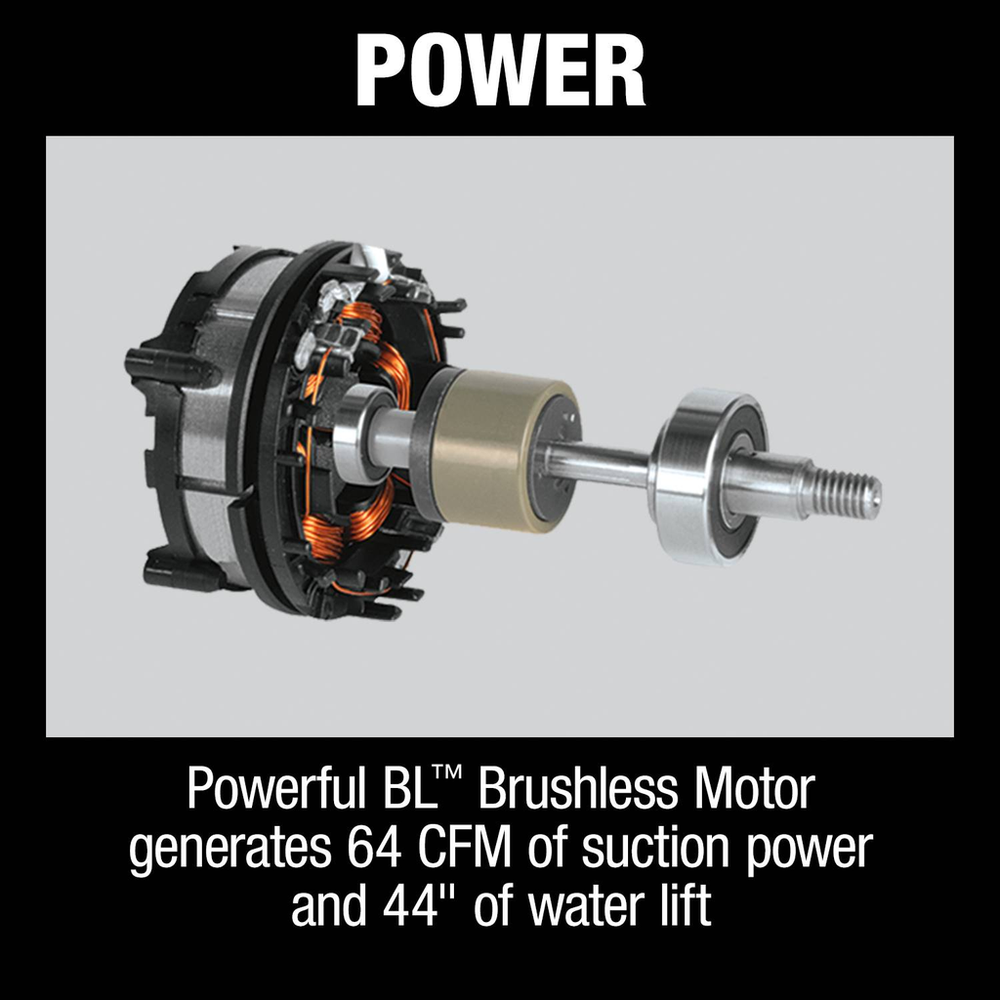

- POWER - Powerful BL™ Brushless Motor generates 64 CFM of suction power and 44" of water lift
- 3-year limited warranty

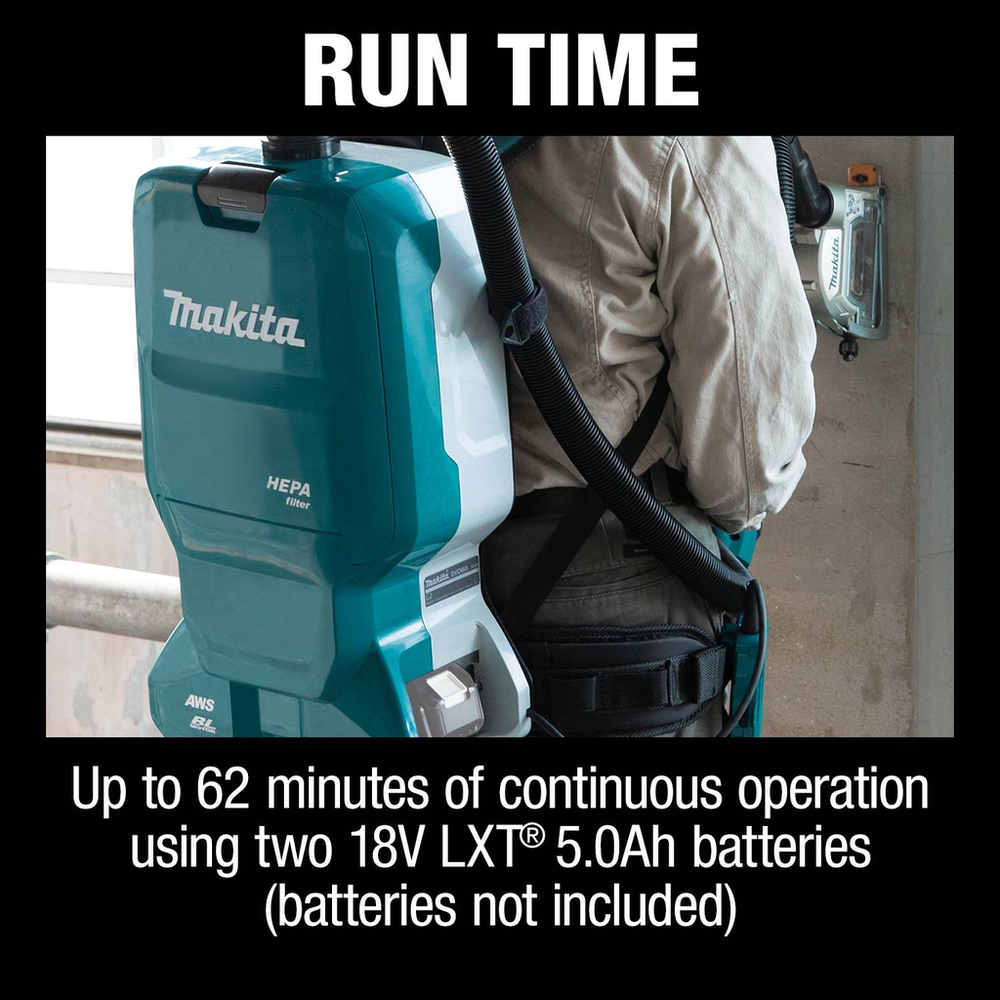

- RUN TIME - Up to 62 minutes of continuous operation using two 18V LXT® 5.0Ah batteries (batteries not included)

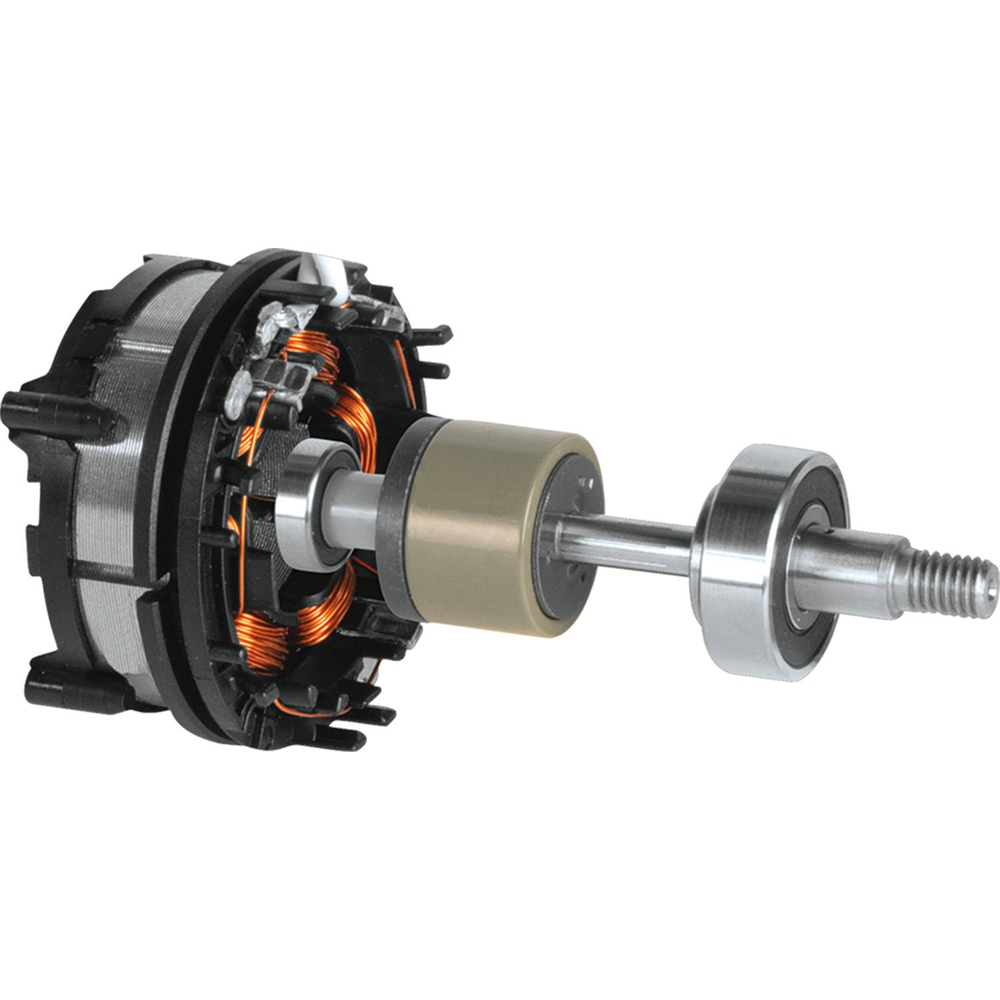

- The BL™ Brushless Motor eliminates carbon brushes, enabling the BL™ Motor to run cooler and more efficiently for longer life
- Tool Cuff Adapter, 22mm for 1" hose (417765-1)
- Includes the 2 tool adapters for hose connection to most Makita dust extraction attachments
- Powerful BL™ Brushless Motor generates 64 CFM of suction power and 44" of water lift
- Flexible Hose, 1" x 59" (152992-0)
- Filter cleaning mechanism designed to help maintain optimum suction efficiency
- Auto-start Wireless System (AWS®) utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor
- Tool Cuff Adapter, 24mm for 1" hose (424379-9)
- Filter Bag, 10/pk (191C26-2)
- Up to 62 minutes of continuous operation on normal setting and 33 minutes on high setting using two 18V LXT® 5.0Ah batteries (batteries not included)

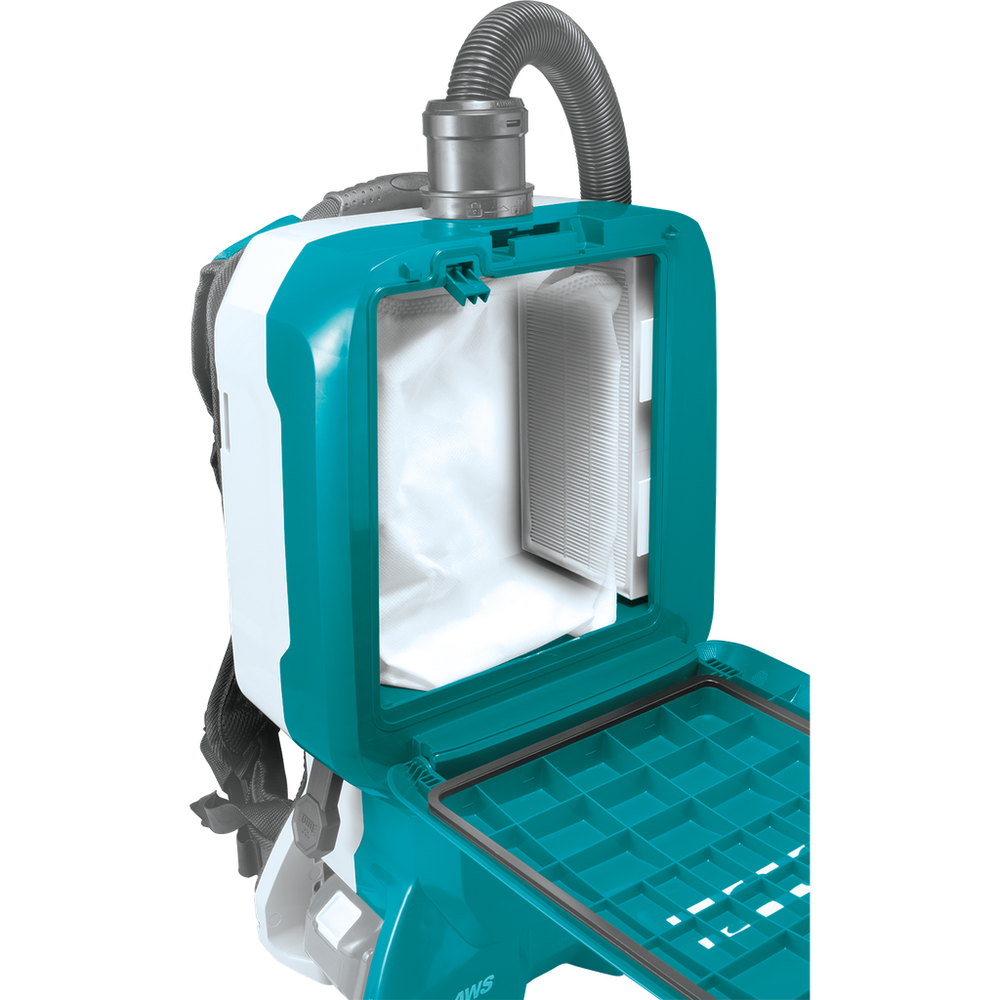

- Convenient and easy to replace disposable filter dust bag
