The Makita 36V (18V X2) LXT Brushless 6-1/2” Plunge Circular Saw, with AWS® (XPS02ZU) delivers precise and more accurate cutting when combined with an optional guide rail system (sold separately). The saw and rail system work together to produce accurate cuts with minimal tear-out. The saw combines a powerful Makita-built brushless motor powered by two 18V LXT® batteries with Automatic Speed Change™ Technology, which adjusts cutting speed and torque during the cut for optimum performance. The XPS02ZU is equipped with Auto-Start Wireless System (AWS®), which uses Bluetooth™ technology for wireless power-on/off communication with the AWS-equipped dust extractor. AWS® is intelligent communication that eliminates cords and reduces noise. The Saw has a variable speed control dial (2,500 – 6,300 RPM), with soft start and an electric brake for added convenience. It has a large 2-3/16” cutting capacity at 90 degrees, with a bevel capability of -1° to 48° and positive stops at 22.5° and 45°. When used with a rail system (sold separately) a Plunge Circular Saw is a more portable option to a table saw for select applications and is ideal for use on the job site or in a workshop. It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.
Features

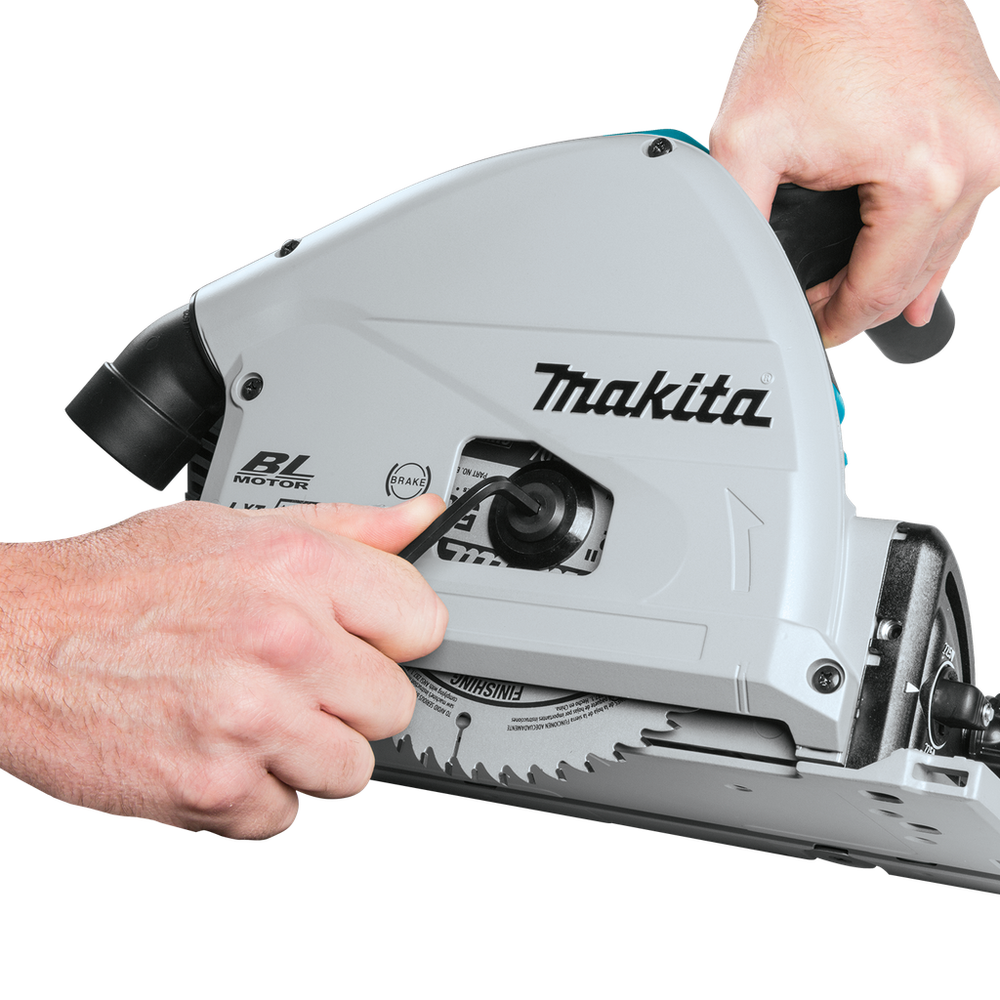

- Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
- Automatic Speed Change™ technology adjusts cutting speed and torque during cut for optimum performance

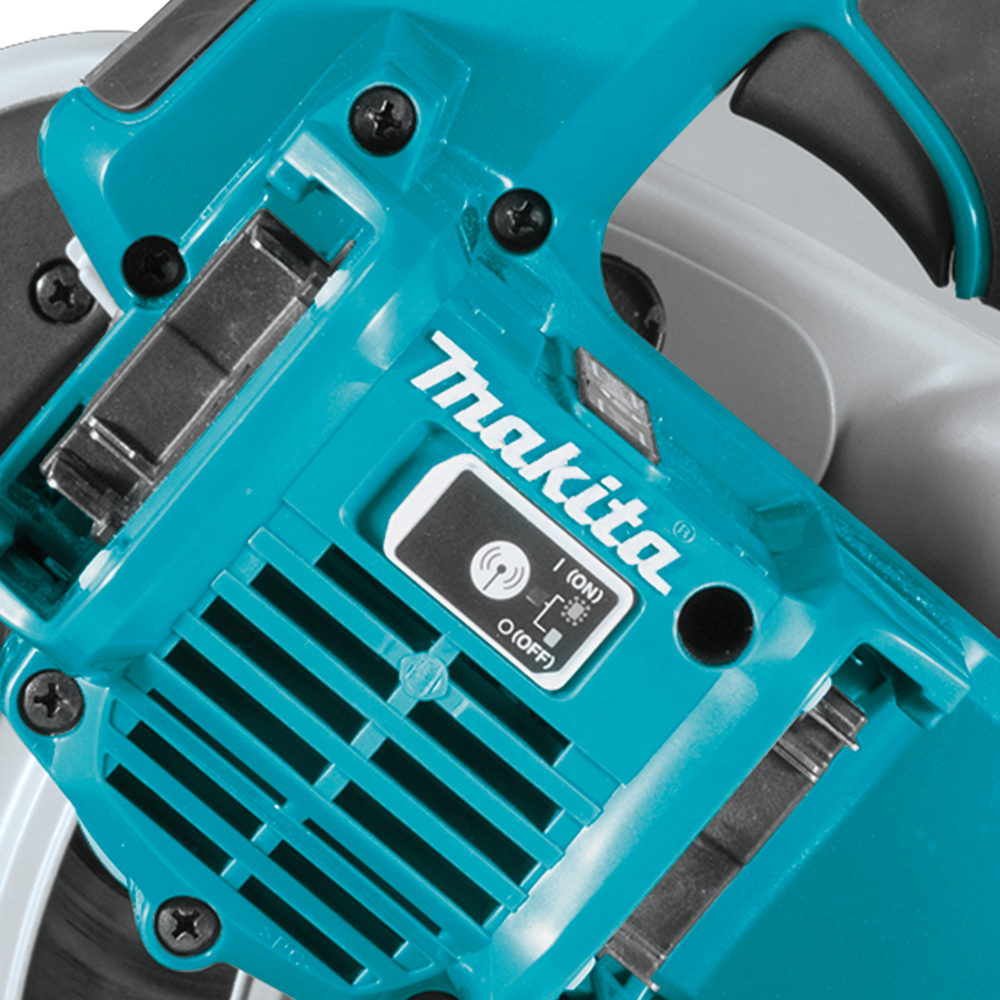

- TECHNOLOGY - Auto-start Wireless System (AWS®) for wireless on/off between the tool and dust extractor

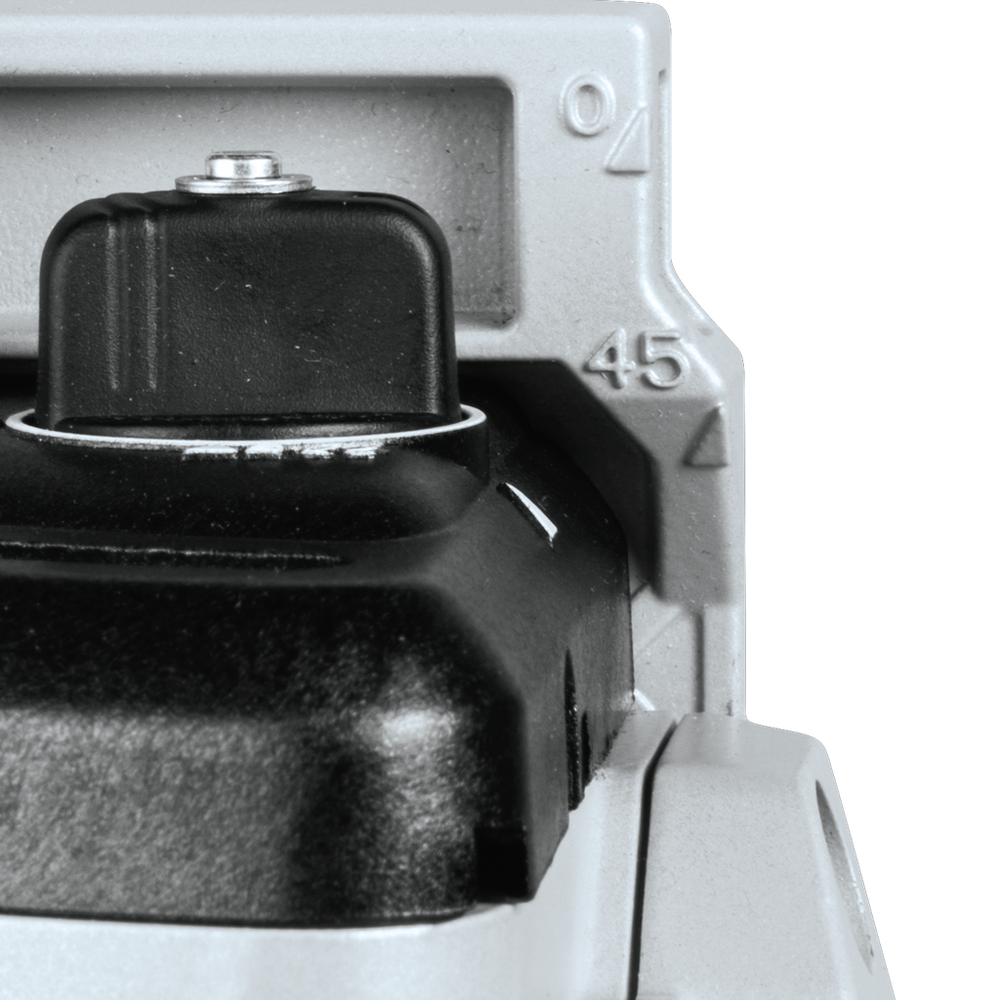

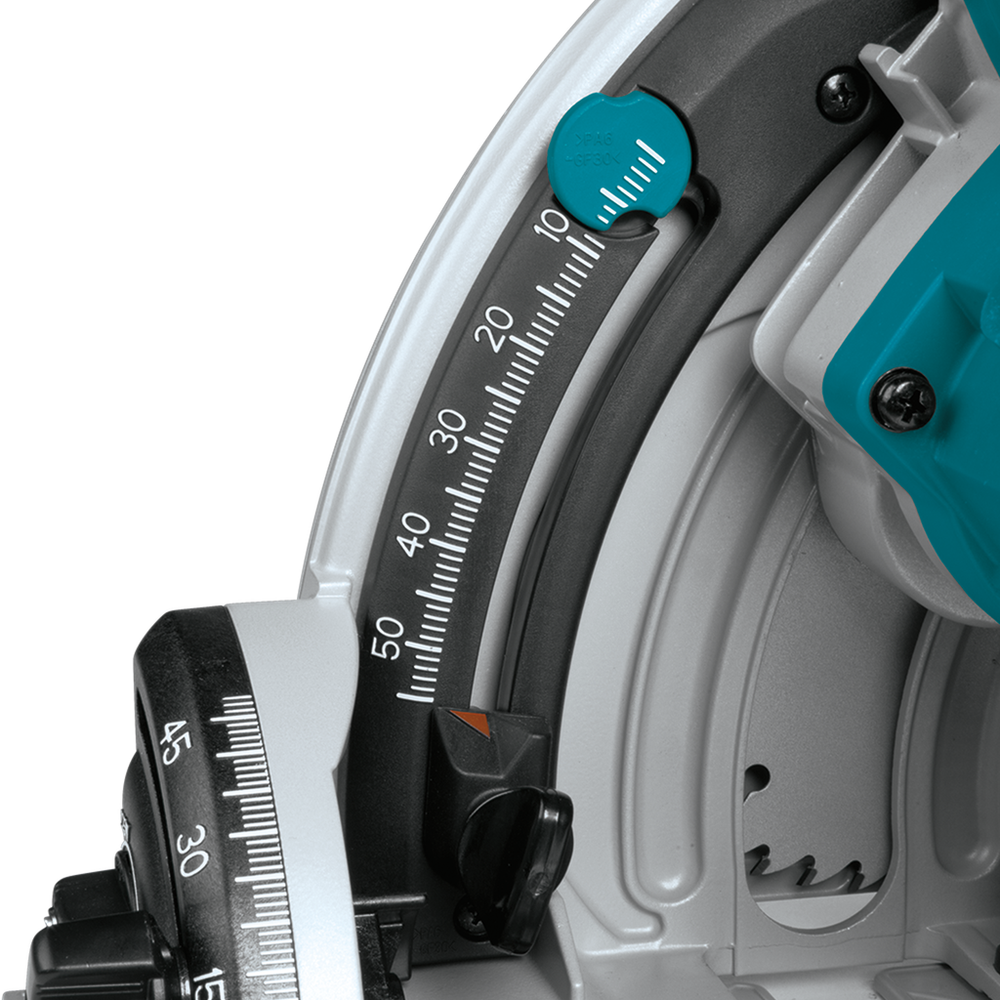

- Bevel capability (-1º to 48º) with positive stops at 22.5º and 45º

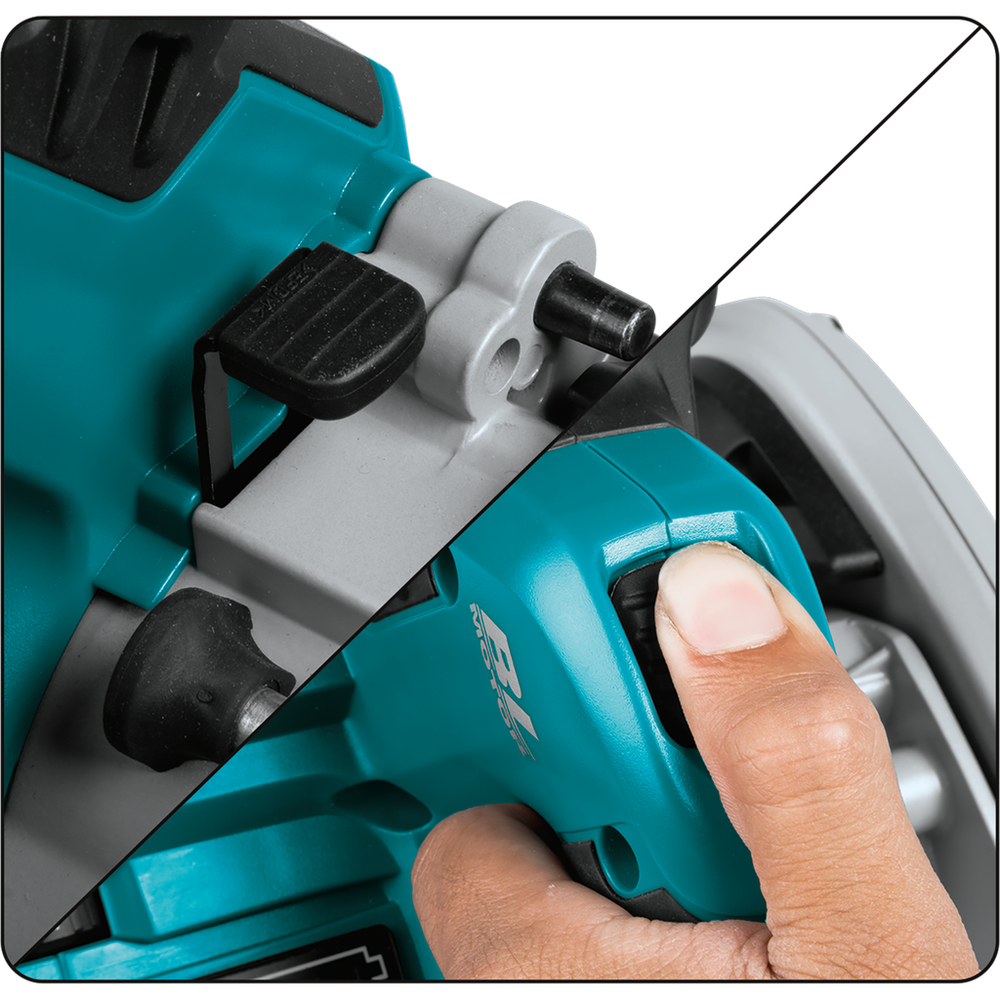

- SPEED - Variable speed control dial (2,500 - 6,300 RPM) for optimum performance in a variety of materials
- 6-1/2" 56T C.T. Cordless Plunge Saw Blade, Wood, MDF, Laminate (B-57342)
- Variable speed control dial (2,500 - 6,300 RPM) for optimum performance in a variety of materials
- Compact and ergonomic design at 13-5/8" long; weighs only 11.2 lbs. with batteries (batteries not included) for reduced operator fatigue
- Large 1-7/16" rear dust port directs material away from the operator and easily connects to a vacuum system
- Ideal for cutting large wood panels, other wood materials including melamine and MDF, aluminum, and Corian® with optional, material specific blades (includes wood blade, other blades sold separately)

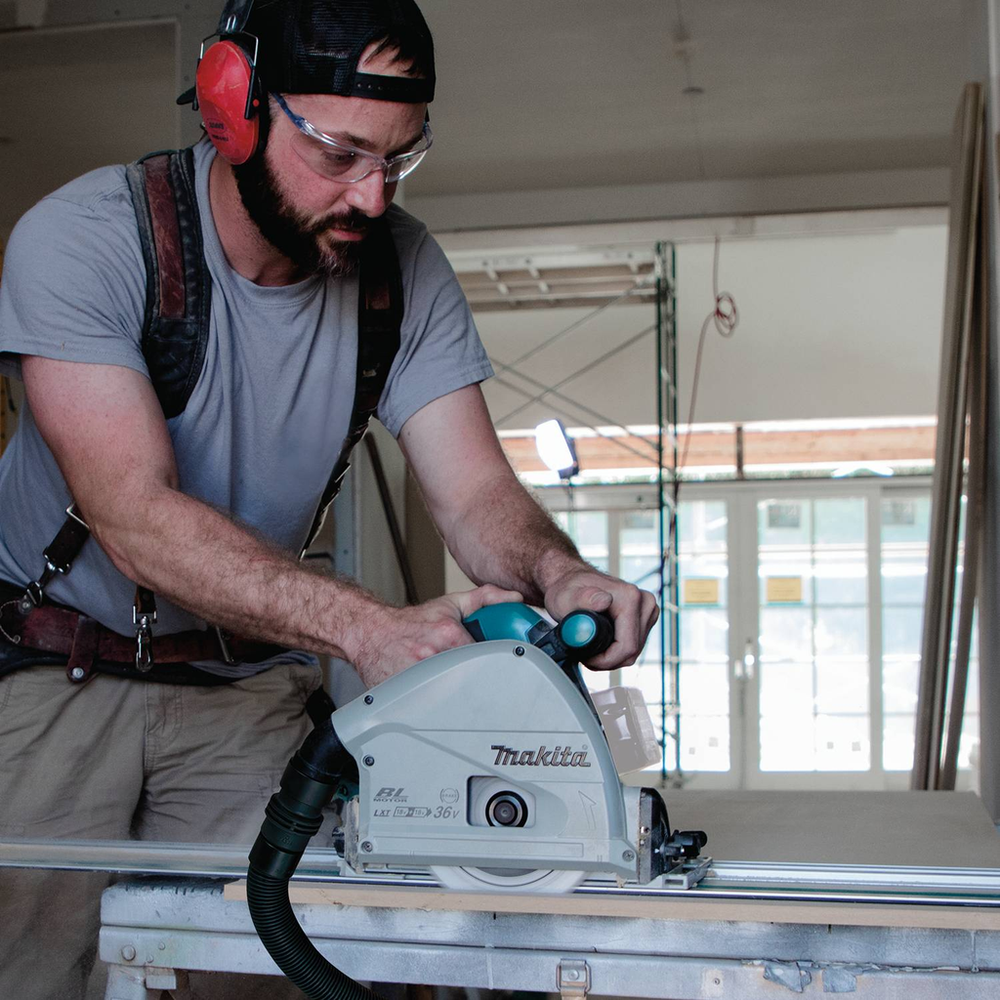

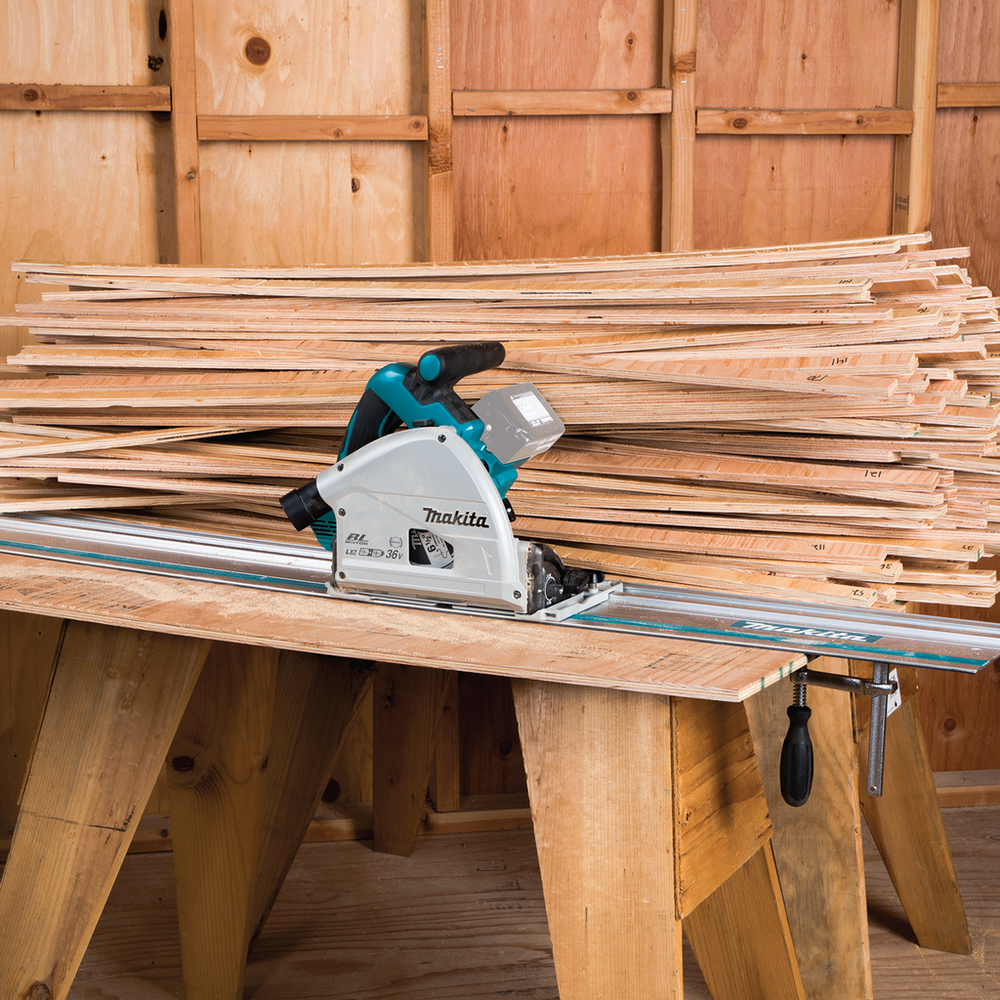

- Optional guide rail system interacts with the saw base to provide smooth, perfect, dead-on straight or bevel cutting
- On-board hex wrench for fast and easy blade changes

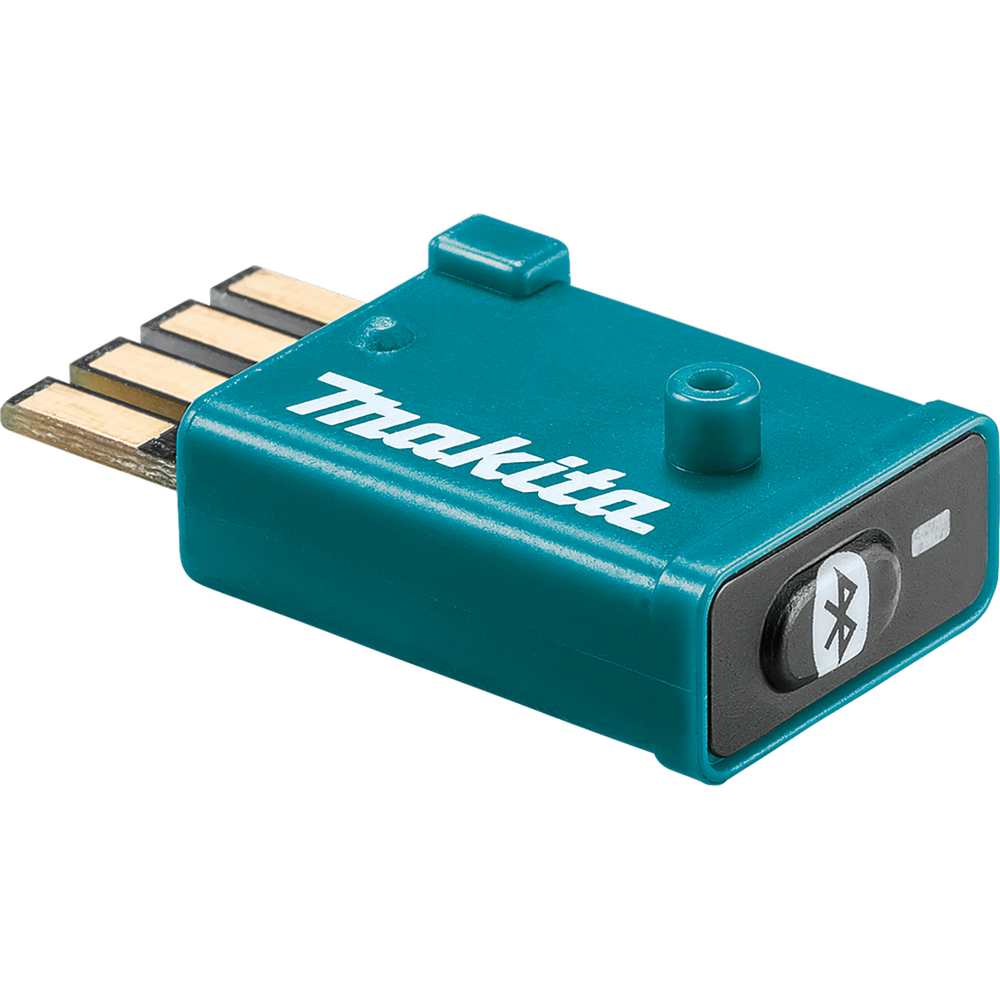

- Auto-start Wireless Transmitter (198901-5)
- Powered by two LXT® batteries; X2 LXT® technology delivers more power, performance and run time without the hassles of a cord (batteries not included)
- Easy-to-set depth adjustment with large scale
- Makita built electronically controlled BL™ Brushless Motor delivers 6,300 RPM for maximum performance and 50% longer run time per charge

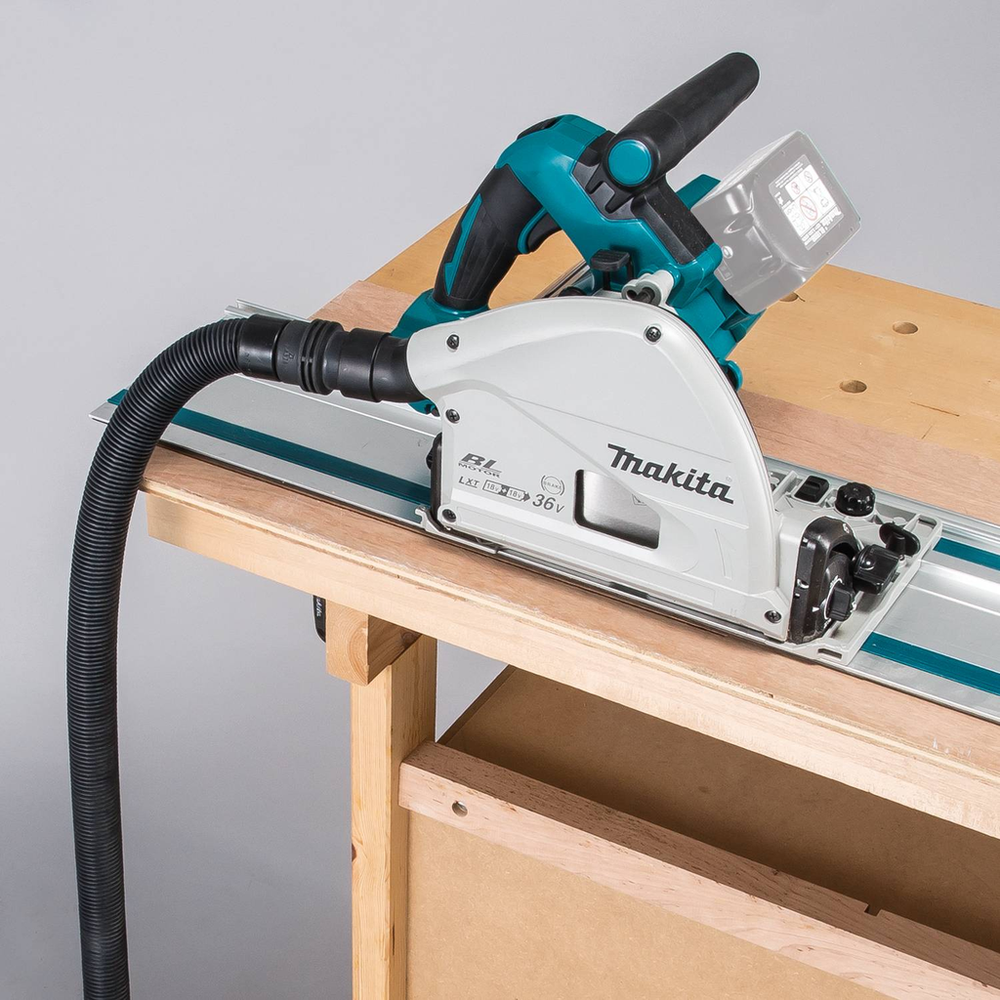

- Auto-start Wireless System (AWS®) utilizes Bluetooth® technology for wireless power-on/off communication between tool and optional dust extractor

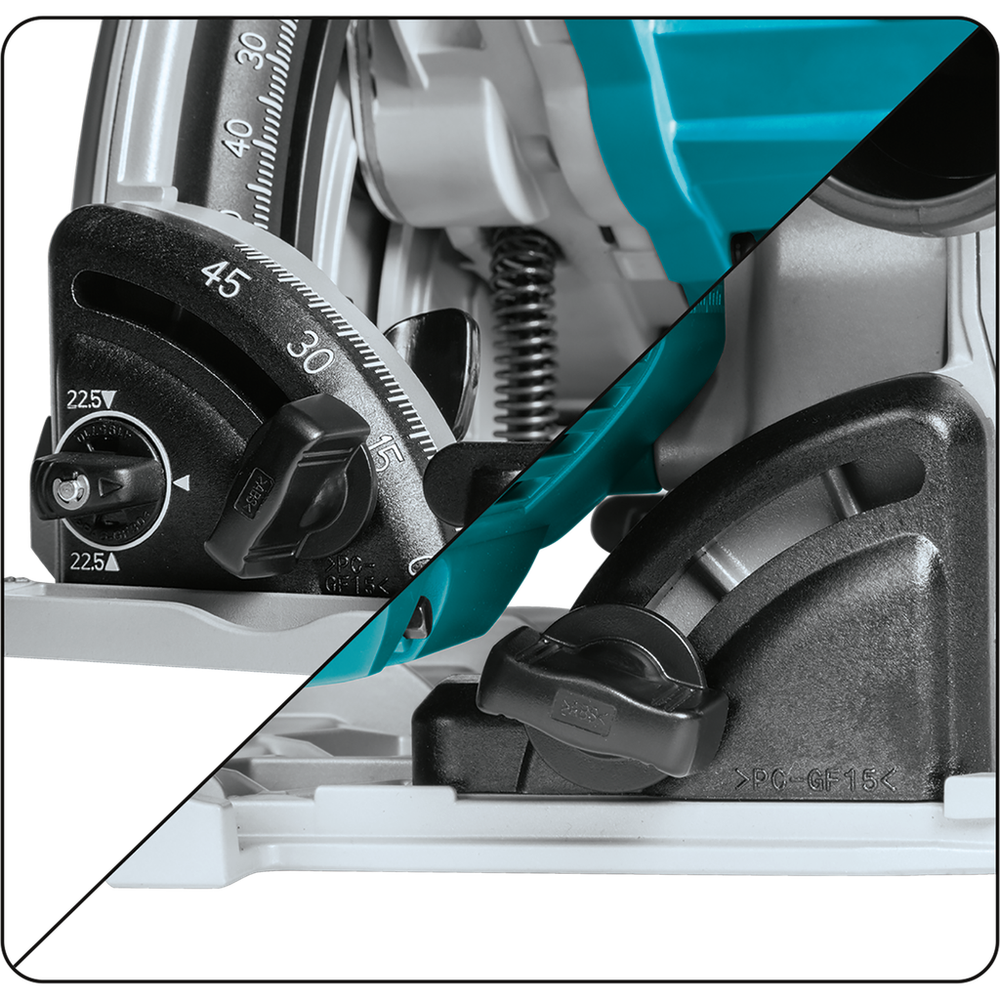

- ACCURACY - Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
- Built-in depth stop allows a preliminary first cut prior to cutting through the entire material for clean and splinter-free cutting
- Large cutting capacity (2-3/16" at 90º; and 1-9/16" at 45º)
- Built-in depth stop allows a preliminary first cut of (5/64") 2mm to (7/64") 3mm to be performed prior to cutting through the entire material for clean and splinter-free cutting
- Close to the wall cutting (11/16") for expanded cutting applications
- DESIGN - Slide lever on base engages the guide rail (sold separately) when bevel cutting for stability
- X2 LXT® technology delivers up to 125 cuts per charge in 4x8 sheets of 1/2" plywood per charge using two 5.0Ah batteries
- Hex Wrench (783203-8)
- Electronic speed control maintains constant speed under load for smooth cutting
- Electric brake for maximum productivity
- Ideal for large wood panels, other wood materials like melamine and MDF, aluminum, and Corian® (includes wood blade, other blades sold separately)
- Includes a premium 56 tooth ultra thin kerf carbide tipped saw blade (B-57342) ideal for cordless circular saws offering up to 140% more cuts per charge compared to our standard corded plunge saw blade (B-07353)
- Rubberized soft grip handle provides increased comfort on the job
- Smooth and convenient plunge release lever for operator comfort
- INCLUDES - Wireless unit, 56T carbide-tipped blade and wrench (batteries and charger not included)
- Slide lever on saw base designed to engage the optional guide rail (sold separately) when bevel cutting for stability
- Soft start feature for smooth start-ups
- Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
