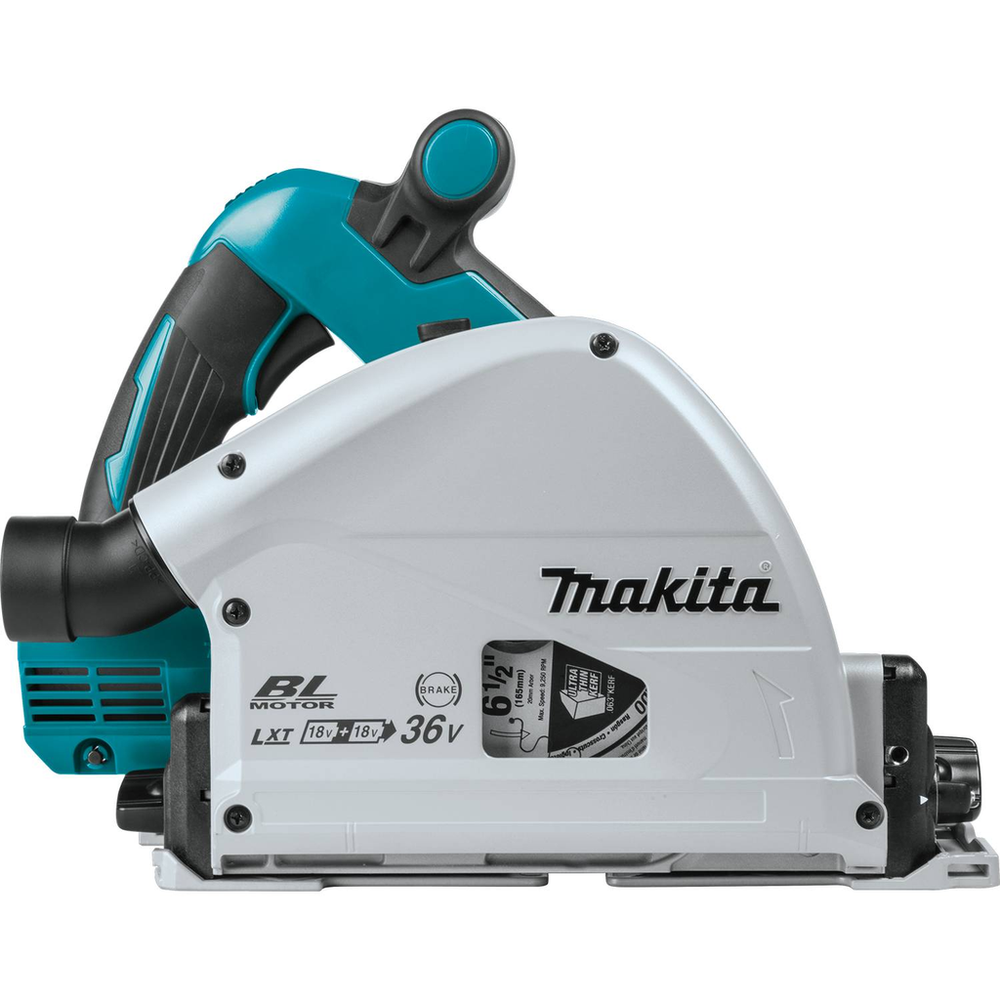

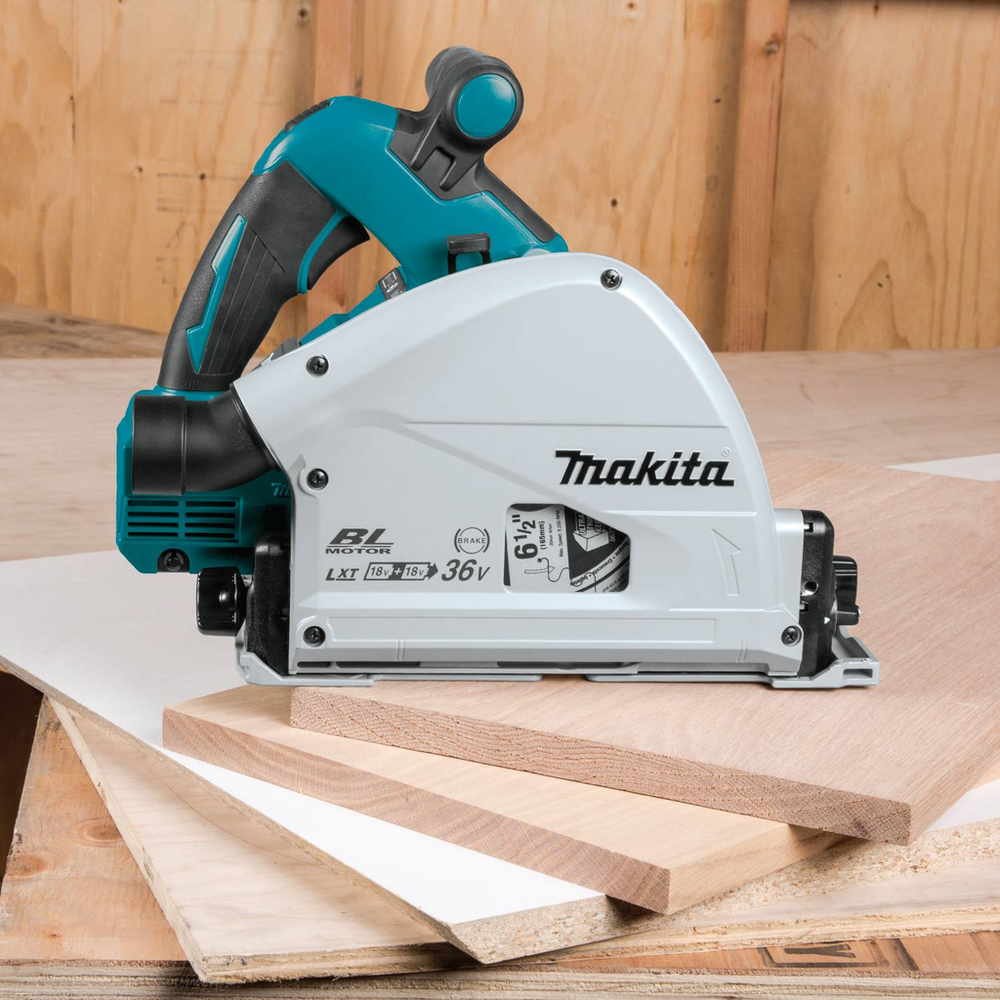

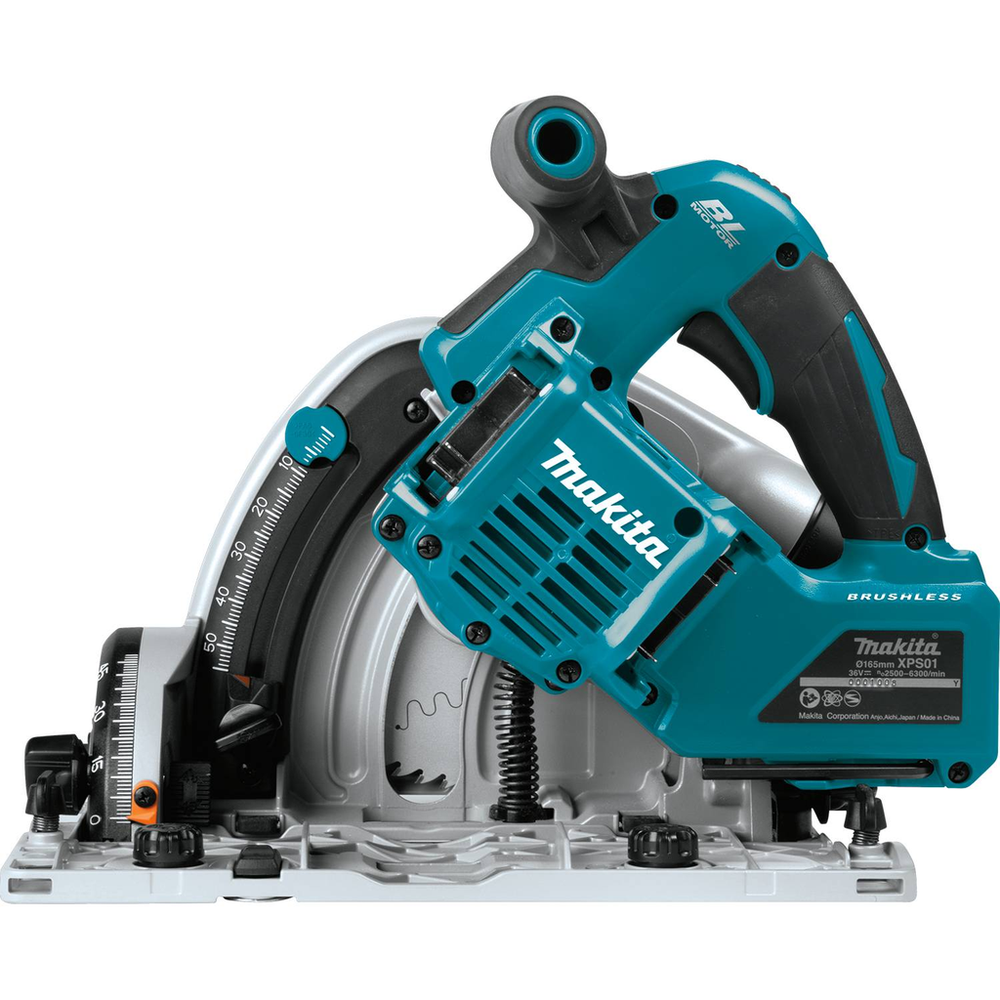

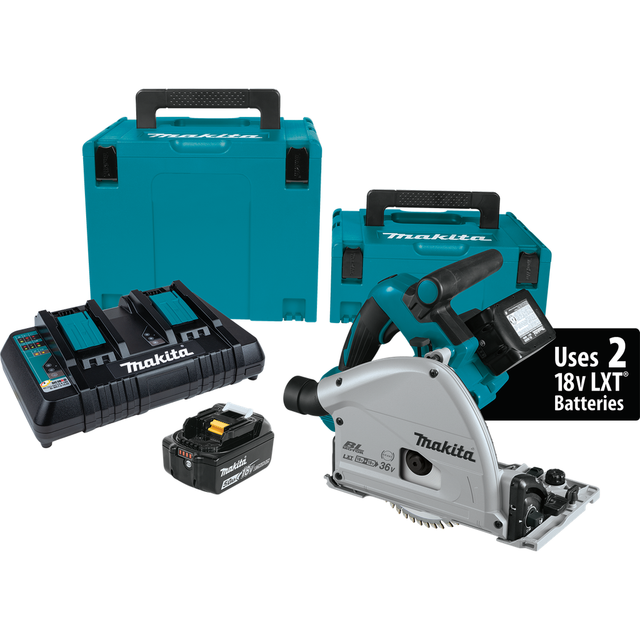

The Makita 36V (18V X2) LXT Brushless 6-1/2” Plunge Circular Saw Kit (XPS01Z, tool only, batteries and charger sold separately) delivers precise and more accurate cutting when combined with an optional guide rail system (sold separately). The saw and rail system work together to produce accurate cuts with minimal tear-out. The saw combines a powerful Makita-built brushless motor powered by two 18V LXT® batteries with Automatic Speed Change™ Technology, which adjusts cutting speed and torque during the cut for optimum performance. The Saw has a variable speed control dial (2,500 – 6,300 RPM), with soft start and an electric brake for added convenience. It has a large 2-3/16” cutting capacity at 90 degrees, with a bevel capability of -1° to 48° and positive stops at 22.5° and 45°. When used with a rail system (sold separately) the Plunge Circular Saw is a more portable option to a table saw for select applications, and is ideal for use on the job site or in a workshop. It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.
Features
- Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts

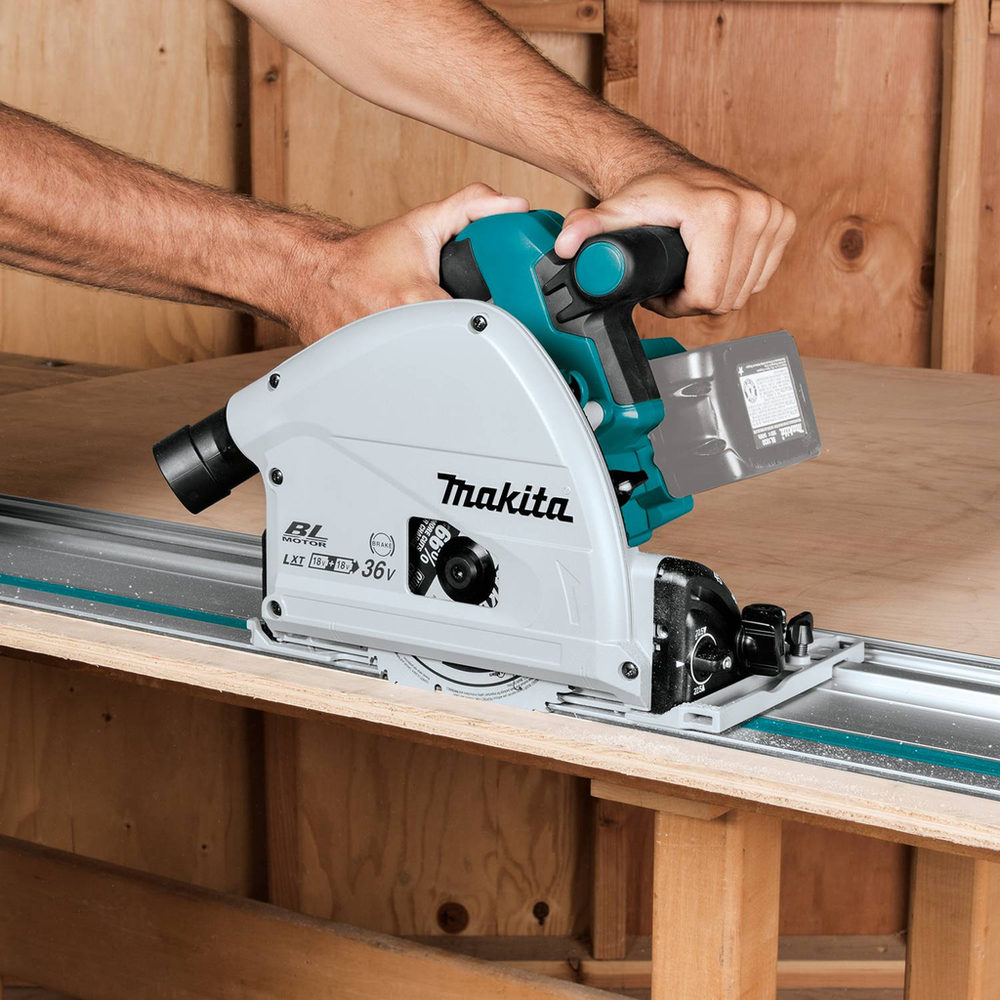

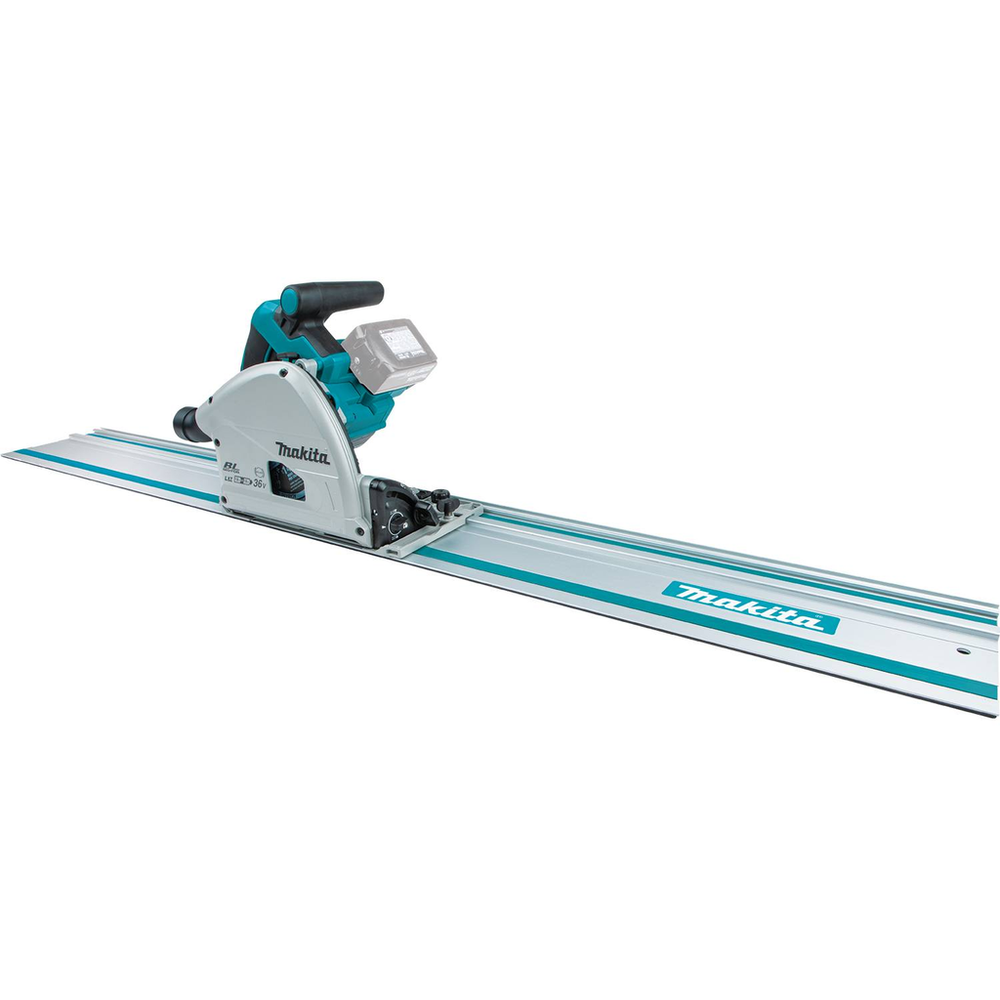

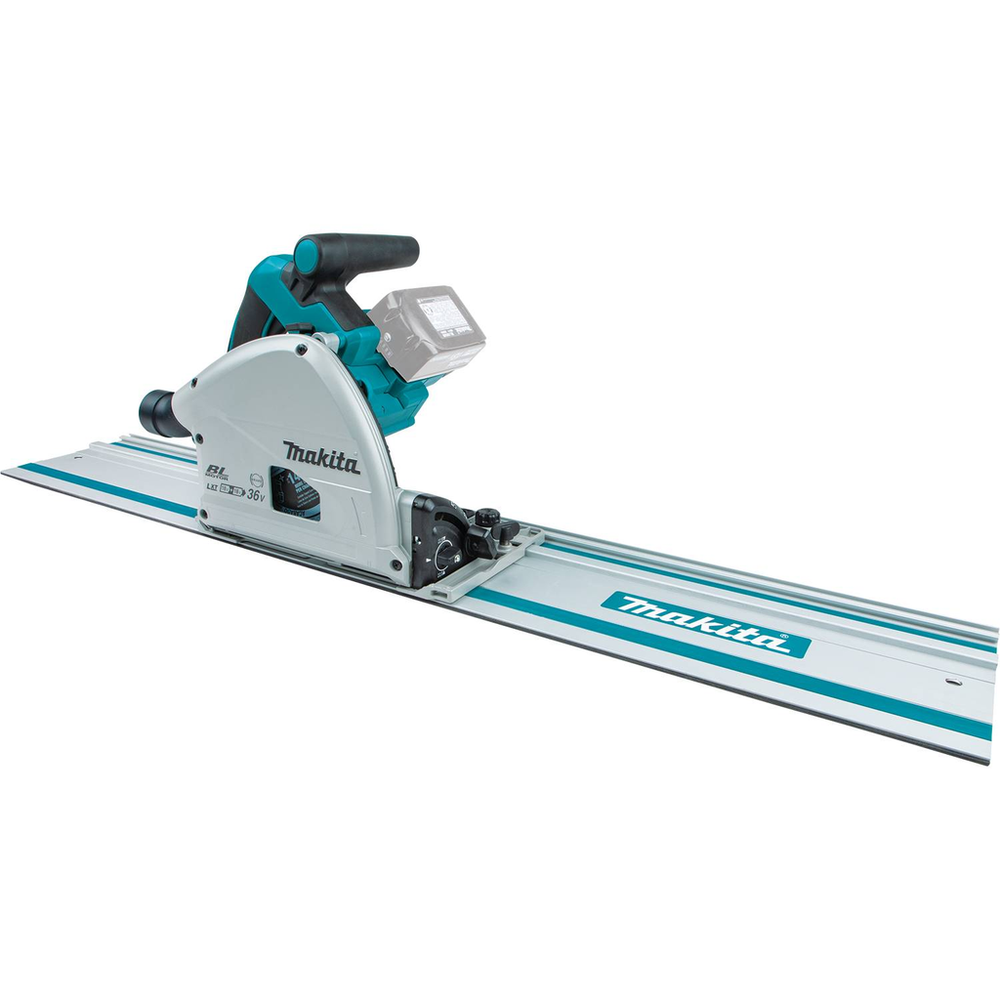

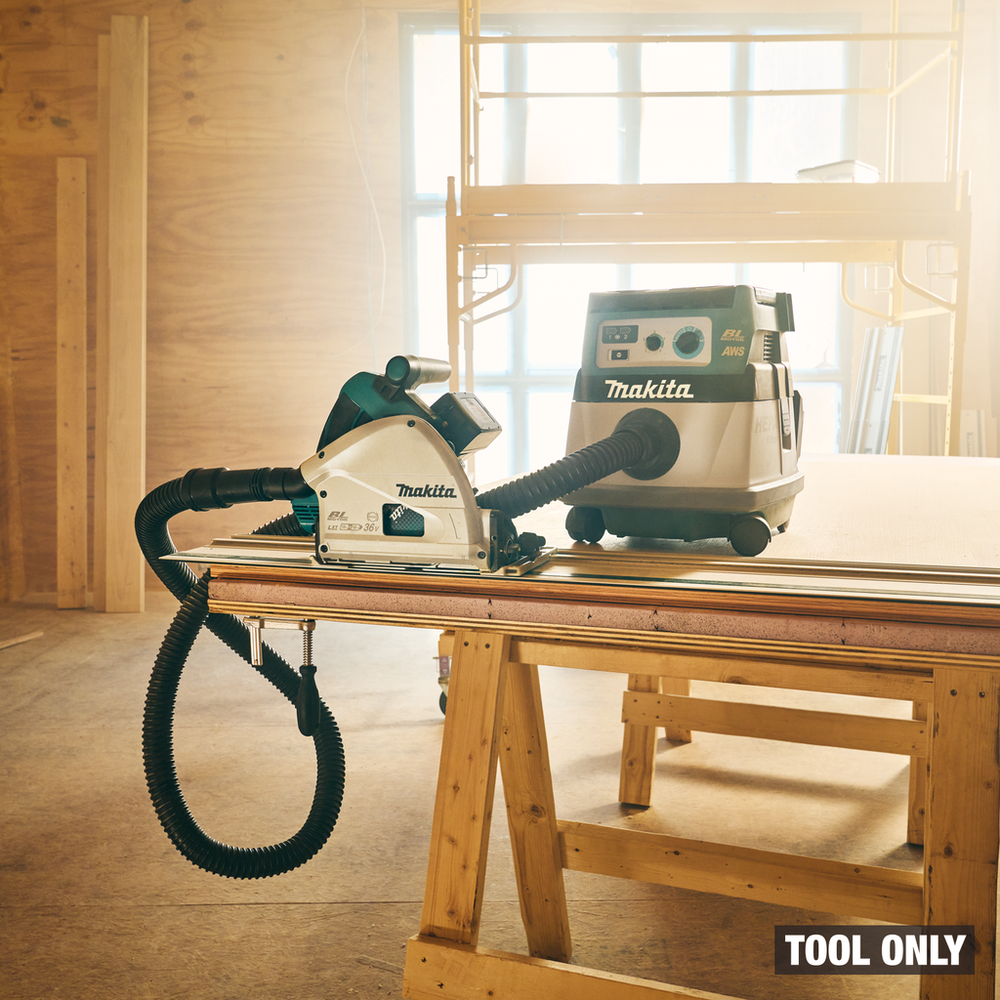

- Optional guide rail system interacts with the saw base to provide smooth, perfect, dead-on straight or bevel cutting

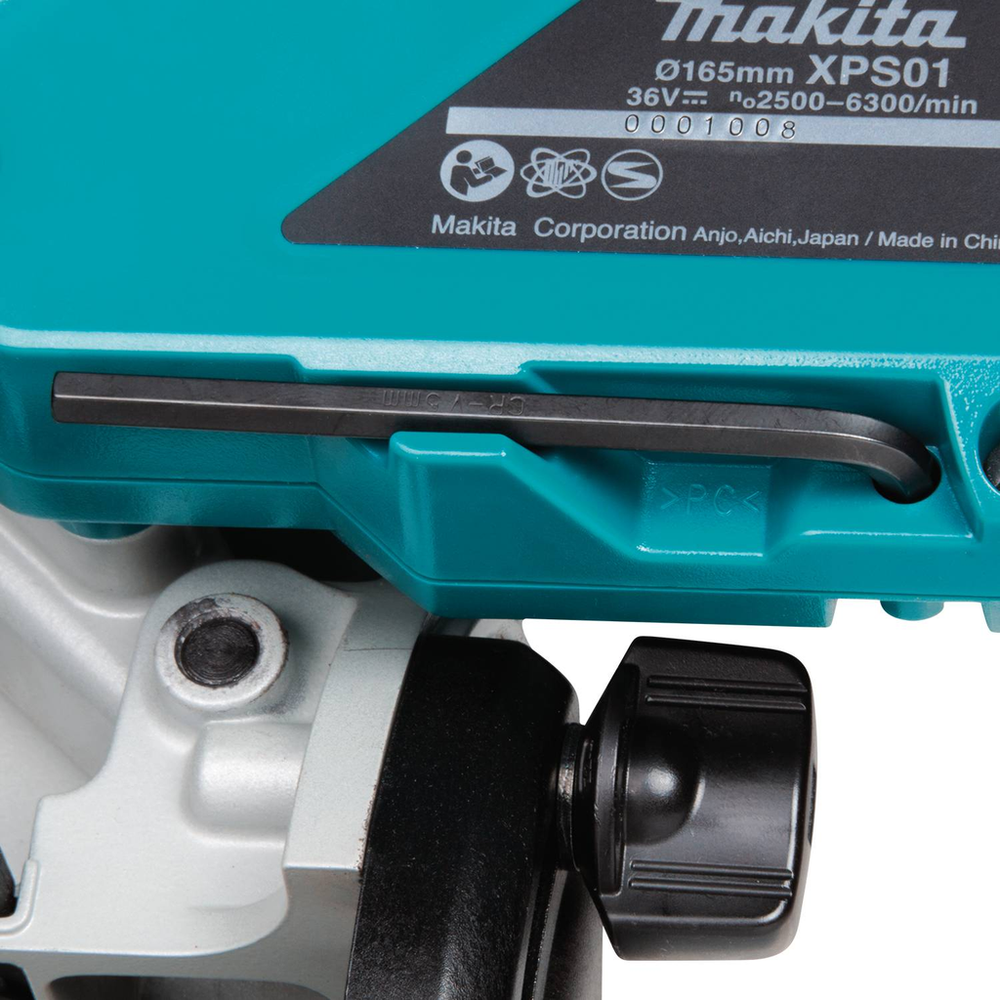

- On-board hex wrench for fast and easy blade changes
- Precise straight and 45º bevel cuts as the position of the blade enters the material on the same sight line when using a guide rail

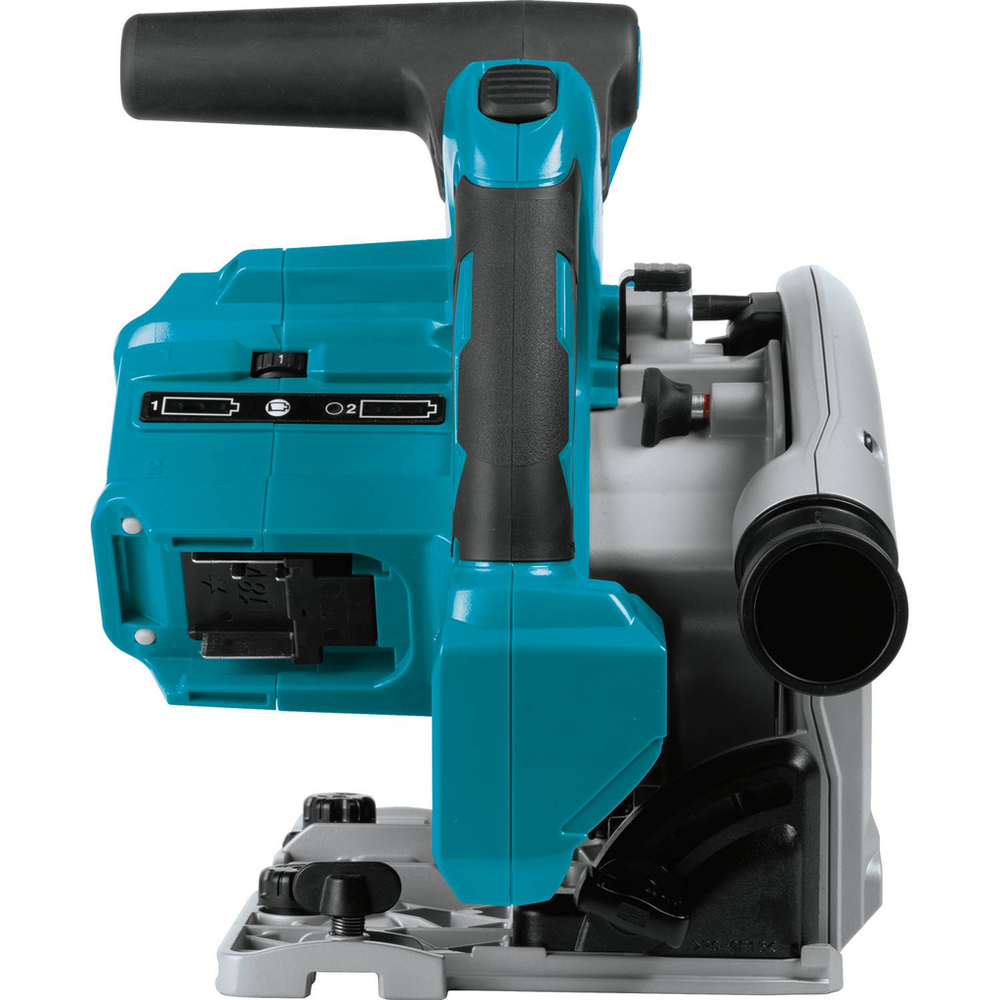

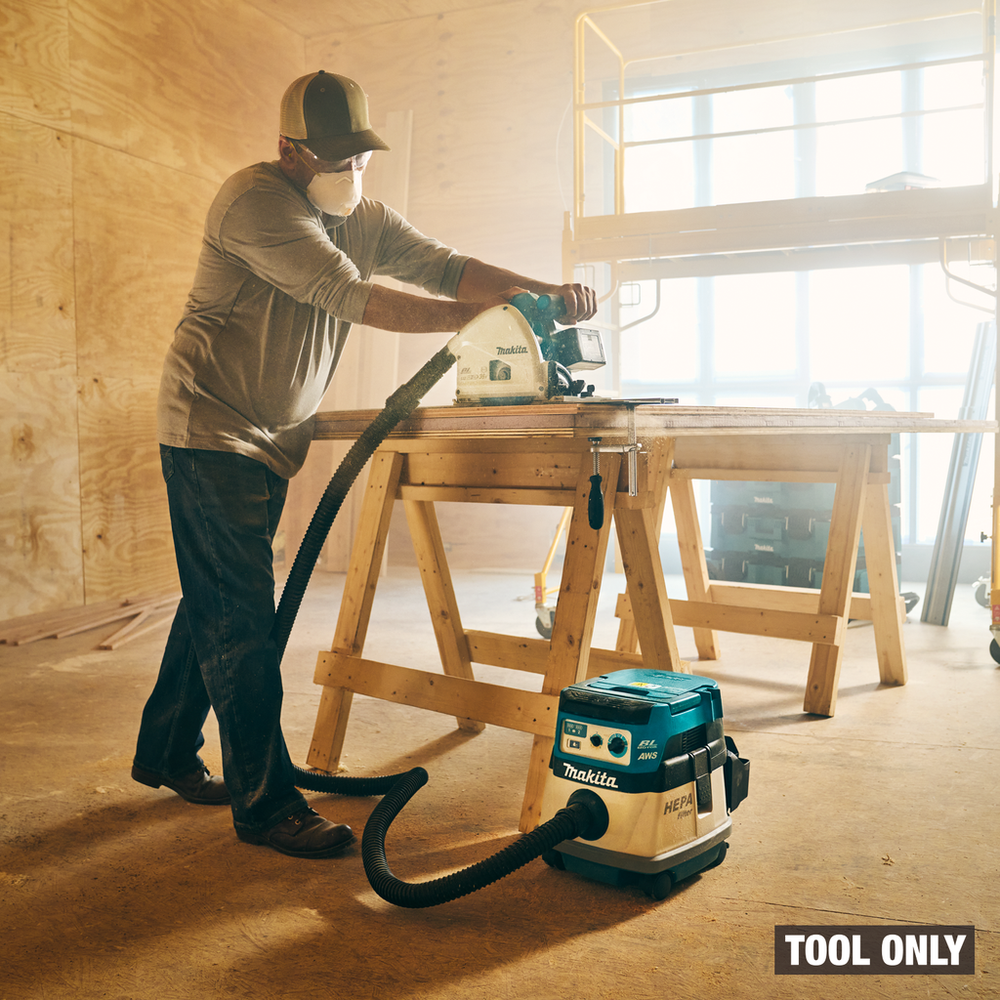

- Large 1-7/16" rear dust port directs material away from the operator and easily connects to a vacuum system

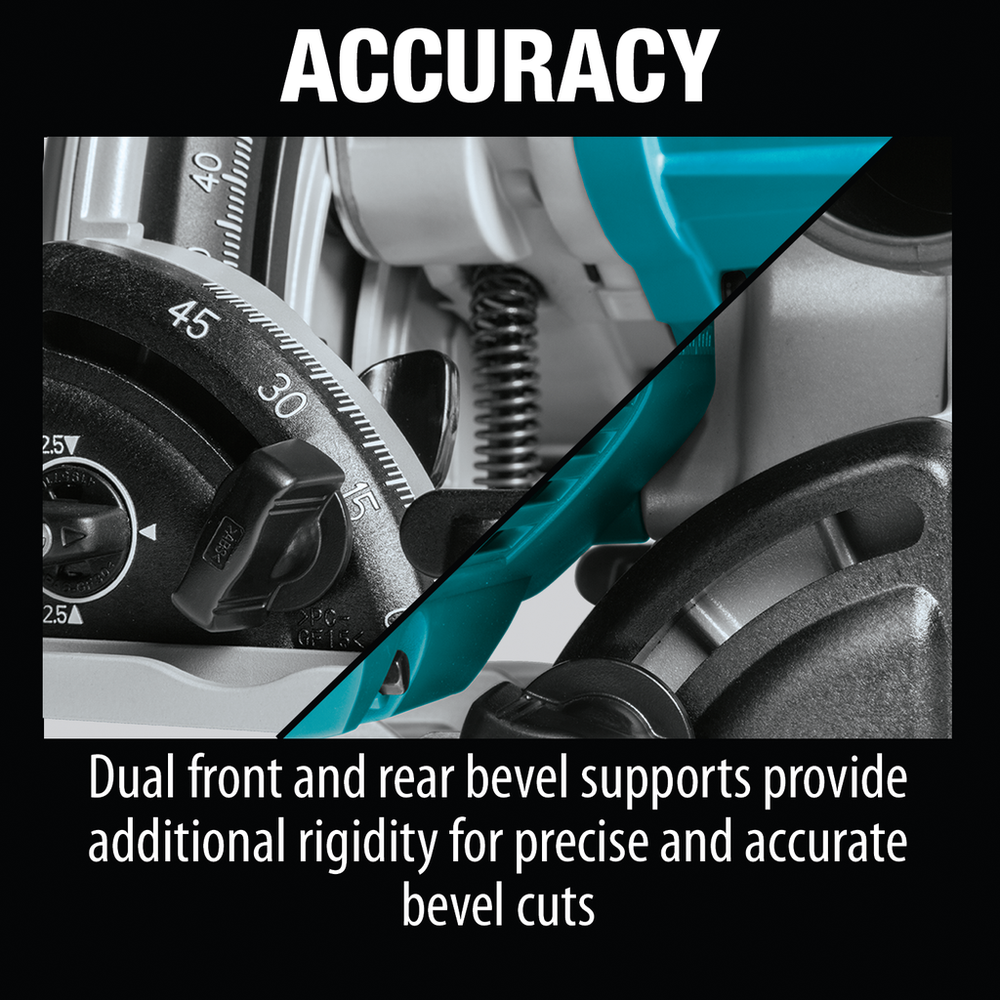

- ACCURACY - Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
- Easy-to-set depth adjustment with large scale
- Rubberized soft grip handle provides increased comfort on the job

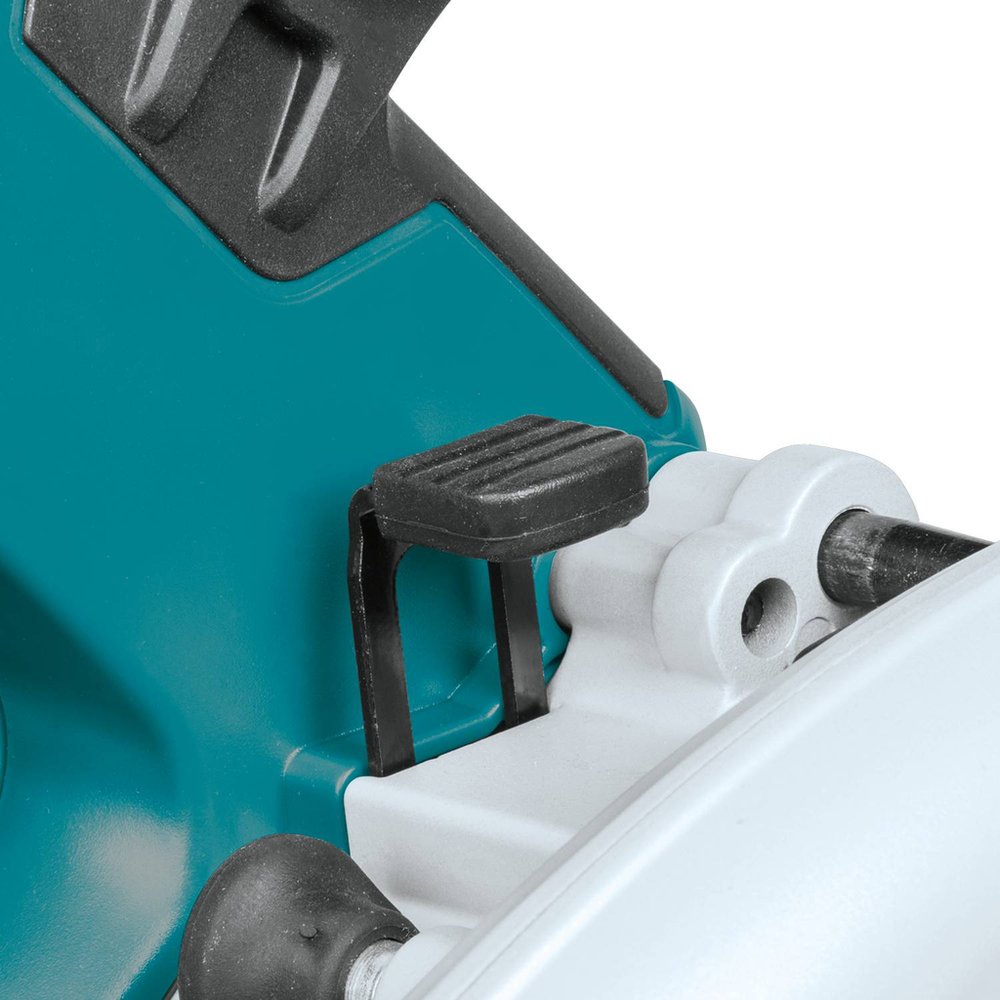

- Smooth and convenient plunge release lever for operator comfort
- Hex Wrench (783203-8)
- 6-1/2" C.T. Cordless Plunge Saw Blade, Wood, MDF, Lam.
- Close to the wall cutting (11/16") for expanded cutting applications

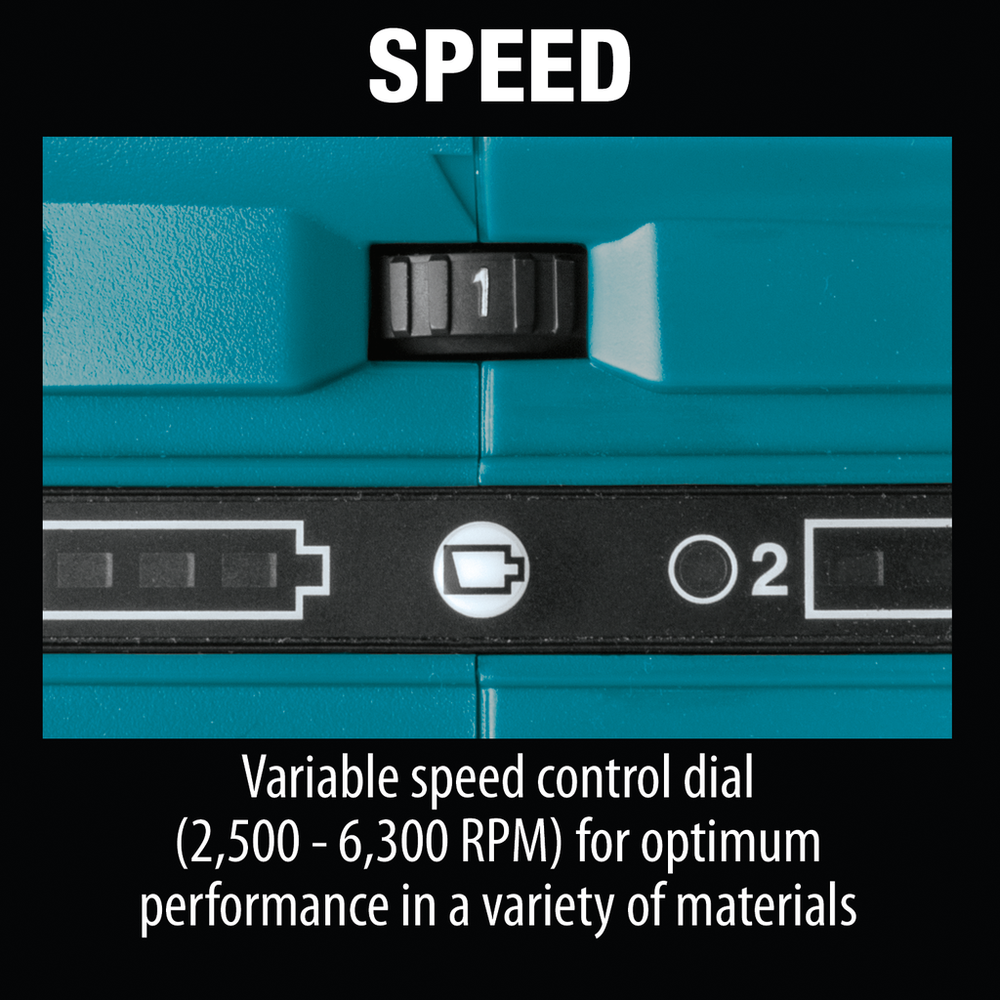

- Variable speed control dial (2,500 - 6,300 RPM) for optimum performance in a variety of materials
- Soft start feature for smooth start-ups
- Compact and ergonomic design at 13-5/8" long; weighs only 11.2 lbs. with batteries (batteries not included) for reduced operator fatigue
- X2 LXT® technology delivers up to 125 cuts per charge in 4x8 sheets of 1/2" plywood per charge using two 5.0Ah batteries
- CONTROL - Easy to set depth adjustment with large scale

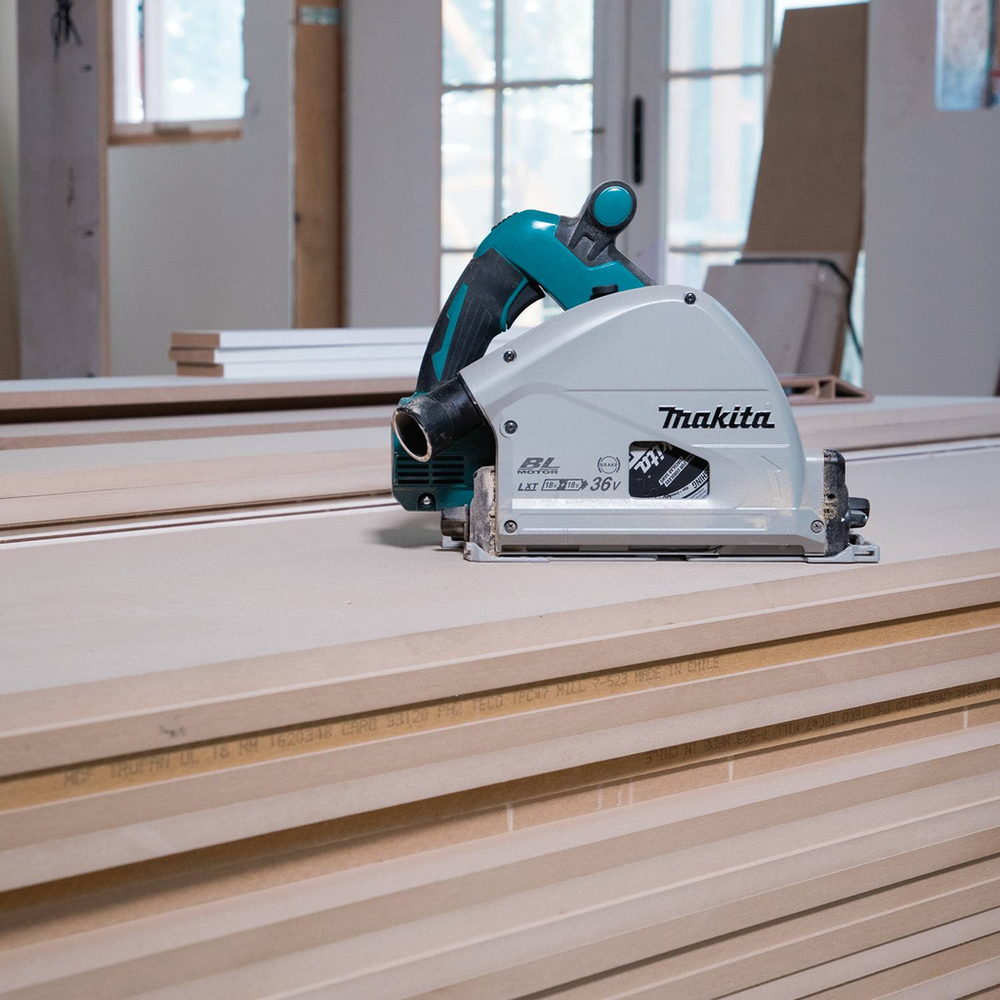

- Ideal for cutting large wood panels, other wood materials including melamine and MDF, aluminum, and Corian® with optional, material specific blades (includes wood blade, other blades sold separately)
- Powered by two LXT® batteries; X2 LXT® technology delivers more power, speed and run time without the hassles of a cord (batteries not included)
- Electronic speed control maintains constant speed under load for smooth cutting

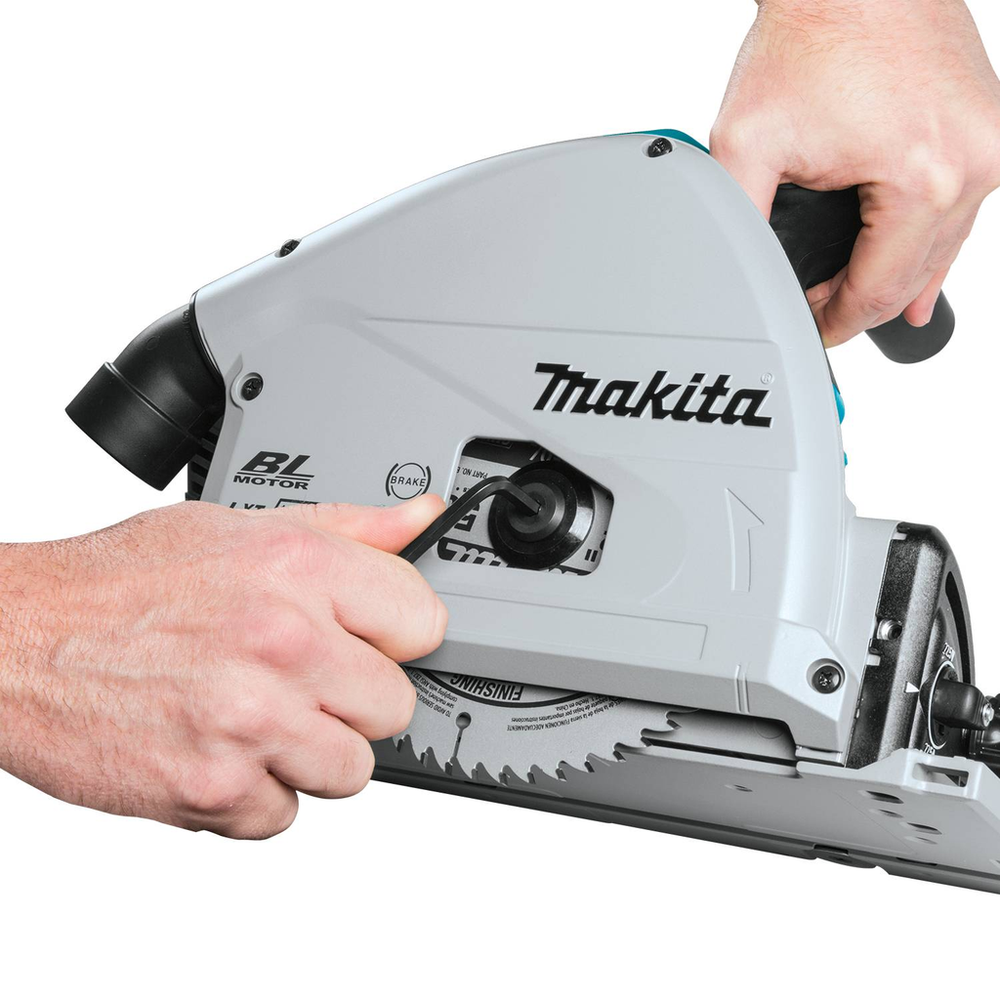

- Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
- Ideal for large wood panels, other wood materials like melamine and MDF, aluminum, and Corian® (includes wood blade, other blades sold separately)

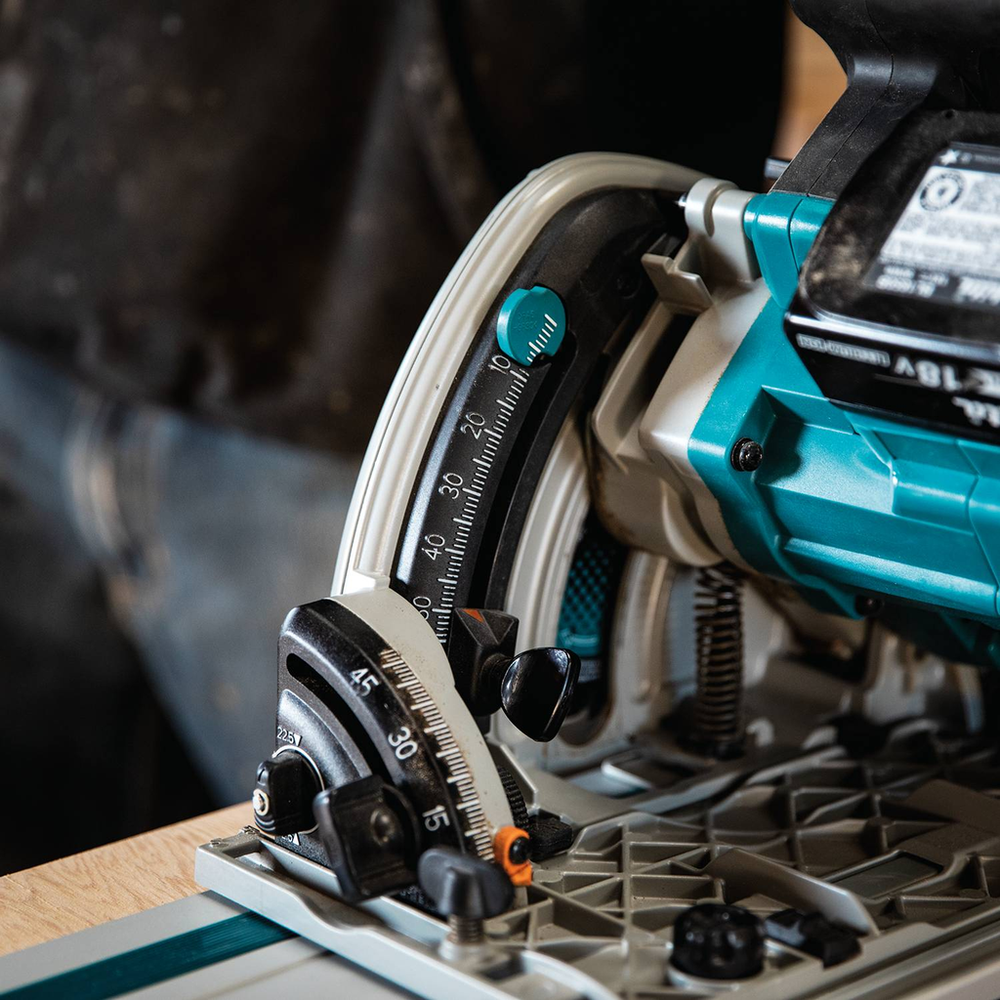

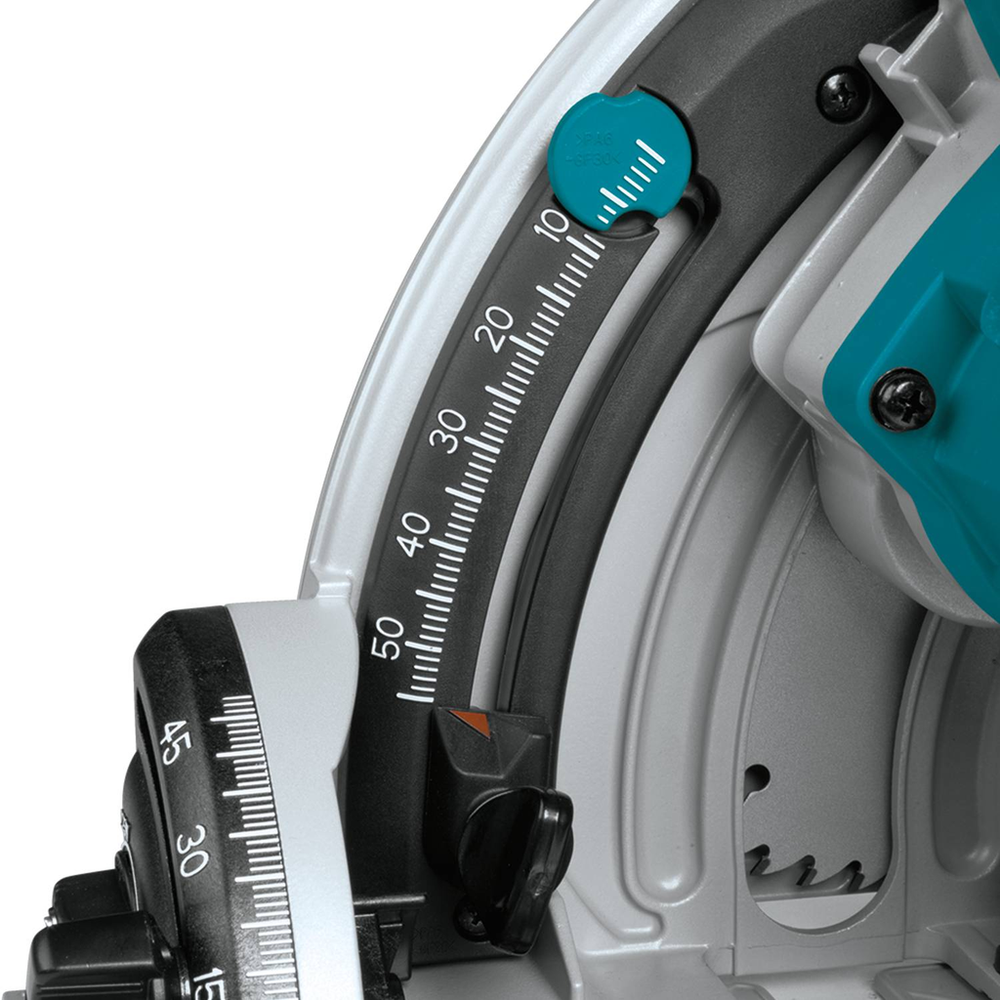

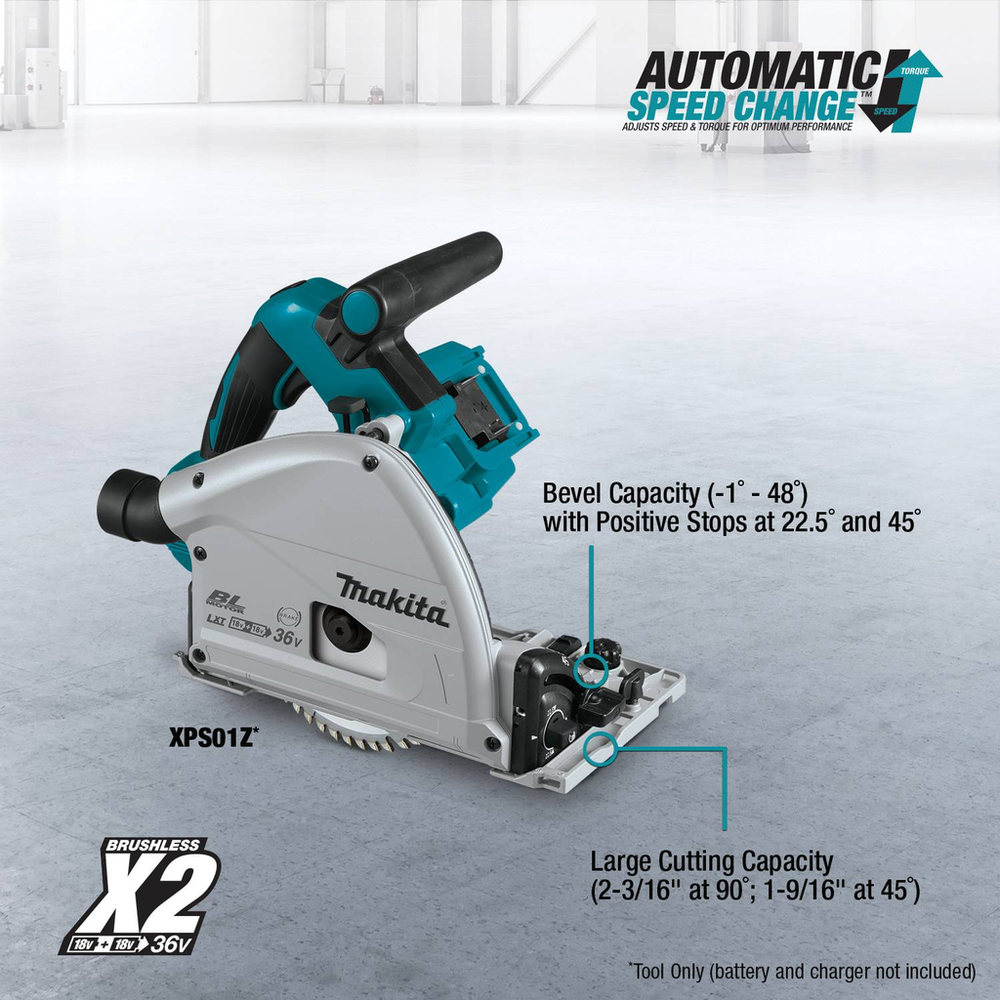

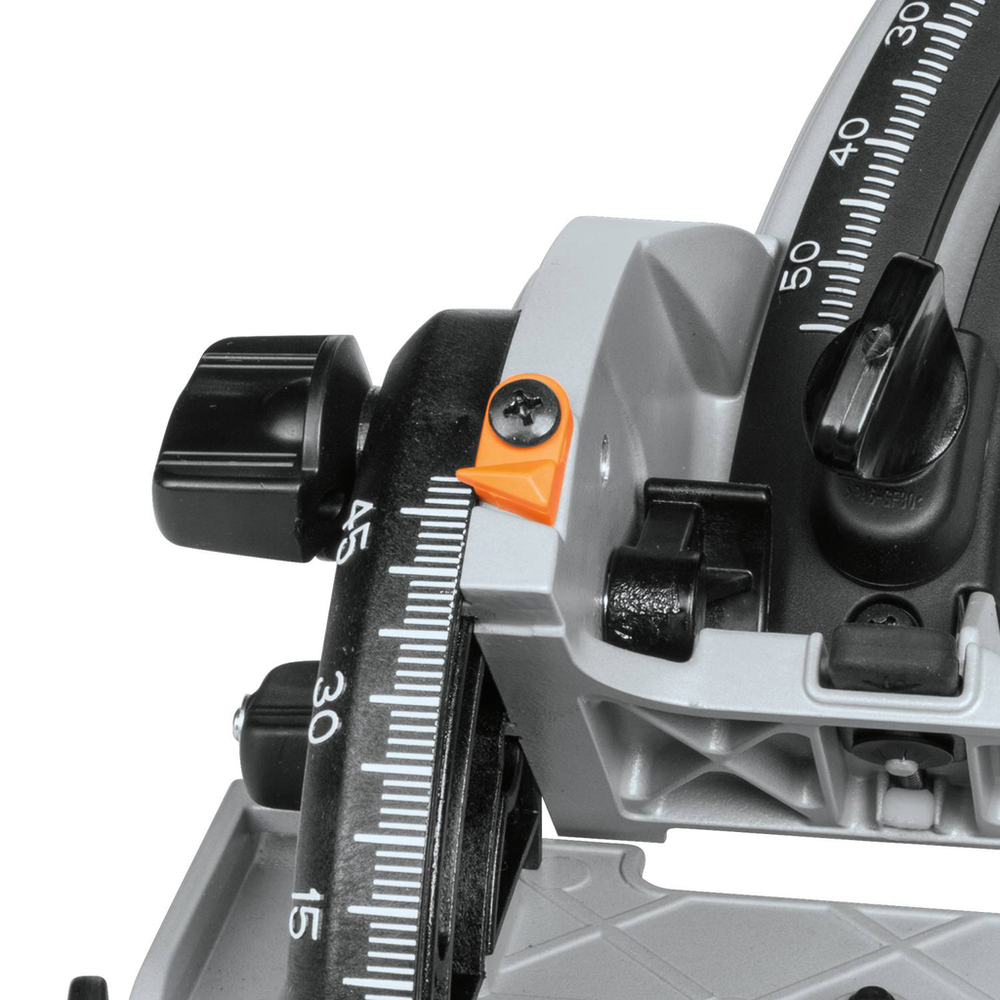

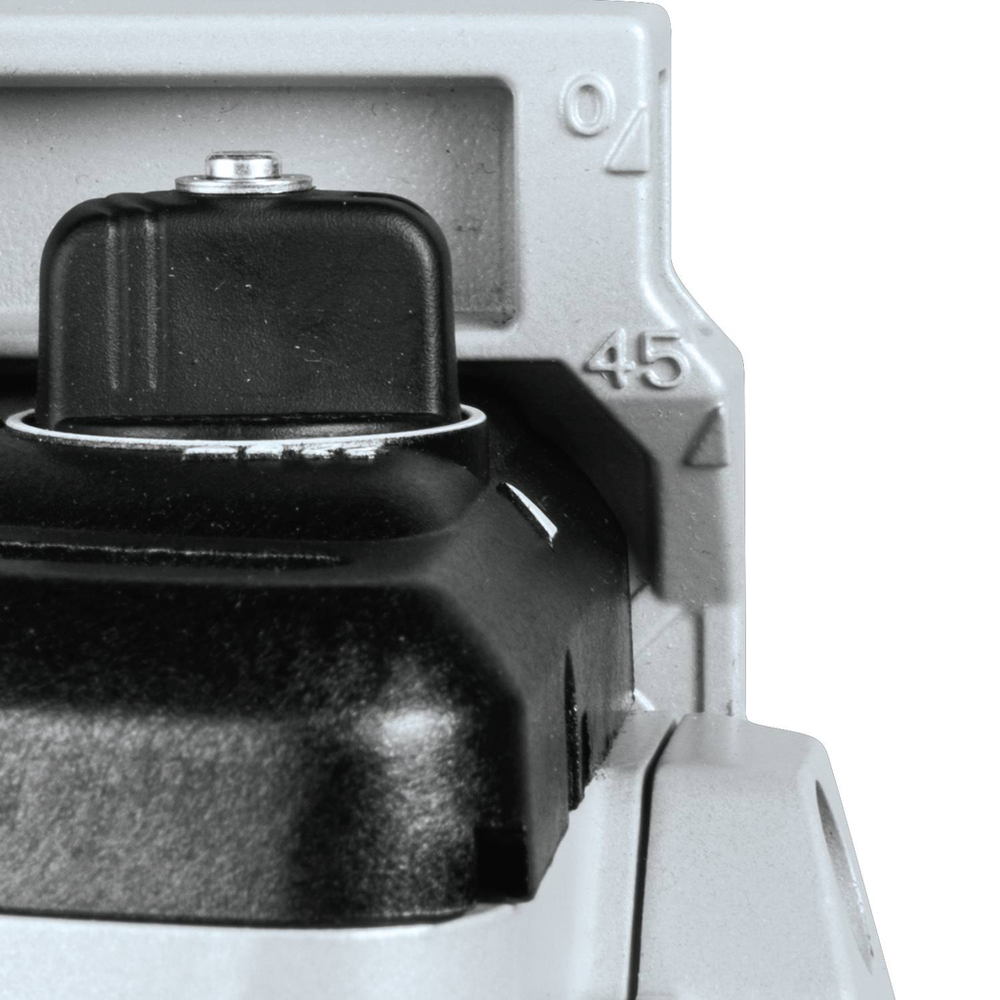

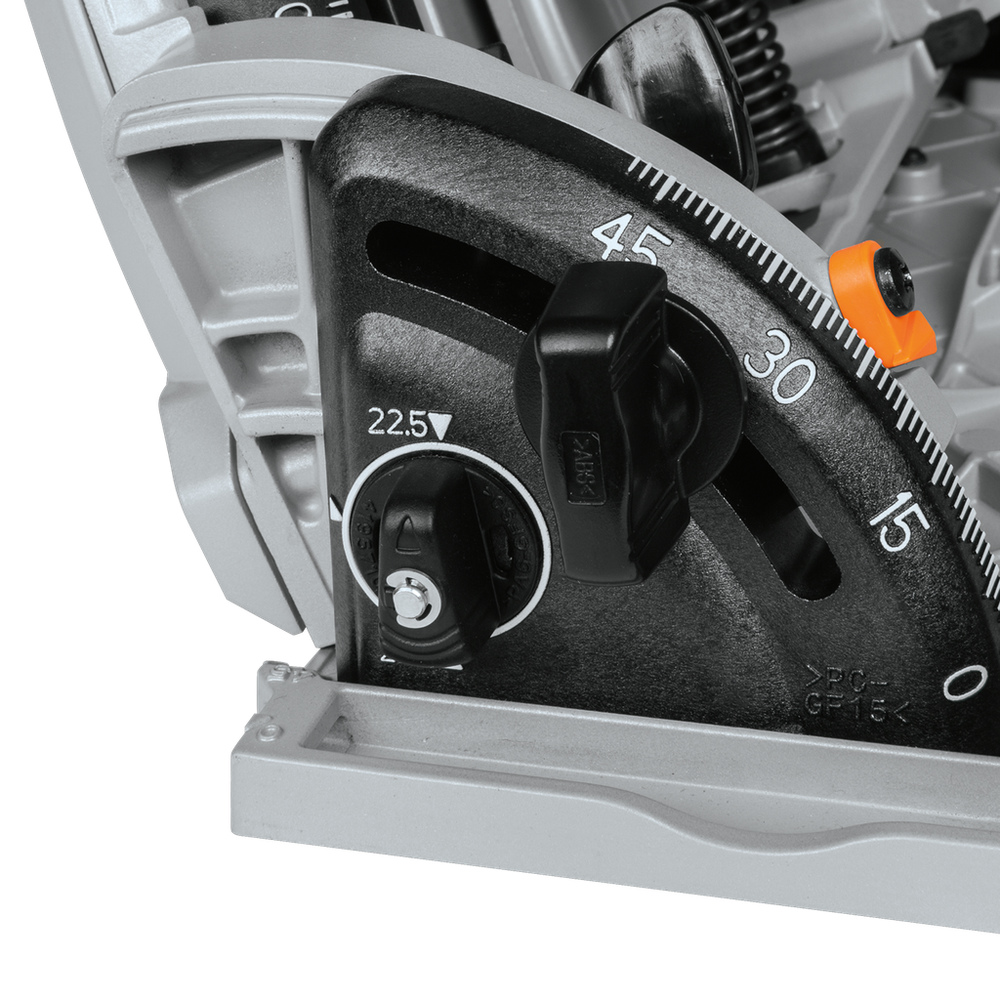

- Bevel capability (-1º to 48º) with positive stops at 22.5º and 45º
- SPEED - Variable speed control dial (2,500 - 6,300 RPM) for optimum performance in a variety of materials

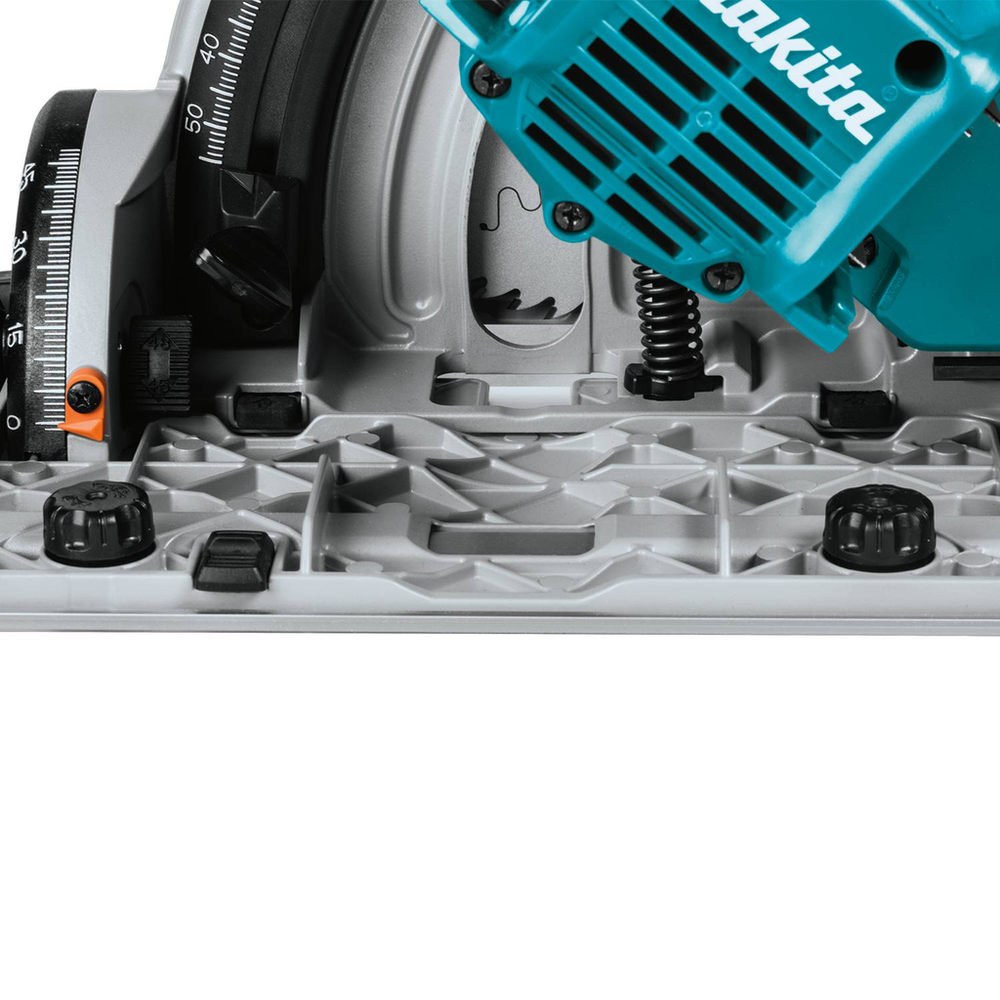

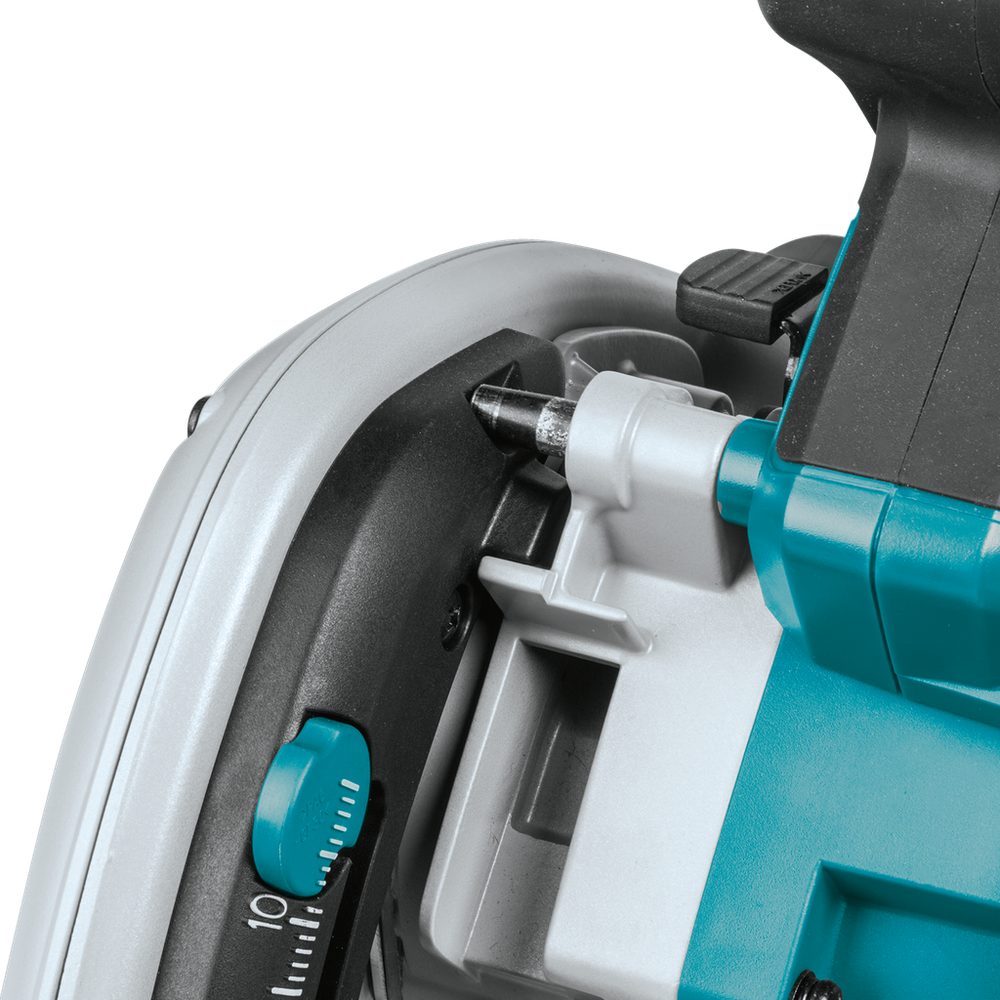

- Built-in depth stop allows a preliminary first cut of (5/64") 2mm to (7/64") 3mm to be performed prior to cutting through the entire material for clean and splinter-free cutting

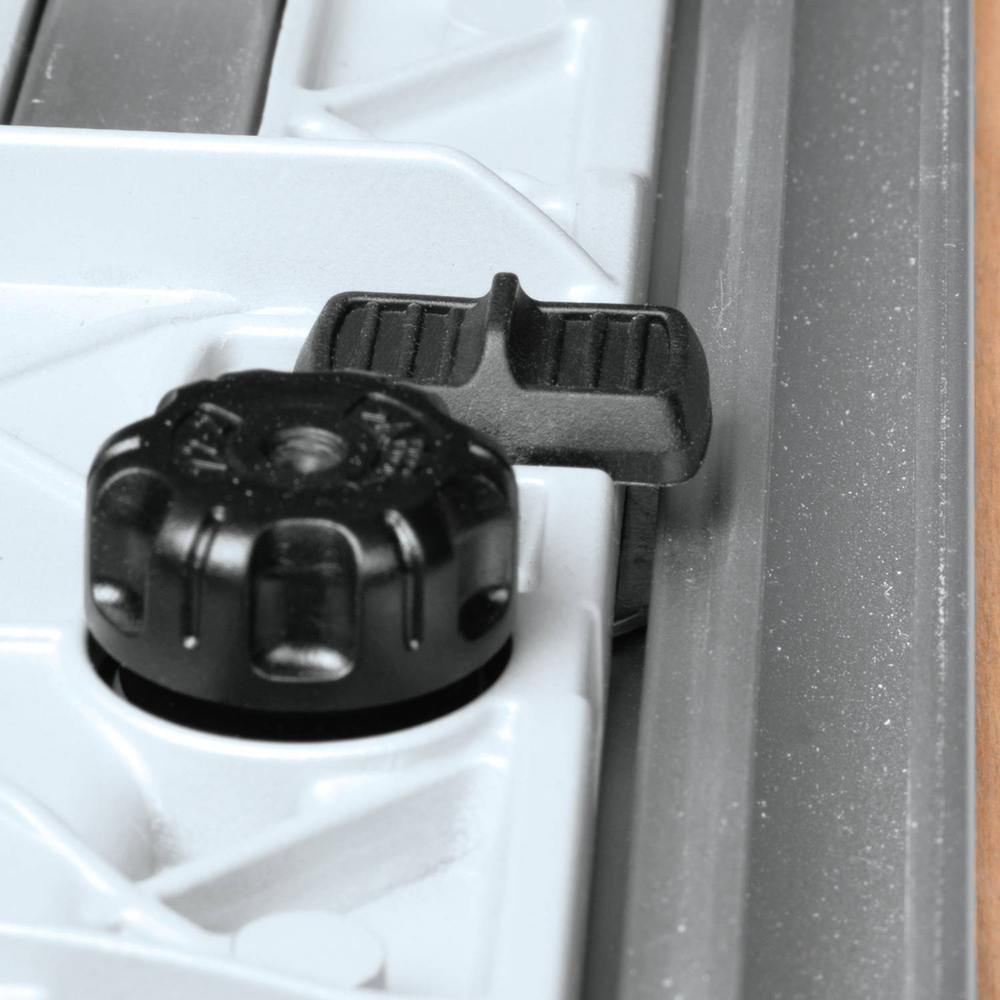

- DESIGN - Slide lever on base engages the guide rail (sold separately) when bevel cutting for stability
- Automatic Speed Change™ technology adjusts cutting speed and torque during cut for optimum performance

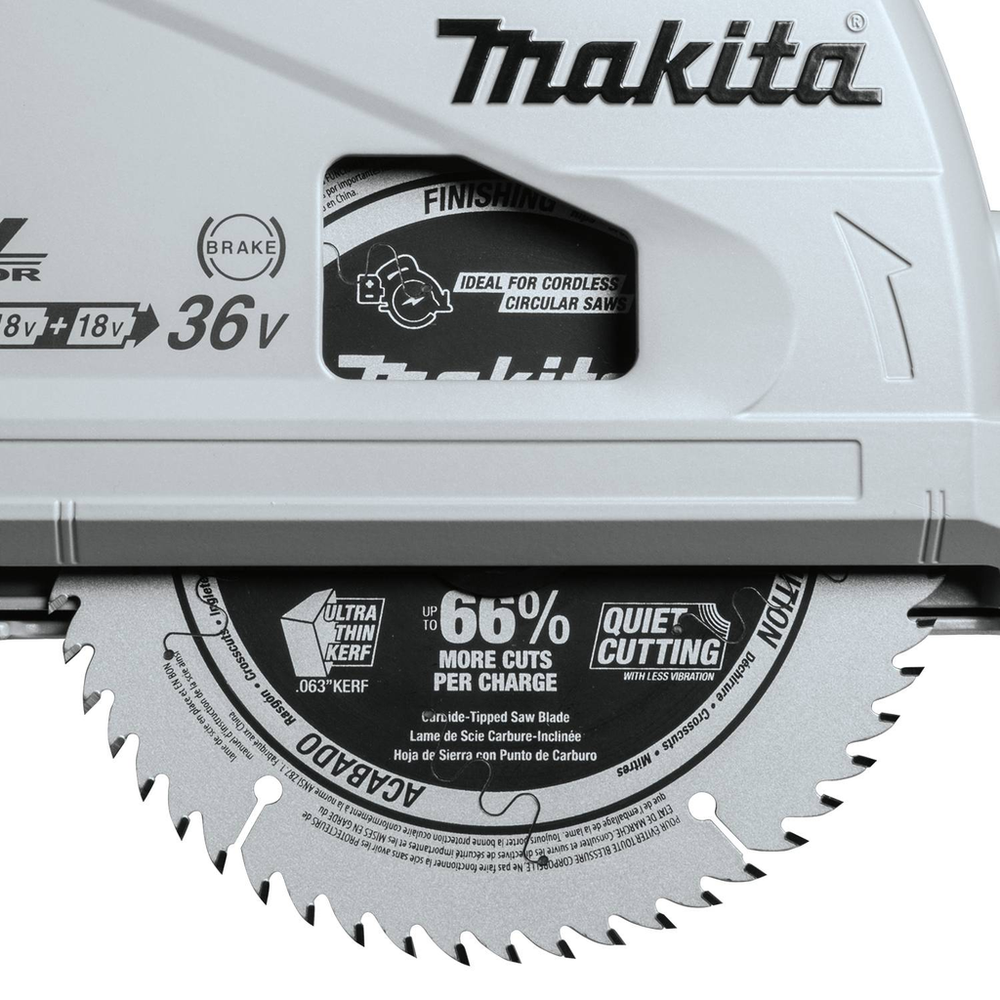

- Includes a premium 55 tooth ultra thin kerf carbide tipped saw blade (B-57071) ideal for cordless circular saws offering up to 66% more cuts per charge compared to our standard corded plunge saw blade (B-07353)
- Large cutting capacity (2-3/16" at 90º; and 1-9/16" at 45º)
- Built-in depth stop allows a preliminary first cut for clean and splinter-free cutting prior to the full cutting of sheet

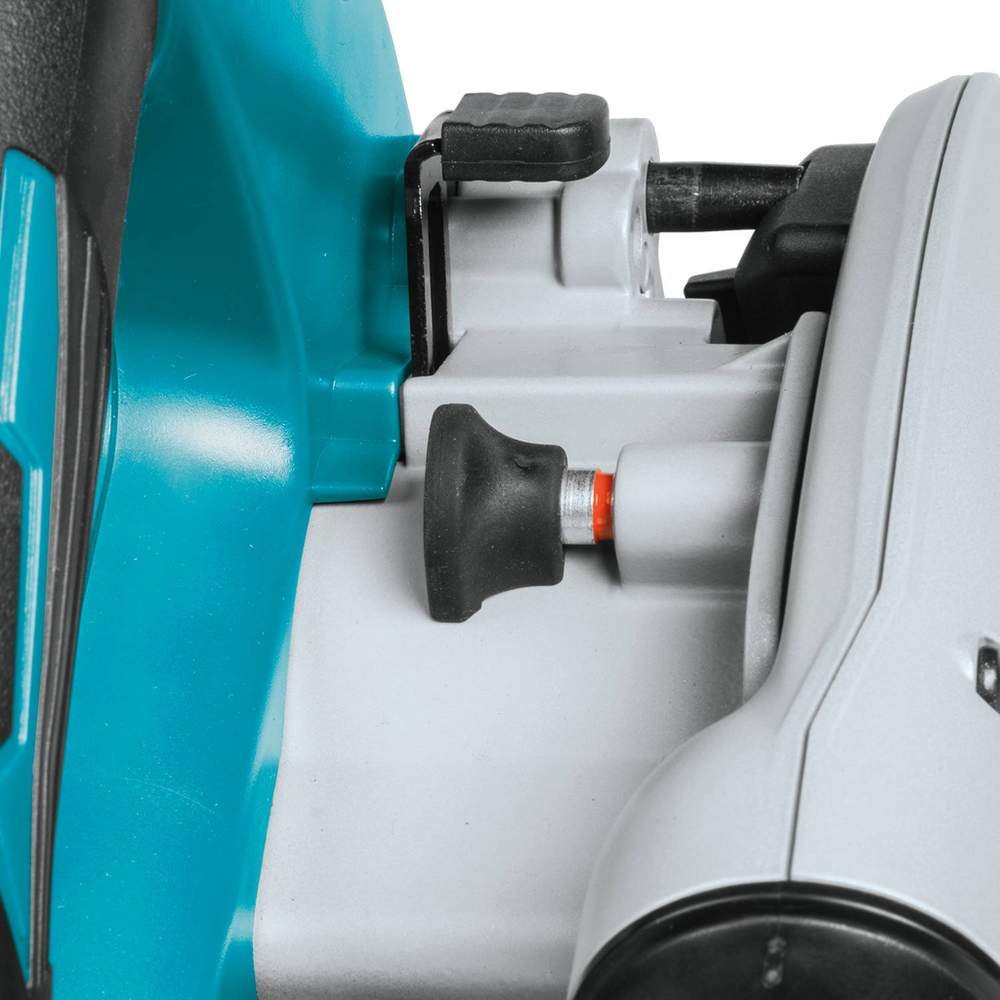

- Slide lever on saw base designed to engage the optional guide rail (sold separately) when bevel cutting for stability

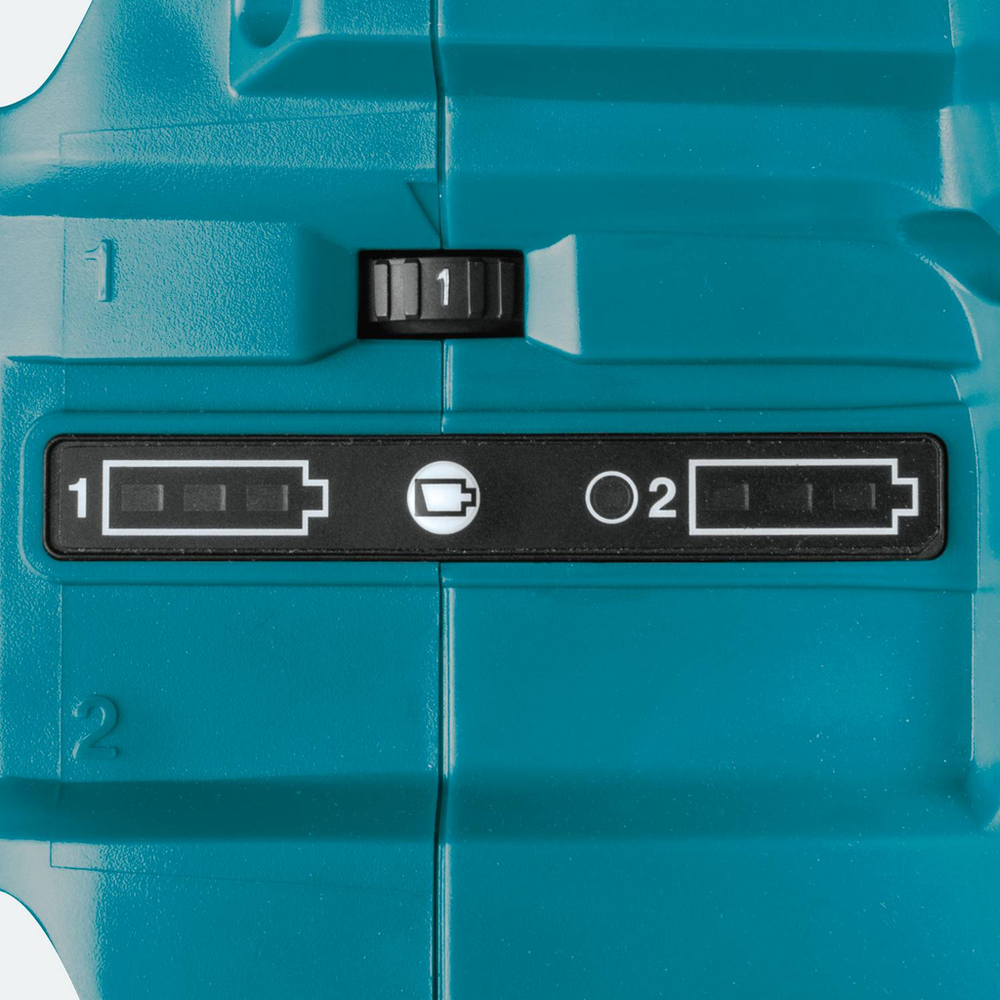

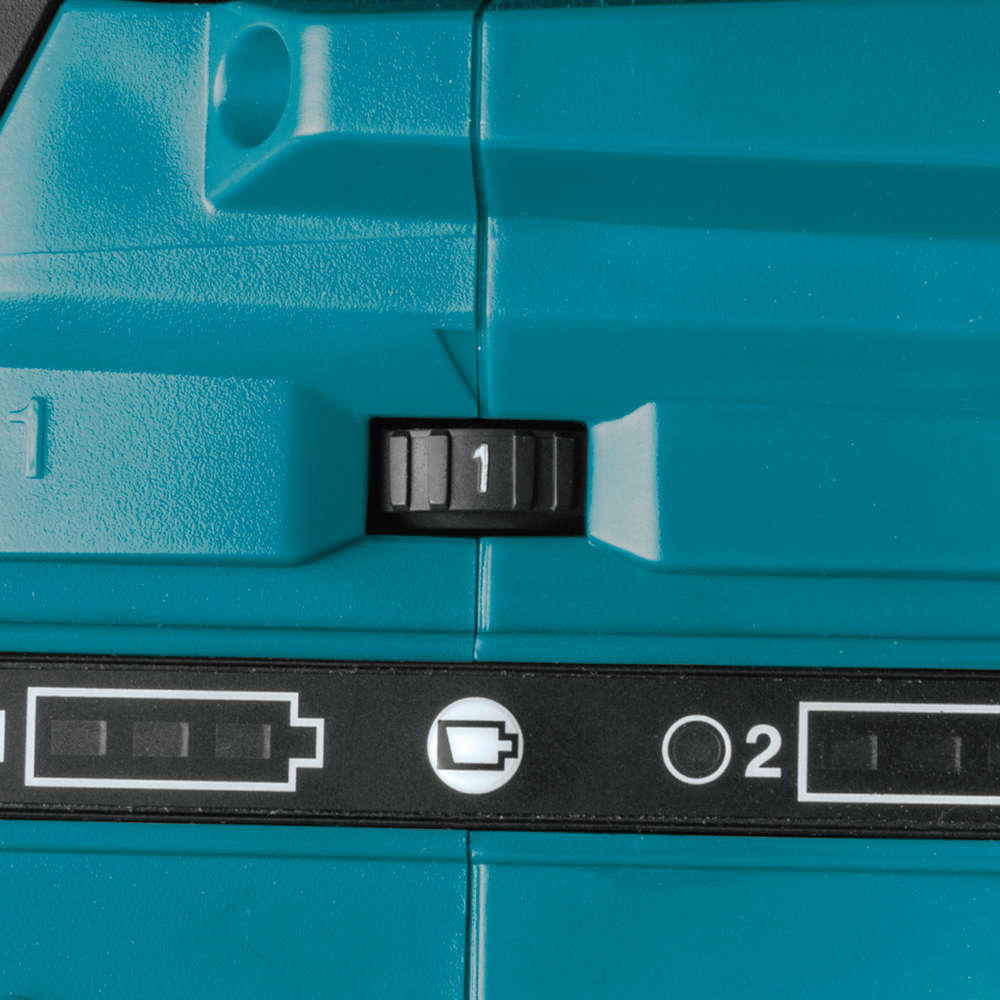

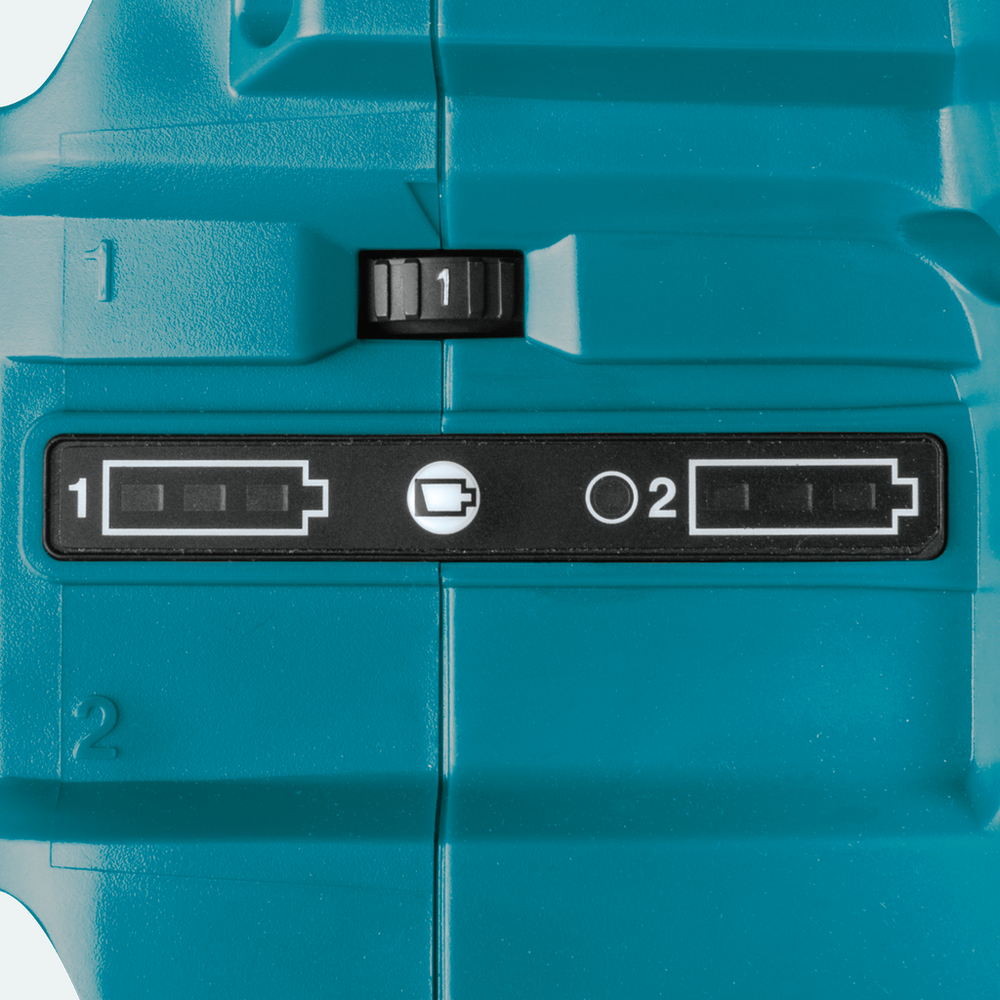

- 3-stage L.E.D. gauges indicate battery charge levels
- Electric brake for maximum productivity
- Makita built electronically controlled BL™ Brushless Motor delivers 6,300 RPM for maximum performance and 50% longer run time per charge
- INCLUDES - 55T carbide-tipped blade and wrench (batteries and charger not included)
