3M Products & Supplies

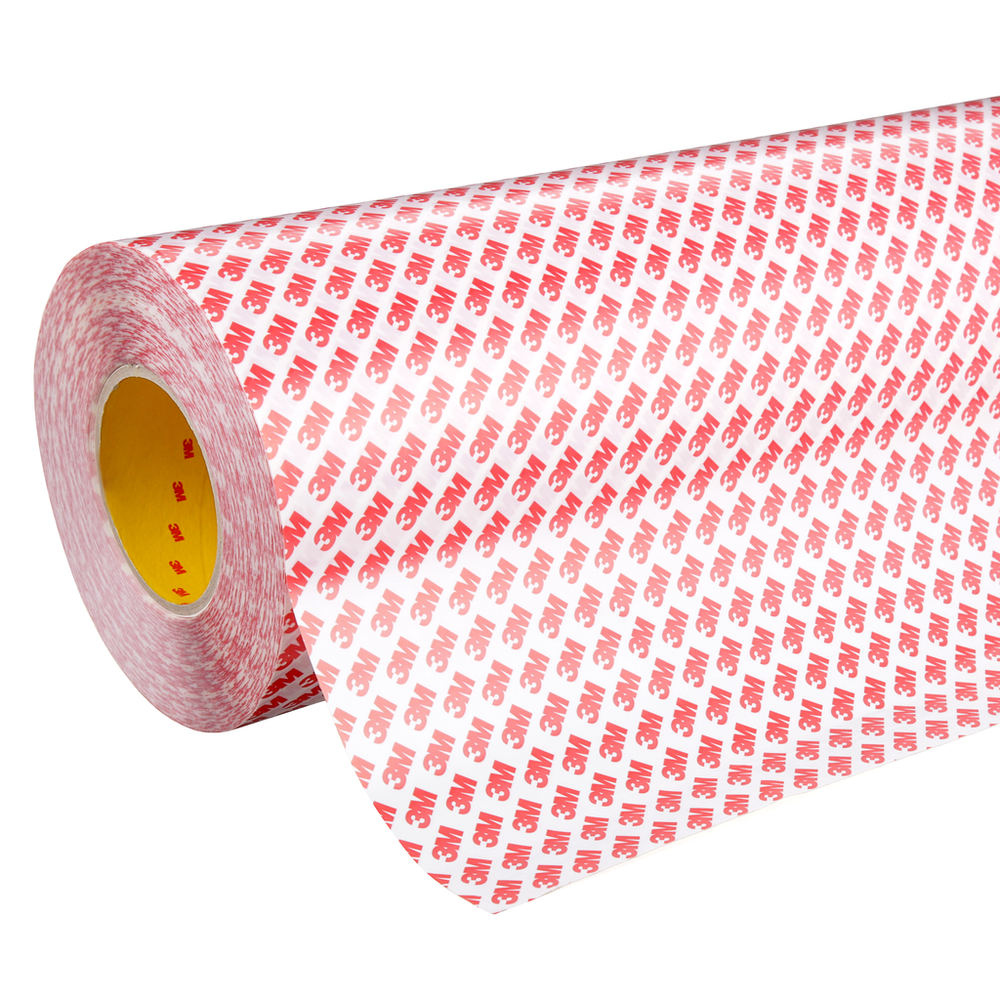

3M™ Double Coated Tape GPT-020F, Film liner, 1540mm x 500m, 1 Roll/Case - 7100369819

SKU: 7100369819
MPN: 7100369819
For an accurate lead time please contact us
UPC: 00068060760487
3M ID: UU013577752
$9,879.73 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape GPT-020F is an 8 mil (200 micron), high-tack, pressure-sensitive adhesive tape with a clear polyester carrier and robust polypropylene liner that offers clean handling. Ideal for automated processes and easy to convert due to the flexibility of the film, it bonds to a variety of high to low-surface energy materials, such as glass and stainless steel, while providing excellent humidity resistance. Combining a high level of peel and shear performance this general-use tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020F is suited for a wide range of purposes, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, paper bonding and packaging, splicing, furniture and decorative trim adhesion, and many more. The product is available with a size range of 12 mm to 1540 mm widths and 50 m long. Additionally, you can choose the 1540 mm width and 500 m long roll. Trust 3M™ Double Coated Tape GPT-020F for your next project.

Features

  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials
  • HUMIDITY RESISTANCE: Leveraging a polypropylene liner that withstands moisture (not applicable on the paper liner product)
  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with a white, 3.9 mil (100 micron) polypropylene liner that is ideal for automated processes
  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)
  • PRODUCT OPTIONS: Available in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long, as well as a 1540 mm width and 500 m long roll
  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more

Downloads

Specifications

Shelf Life547
Backing (Carrier) Thickness (Metric)0.012
Overall Width (Metric) UOMmm
Face Side Adhesive Thickness (Imperial)3.75
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Imperial) UOMmil
Country of OriginPoland
Face Side Adhesive Thickness (Metric)0.095
Backing (Carrier) Thickness (Imperial)0.47
Shelf Life UOMMonth
Maximum Operating Temperature (Celsius)149.0
Face Side Adhesive Thickness (Imperial) UOMmil
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Total Tape Thickness without Liner (Metric)0.2
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)1540.0
Primary Liner ColorWhite
Total Tape Thickness without Liner (Imperial)8.0
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.095
Maximum Operating Temperature (Fahrenheit)300.0
Primary Liner Thickness (Metric)0.1
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)500.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)546.8
Overall Length (Metric) UOMm
Units per Case1.0
Minimum Operating Temperature (Celsius)-40.0
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
Product ColorTransparent
Face Side Adhesive Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) MaterialPET
Overall Width (Imperial) UOMin
Indoor/OutdoorIndoor/Outdoor
Overall Width (Imperial)60.6
Primary Liner Thickness (Imperial)3.9
Back Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
Adhesive TypeModified Acrylic
Minimum Operating Temperature (Fahrenheit)-40.0
Back Side Adhesive Thickness (Imperial)3.75
Backing (Carrier) Thickness (Imperial) UOMmil
