3M Products & Supplies

3M™ Double Coated Tape GPT-020, Paper Liner, 1540mm x 500m, 1 Roll/Case - 7100369920

SKU: 7100369920
MPN: 7100369920
For an accurate lead time please contact us
UPC: 00068060760425
3M ID: UU013578453
$9,879.92 each
Hurry up! Current stock:

Product Description

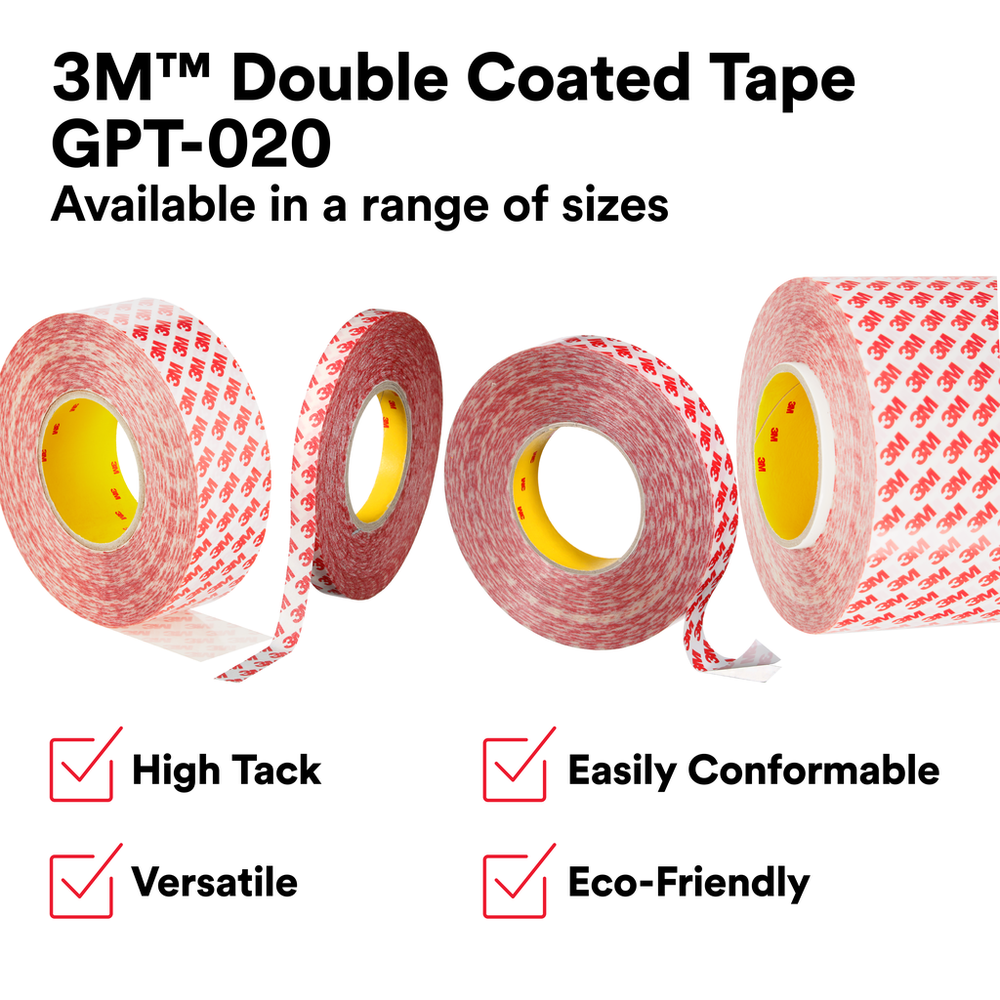

3M™ Double Coated Tape GPT-020 is an 8 mil (200 micron), versatile, double-coated, pressure-sensitive adhesive tape made with a clear polyester carrier and white PCK liner with a red 3M™ logo. Because of the conformability of the film, it bonds to a variety of high to low-surface energy materials, such as stainless steel, acrylic, polycarbonate, aluminum, and more. Thanks to the formulation, this high tack tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020 can be used for a wide range of indoor and outdoor applications in various industries, such as automotive, electronics, transportation, manufacturing, and many more. For your convenience, the product is offered in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long. Additionally, you can choose the 1540 mm width and 500 m long roll. Trust 3M™ Double Coated Tape GPT-020 for your next project.

Features

  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more

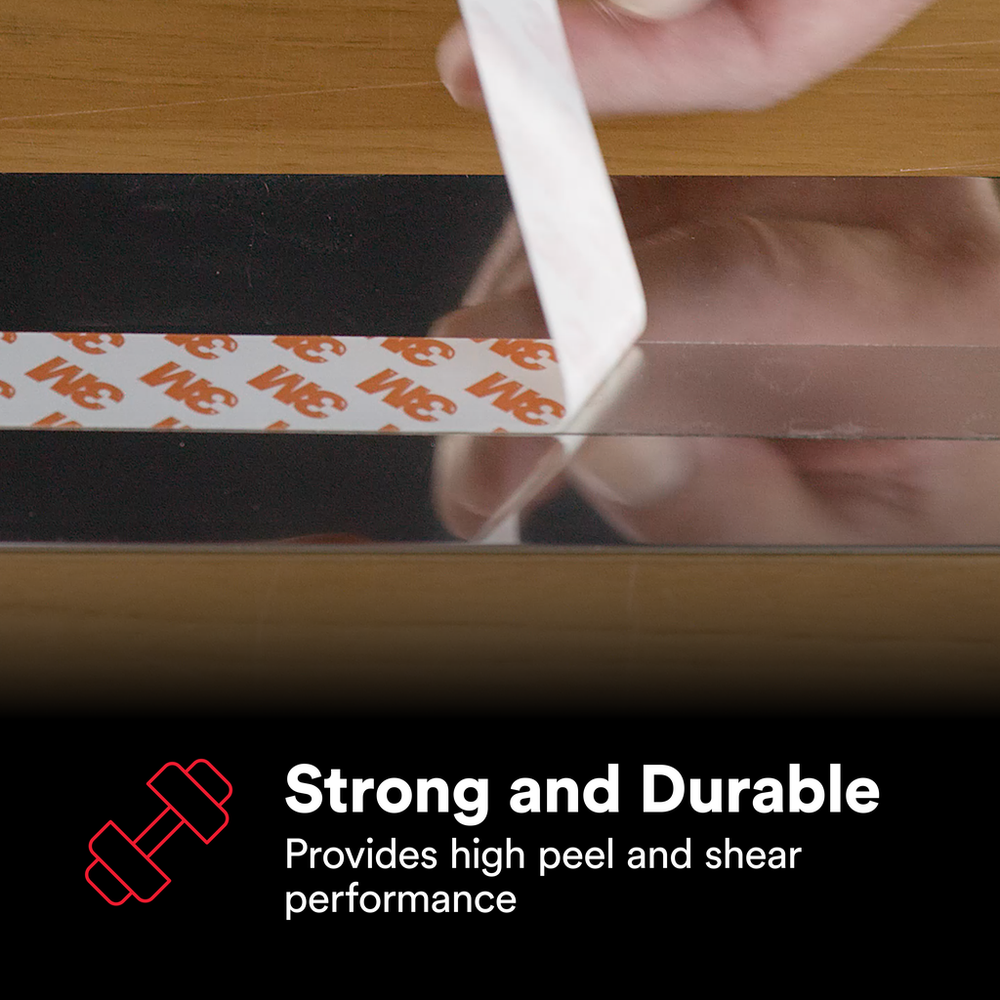

  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials
  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with a white, 3.9 mil (100 micron) polycoated kraft (PCK - 58#) liner.
  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)

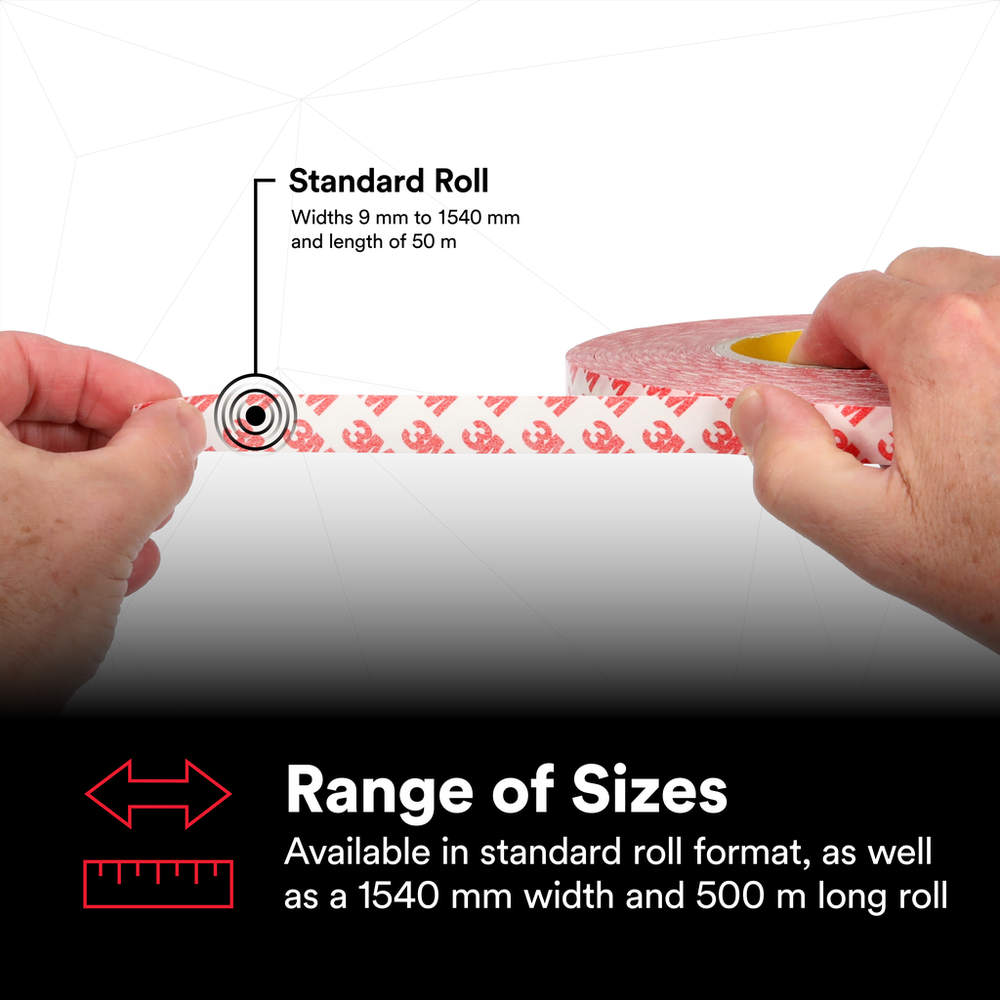

  • PRODUCT OPTIONS: Available in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long, as well as a 1540 mm width and 500 m long roll
Spec Sheet



Downloads

Specifications

Shelf Life547
Total Tape Thickness without Liner (Metric)0.2
Maximum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Metric) UOMmm
Number of Adhesive SidesDouble-sided
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialPET
Backing (Carrier) Thickness (Metric)0.012
Backing (Carrier) Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.1
Minimum Operating Temperature (Fahrenheit)-40.0
Back Side Adhesive Thickness (Imperial) UOMmil
Product ColorTransparent
Shelf Life UOMMonth
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
Country of OriginPoland
Adhesive TypeModified Acrylic
Face Side Adhesive Thickness (Imperial)3.75
Minimum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Metric)0.095
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Imperial)3.9
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)149.0
Overall Length (Metric)500.0
Maximum Operating Temperature (Fahrenheit)300.0
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Units per Case1.0
Total Tape Thickness without Liner (Imperial)8.0
Primary Liner58# Polycoated Kraft Paper (PCK)
Overall Width (Imperial)60.6
Overall Width (Metric)1540.0
Primary Liner Thickness (Imperial) UOMmil
Indoor/OutdoorIndoor/Outdoor
Backing (Carrier) Thickness (Imperial)0.47
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Back Side Adhesive Thickness (Imperial)3.75
Face Side Adhesive Thickness (Metric)0.095
Primary Liner ColorWhite
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)546.8
Back Side Adhesive Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
