3M Products & Supplies

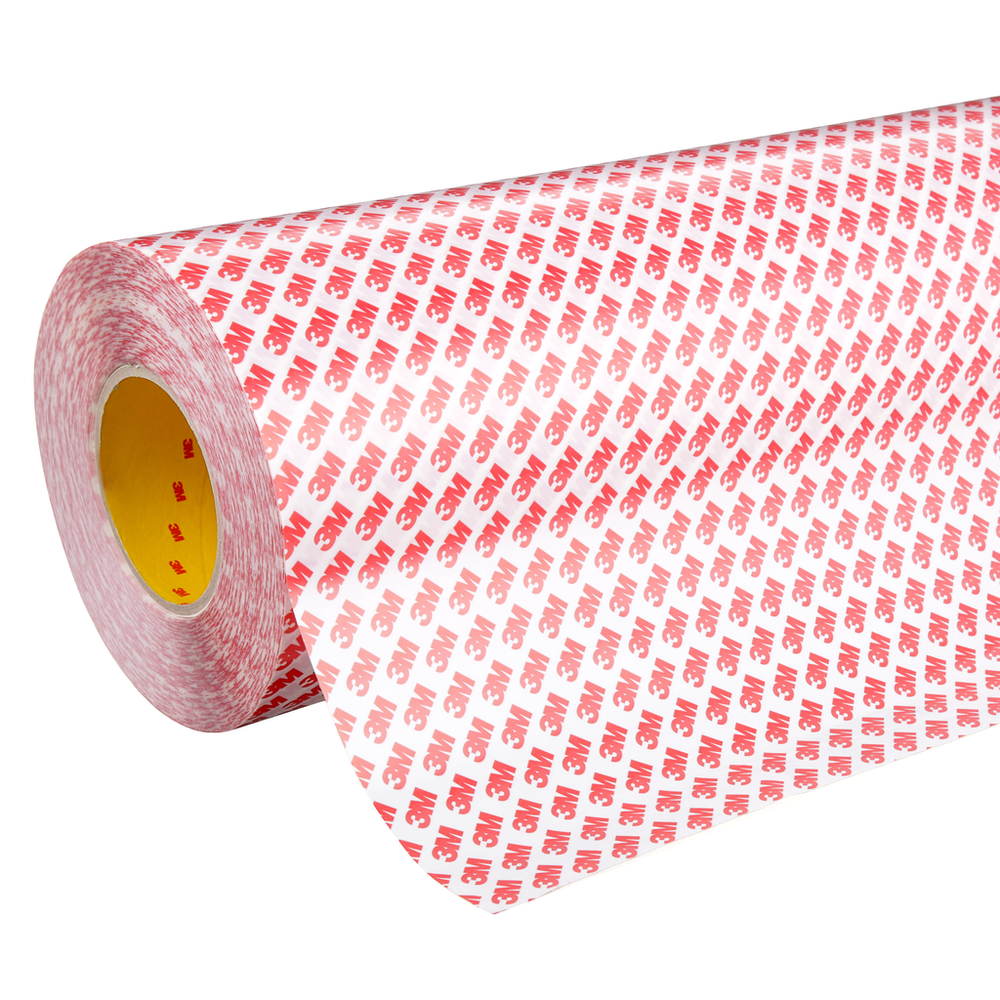

3M™ Double Coated Tape, GPT-020, Paper Liner,1540mm x 230m, 1 Roll/Case - 7100395145

SKU: 7100395145
MPN: 7100395145
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060764676
3M ID: UU014159998
$4,544.67 each
Hurry up! Current stock:

Product Description

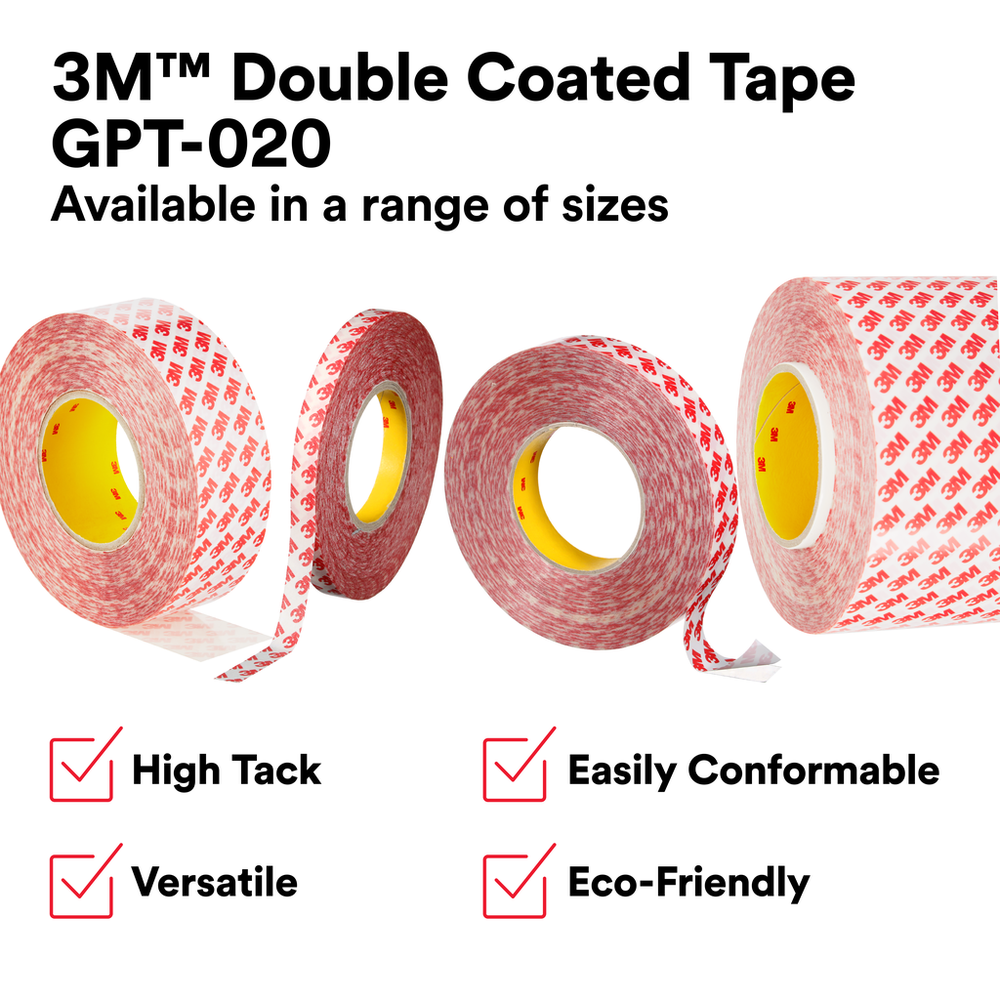

3M™ Double Coated Tape GPT-020 is an 8 mil (200 micron), versatile, double-coated, pressure-sensitive adhesive tape made with a clear polyester carrier and white PCK liner with a red 3M™ logo. Because of the conformability of the film, it bonds to a variety of high to low-surface energy materials, such as stainless steel, acrylic, polycarbonate, aluminum, and more. Thanks to the formulation, this high tack tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020 can be used for a wide range of indoor and outdoor applications in various industries, such as automotive, electronics, transportation, manufacturing, and many more. For your convenience, the product is offered in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long. Additionally, you can choose the 1540 mm width and 500 m long roll. Trust 3M™ Double Coated Tape GPT-020 for your next project.

Features

  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more
  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with a white, 3.9 mil (100 micron) polycoated kraft (PCK - 58#) liner.
  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)
  • PRODUCT OPTIONS: Available in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long, as well as a 1540 mm width and 500 m long roll
  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials
Spec Sheet



Downloads

Specifications

Shelf Life547
Maximum Operating Temperature (Celsius) UOMDegree
Country of OriginPoland
Overall Length (Metric) UOMm
Face Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.012
Overall Width (Imperial)60.6
Maximum Operating Temperature (Celsius)149.0
Back Side Adhesive Thickness (Metric)0.095
Maximum Operating Temperature (Fahrenheit)300.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Back Side Adhesive Thickness (Imperial)3.75
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Metric)230.0
Overall Width (Imperial) UOMin
Product ColorTransparent
Primary Liner Thickness (Imperial)3.9
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeModified Acrylic
Face Side Adhesive Thickness (Metric)0.095
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Total Tape Thickness without Liner (Metric)0.2
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Shelf Life UOMMonth
Primary Liner Thickness (Metric)0.1
Overall Width (Metric) UOMmm
Face Side Adhesive Thickness (Metric) UOMmm
Overall Width (Metric)1540.0
Back Side Adhesive Thickness (Imperial) UOMmil
Units per Case1.0
Primary Liner ColorWhite
Total Tape Thickness without Liner (Imperial)8.0
Backing (Carrier) Thickness (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Backing (Carrier) Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial)3.75
Number of Adhesive SidesDouble-sided
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialPET
Overall Length (Imperial)251.5
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)0.47
Overall Length (Imperial) UOMyd
Primary Liner58# Polycoated Kraft Paper (PCK)
Primary Liner Thickness (Metric) UOMmm
