3M Products & Supplies

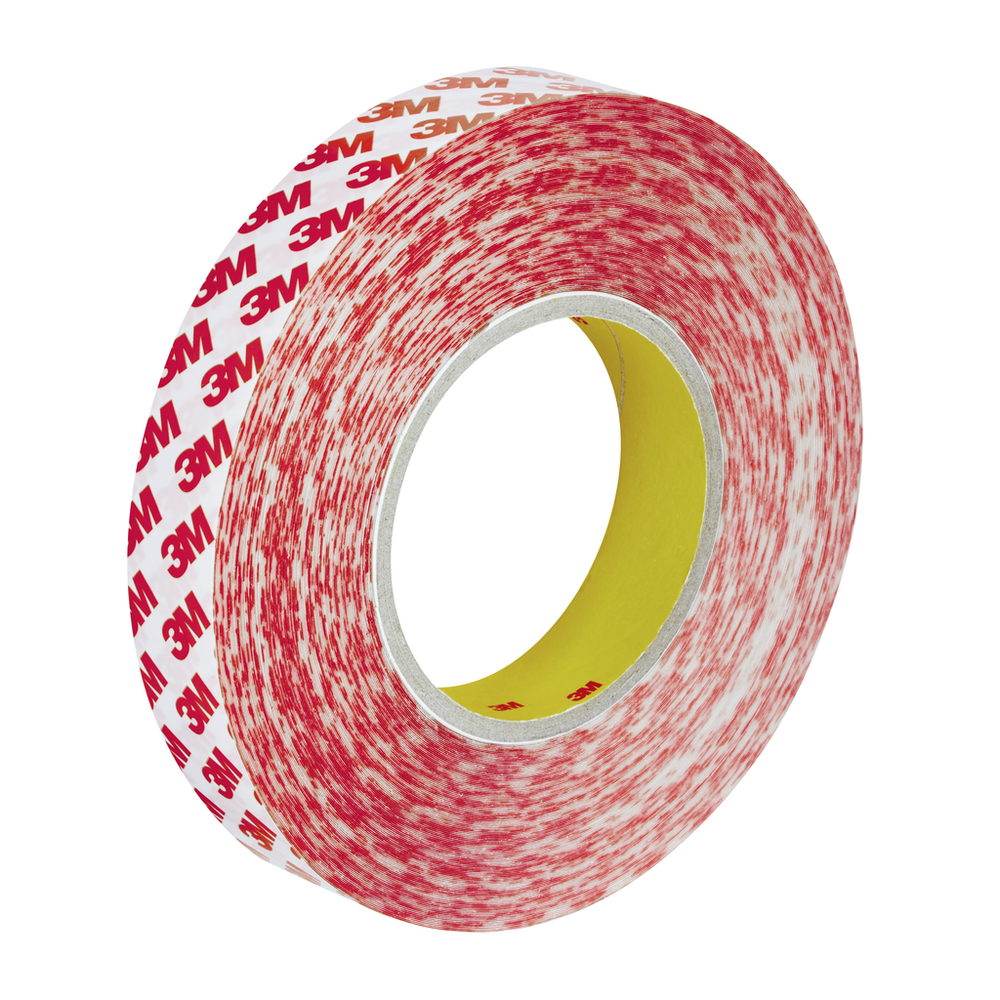

3M™ Double Coated Tape GPT-020F, Film liner, 25mm x 50m, 11 Roll/Case - 7100369937

Sold As: 11-Pack
SKU: 7100369937
MPN: 7100369937
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060760722
3M ID: UU013581432
$176.29 ($16.03 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape GPT-020F is an 8 mil (200 micron), high-tack, pressure-sensitive adhesive tape with a clear polyester carrier and robust polypropylene liner that offers clean handling. Ideal for automated processes and easy to convert due to the flexibility of the film, it bonds to a variety of high to low-surface energy materials, such as glass and stainless steel, while providing excellent humidity resistance. Combining a high level of peel and shear performance this general-use tape allows for high-temperature applications up to 300 °F (149 °C) in short-term operations and up to 200 °F (93 °C) for long-term use. 3M™ Double Coated Tape GPT-020F is suited for a wide range of purposes, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, paper bonding and packaging, splicing, furniture and decorative trim adhesion, and many more. The product is available with a size range of 12 mm to 1540 mm widths and 50 m long. Additionally, you can choose the 1540 mm width and 500 m long roll. Trust 3M™ Double Coated Tape GPT-020F for your next project.

Features

  • PRODUCT OPTIONS: Available in standard roll format with a size range of 9 mm to 1540 mm widths and 50 m long, as well as a 1540 mm width and 500 m long roll
  • FLEXIBLE AND STRONG: An 8 mil (200 micron) thick double-coated tape with a white, 3.9 mil (100 micron) polypropylene liner that is ideal for automated processes
  • HUMIDITY RESISTANCE: Leveraging a polypropylene liner that withstands moisture (not applicable on the paper liner product)
  • HIGH INITIAL TACK: Made with a strong adhesive that sticks to high and low surface energy materials
  • MULTIPURPOSE: Works across many applications, including point-of-purchase displays, indoor and outdoor signage bonding, billboard mounting, furniture assembly, and more
  • HANDLES HIGH TEMPERATURES: Suitable for short-term use at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C)

Downloads

Specifications

Shelf Life547
Country of OriginPoland
Primary Liner Thickness (Metric) UOMmm
Overall Length (Imperial)54.7
Back Side Adhesive Thickness (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric)25.0
Face Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Imperial)1.0
Primary Liner Thickness (Imperial)3.9
Total Tape Thickness without Liner (Metric)0.2
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)149.0
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric)50.0
ApplicationAssembling; Attaching; Bonding; High Strength Adhesion; High Tack Adhesion; Holding; Joining; Laminating; Mounting; Splicing; Tabbing
Adhesive TypeModified Acrylic
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Imperial)3.75
Total Tape Thickness without Liner (Imperial)8.0
Face Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.012
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Face Side Adhesive Thickness (Metric)0.095
IndustriesAppliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print, Signage, Specialty Vehicles
Backing (Carrier) Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial)3.75
Overall Length (Metric) UOMm
Product ColorTransparent
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Imperial) UOMmil
Backing (Carrier) MaterialPET
Maximum Operating Temperature (Fahrenheit)300.0
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Primary Liner ColorWhite
Primary Liner Thickness (Metric)0.1
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)0.47
Minimum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMMonth
Minimum Operating Temperature (Fahrenheit)-40.0
Back Side Adhesive Thickness (Metric)0.095
Units per Case1.0
